Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

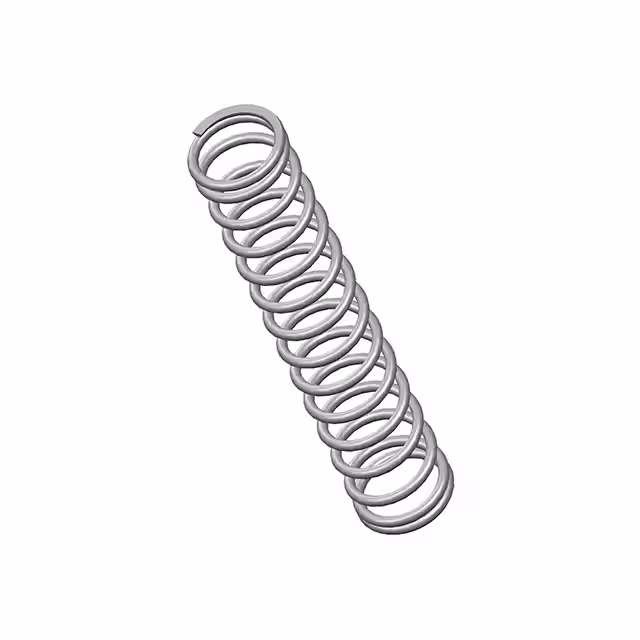

71360CSCOMP O= .420,L= 2.25,W= .045 |
2,765 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 2.250 (57.15mm) | - | 8.7 lbs/in | Closed & Ground |
|

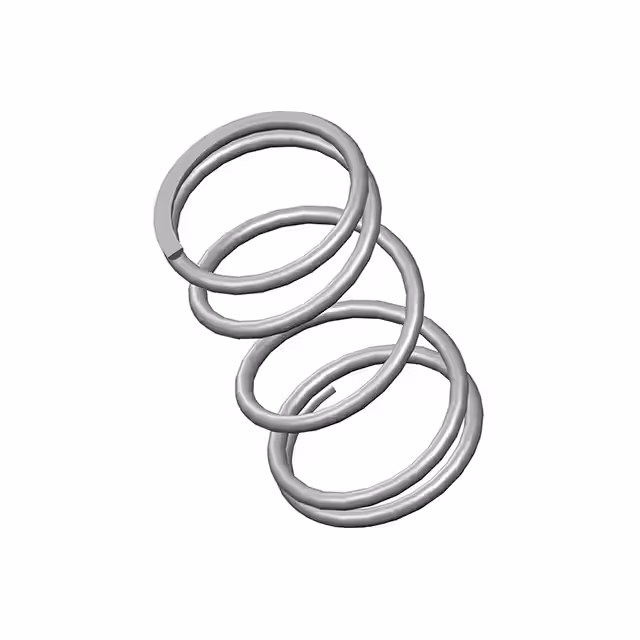

71315CSCOMP O= .420,L= .75,W= .035 |
3,949 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 0.750 (19.05mm) | - | 12.0 lbs/in | Closed & Ground |
|

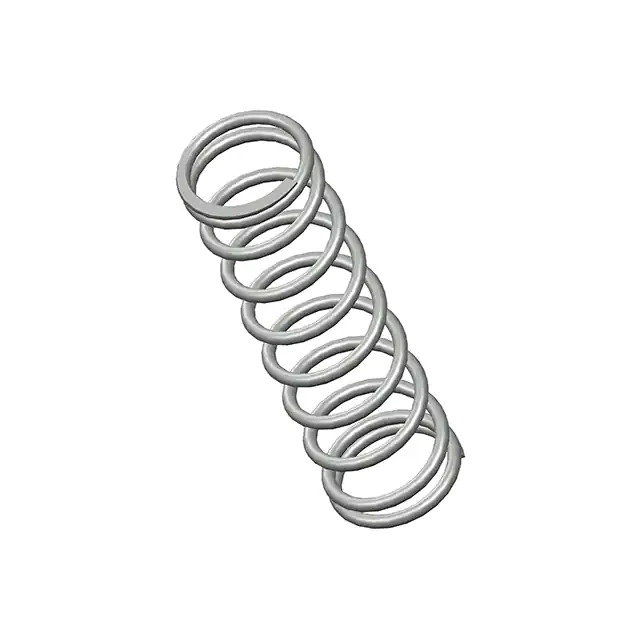

71346CSCOMP O= .420,L= 1.50,W= .042 |
3,454 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 1.500 (38.10mm) | - | 11.0 lbs/in | Closed & Ground |
|

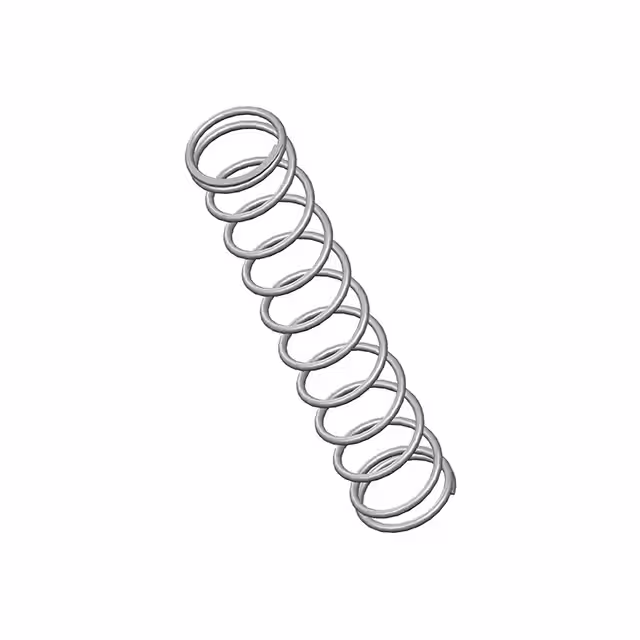

71324CSCOMP O= .420,L= 2.25,W= .035 |
3,420 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 2.250 (57.15mm) | - | 3.2 lbs/in | Closed & Ground |
|

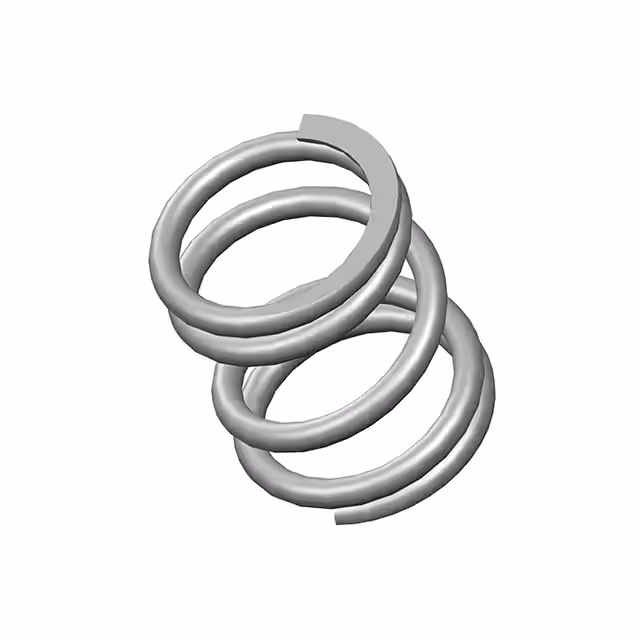

71371CSCOMP O= .420,L= .50,W= .048 |
2,739 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.048 (1.22mm) | 0.420 (10.67mm) | 0.324 (8.23mm) | - | - | 0.500 (12.70mm) | - | 61.0 lbs/in | Closed & Ground |
|

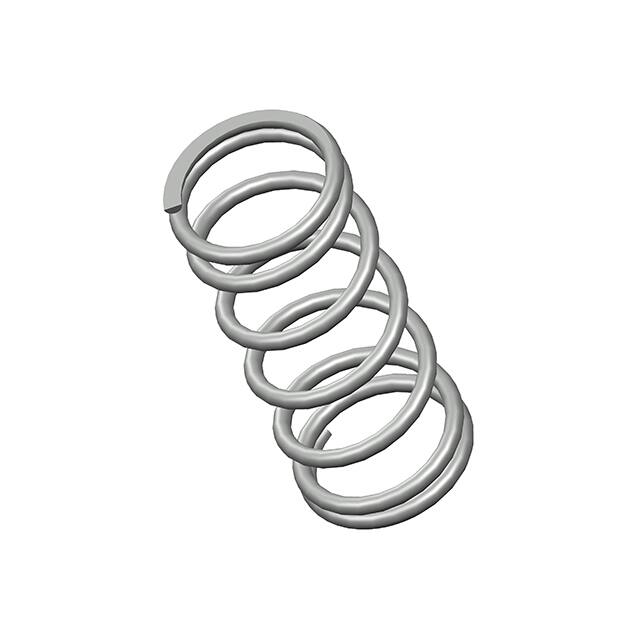

71344CSCOMP O= .420,L= 1.00,W= .042 |
975 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 1.000 (25.40mm) | - | 16.0 lbs/in | Closed & Ground |
|

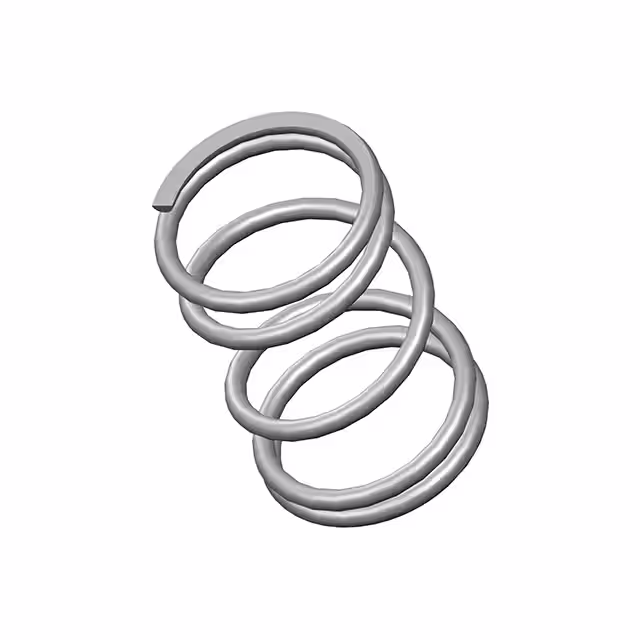

71329CSCOMP O= .420,L= .63,W= .038 |
971 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 0.630 (16.00mm) | - | 18.0 lbs/in | Closed & Ground |
|

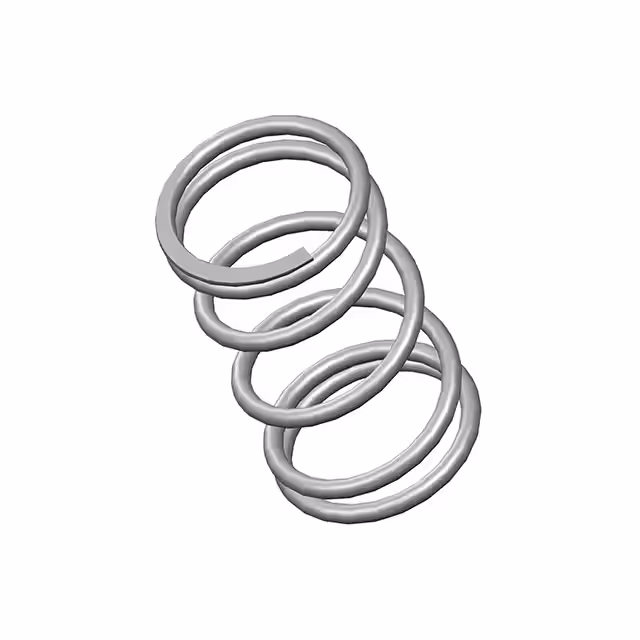

71330CSCOMP O= .420,L= .75,W= .038 |
970 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 0.750 (19.05mm) | - | 14.0 lbs/in | Closed & Ground |
|

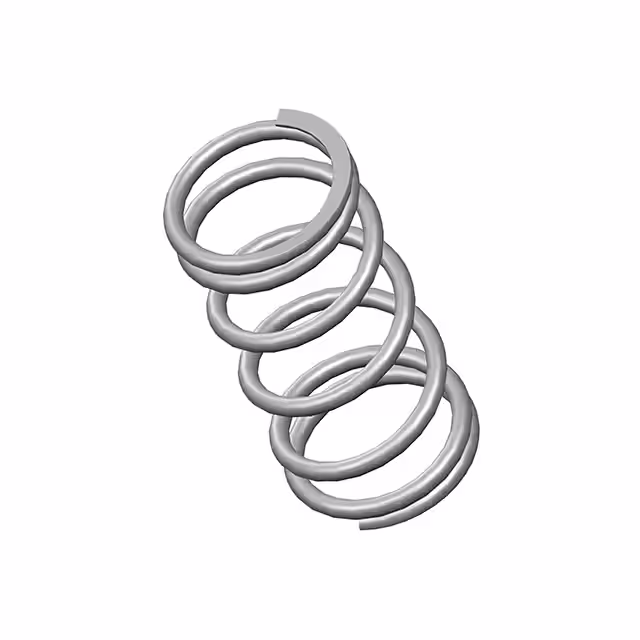

71343CSCOMP O= .420,L= .88,W= .042 |
962 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 0.880 (22.35mm) | - | 19.0 lbs/in | Closed & Ground |
|

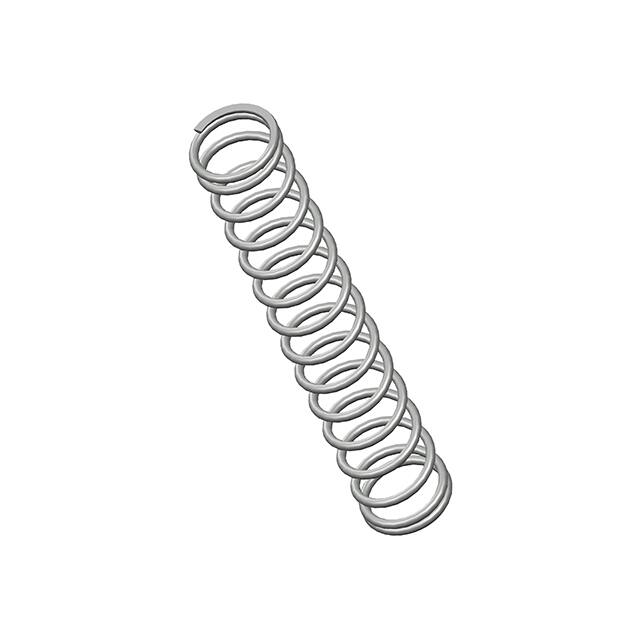

71350CSCOMP O= .420,L= 2.50,W= .042 |
806 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 2.500 (63.50mm) | - | 6.5 lbs/in | Closed & Ground |
|

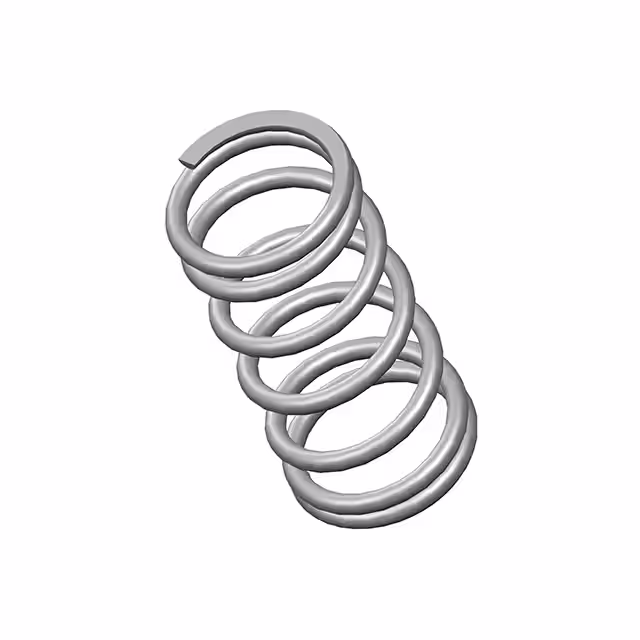

71354CSCOMP O= .420,L= .88,W= .045 |
775 | 7.16 |
RFQ |
Box | - | Active | Music Wire | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 0.880 (22.35mm) | - | 23.0 lbs/in | Closed & Ground | |
|

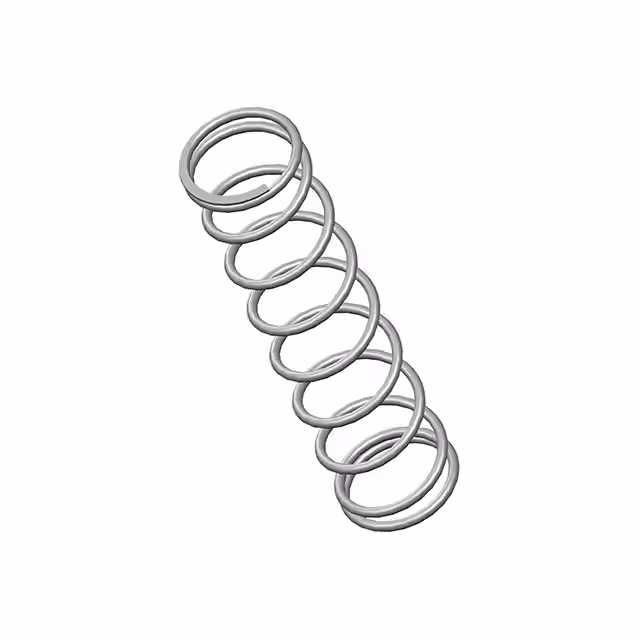

71320CSCOMP O= .420,L= 1.75,W= .035 |
731 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 1.750 (44.45mm) | - | 4.9 lbs/in | Closed & Ground |
|
71380CSCOMP O= .420,L= 1.75,W= .048 |
727 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.048 (1.22mm) | 0.420 (10.67mm) | 0.324 (8.23mm) | - | - | 1.750 (44.45mm) | - | 15.0 lbs/in | Closed & Ground |
|

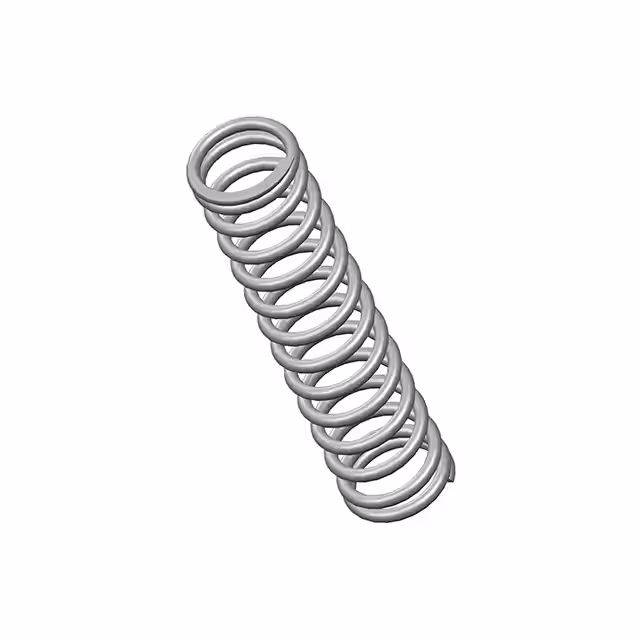

71311CSCOMP O= .390,L= 1.75,W= .047 |
684 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 1.750 (44.45mm) | - | 15.0 lbs/in | Closed & Ground |
|

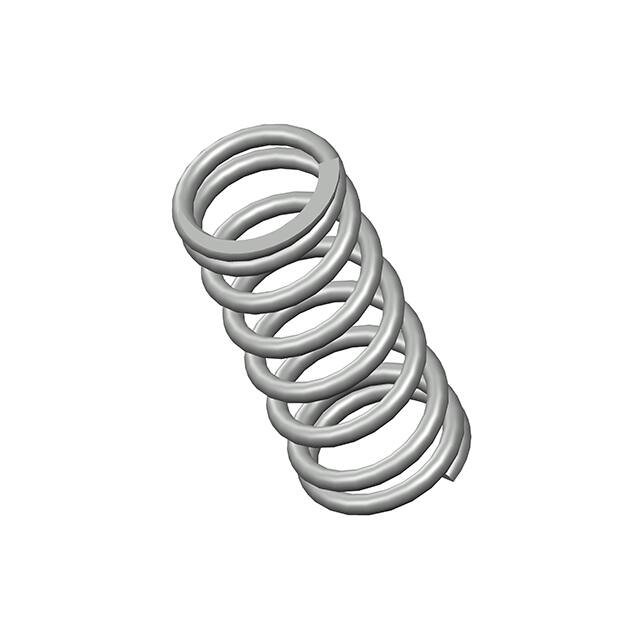

71305CSCOMP O= .390,L= .94,W= .047 |
679 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 0.940 (23.88mm) | - | 28.0 lbs/in | Closed & Ground |
|

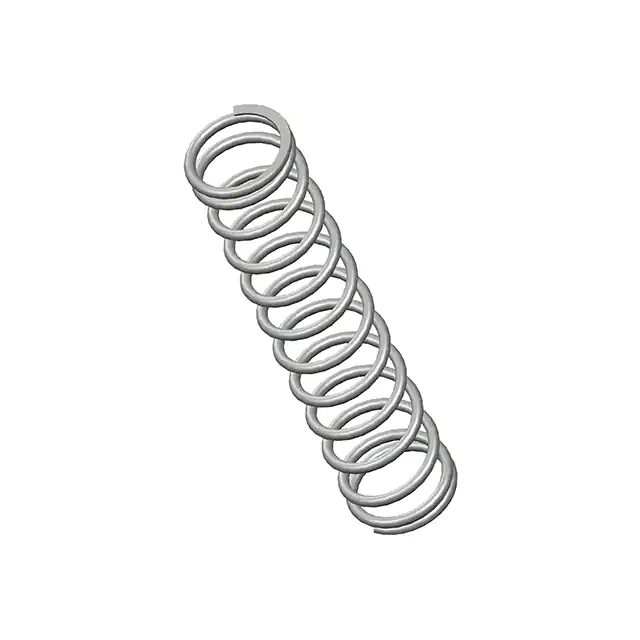

71348CSCOMP O= .420,L= 2.00,W= .042 |
669 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 2.000 (50.80mm) | - | 7.8 lbs/in | Closed & Ground |
|

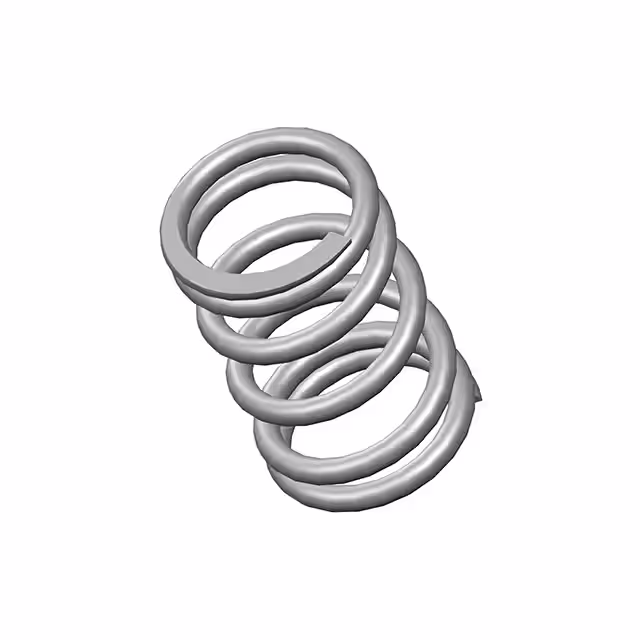

71300CSCOMP O= .390,L= .63,W= .047 |
666 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 0.630 (16.00mm) | - | 45.0 lbs/in | Closed & Ground |
|

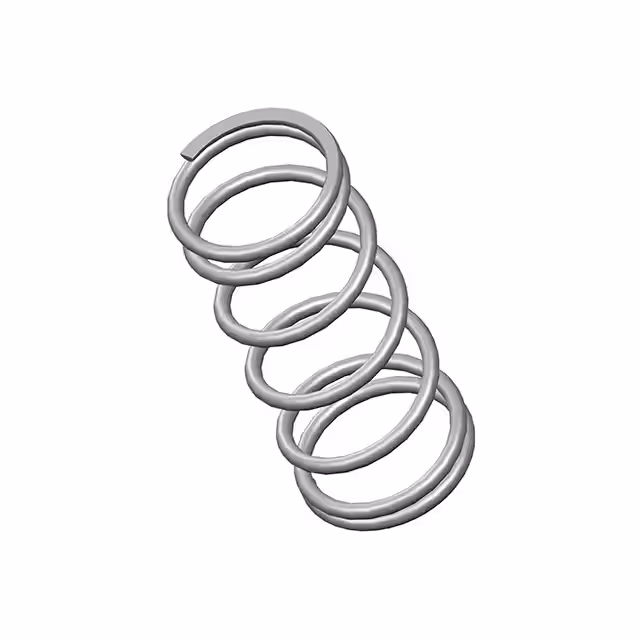

71332CSCOMP O= .420,L= 1.00,W= .038 |
596 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 1.000 (25.40mm) | - | 11.0 lbs/in | Closed & Ground |
|

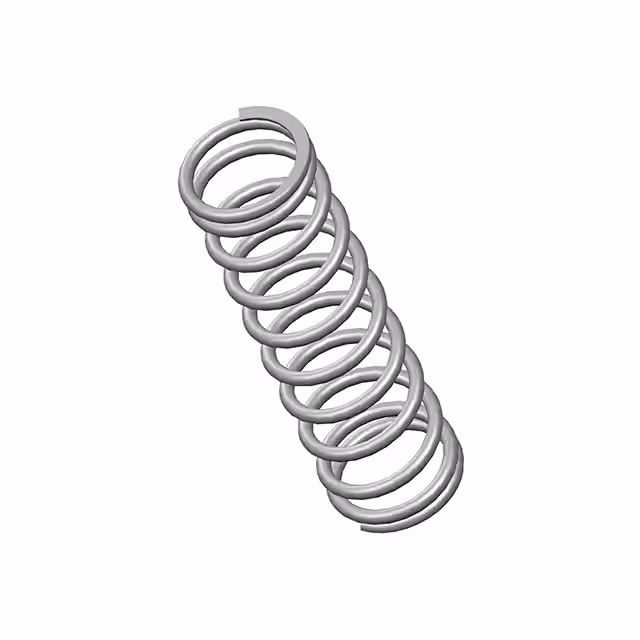

71357CSCOMP O= .420,L= 1.50,W= .045 |
586 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 1.500 (38.10mm) | - | 13.0 lbs/in | Closed & Ground |
|

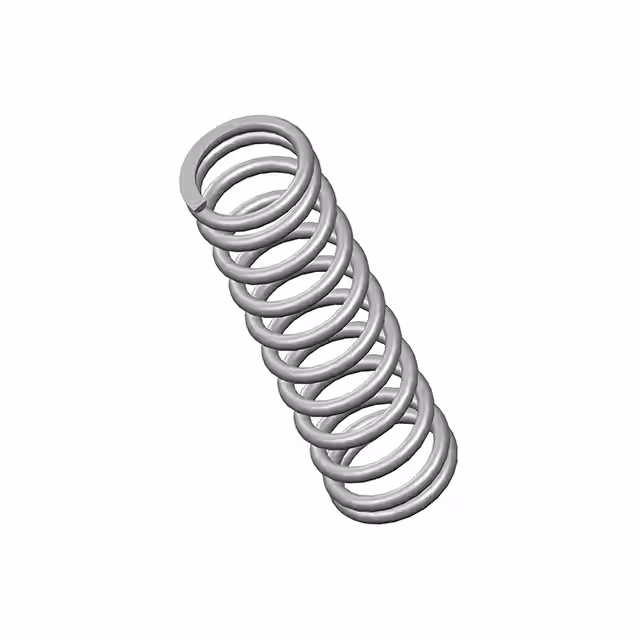

71309CSCOMP O= .390,L= 1.38,W= .047 |
573 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 1.380 (35.05mm) | - | 19.0 lbs/in | Closed & Ground |
