Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

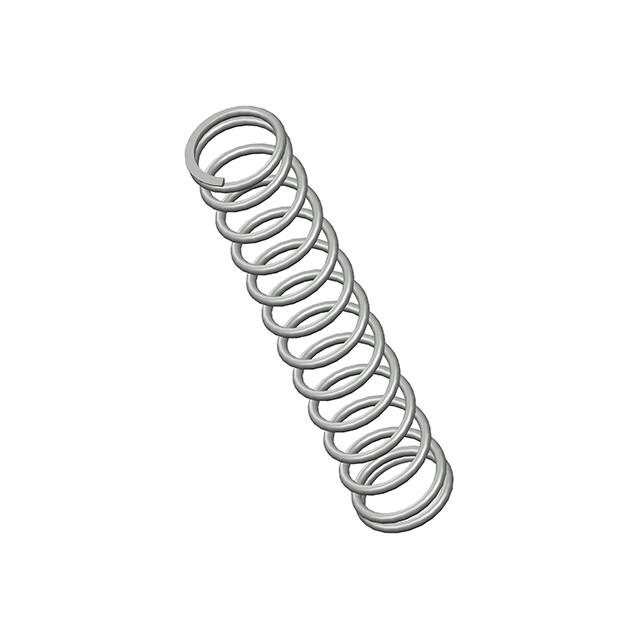

71349CSCOMP O= .420,L= 2.25,W= .042 |
563 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 2.250 (57.15mm) | - | 7.2 lbs/in | Closed & Ground |
|

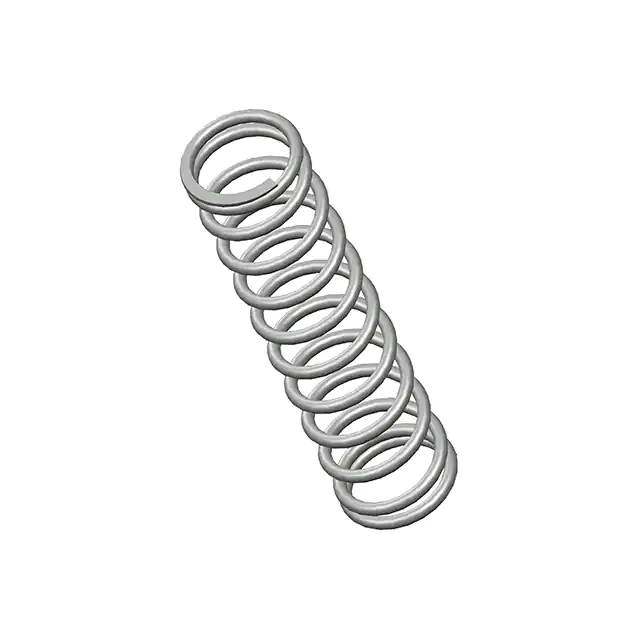

71358CSCOMP O= .420,L= 1.75,W= .045 |
535 | 7.16 |
RFQ |
Box | - | Active | Music Wire | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 1.750 (44.45mm) | - | 11.0 lbs/in | Closed & Ground | |
|

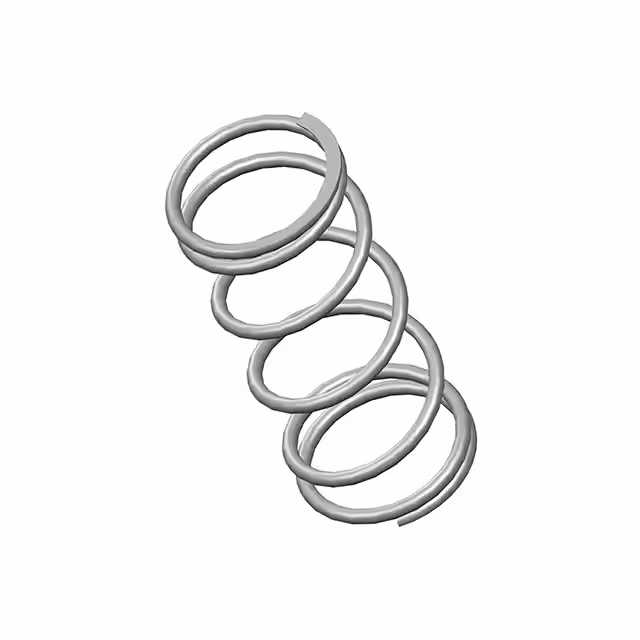

71317CSCOMP O= .420,L= 1.00,W= .035 |
499 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 1.000 (25.40mm) | - | 8.7 lbs/in | Closed & Ground |
|

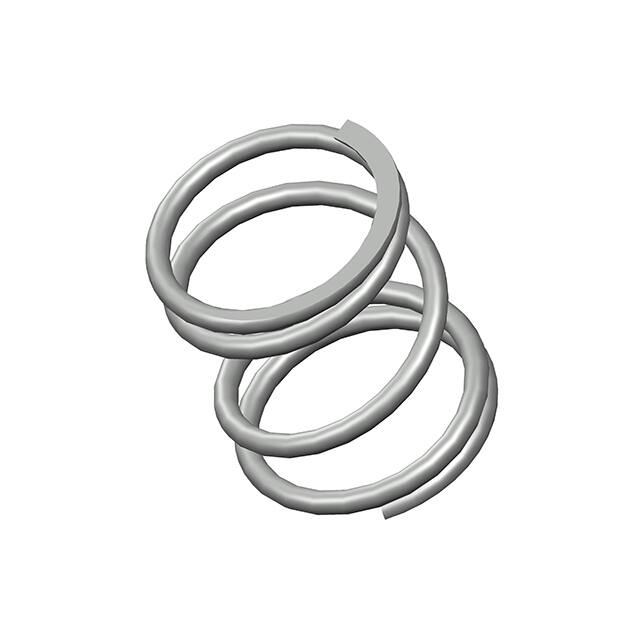

71327CSCOMP O= .420,L= .50,W= .038 |
495 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 0.500 (12.70mm) | - | 23.0 lbs/in | Closed & Ground |
|

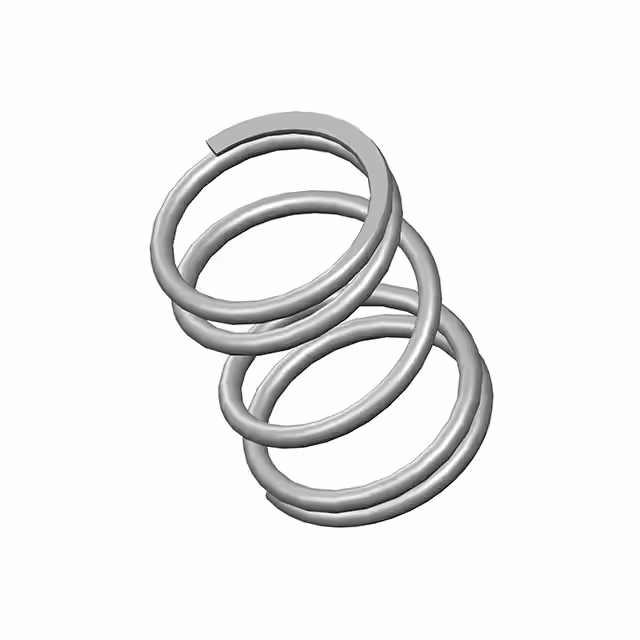

71328CSCOMP O= .420,L= .56,W= .038 |
488 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 0.560 (14.22mm) | - | 20.0 lbs/in | Closed & Ground |
|

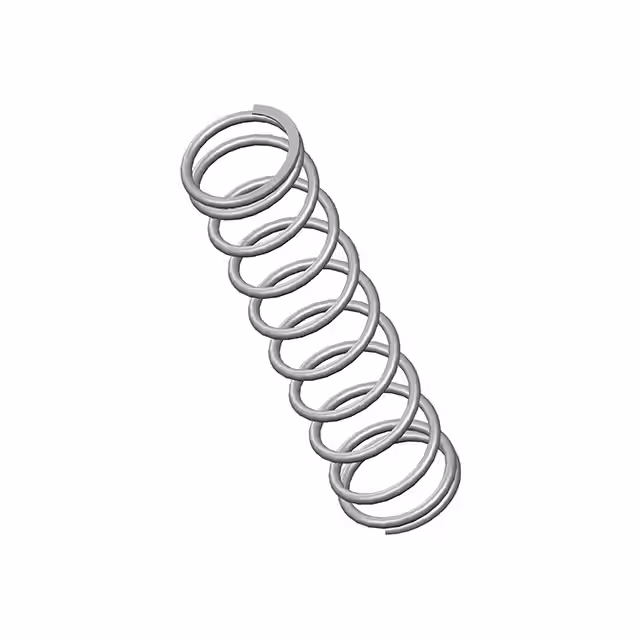

71335CSCOMP O= .420,L= 1.75,W= .038 |
430 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 1.750 (44.45mm) | - | 6.3 lbs/in | Closed & Ground |
|

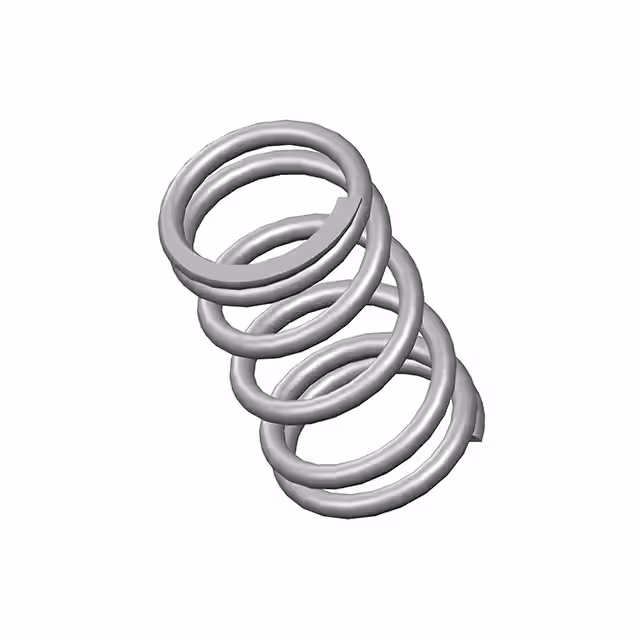

71374CSCOMP O= .420,L= .75,W= .048 |
419 | 7.16 |
RFQ |
Box | - | Active | Music Wire | 0.048 (1.22mm) | 0.420 (10.67mm) | 0.324 (8.23mm) | - | - | 0.750 (19.05mm) | - | 37.0 lbs/in | Closed & Ground | |
|

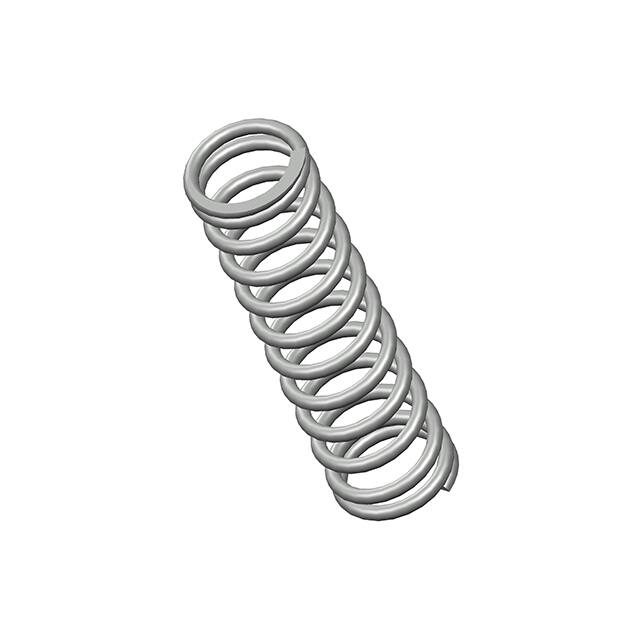

71310CSCOMP O= .390,L= 1.50,W= .047 |
348 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 1.500 (38.10mm) | - | 17.0 lbs/in | Closed & Ground |
|

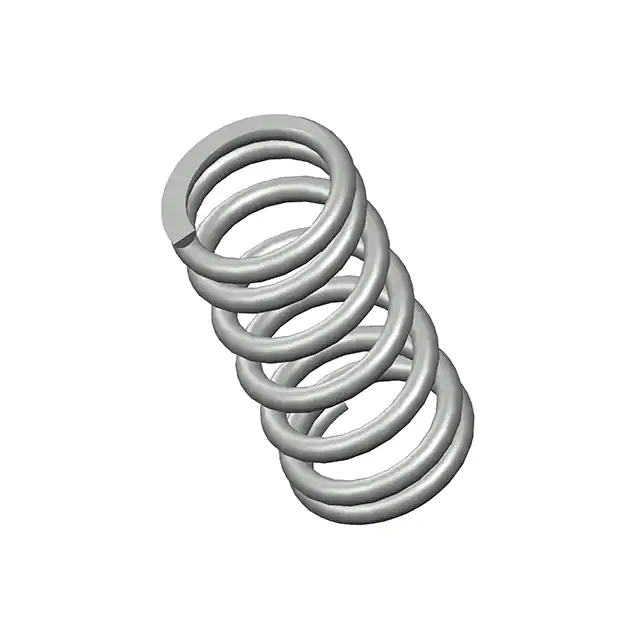

71400CSCOMP O= .420,L= .88,W= .055 |
341 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.420 (10.67mm) | 0.310 (7.87mm) | - | - | 0.880 (22.35mm) | - | 52.0 lbs/in | Closed & Ground |
|

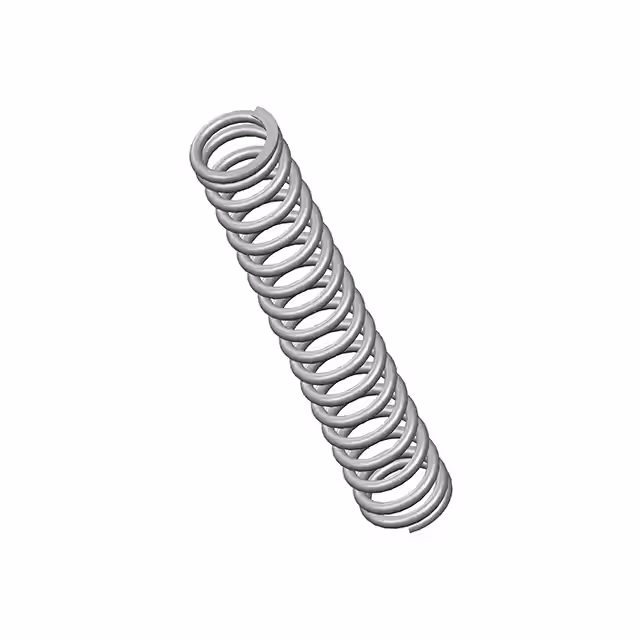

71407CSCOMP O= .420,L= 2.50,W= .055 |
339 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.420 (10.67mm) | 0.310 (7.87mm) | - | - | 2.500 (63.50mm) | - | 17.0 lbs/in | Closed & Ground |
|

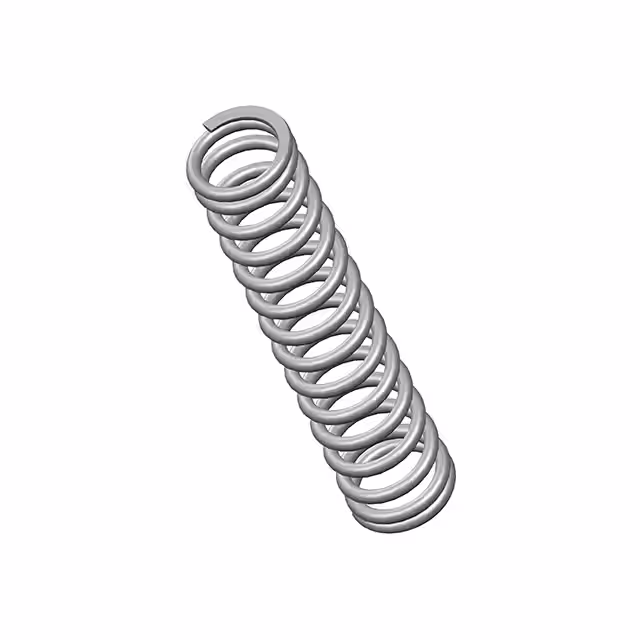

71405CSCOMP O= .420,L= 2.00,W= .055 |
326 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.420 (10.67mm) | 0.310 (7.87mm) | - | - | 2.000 (50.80mm) | - | 21.0 lbs/in | Closed & Ground |
|

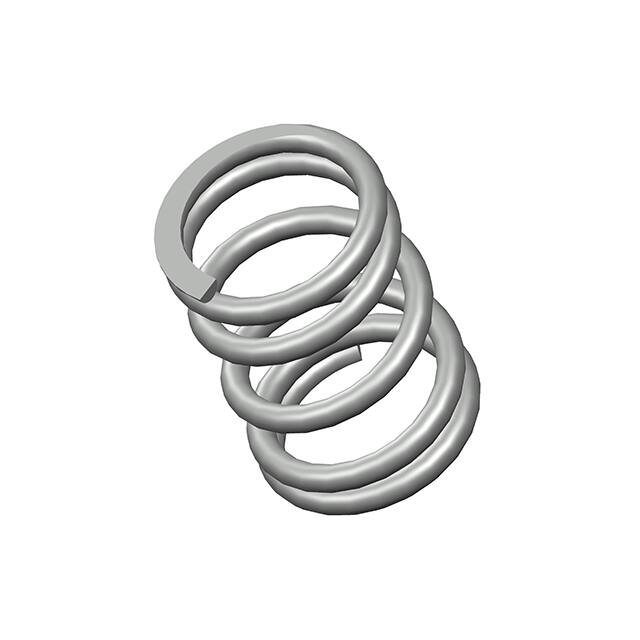

71299CSCOMP O= .390,L= .56,W= .047 |
320 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 0.560 (14.22mm) | - | 51.0 lbs/in | Closed & Ground |
|
71398CSCOMP O= .420,L= .63,W= .055 |
297 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.420 (10.67mm) | 0.310 (7.87mm) | - | - | 0.630 (16.00mm) | - | 75.0 lbs/in | Closed & Ground |
|

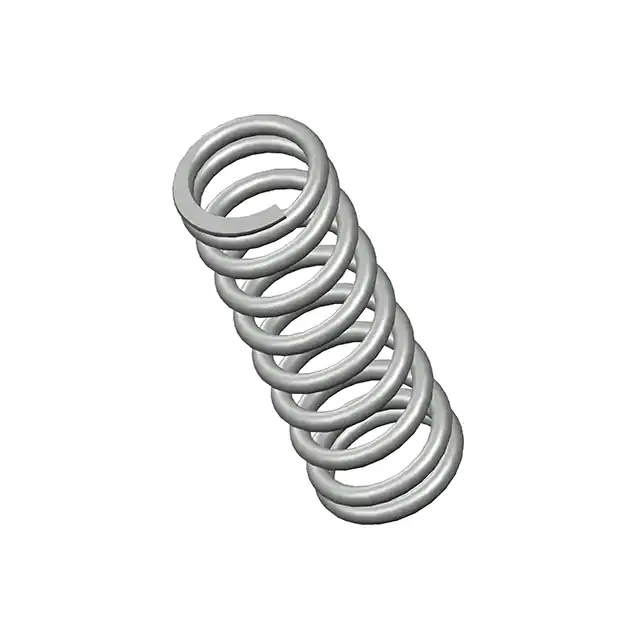

71402CSCOMP O= .420,L= 1.25,W= .055 |
248 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.420 (10.67mm) | 0.310 (7.87mm) | - | - | 1.250 (31.75mm) | - | 35.0 lbs/in | Closed & Ground |
|

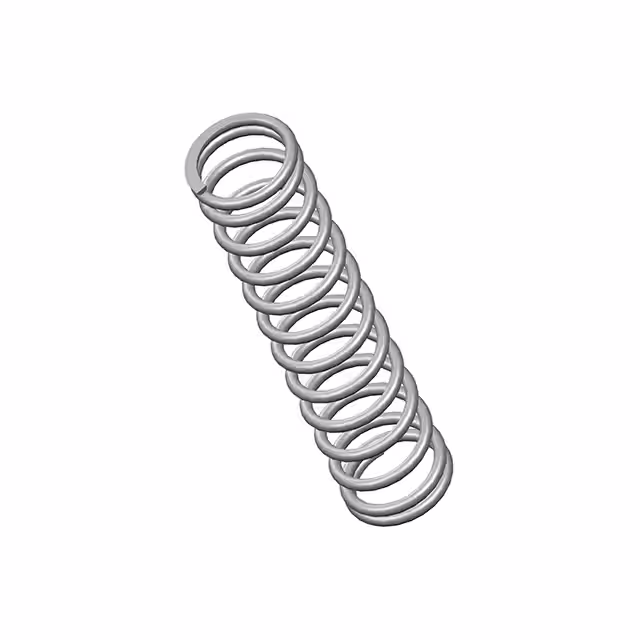

71296CSCOMP O= .390,L= 1.75,W= .043 |
245 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 1.750 (44.45mm) | - | 10.0 lbs/in | Closed & Ground |
|

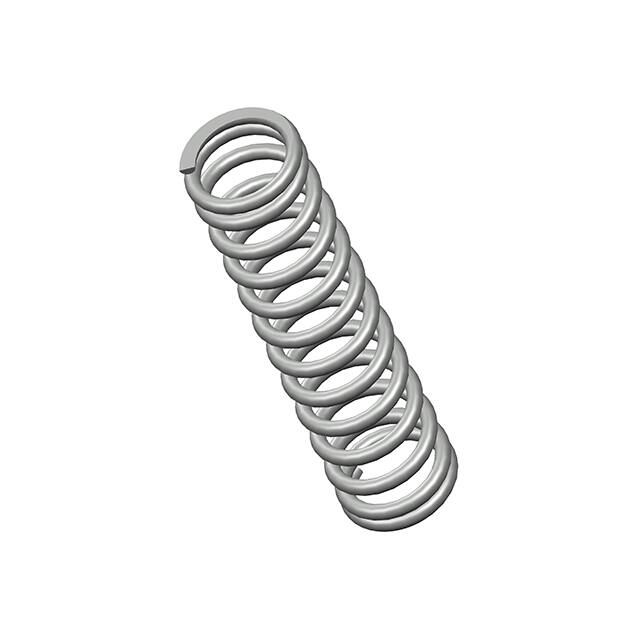

71404CSCOMP O= .420,L= 1.75,W= .055 |
242 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.420 (10.67mm) | 0.310 (7.87mm) | - | - | 1.750 (44.45mm) | - | 24.0 lbs/in | Closed & Ground |
|

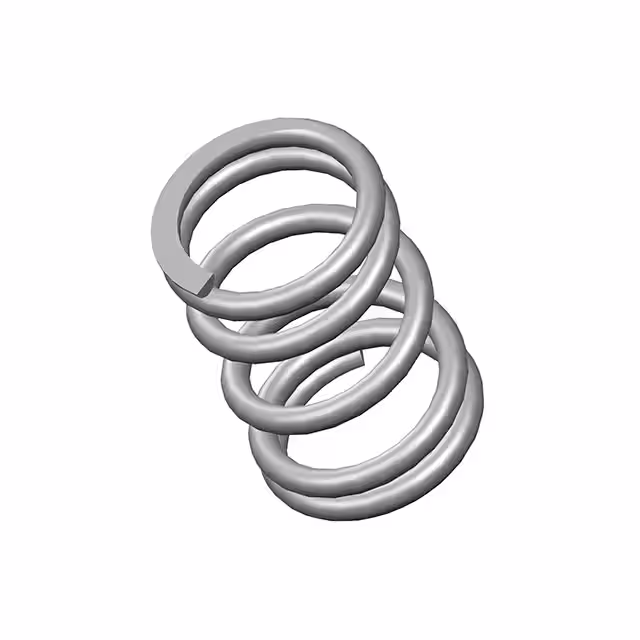

71387CSCOMP O= .420,L= .63,W= .051 |
234 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.051 (1.30mm) | 0.420 (10.67mm) | 0.318 (8.08mm) | - | - | 0.630 (16.00mm) | - | 57.0 lbs/in | Closed & Ground |
|

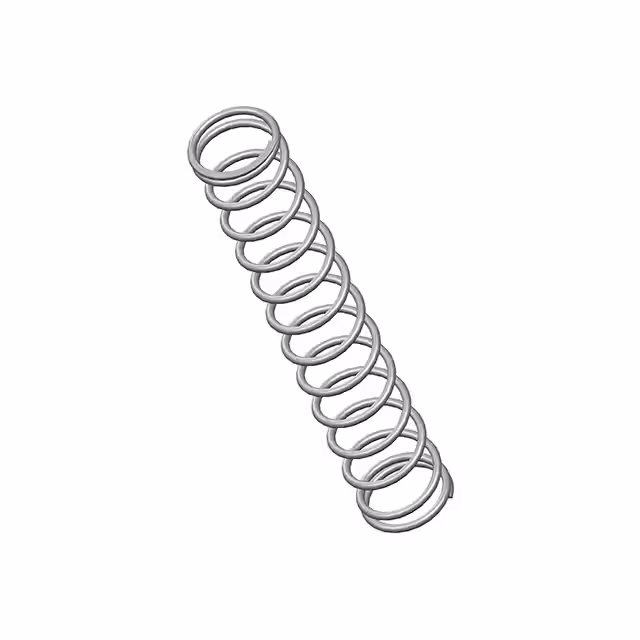

71338CSCOMP O= .420,L= 2.50,W= .038 |
228 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 2.500 (63.50mm) | - | 4.5 lbs/in | Closed & Ground |
|

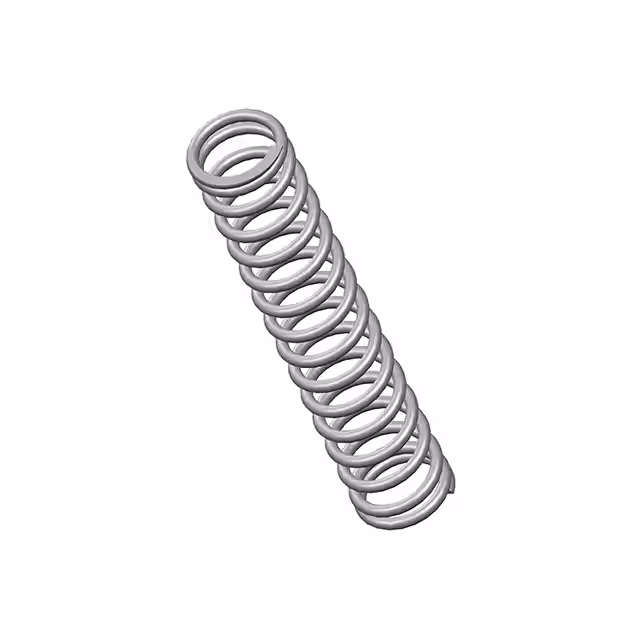

71395CSCOMP O= .420,L= 2.25,W= .051 |
219 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.051 (1.30mm) | 0.420 (10.67mm) | 0.318 (8.08mm) | - | - | 2.250 (57.15mm) | - | 14.0 lbs/in | Closed & Ground |
|

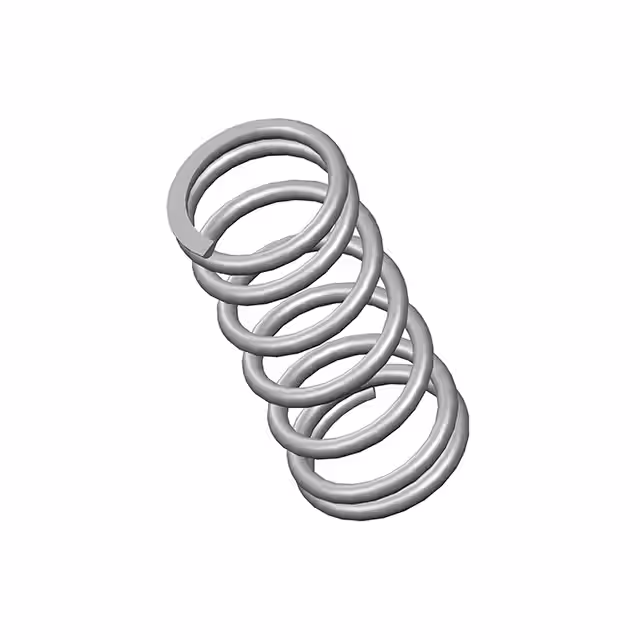

71289CSCOMP O= .390,L= .88,W= .043 |
215 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 0.880 (22.35mm) | - | 22.0 lbs/in | Closed & Ground |
