Categories
Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

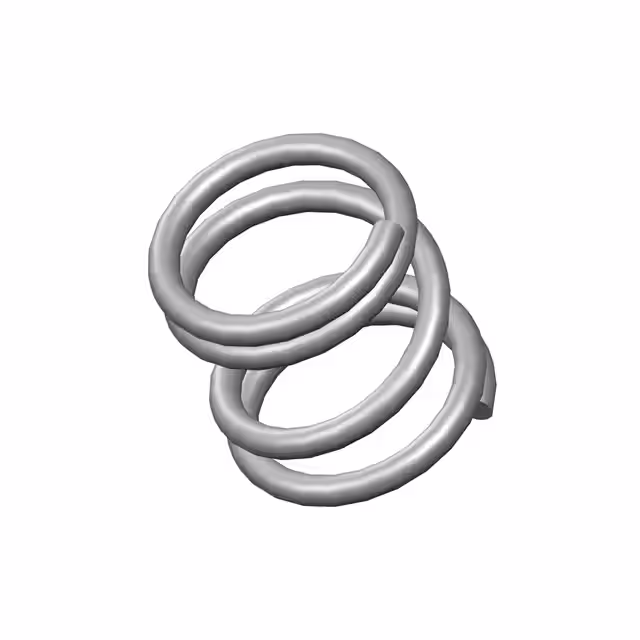

10993CSCOMP O= .484,L= .56,W= .056 |
188 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.056 (1.42mm) | 0.484 (12.29mm) | 0.372 (9.45mm) | - | - | 0.560 (14.22mm) | - | 90.0 lbs/in | Closed |
|

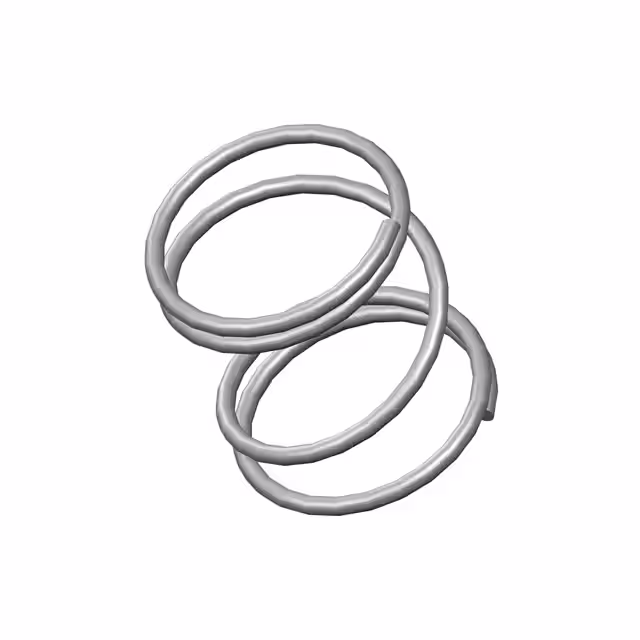

3611CSCOMP O= .500,L= .59,W= .035 |
3,815 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.500 (13.97mm) | 0.430 (10.92mm) | - | - | 0.590 (14.99mm) | - | 11.0 lbs/in | Closed |
|

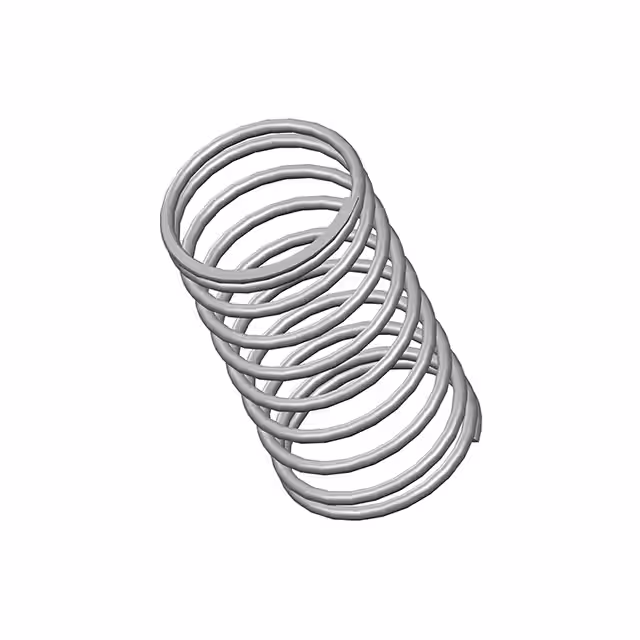

V-7CSCOMP O= .406,L= .75,W= .027 |
3,819 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.027 (0.69mm) | 0.406 (10.31mm) | 0.352 (8.94mm) | - | - | 0.750 (19.05mm) | - | 1.8 lbs/in | Closed & Ground |
|

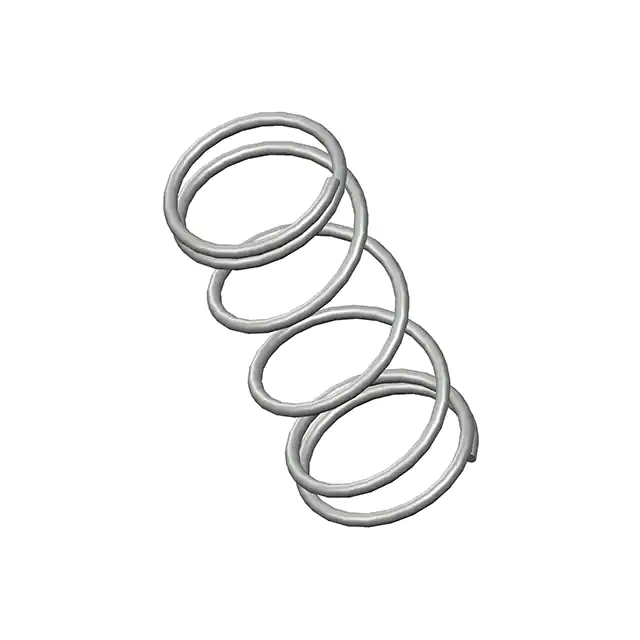

Z-44CSCOMP O= .468,L= 1.13,W= .035 |
3,648 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
|

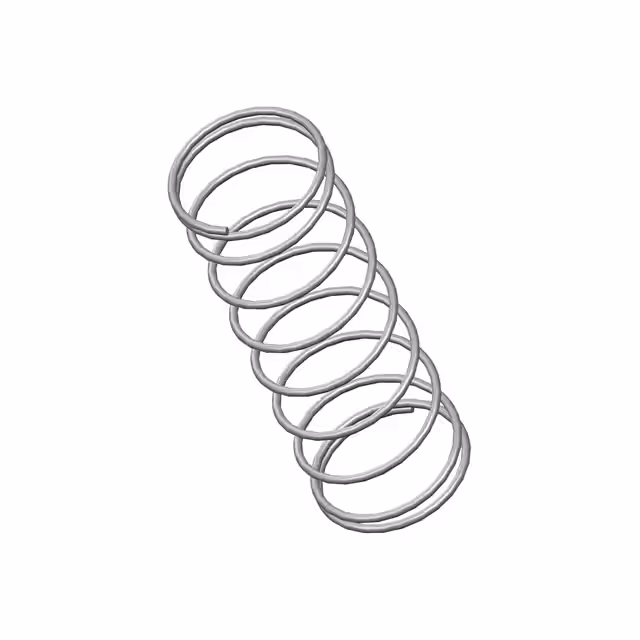

2849CSCOMP O= .453,L= 1.34,W= .024 |
2,785 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.024 (0.61mm) | 0.453 (11.51mm) | 0.405 (10.29mm) | - | - | 1.340 (34.04mm) | - | 0.81 lbs/in | Closed |
|

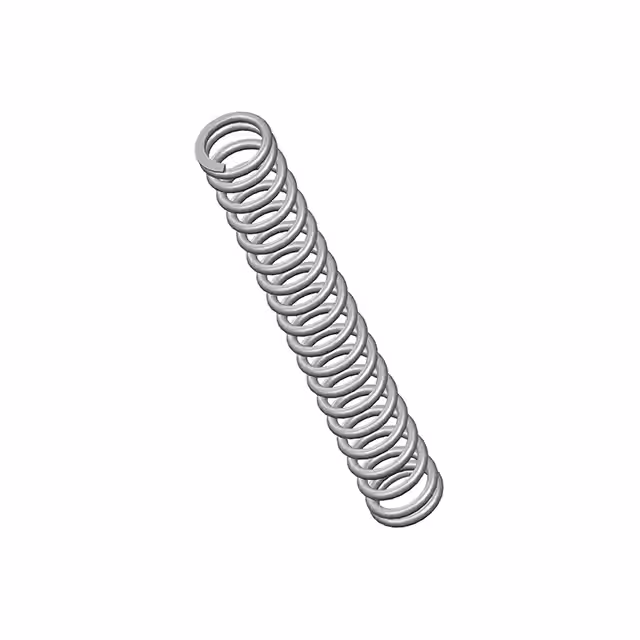

Z-61CSCOMP O= .312,L= 2.25,W= .042 |
670 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
|

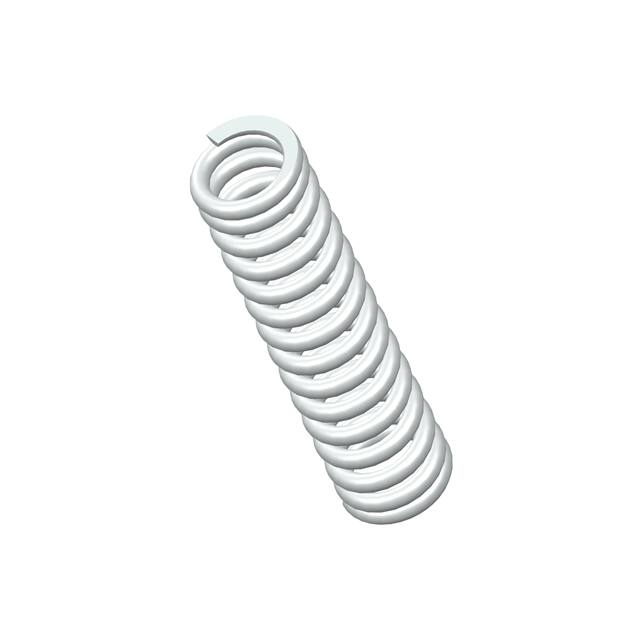

S-1502CSCOMP O= .188,L= .78,W= .031 |
649 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.031 (0.79mm) | 0.188 (4.78mm) | 0.126 (3.20mm) | - | - | 0.780 (19.81mm) | - | 24.0 lbs/in | Closed & Ground |
|

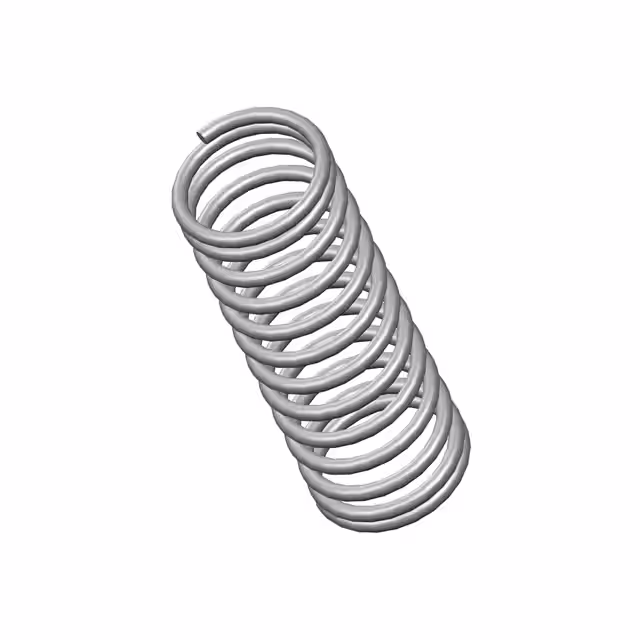

3166CSCOMP O= .437,L= 1.25,W= .042 |
639 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.042 (1.07mm) | 0.437 (11.10mm) | 0.353 (8.97mm) | - | - | 1.250 (31.75mm) | - | 6.7 lbs/in | Closed |
|

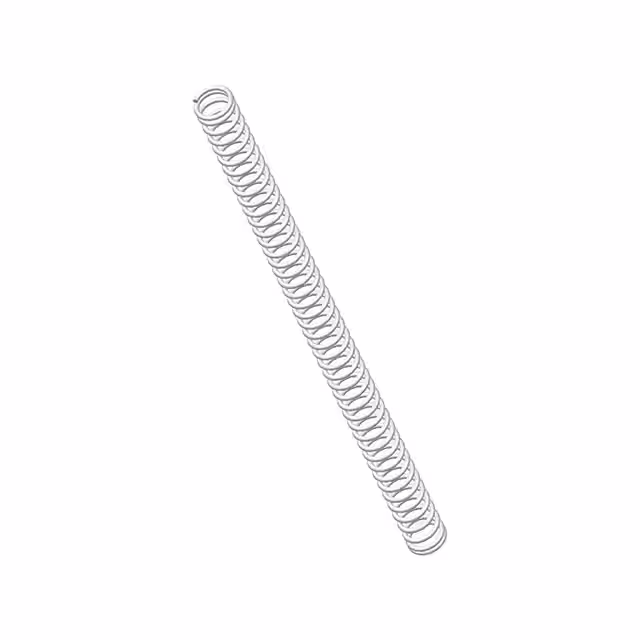

VV-54CSCOMP O= .188,L= 3.13,W= .024 |
531 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.188 (4.78mm) | 0.140 (3.56mm) | - | - | 3.130 (79.50mm) | - | 2.2 lbs/in | Closed |
|

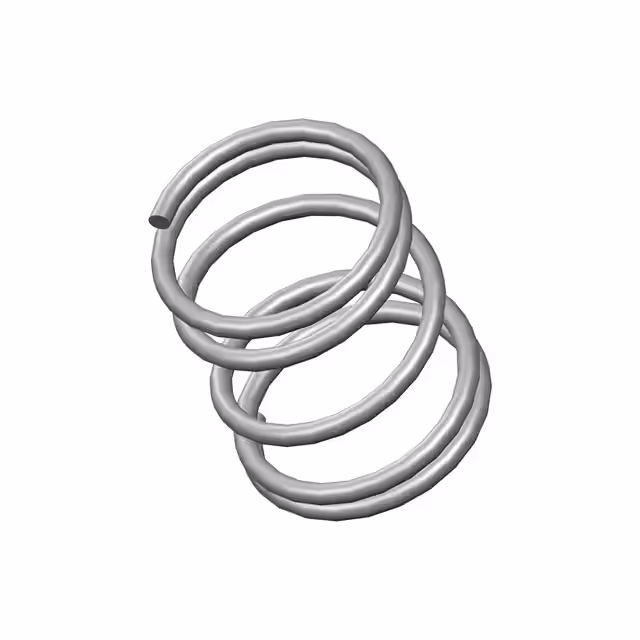

3831CSCOMP O= .500,L= .63,W= .042 |
489 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.042 (1.07mm) | 0.500 (13.97mm) | 0.416 (10.57mm) | - | - | 0.630 (16.00mm) | - | 16.0 lbs/in | Closed |
|

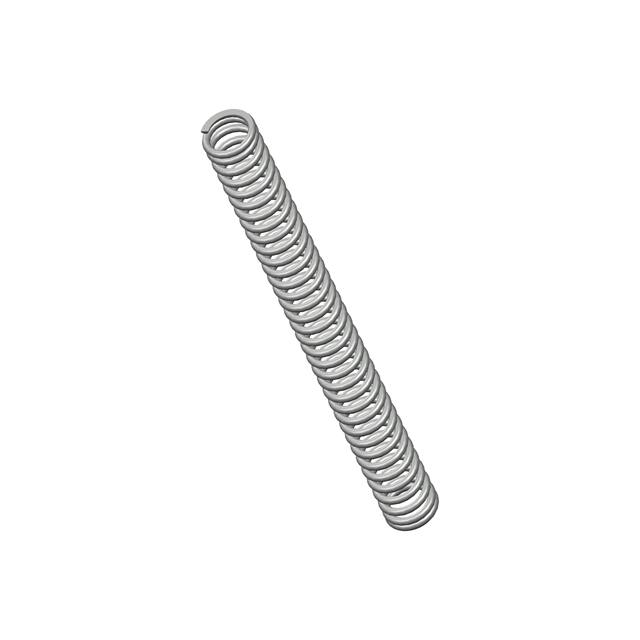

F-57CSCOMP O= .312,L= 3.25,W= .044 |
454 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.044 (1.12mm) | 0.312 (7.92mm) | 0.224 (5.69mm) | - | - | 3.250 (82.55mm) | - | 8.5 lbs/in | Closed & Ground |
|

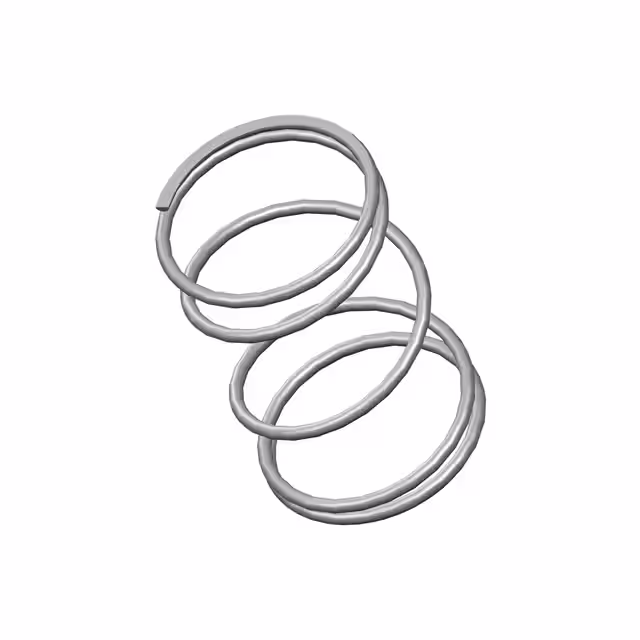

B11-37CSCOMP O= .531,L= .81,W= .032 |
441 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.032 (0.81mm) | 0.531 (13.49mm) | 0.467 (11.86mm) | - | - | 0.810 (20.57mm) | - | 4.0 lbs/in | Closed & Ground |
|

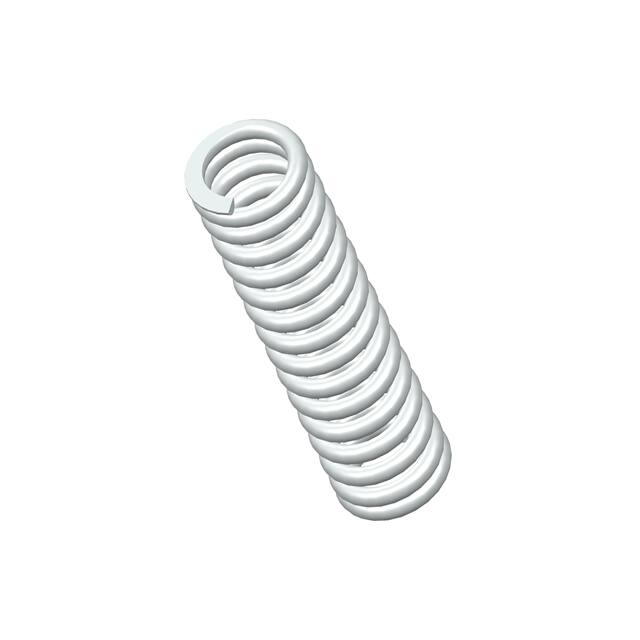

NN-89CSCOMP O= .188,L= .75,W= .030 |
387 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.030 (0.76mm) | 0.188 (4.78mm) | 0.128 (3.25mm) | - | - | 0.750 (19.05mm) | - | 20.0 lbs/in | Closed & Ground |
|

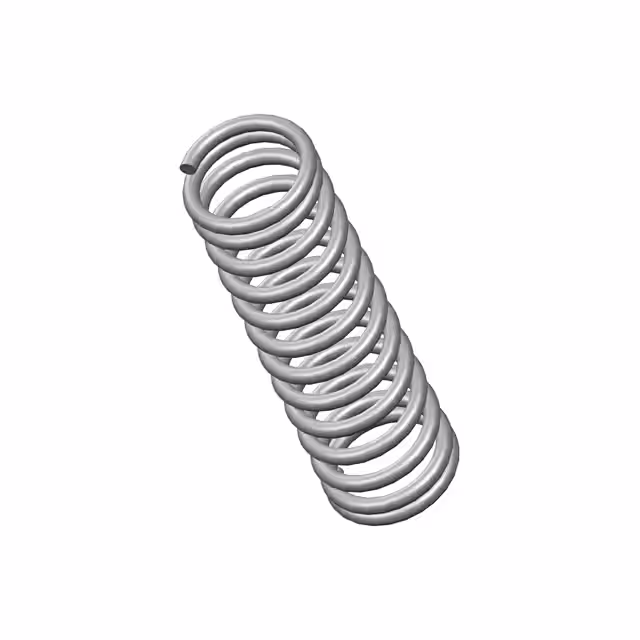

10032CSCOMP O= .375,L= 1.31,W= .045 |
302 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.045 (1.14mm) | 0.375 (9.53mm) | 0.285 (7.24mm) | - | - | 1.310 (33.27mm) | - | 15.0 lbs/in | Closed |
|
EE-13CSCOMP O= .281,L= .44,W= .035 |
205 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.281 (7.14mm) | 0.211 (5.36mm) | - | - | 0.440 (11.18mm) | - | 36.0 lbs/in | Closed & Ground |
|

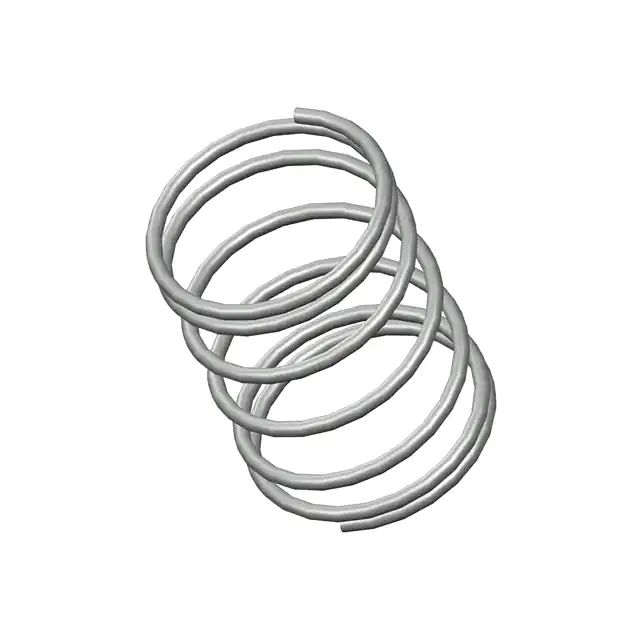

PP-93CSCOMP O= .453,L= .63,W= .028 |
2,979 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.028 (0.71mm) | 0.453 (11.51mm) | 0.397 (10.08mm) | - | - | 0.630 (16.00mm) | - | 2.6 lbs/in | Closed |
|

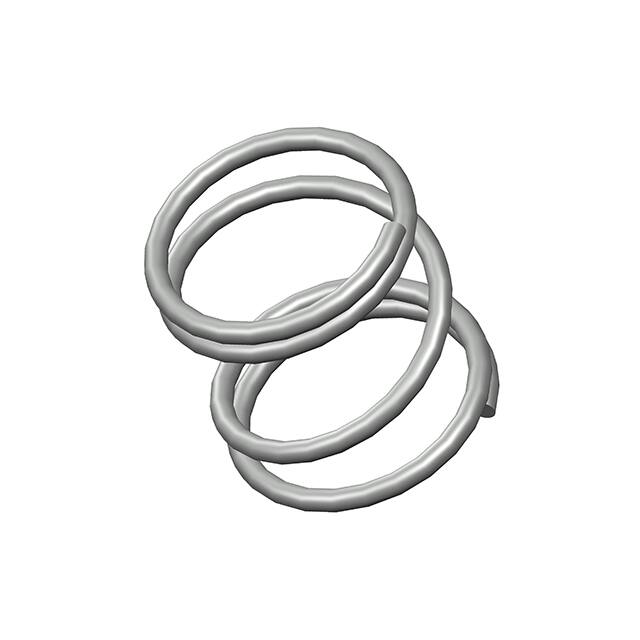

VV-37CSCOMP O= .500,L= .56,W= .042 |
2,542 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.042 (1.07mm) | 0.500 (13.97mm) | 0.416 (10.57mm) | - | - | 0.560 (14.22mm) | - | 23.0 lbs/in | Closed |
|

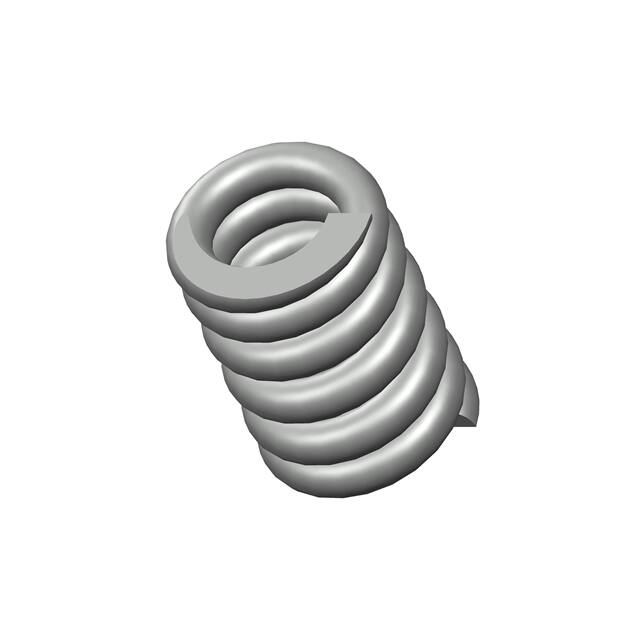

3717CSCOMP O= .328,L= .50,W= .068 |
3,773 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.068 (1.73mm) | 0.328 (8.33mm) | 0.192 (4.88mm) | - | - | 0.500 (12.70mm) | - | 437.0 lbs/in | Closed & Ground |
|

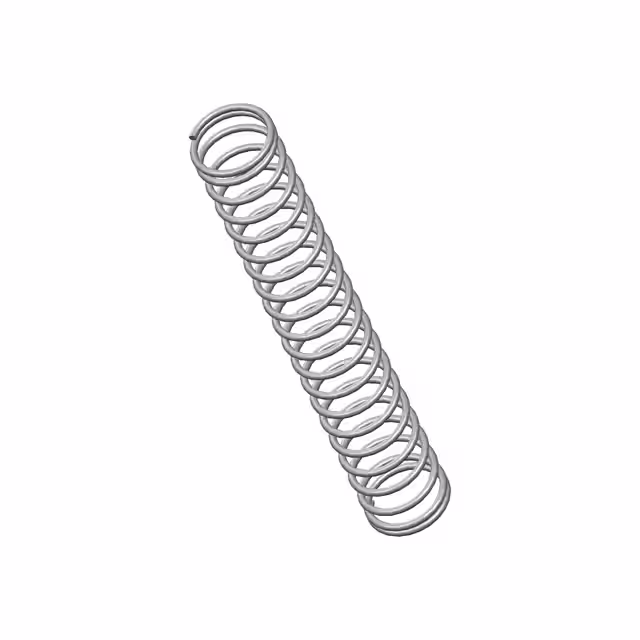

3857CSCOMP O= .420,L= 2.75,W= .036 |
3,237 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.036 (0.91mm) | 0.420 (10.67mm) | 0.348 (8.84mm) | - | - | 2.750 (69.85mm) | - | 2.2 lbs/in | Closed |
|

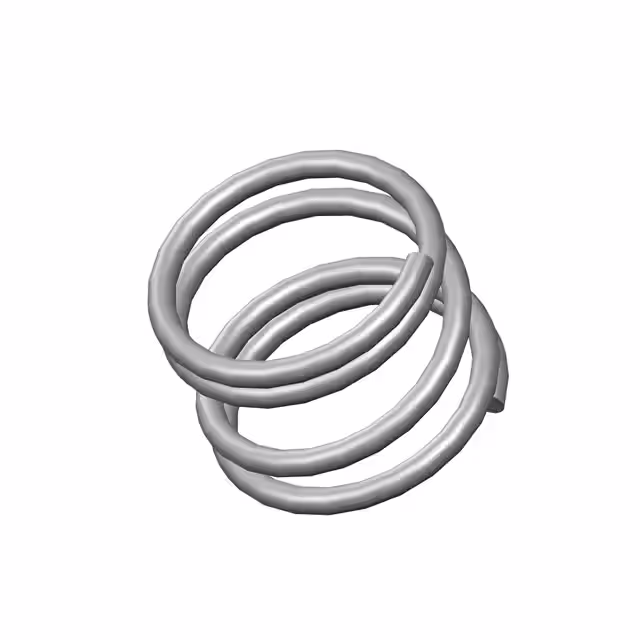

10036CSCOMP O= .453,L= .38,W= .041 |
706 | 2.32 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.041 (1.04mm) | 0.453 (11.51mm) | 0.371 (9.42mm) | - | - | 0.380 (9.65mm) | - | 29.0 lbs/in | Closed |
