Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

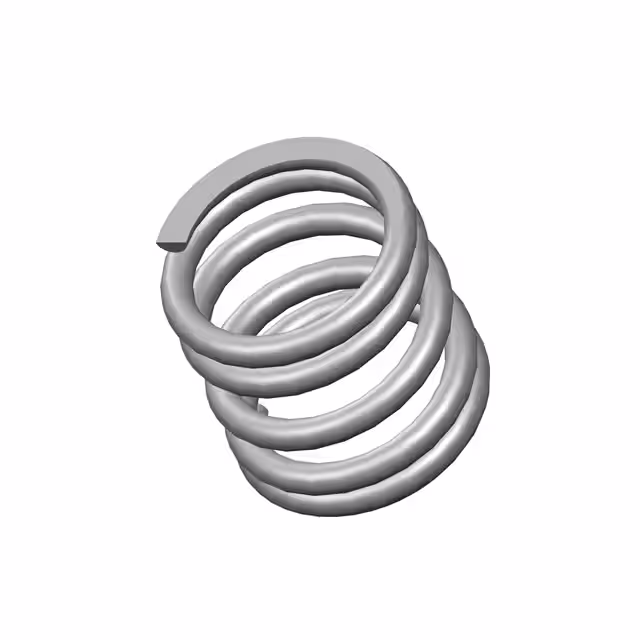

G-52CSCOMP O= .343,L= .34,W= .041 |
494 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.041 (1.04mm) | 0.343 (8.71mm) | 0.261 (6.63mm) | - | - | 0.340 (8.64mm) | - | 47.0 lbs/in | Closed & Ground |
|

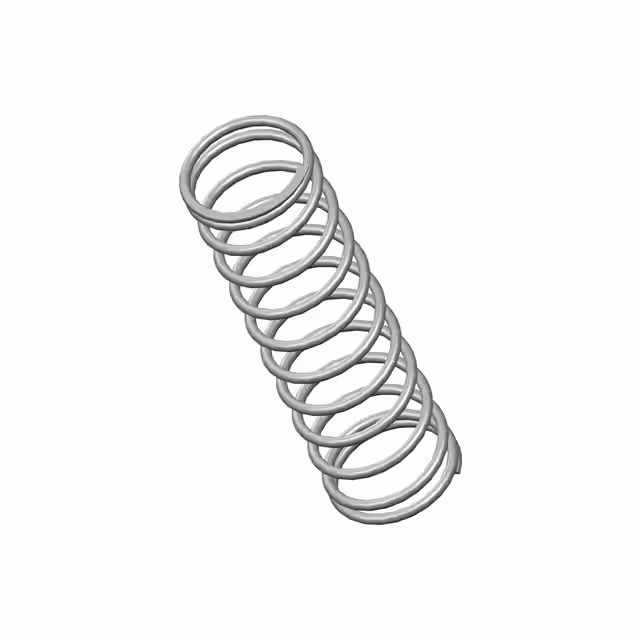

10037CSCOMP O= .390,L= 1.38,W= .031 |
439 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.031 (0.79mm) | 0.390 (9.91mm) | 0.328 (8.33mm) | - | - | 1.380 (35.05mm) | - | 2.9 lbs/in | Closed & Ground |
|

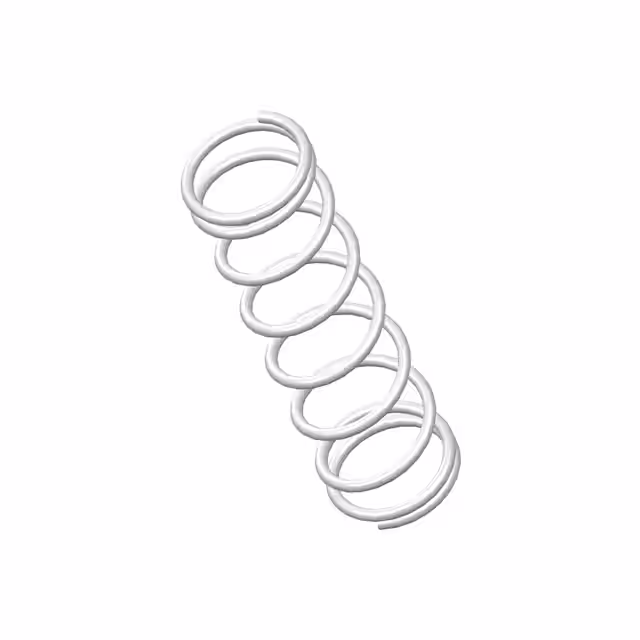

NN-36CSCOMP O= .328,L= 1.19,W= .030 |
398 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.030 (0.76mm) | 0.328 (8.33mm) | 0.268 (6.81mm) | - | - | 1.190 (30.23mm) | - | 6.0 lbs/in | Closed |
|

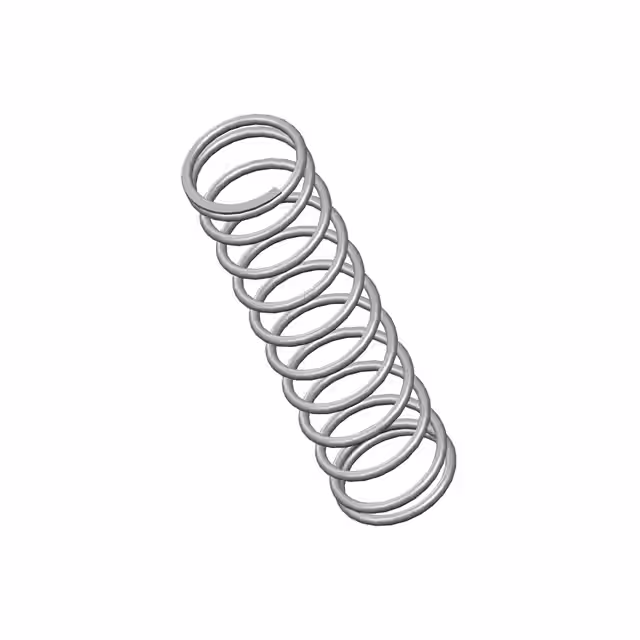

2807CSCOMP O= .312,L= 1.22,W= .026 |
389 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.026 (0.66mm) | 0.312 (7.92mm) | 0.260 (6.60mm) | - | - | 1.220 (30.99mm) | - | 2.9 lbs/in | Closed & Ground |
|

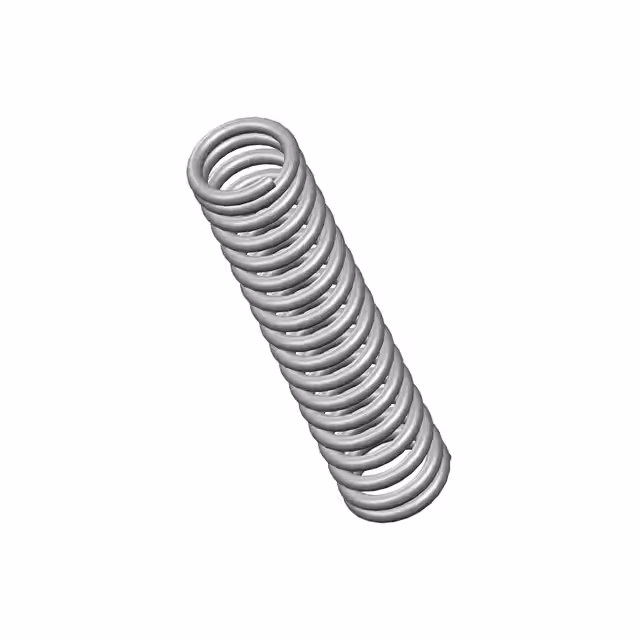

10533CSCOMP O= .406,L= 1.88,W= .056 |
332 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.056 (1.42mm) | 0.406 (10.31mm) | 0.294 (7.47mm) | - | - | 1.880 (47.75mm) | - | 21.0 lbs/in | Closed |
|

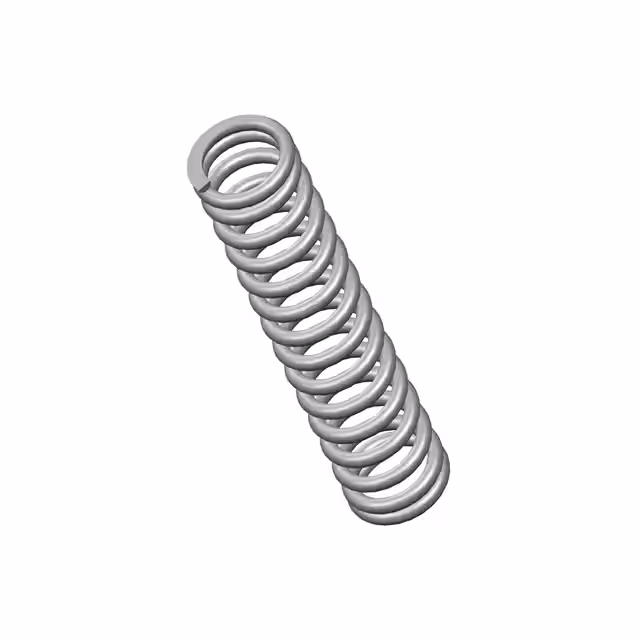

KK-73CSCOMP O= .343,L= 1.63,W= .050 |
299 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.050 (1.27mm) | 0.343 (8.71mm) | 0.243 (6.17mm) | - | - | 1.630 (41.40mm) | - | 27.0 lbs/in | Closed & Ground |
|

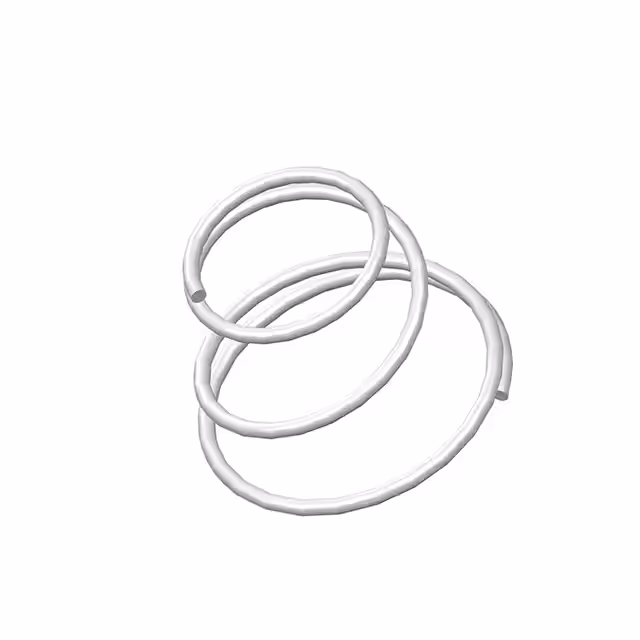

TA-7085SCSLO= 0.975, SO= 0.625, W= 0.049 |
291 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | - | - | 0.625 (15.88mm) | 0.975 (24.77mm) | - | - | - | Closed |
|

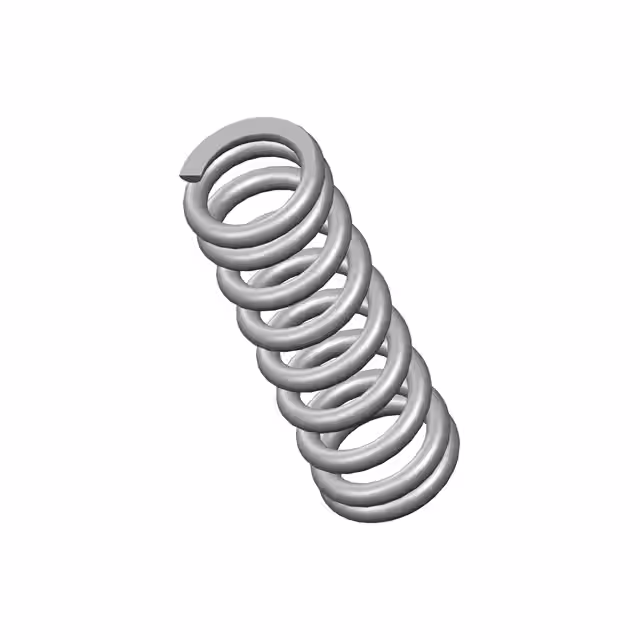

J-16CSCOMP O= .328,L= 1.00,W= .052R |
252 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.052 (1.32mm) | 0.328 (8.33mm) | 0.224 (5.69mm) | - | - | 1.000 (25.40mm) | - | 71.0 lbs/in | Closed & Ground |
|

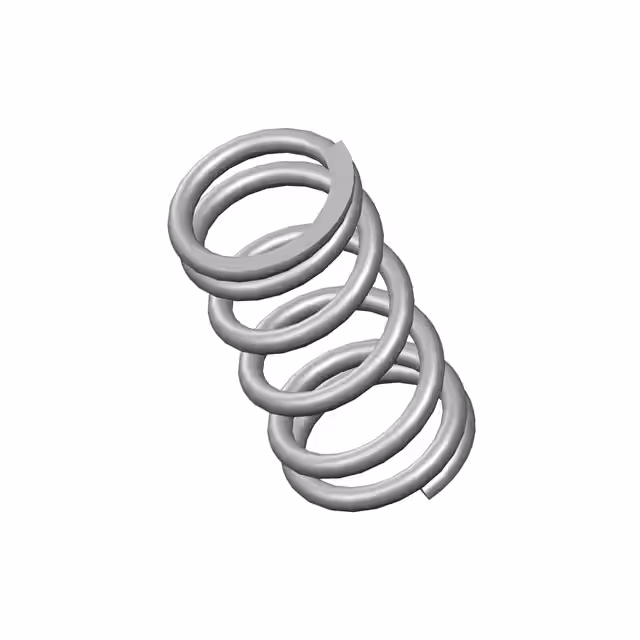

B12-8CSCOMP O= .360,L= .72,W= .045 |
186 | 2.27 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.045 (1.14mm) | 0.360 (9.14mm) | 0.270 (6.86mm) | - | - | 0.720 (18.29mm) | - | 45.0 lbs/in | Closed & Ground |
|

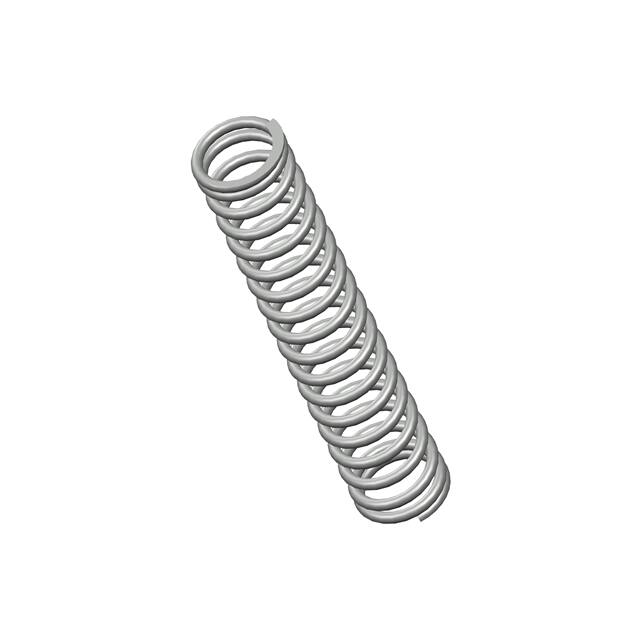

2883CSCOMP O= .390,L= 2.13,W= .047 |
3,155 | 2.28 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 2.130 (54.10mm) | - | 11.0 lbs/in | Closed & Ground |
|

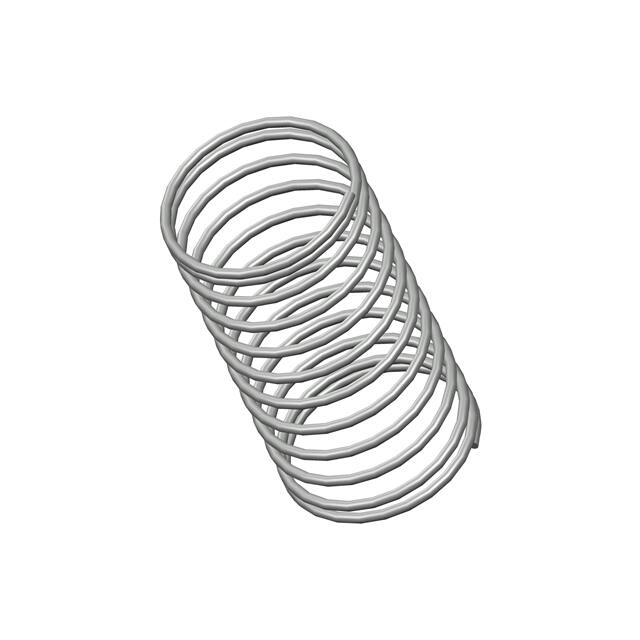

A12-27CSCOMP O= .406,L= .80,W= .021 |
2,336 | 2.28 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.021 (0.53mm) | 0.406 (10.31mm) | 0.364 (9.25mm) | - | - | 0.800 (20.32mm) | - | 0.49 lbs/in | Closed |
|

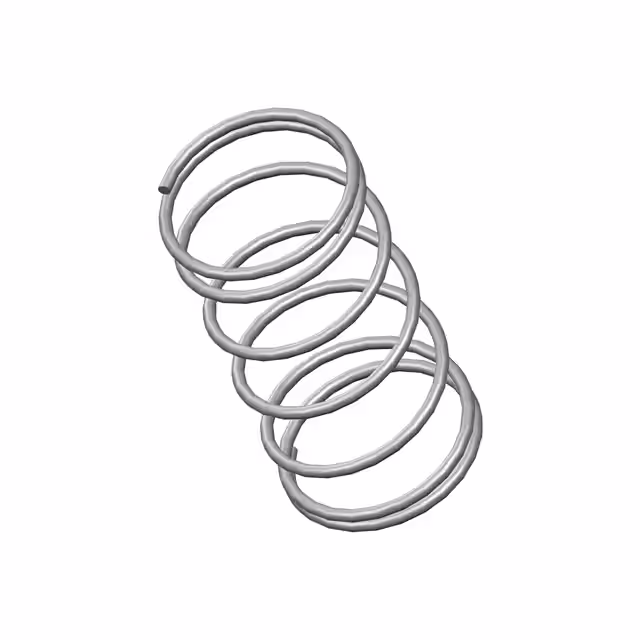

B11-62CSCOMP O= .437,L= .88,W= .027 |
599 | 2.28 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.027 (0.69mm) | 0.437 (11.10mm) | 0.383 (9.73mm) | - | - | 0.880 (22.35mm) | - | 2.2 lbs/in | Closed |
|

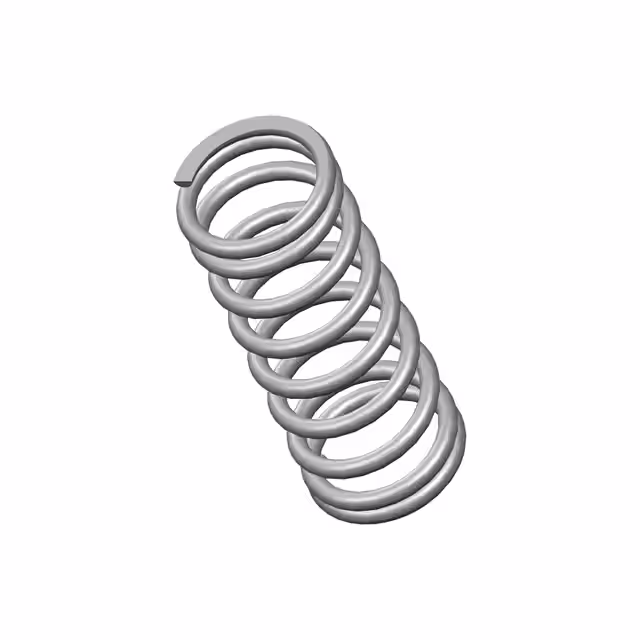

3794CSCOMP O= .406,L= 1.06,W= .047 |
452 | 2.28 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.047 (1.19mm) | 0.406 (10.31mm) | 0.312 (7.92mm) | - | - | 1.060 (26.92mm) | - | 22.0 lbs/in | Closed & Ground |
|

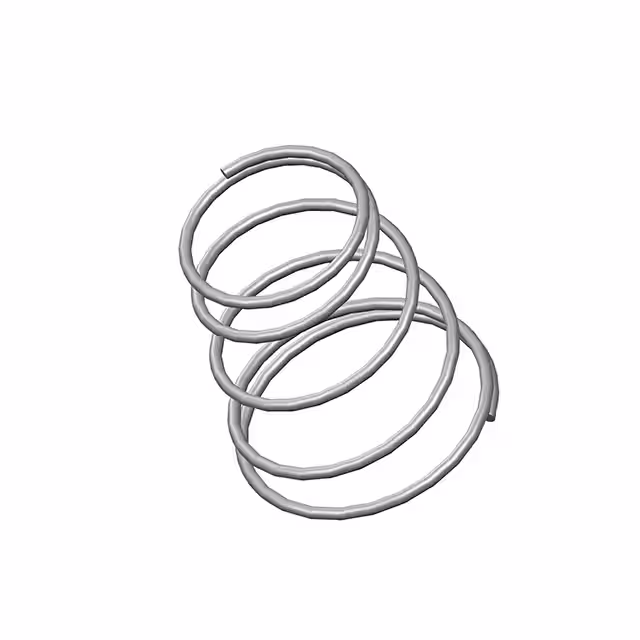

TA-2074CSLO= 0.687, SO= 0.5, W= 0.032 |
358 | 2.28 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.032 (0.81mm) | - | 0.440 (11.18mm) | 0.500 (12.70mm) | 0.687 (17.45mm) | 0.810 (20.57mm) | - | 2.8 lbs/in | Closed |
|

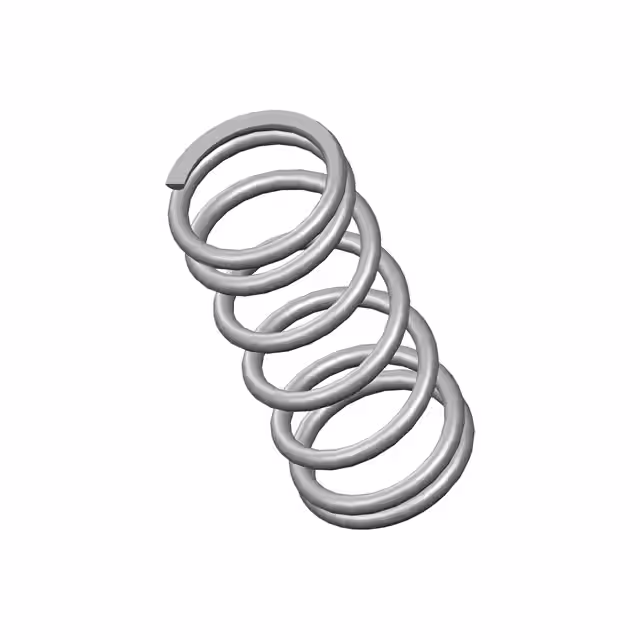

12657CSCOMP O= .437,L= 1.00,W= .047 |
164 | 2.28 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.437 (11.10mm) | 0.343 (8.71mm) | - | - | 1.000 (25.40mm) | - | 24.0 lbs/in | Closed & Ground |
|

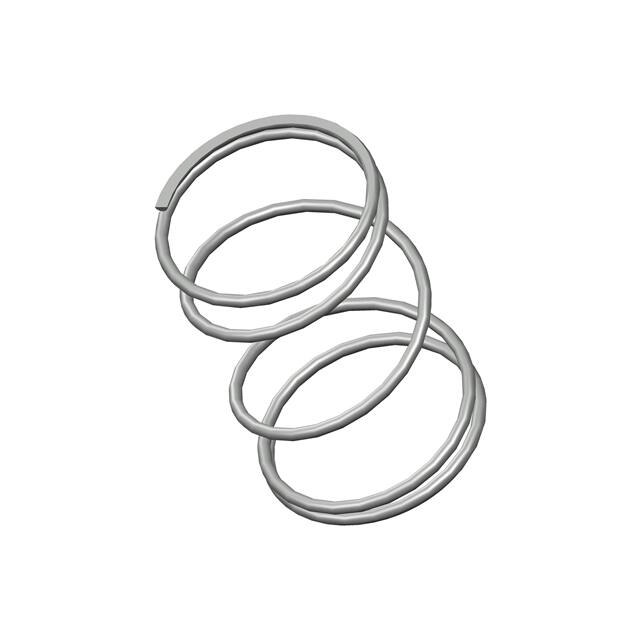

12200CSCOMP O= .578,L= .88,W= .032 |
925 | 2.30 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.032 (0.81mm) | 0.578 (14.68mm) | 0.514 (13.06mm) | - | - | 0.880 (22.35mm) | - | 3.1 lbs/in | Closed & Ground |
|

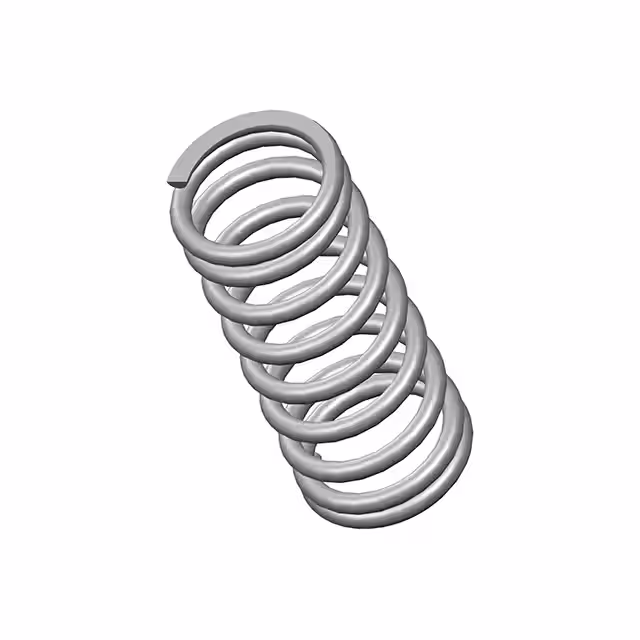

Z-18CSCOMP O= .420,L= 1.00,W= .049 |
2,214 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
|

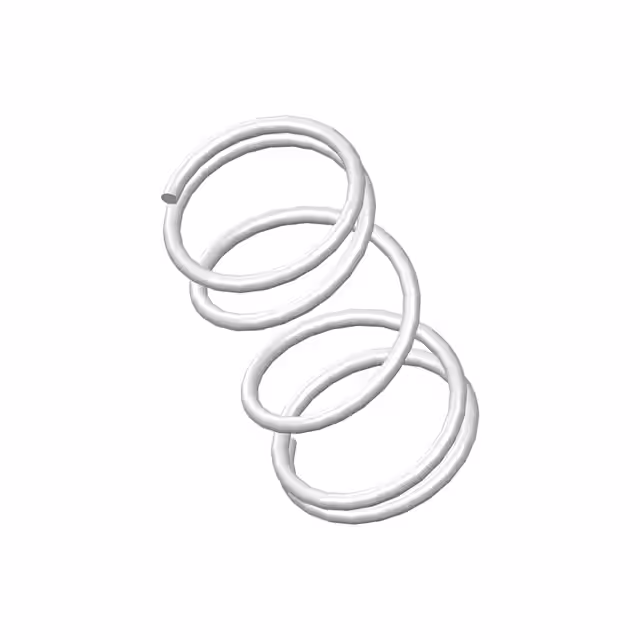

S-1420CSCOMP O= .296,L= .56,W= .024 |
2,064 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.296 (7.52mm) | 0.248 (6.30mm) | - | - | 0.560 (14.22mm) | - | 6.8 lbs/in | Closed |
|
S-1389CSCOMP O= .266,L= .31,W= .030 |
3,679 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.030 (0.76mm) | 0.266 (6.76mm) | 0.206 (5.23mm) | - | - | 0.310 (7.87mm) | - | 31.0 lbs/in | Closed |
|
11466CSCOMP O= .343,L= 2.13,W= .025 |
2,202 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.025 (0.64mm) | 0.343 (8.71mm) | 0.293 (7.44mm) | - | - | 2.130 (54.10mm) | - | 0.69 lbs/in | Closed |
