Categories
Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

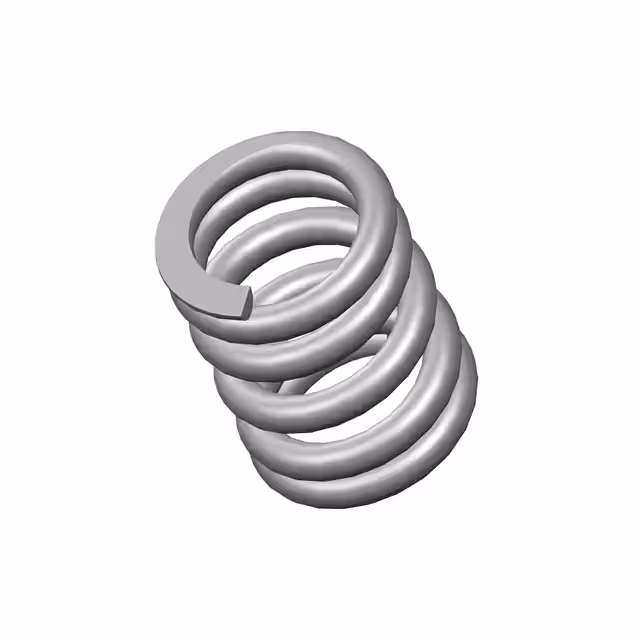

10843CSCOMP O= .406,L= .53,W= .064 |
3,974 | 2.31 |
RFQ |
Box | - | Active | Spring Steel | 0.064 (1.63mm) | 0.406 (10.31mm) | 0.278 (7.06mm) | - | - | 0.530 (13.46mm) | - | 172.0 lbs/in | Closed & Ground | |
|

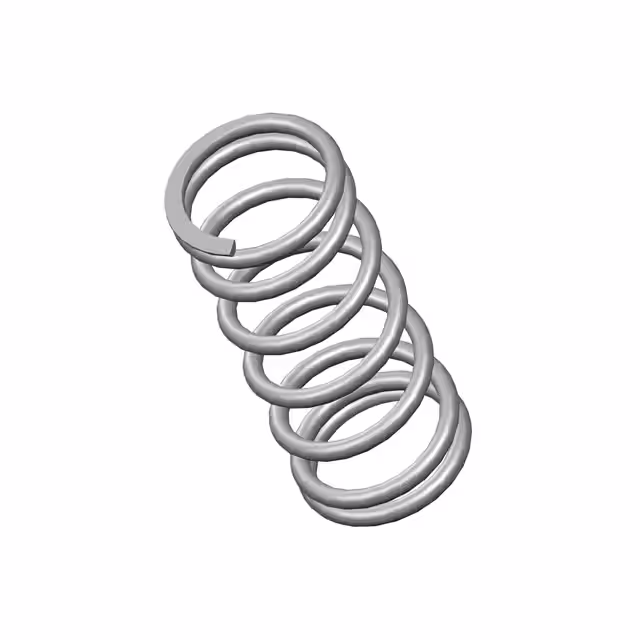

10404CSCOMP O= .420,L= 1.00,W= .045 |
3,262 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 1.000 (25.40mm) | - | 20.0 lbs/in | Closed & Ground |
|

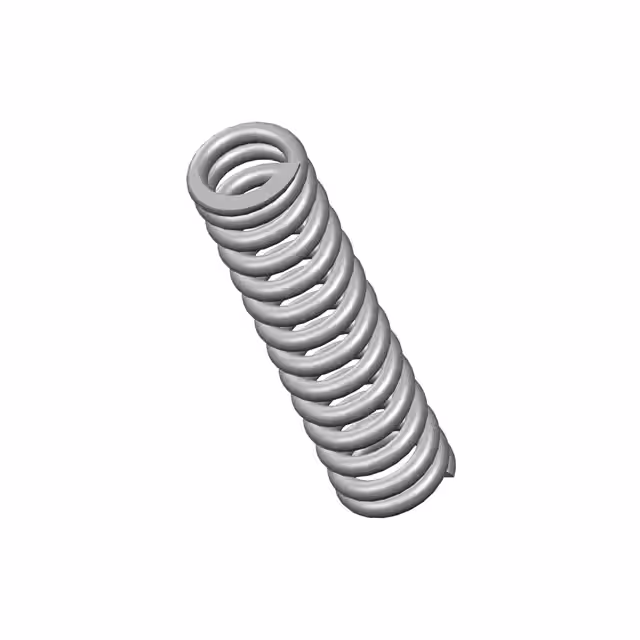

N-47CSCOMP O= .360,L= 1.47,W= .062 |
2,388 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.062 (1.57mm) | 0.360 (9.14mm) | 0.236 (5.99mm) | - | - | 1.470 (37.34mm) | - | 68.0 lbs/in | Closed & Ground |
|

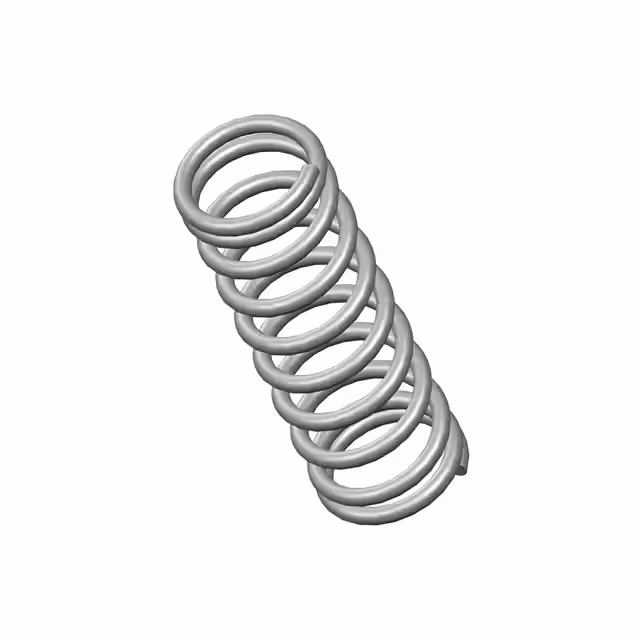

4258CSCOMP O= .437,L= 1.38,W= .051 |
2,156 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.051 (1.30mm) | 0.437 (11.10mm) | 0.335 (8.51mm) | - | - | 1.380 (35.05mm) | - | 21.0 lbs/in | Closed |
|

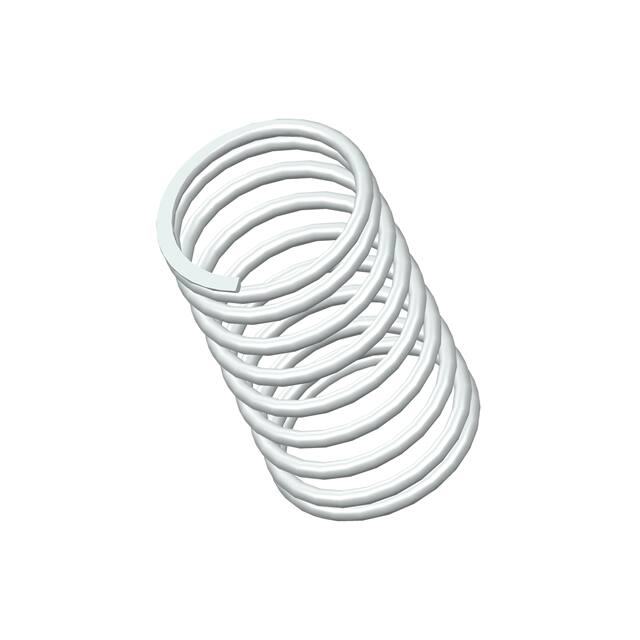

A9-1CSCOMP O= .281,L= .47,W= .022 |
3,614 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.281 (7.14mm) | 0.237 (6.02mm) | - | - | 0.470 (11.94mm) | - | 2.3 lbs/in | Closed & Ground |
|

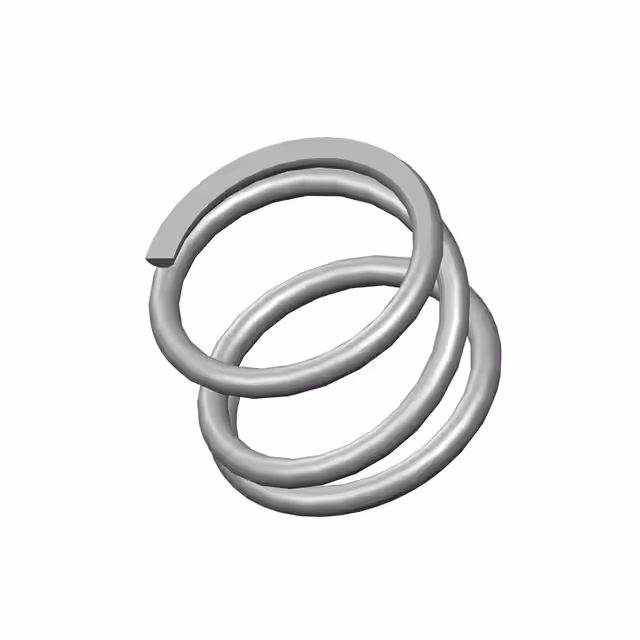

L-6CSCOMP O= .484,L= .34,W= .047 |
3,601 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.047 (1.19mm) | 0.484 (12.29mm) | 0.390 (9.91mm) | - | - | 0.340 (8.64mm) | - | 84.0 lbs/in | Closed & Ground |
|

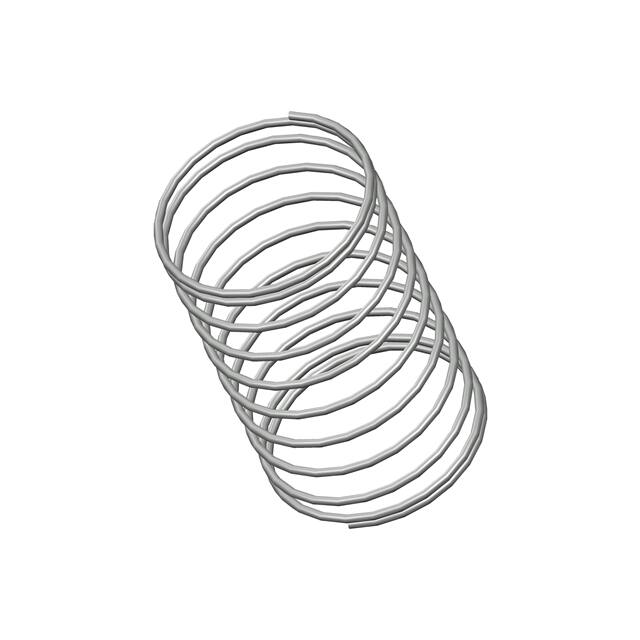

11449CSCOMP O= .609,L= 1.00,W= .023 |
3,164 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.023 (0.58mm) | 0.609 (15.47mm) | 0.563 (14.30mm) | - | - | 1.000 (25.40mm) | - | 0.24 lbs/in | Closed |
|

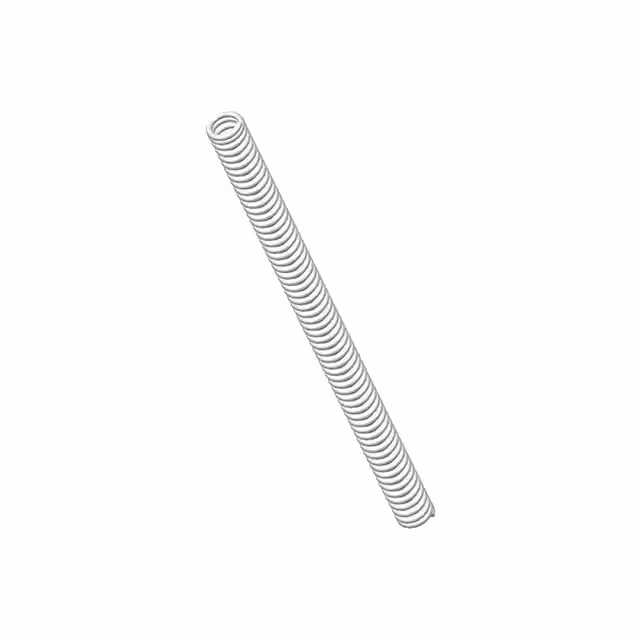

Y-64CSCOMP O= .172,L= 2.75,W= .028 |
3,018 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
|

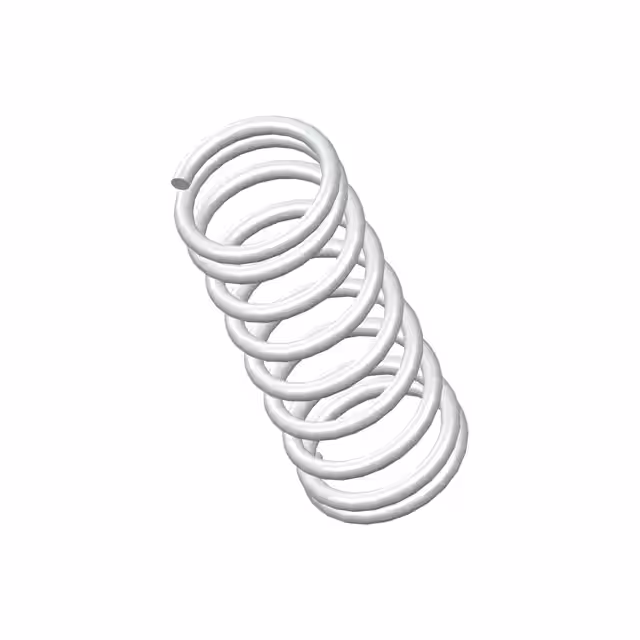

11398CSCOMP O= .343,L= .88,W= .037 |
3,598 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.037 (0.94mm) | 0.343 (8.71mm) | 0.269 (6.83mm) | - | - | 0.880 (22.35mm) | - | 12.0 lbs/in | Closed |
|

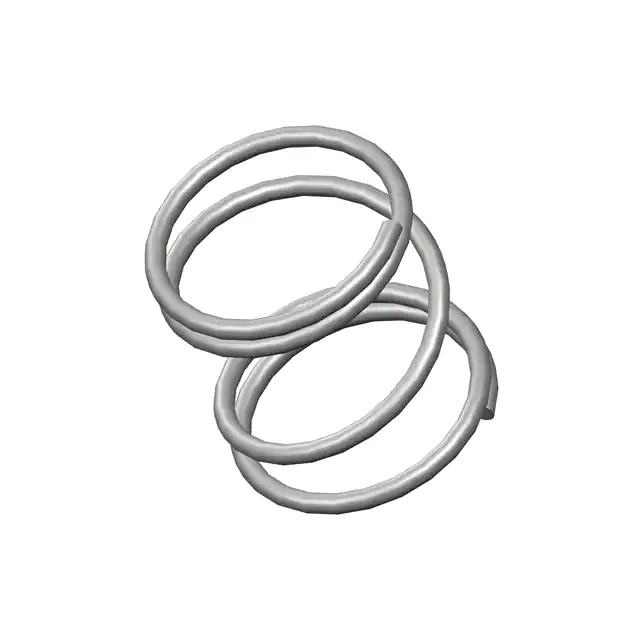

1757CSCOMP O= .484,L= .56,W= .037 |
2,934 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.037 (0.94mm) | 0.484 (12.29mm) | 0.410 (10.41mm) | - | - | 0.560 (14.22mm) | - | 15.0 lbs/in | Closed |
|

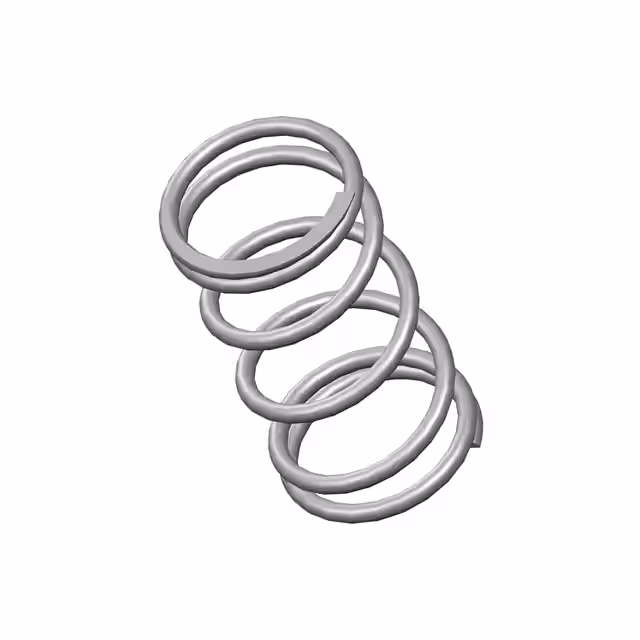

10143CSCOMP O= .453,L= .88,W= .042 |
3,878 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.042 (1.07mm) | 0.453 (11.51mm) | 0.369 (9.37mm) | - | - | 0.880 (22.35mm) | - | 16.0 lbs/in | Closed & Ground |
|

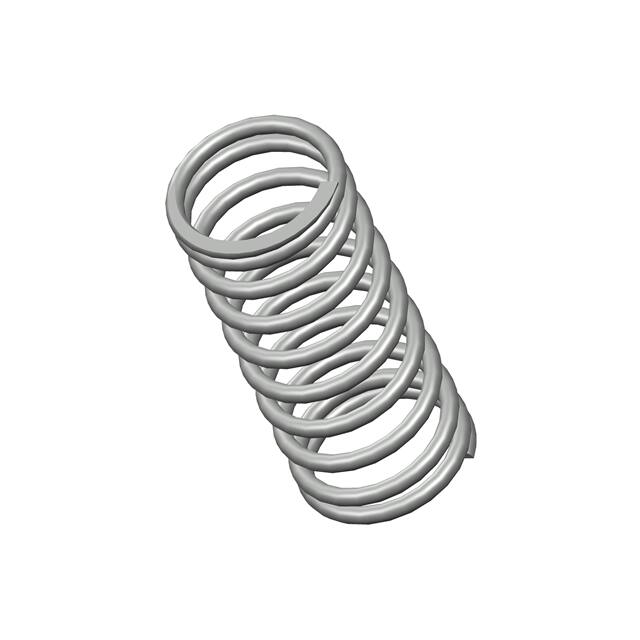

I-29CSCOMP O= .420,L= 1.00,W= .042 |
2,588 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 1.000 (25.40mm) | - | 10.0 lbs/in | Closed & Ground |
|

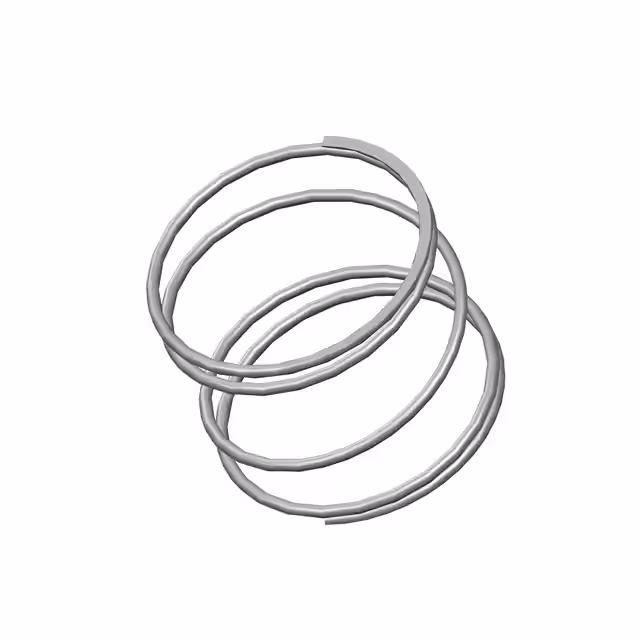

B6-8CSCOMP O= .546,L= .44,W= .023 |
3,304 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.023 (0.58mm) | 0.546 (13.87mm) | 0.500 (12.70mm) | - | - | 0.440 (11.18mm) | - | 1.1 lbs/in | Closed & Ground |
|

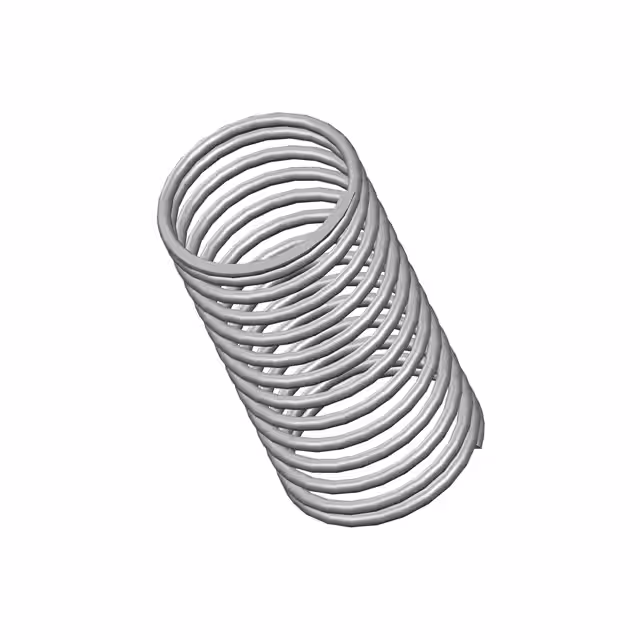

PP-24CSCOMP O= .453,L= .88,W= .030 |
2,757 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.030 (0.76mm) | 0.453 (11.51mm) | 0.393 (9.98mm) | - | - | 0.880 (22.35mm) | - | 1.3 lbs/in | Closed & Ground |
|

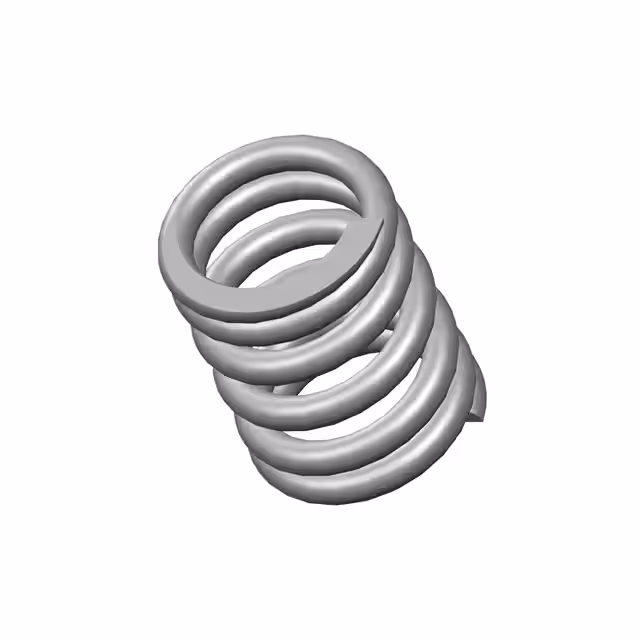

PP-4CSCOMP O= .375,L= .50,W= .055 |
3,871 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.055 (1.40mm) | 0.375 (9.53mm) | 0.265 (6.73mm) | - | - | 0.500 (12.70mm) | - | 100.0 lbs/in | Closed & Ground |
|

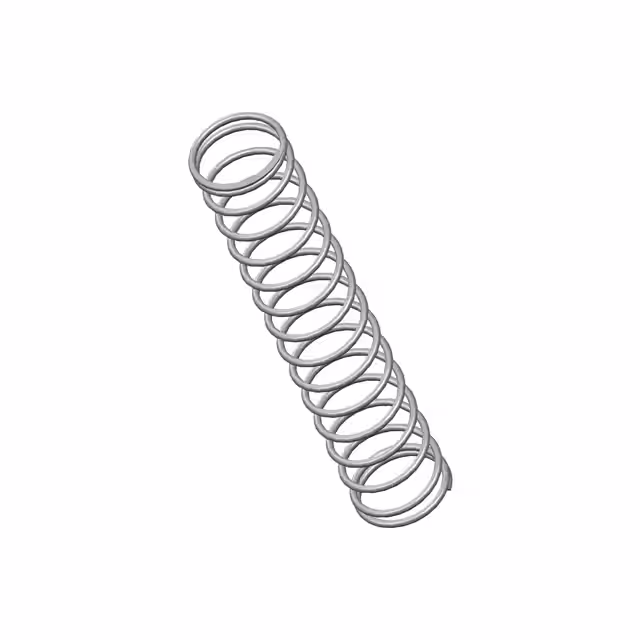

10192CSCOMP O= .375,L= 2.00,W= .028 |
3,086 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.028 (0.71mm) | 0.375 (9.53mm) | 0.319 (8.10mm) | - | - | 2.000 (50.80mm) | - | 1.5 lbs/in | Closed & Ground |
|

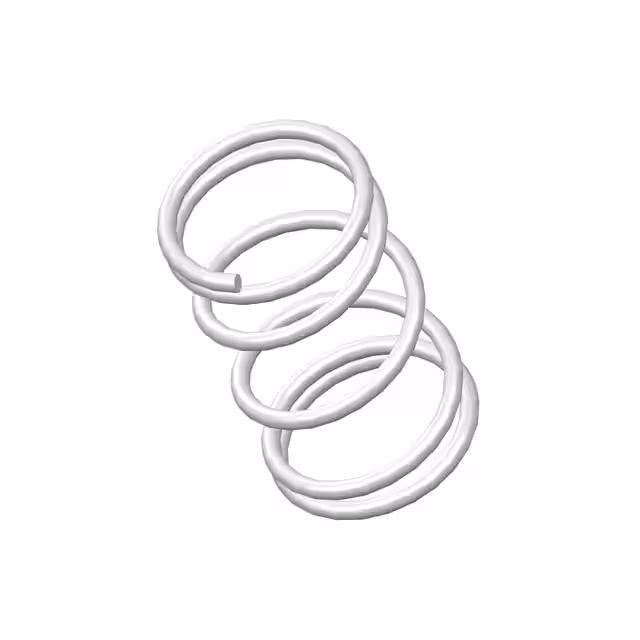

B14-52CSCOMP O= .500,L= .88,W= .043 |
740 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.500 (13.97mm) | 0.414 (10.52mm) | - | - | 0.880 (22.35mm) | - | 13.0 lbs/in | Closed |
|

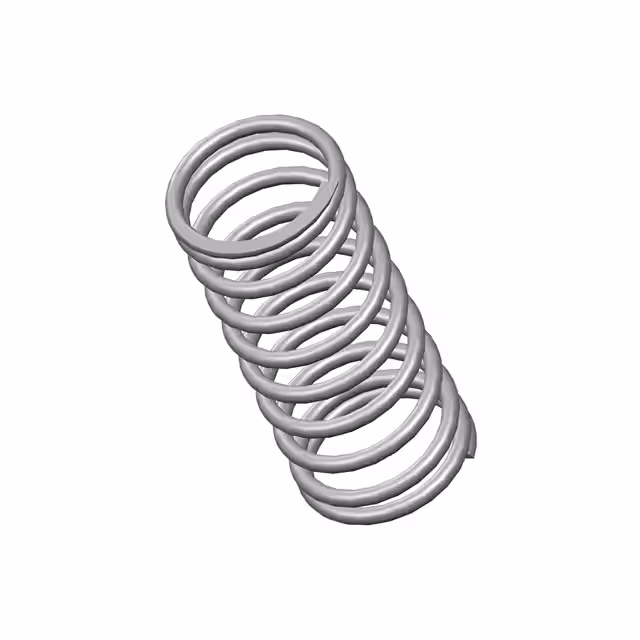

I-40CSCOMP O= .420,L= 1.00,W= .040 |
737 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.040 (1.02mm) | 0.420 (10.67mm) | 0.340 (8.64mm) | - | - | 1.000 (25.40mm) | - | 8.3 lbs/in | Closed & Ground |
|

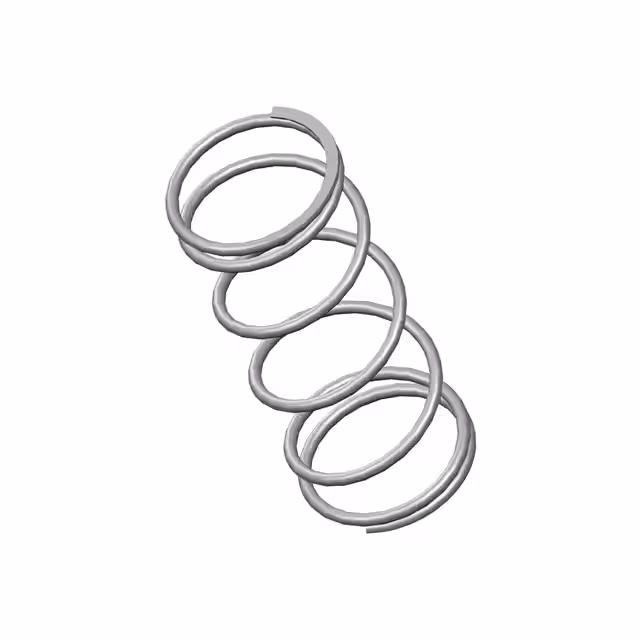

10729CSCOMP O= .420,L= 1.03,W= .030 |
737 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.030 (0.76mm) | 0.420 (10.67mm) | 0.360 (9.14mm) | - | - | 1.030 (26.16mm) | - | 4.3 lbs/in | Closed & Ground |
|

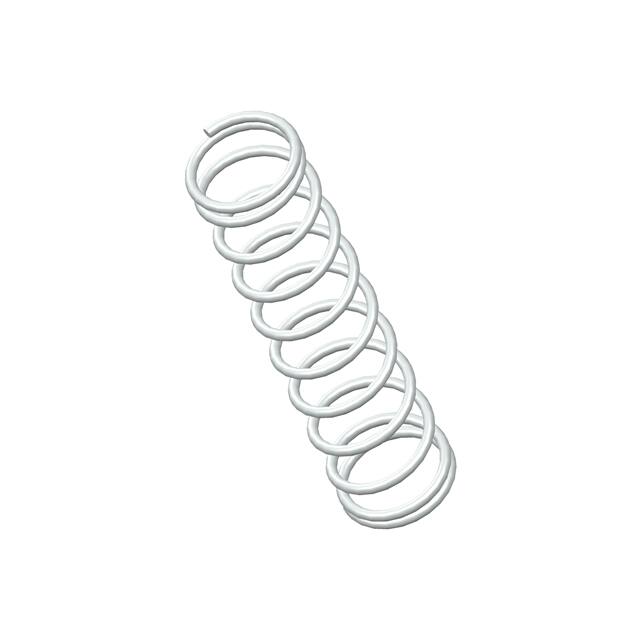

11468CSCOMP O= .250,L= 1.06,W= .023 |
711 | 2.31 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.023 (0.58mm) | 0.250 (6.35mm) | 0.204 (5.18mm) | - | - | 1.060 (26.92mm) | - | 3.5 lbs/in | Closed |
