| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVR005NK-2PTC RESET FUSE 240V 50MA RADIAL |
2,315 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, LVR | Active | Polymeric | 240V | 1 A | 50 mA | 120 mA | 10 s | 18.5 Ohms | 65 Ohms | - | - | - | Through Hole | 0.272 Dia x 0.181 T (6.90mm x 4.60mm) | 0.476 (12.10mm) | - |
|
16R1200GMRPTC RESET FUSE 16V 12A RADIAL |
2,958 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 12 A | 20.4 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.689 L x 0.138 W (17.50mm x 3.50mm) | 1.102 (28.00mm) | - |
|
16R800GMRPTC RESET FUSE 16V 8A RADIAL |
3,845 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 8 A | 13.6 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.500 L x 0.118 W (12.70mm x 3.00mm) | 0.823 (20.90mm) | - |
|
72R300XMRPTC RESET FUSE 72V 3A RADIAL |
2,353 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, 72R | Obsolete | Polymeric | 72V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.910 Dia x 0.122 T (23.11mm x 3.10mm) | 1.154 (29.30mm) | - |
|
1210L150PRPTC RESET FUSE 6V 1.5A 1210 |
2,227 | 0.00 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1210L | Obsolete | Polymeric | 6V | 100 A | 1.5 A | 3 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.071 (1.80mm) |
|
1206L035/15YRPTC RESET FUSE 15V 350MA 1206 |
2,078 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Obsolete | Polymeric | 15V | 100 A | 350 mA | 750 mA | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.030 (0.75mm) |
|
16R700GFPTC RESET FUSE 16V 7A RADIAL |
3,709 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 7 A | 11.9 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 L x 0.118 W (11.20mm x 3.00mm) | 0.776 (19.70mm) | - |
|
16R1000GFPTC RESET FUSE 16V 10A RADIAL |
2,312 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 10 A | 17 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.992 (25.20mm) | - |
|
72R020XUPTC RESET FUSE 72V 200MA RADIAL |
2,433 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 72R | Obsolete | Polymeric | 72V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.461 (11.70mm) | - |
|
72R030XUPTC RESET FUSE 72V 300MA RADIAL |
3,230 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 72R | Obsolete | Polymeric | 72V | 40 A | 300 mA | 600 mA | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
72R050XUPTC RESET FUSE 72V 500MA RADIAL |
2,852 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 72R | Obsolete | Polymeric | 72V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.311 Dia x 0.122 T (7.90mm x 3.10mm) | 0.539 (13.70mm) | - |
|
LR4-1300FPTC RESET FUSE 20V 13A STRAP |
2,567 | 0.00 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 13 A | 21.2 A | 10 s | 3.5 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | User Defined | 2.520 L x 0.382 W (64.00mm x 9.70mm) | - | - |
|
LR4-190LFPTC RESET FUSE 15V 1.9A STRAP |
2,280 | 0.00 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Obsolete | Polymeric | 15V | 100 A | 1.9 A | 3.9 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.161 L x 0.205 W (29.50mm x 5.20mm) | - | - |
|
LR4-190SLFPTC RESET FUSE 15V 1.9A STRAP |
3,699 | 0.00 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 15V | 100 A | 1.9 A | 3.9 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.945 L x 0.205 W (24.00mm x 5.20mm) | - | 0.039 (1.00mm) |
|
LR4-190XFPTC RESET FUSE 15V 1.9A STRAP |
3,657 | 0.00 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 15V | 100 A | 1.9 A | 3.9 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.648 L x 0.283 W (16.45mm x 7.20mm) | - | 0.039 (1.00mm) |
|
LR4-550RAFPTC RESET FUSE 20V 5.5A STRAP |
3,187 | 0.00 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 5.5 A | 10.5 A | 5 s | 9 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | User Defined | - | - | - |
|
|
RHEF050USPTC RESET FUSE 30V 500MA RADIAL |
2,964 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Obsolete | Polymeric | 30V | 40 A | 500 mA | 920 mA | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | Through Hole | 0.201 Dia x 0.118 T (5.10mm x 3.00mm) | 0.201 (5.10mm) | - |
|
|
RHEF050US-2PTC RESET FUSE 30V 500MA RADIAL |
3,258 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RHEF | Obsolete | Polymeric | 30V | 40 A | 500 mA | 920 mA | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | Through Hole | 0.201 Dia x 0.118 T (5.10mm x 3.00mm) | 0.201 (5.10mm) | - |
|

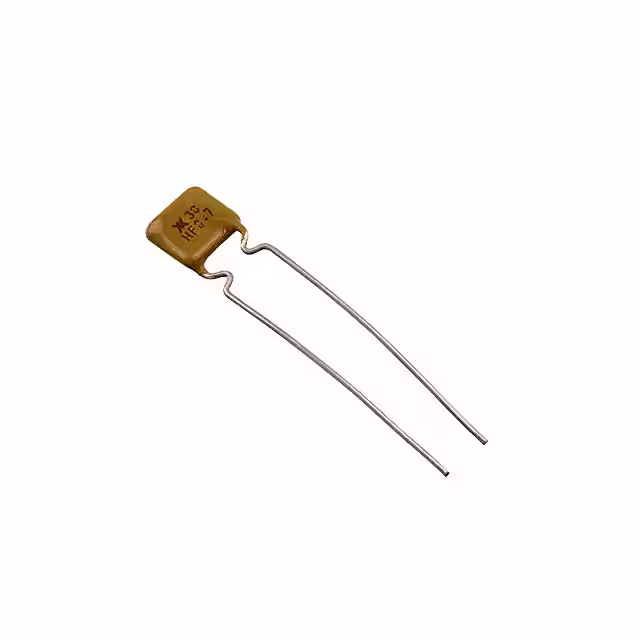

RHEF070UPTC RESET FUSE 30V 700MA RADIAL |
3,399 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Obsolete | Polymeric | 30V | 40 A | 700 mA | 1.4 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - |
|
|
RHEF070U-2PTC RESET FUSE 30V 700MA RADIAL |
3,222 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RHEF | Obsolete | Polymeric | 30V | 40 A | 700 mA | 1.4 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - |
