| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVRL125SPTC RESET FUSE 120V 1.25A RADIAL |
2,589 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVRL | Obsolete | Polymeric | 120V (135V Int) | 12.5 A | 1.25 A | 2.5 A | 20 s | 110 mOhms | 330 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.854 (21.70mm) | - |
|
|
LVRL135SPTC RESET FUSE 120V 1.35A RADIAL |
3,319 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVRL | Obsolete | Polymeric | 120V (135V Int) | 13.5 A | 1.35 A | 2.7 A | 20 s | 110 mOhms | 300 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.640 L x 0.160 W (16.30mm x 4.10mm) | 0.854 (21.70mm) | - |
|
|
LVRL200PTC RESET FUSE 120V 2A RADIAL |
2,827 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVRL | Obsolete | Polymeric | 120V (135V Int) | 20 A | 2 A | 4.2 A | 36 s | 80 mOhms | 210 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.925 L x 0.161 W (23.50mm x 4.10mm) | 1.252 (31.80mm) | - |
|
LVR075SPTC RESET FUSE 240V 750MA RADIAL |
2,177 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 7.5 A | 750 mA | 1.5 A | 18 s | 316 mOhms | 839 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.450 L x 0.189 W (11.43mm x 4.80mm) | 0.921 (23.40mm) | - |
|
LVR100SPTC RESET FUSE 240V 1A RADIAL |
2,405 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 10 A | 1 A | 2 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.736 Dia x 0.201 T (18.70mm x 5.10mm) | 0.961 (24.40mm) | - |
|
LVR125SPTC RESET FUSE 240V 1.25A RADIAL |
3,493 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 12.5 A | 1.25 A | 2.5 A | 23 s | 165 mOhms | 440 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.835 Dia x 0.209 T (21.20mm x 5.30mm) | 1.079 (27.40mm) | - |
|

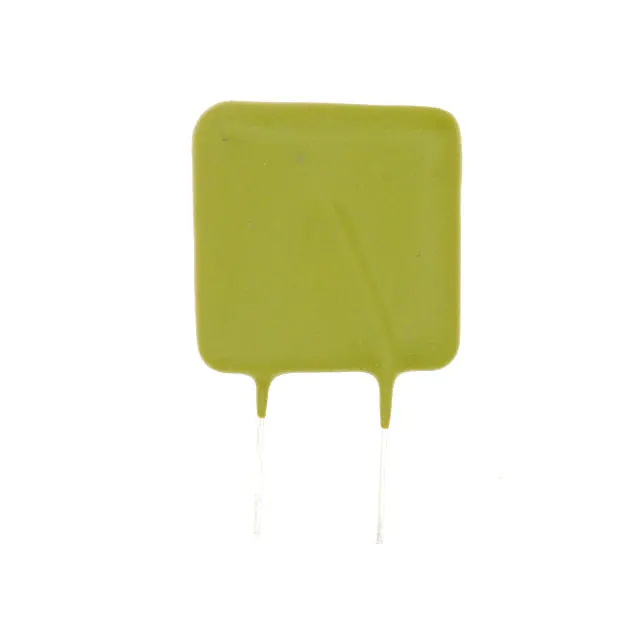

LVR200SPTC RESET FUSE 240V 2A RADIAL |
2,252 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 20 A | 2 A | 4 A | 28 s | 89 mOhms | 221 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.980 L x 0.240 W (24.90mm x 6.10mm) | 1.331 (33.80mm) | - |
|
VLR170DUAFPTC RESET FUSE 12V 1.7A STRAP |
2,745 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLR | Discontinued at Mosen | Polymeric | 12V | 100 A | 1.7 A | 4.1 A | 5 s | 18 mOhms | 64 mOhms | - | - | - | User Defined | - | - | - |
|
|
VLR170LFPTC RESET FUSE 12V 1.7A STRAP |
3,971 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLR | Discontinued at Mosen | Polymeric | 12V | 100 A | 1.7 A | 4.1 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 70°C | - | User Defined | 0.866 L x 0.146 W (22.00mm x 3.70mm) | - | - |
|
VLR170UFPTC RESET FUSE 12V 1.7A STRAP |
3,620 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLR | Active | Polymeric | 12V | 100 A | 1.7 A | 4.1 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 70°C | - | User Defined | 0.866 L x 0.142 W (22.00mm x 3.60mm) | - | 0.028 (0.70mm) |
|
|
VLR175LUFPTC RESET FUSE 12V 1.75A STRAP |
2,186 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch® | Discontinued at Mosen | Polymeric | 12V | 100 A | 1.75 A | 4.2 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.201 L x 0.122 W (30.50mm x 3.10mm) | - | 0.032 (0.80mm) |
|
VLR175UFPTC RESET FUSE 12V 1.75A STRAP |
2,070 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLR | Active | Polymeric | 12V | 100 A | 1.75 A | 4.2 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 70°C | - | User Defined | 0.935 L x 0.118 W (23.75mm x 3.00mm) | - | 0.028 (0.70mm) |
|
AGRF800SPTC RESET FUSE 16V 8A RADIAL |
3,620 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AGRF | Obsolete | Polymeric | 16V | 100 A | 8 A | 15 A | 5.5 s | 4.9 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.500 L x 0.118 W (12.70mm x 3.00mm) | 0.823 (20.90mm) | - |
|
|
AGRF800S-2PTC RESET FUSE 16V 8A RADIAL |
2,039 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, AGRF | Obsolete | Polymeric | 16V | 100 A | 8 A | 15 A | 5.5 s | 4.9 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.500 L x 0.118 W (12.70mm x 3.00mm) | 0.823 (20.90mm) | - |
|
|
BBRF550SPTC RESET FUSE 99V 550MA RADIAL |
3,335 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 99V | 20 A | 550 mA | 1.1 A | 60 s | 800 mOhms | 1.95 Ohms | - | - | - | Through Hole | 0.429 Dia x 0.142 T (10.90mm x 3.60mm) | 0.567 (14.40mm) | - |
|
|
BBRF750PTC RESET FUSE 99V 750MA RADIAL |
2,558 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 99V | 20 A | 750 mA | 1.5 A | 60 s | 400 mOhms | 1.2 Ohms | - | - | - | Through Hole | - | - | - | |
|
|
BBRF750-2PTC RESET FUSE 99V 750MA RADIAL |
2,784 | 0.00 |
RFQ |
Radial, Disc | Tape & Reel (TR) | PolySwitch® | Obsolete | Polymeric | 99V | 20 A | 750 mA | 1.5 A | 60 s | 400 mOhms | 1.2 Ohms | - | - | - | Through Hole | - | - | - | |
|
|
LR4-250UFPTC RESET FUSE 15V 2.5A STRAP |
2,248 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LR4 | Obsolete | Polymeric | 15V | 100 A | 2.5 A | - | - | - | - | - | - | - | User Defined | - | - | - |
|
|
LR4-560FPTC RESET FUSE 20V 5.6A STRAP |
2,887 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LR4 | Obsolete | Polymeric | 20V | 100 A | 5.6 A | - | - | - | - | - | - | - | User Defined | 0.984 L x 0.559 W (25.00mm x 14.20mm) | - | 0.039 (1.00mm) |
|
|
LR4-600-C100FPTC RESET FUSE 20V 6A STRAP |
3,692 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LR4 | Discontinued at Mosen | Polymeric | 20V | 100 A | 6 A | 11.7 A | 5 s | - | - | - | - | - | User Defined | - | - | - |
