| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600R160-RAFPTC RESET FUSE 60V 160MA RADIAL |
2,460 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 600R | Obsolete | Polymeric | 60V (600V Int) | 3 A | 160 mA | 320 mA | 10 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - |
|
|
600R160-RAURPTC RESET FUSE 60V 160MA RADIAL |
3,885 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, 600R | Obsolete | Polymeric | 60V (600V Int) | 3 A | 160 mA | 320 mA | 10 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - |
|

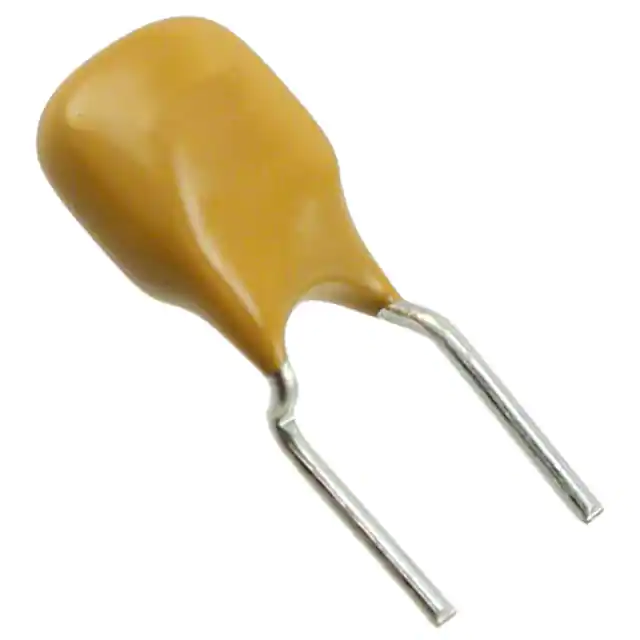

250R145TUPTC RESET FUSE 60V 145MA RADIAL |
2,045 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 250R | Obsolete | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|

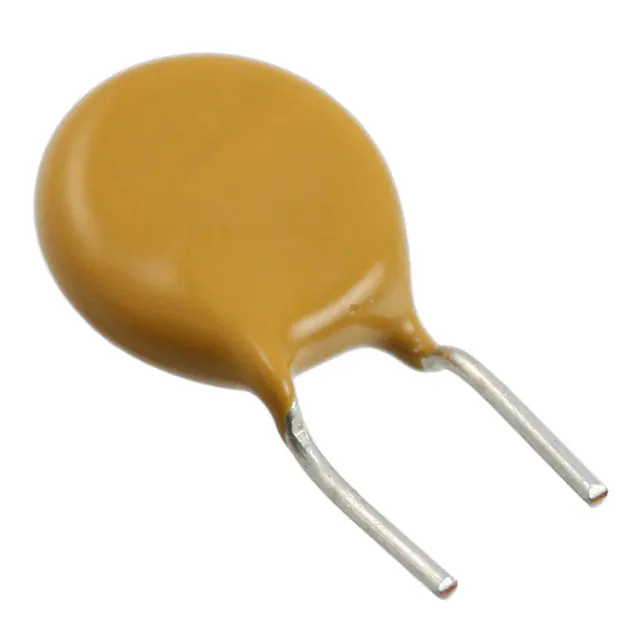

250R180TFPTC RESET FUSE 60V 180MA RADIAL |
2,571 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 250R | Obsolete | Polymeric | 60V (250V Int) | 10 A | 180 mA | 650 mA | 21 s | 1.4 Ohms | 4.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.374 Dia x 0.181 T (9.50mm x 4.60mm) | 0.472 (12.00mm) | - |
|
|
250R145TZRPTC RESET FUSE 60V 145MA RADIAL |
2,719 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, 250R | Obsolete | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|

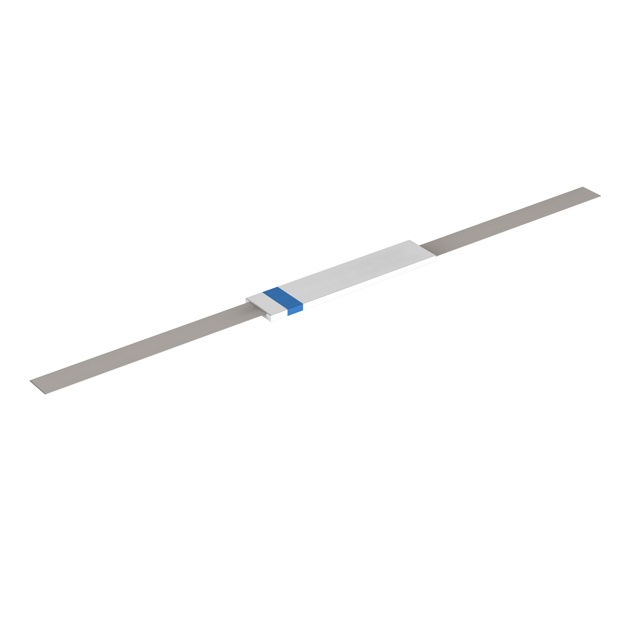

16VT210NLUPTC RESET FUSE 16V 2.1A STRAP |
3,882 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VT | Obsolete | Polymeric | 16V | 100 A | 2.1 A | 4.7 A | 5 s | 18 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | User Defined | 2.795 L x 0.159 W (71.00mm x 4.05mm) | - | 0.032 (0.80mm) |
|

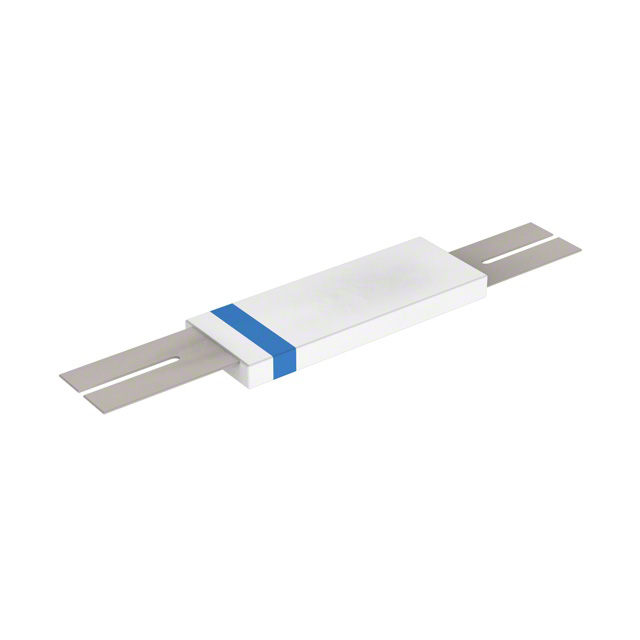

24LT100SSUPTC RESET FUSE 24V 1A STRAP |
3,253 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LT | Obsolete | Polymeric | 24V | 100 A | 1 A | 2.5 A | 7 s | 70 mOhms | 260 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.199 W (22.00mm x 5.05mm) | - | 0.039 (1.00mm) |
|

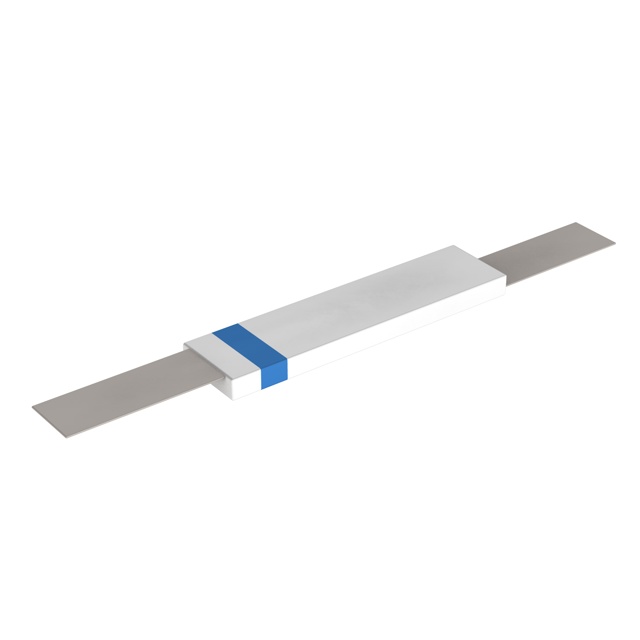

16VT200ULUPTC RESET FUSE 16V 2A STRAP |
2,619 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VT | Obsolete | Polymeric | 16V | 100 A | 2 A | 4.7 A | 5 s | 22 mOhms | 76 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.476 L x 0.165 W (37.50mm x 4.20mm) | - | 0.032 (0.80mm) |
|
16VT200UPTC RESET FUSE 16V 2A STRAP |
3,338 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VT | Obsolete | Polymeric | 16V | 100 A | 2 A | 4.5 A | 4 s | 21 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.159 W (22.00mm x 4.05mm) | - | 0.028 (0.70mm) |
.jpg)
|
15LR190SUPTC RESET FUSE 15V 1.9A STRAP |
2,830 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LR | Obsolete | Polymeric | 15V | 100 A | 1.9 A | 3.9 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.827 L x 0.205 W (21.00mm x 5.20mm) | - | 0.039 (1.00mm) |
|
|
12VL175XLUPTC RESET FUSE 12V 1.75A STRAP |
2,138 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VL | Obsolete | Polymeric | 12V | 100 A | 1.75 A | 4.2 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.057 L x 0.146 W (26.85mm x 3.70mm) | - | 0.032 (0.80mm) |
|
|
12VL230UPTC RESET FUSE 12V 2.3A STRAP |
2,198 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VL | Obsolete | Polymeric | 12V | 100 A | 2.3 A | 5 A | 5 s | 12 mOhms | 36 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.201 W (22.00mm x 5.10mm) | - | 0.032 (0.80mm) |
|
|
12VL175LUPTC RESET FUSE 12V 1.75A STRAP |
2,578 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VL | Obsolete | Polymeric | 12V | 100 A | 1.75 A | 4.2 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.201 L x 0.122 W (30.50mm x 3.10mm) | - | 0.032 (0.80mm) |
|
|
12VL170UPTC RESET FUSE 12V 1.7A STRAP |
2,295 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VL | Obsolete | Polymeric | 12V | 100 A | 1.7 A | 4.1 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.146 W (22.00mm x 3.70mm) | - | 0.032 (0.80mm) |
|
|
15LR260SUPTC RESET FUSE 15V 2.6A STRAP |
3,743 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LR | Obsolete | Polymeric | 15V | 100 A | 2.6 A | 5.8 A | 5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.205 W (22.00mm x 5.20mm) | - | 0.039 (1.00mm) |
|
15LR190UPTC RESET FUSE 15V 1.9A STRAP |
3,827 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LR | Obsolete | Polymeric | 15V | 100 A | 1.9 A | 3.9 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.827 L x 0.205 W (21.00mm x 5.20mm) | - | 0.039 (1.00mm) |
|
|
15LR260UPTC RESET FUSE 15V 2.6A STRAP |
3,909 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LR | Obsolete | Polymeric | 15V | 100 A | 2.6 A | 5.8 A | 5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.205 W (22.00mm x 5.20mm) | - | 0.039 (1.00mm) |
|
|
15LR380SUPTC RESET FUSE 15V 3.8A STRAP |
2,064 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LR | Obsolete | Polymeric | 15V | 100 A | 3.8 A | 8.3 A | 5 s | 13 mOhms | 37 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.283 W (25.00mm x 7.20mm) | - | 0.039 (1.00mm) |
|
|
16VT170UPTC RESET FUSE 16V 1.7A STRAP |
2,591 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VT | Obsolete | Polymeric | 16V | 100 A | 1.7 A | 3.4 A | 3 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.648 L x 0.283 W (16.45mm x 7.20mm) | - | 0.032 (0.80mm) |
|
|
16R160BUPTC RESET FUSE 16V 1.6A RADIAL |
2,765 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 1.6 A | 3.2 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
