| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30ST420UPTC RESET FUSE 30V 4.2A STRAP |
2,527 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, ST | Obsolete | Polymeric | 30V | 100 A | 4.2 A | 7.6 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.240 L x 0.522 W (31.50mm x 13.25mm) | - | 0.043 (1.10mm) |
|
|
30ST200UPTC RESET FUSE 30V 2A STRAP |
2,782 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, ST | Obsolete | Polymeric | 30V | 100 A | 2 A | 4.4 A | 4 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.880 L x 0.417 W (22.35mm x 10.60mm) | - | 0.043 (1.10mm) |
|
|
250S130VDRPTC RESET FUSE 60V 130MA 2SMD |
2,327 | 0.00 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR) | POLY-FUSE®, 250S | Obsolete | Polymeric | 60V (250V Int) | 3 A | 130 mA | 260 mA | 2 s | 4 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.240 L x 0.272 W (6.10mm x 6.90mm) | - | 0.126 (3.20mm) |
|
20LR730UPTC RESET FUSE 20V 7.3A STRAP |
2,600 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LR | Obsolete | Polymeric | 20V | 100 A | 7.3 A | 14.1 A | 5 s | 6 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.106 L x 0.559 W (28.10mm x 14.20mm) | - | 0.039 (1.00mm) |
|
1210L350SL-SYRPTC RESET FUSE 6V 3.5A 1210 |
3,546 | 0.00 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Obsolete | Polymeric | 6V | 50 A | 3.5 A | 7 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.70mm) |
|
|
MHP-30-36-TPTC RESET FUSE 36V 30A BLADE |
3,395 | 0.00 |
RFQ |
Datasheet |
Blade Type | Tray | MHP | Obsolete | Polymeric | 36V | 100 A | 30 A | 50 A | 4.5 s | - | - | - | - | - | Holder | 1.024 L x 0.370 W (26.00mm x 9.40mm) | 0.217 (5.50mm) | - |
|
1206L300SLWRPTC RESET FUSE 6V 3A 1206 |
2,336 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Obsolete | Polymeric | 6V | 50 A | 3 A | 6 A | 4 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.039 (1.00mm) |
|
06R075BPRPTC RESET FUSE 6V 750MA RADIAL |
3,495 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, USBR | Obsolete | Polymeric | 6V | 40 A | 750 mA | 1.3 A | 400 ms | 100 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.118 T (6.90mm x 3.00mm) | 0.449 (11.40mm) | - |
|

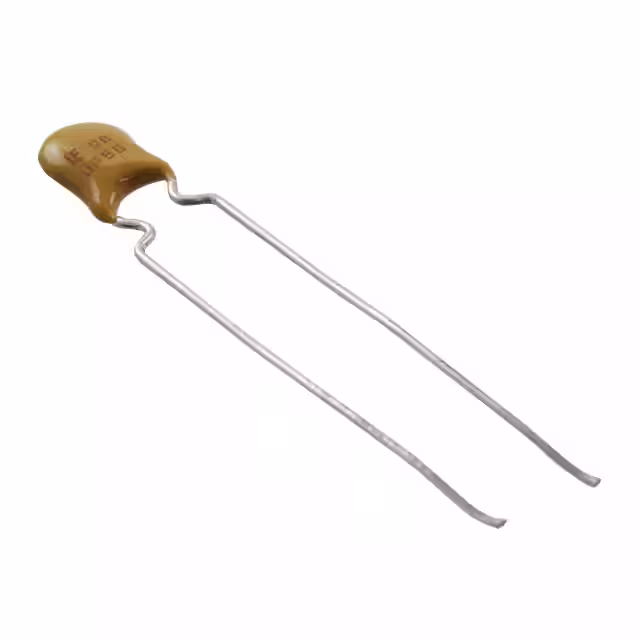

06R120BPRPTC RESET FUSE 6V 1.2A RADIAL |
2,469 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, USBR | Obsolete | Polymeric | 6V | 40 A | 1.2 A | 2 A | 500 ms | 65 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.118 T (6.90mm x 3.00mm) | 0.449 (11.40mm) | - |
|
|
20LR450UPTC RESET FUSE 20V 4.5A STRAP |
3,860 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LR | Obsolete | Polymeric | 20V | 100 A | 4.5 A | 8.9 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.402 W (25.00mm x 10.20mm) | - | 0.039 (1.00mm) |
|
0402L050SLYRPTC RESET FUSE 6V 500MA 0402 |
3,890 | 0.00 |
RFQ |
Datasheet |
0402 (1005 Metric), Concave | Tape & Reel (TR) | LoRho Surface Mount | Obsolete | Polymeric | 6V | 50 A | 500 mA | 1 A | 100 ms | 40 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) |
|
|
0402L010SLYRPTC RESET FUSE 6V 100MA 0402 |
3,873 | 0.00 |
RFQ |
Datasheet |
0402 (1005 Metric), Concave | Tape & Reel (TR) | LoRho Surface Mount | Obsolete | Polymeric | 6V | 40 A | 100 mA | 300 mA | 1 s | 150 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) |
|
|
0402L035SLYRPTC RESET FUSE 6V 350MA 0402 |
3,694 | 0.00 |
RFQ |
Datasheet |
0402 (1005 Metric), Concave | Tape & Reel (TR) | LoRho Surface Mount | Obsolete | Polymeric | 6V | 50 A | 350 mA | 700 mA | 100 ms | 50 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) |
|
|
06SL370GMPTC RESET FUSE 6V 3.7A STRAP |
2,852 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, SL LoRho | Obsolete | Polymeric | 6V | 50 A | 3.7 A | 9 A | 5 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.394 L x 0.130 W (10.00mm x 3.30mm) | - | 0.037 (0.95mm) |
|
MINISMDC100F-2PTC RESET FUSE 8V 1.1A 1812 |
2,495 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 8V | 100 A | 1.1 A | 2.2 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.024 (0.62mm) |
|
|
1210L300SLYRPTC RESET FUSE 6V 3A 1210 |
3,005 | 0.00 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Obsolete | Polymeric | 6V | 50 A | 3 A | 6 A | 2 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.70mm) |
|
1812L270SLPRPTC RESET FUSE 6V 2.7A 1812 |
3,538 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Discontinued at Mosen | Polymeric | 6V | 50 A | 2.7 A | 6.2 A | 2 s | 3 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.028 (0.70mm) |
|
MICROSMD250LR-A-2PTC RESET FUSE 6V 2.5A 1210 |
3,997 | 0.00 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LoRho | Obsolete | Polymeric | 6V | 50 A | 2.5 A | 5.2 A | 5 s | 5 mOhms | - | - | - | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.039 (1.00mm) |
|
MINISMDC350LR-2PTC RESET FUSE 6V 3.5A 1812 |
3,812 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch® | Obsolete | Polymeric | 6V | 50 A | 3.5 A | 8 A | - | 6 mOhms | 25 mOhms | - | - | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.017 (0.43mm) |
.jpg)
|
NANOSMD175LR-2PTC RESET FUSE 6V 1.75A 1206 |
3,068 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LoRho | Obsolete | Polymeric | 6V | 50 A | 1.75 A | 5 A | 1 s | 8 mOhms | - | - | - | - | Surface Mount | 0.127 L x 0.063 W (3.22mm x 1.60mm) | - | 0.039 (1.00mm) |
