Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPS230-760PWR XFMR LAMINATED 175VA CHAS MT |
3,584 | 40.47 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
266J14PWR XFMR LAMINATED 14VA CHAS MT |
3,706 | 40.73 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 7V, Series 14V | Parallel 2A, Series 1A | Dual | Dual | No | 14VA | Chassis Mount | Wire Leads | 82.55mm L x 52.32mm W | 50.80mm | 2000Vrms |
|
|
266JB12PWR XFMR LAMINATED 14.4VA CHAS |
3,820 | 40.73 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 14.4VA | Chassis Mount | Wire Leads | 82.55mm L x 52.32mm W | 50.80mm | 2000Vrms |
|
|
266L6PWR XFMR LAMINATED 12.6VA CHAS |
3,514 | 40.73 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 4A, Series 2A | Dual | Dual | No | 12.6VA | Chassis Mount | Wire Leads | 82.55mm L x 52.32mm W | 50.80mm | 2000Vrms |
|
|
266J48PWR XFMR LAMINATED 48VA CHAS MT |
2,158 | 40.73 |
RFQ |
Datasheet |
Bulk | 266 | Active | Laminated Core | 117V, 234V | Parallel 24V, Series 48V | Parallel 2A, Series 1A | Dual | Dual | No | 48VA | Chassis Mount | Wire Leads | 90.42mm L x 55.88mm W | 79.25mm | 2000Vrms |
|
166RSPWR XFMR LAMINATED 40VA CHAS MT |
2,110 | 41.35 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 5V | 8A | Single | Single | Yes | 40VA | Chassis Mount | Wire Leads | 114.30mm L x 63.50mm W | 76.20mm | 2000Vrms |
|
|
166J44PWR XFMR LAMINATED 44VA CHAS MT |
2,023 | 41.35 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 44V | 1A | Single | Single | Yes | 44VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms |
|
167J28PWR XFMR LAMINATED 28VA CHAS MT |
3,643 | 42.41 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 28V | 1A | Single | Single | Yes | 28VA | Chassis Mount | Wire Leads | 47.75mm L x 61.98mm W | 63.50mm | 2000Vrms |
|
PHC25JGAPWR XFMR LAMINATED 25VA CHAS MT |
2,635 | 42.74 |
RFQ |
Datasheet |
Box | PHC | Active | Laminated Core | 120V | 24V | 1.04A | Single | Single | No | 25VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | - |
|
|

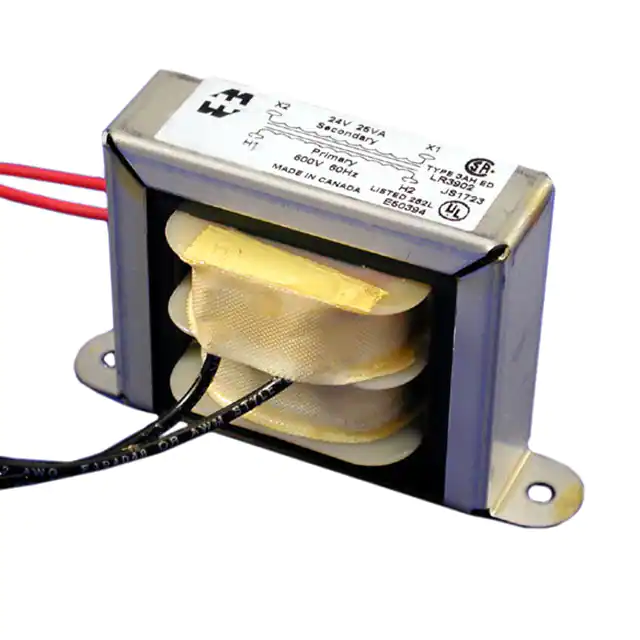

PHC25KGAPWR XFMR LAMINATED 25VA CHAS MT |
2,146 | 42.74 |
RFQ |
Datasheet |
Box | PHC | Active | Laminated Core | 347V | 24V | 1.04A | Single | Single | No | 25VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | - |
|
|
PHC25LGAPWR XFMR LAMINATED 25VA CHAS MT |
3,800 | 42.74 |
RFQ |
Datasheet |
Box | PHC | Active | Laminated Core | 208V | 24V | 1.04A | Single | Single | No | 25VA | Chassis Mount | Wire Leads | 54.10mm L x 79.50mm W | 93.73mm | - |
|
|
167K25PWR XFMR LAMINATED 37.5VA CHAS |
3,936 | 42.83 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 25V | 1.5A | Single | Single | Yes | 37.5VA | Chassis Mount | Wire Leads | 55.63mm L x 60.45mm W | 59.94mm | 2000Vrms |
|
185F230PWR XFMR LAMINATED 130VA CHAS MT |
2,009 | 44.10 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.14A, Series 570mA | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 77.98mm W | 85.60mm | 4000Vrms |
|
|
185F24PWR XFMR LAMINATED 130VA CHAS MT |
2,419 | 44.10 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 10.8A, Series 5.4A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 77.98mm W | 85.60mm | 4000Vrms |
|
|
167Q6PWR XFMR LAMINATED 37.8VA CHAS |
2,564 | 46.09 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 6.3V | 6A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 55.63mm L x 60.45mm W | 59.94mm | 2000Vrms |
|
|
167L24PWR XFMR LAMINATED 48VA CHAS MT |
3,420 | 46.90 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 24V | 2A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 55.63mm L x 66.80mm W | 66.80mm | 2000Vrms |
|
|
167R6PWR XFMR LAMINATED 50.4VA CHAS |
3,408 | 48.54 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 6.3V | 8A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 55.63mm L x 66.80mm W | 66.80mm | 2000Vrms |
|
|
185G230PWR XFMR LAMINATED 175VA CHAS MT |
3,951 | 51.07 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 81.28mm W | 95.25mm | 4000Vrms |
|
|
185G36PWR XFMR LAMINATED 175VA CHAS MT |
2,352 | 51.07 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 81.28mm W | 95.25mm | 4000Vrms |
|

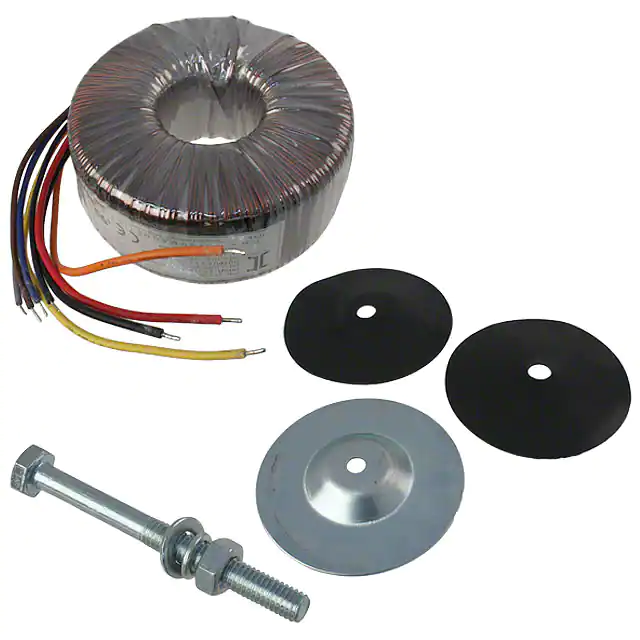

VPT36-4440PWR XFMR TORO 160VA CHAS MT |
3,240 | 51.28 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 8.88A, Series 4.44A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms |
