Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
187F28PWR XFMR LAMINATED 100VA CHAS MT |
3,568 | 30.65 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 28V | 3.57A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms |
|
|
187F36PWR XFMR LAMINATED 100.8VA CHAS |
3,470 | 30.65 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 36V | 2.8A | Single | Single | Yes | 100.8VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms |
|
|
187F56PWR XFMR LAMINATED 100.8VA CHAS |
3,560 | 30.65 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 56V | 1.8A | Single | Single | Yes | 100.8VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms |
|
166M10PWR XFMR LAMINATED 30VA CHAS MT |
3,751 | 31.04 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 10V | 3A | Single | Single | Yes | 30VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms |
|
|
166S2PWR XFMR LAMINATED 25VA CHAS MT |
3,975 | 31.04 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 2.5V | 10A | Single | Single | Yes | 25VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms |
|
|
166G36PWR XFMR LAMINATED 18VA CHAS MT |
2,211 | 31.30 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 36V | 500mA | Single | Single | Yes | 18VA | Chassis Mount | Wire Leads | 82.55mm L x 41.40mm W | 50.80mm | 2000Vrms |
|
|
166N12BPWR XFMR LAMINATED 48VA CHAS MT |
3,056 | 31.34 |
RFQ |
Datasheet |
Box | 166 | Active | Laminated Core | 117V | 12V | 4A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms |
|
166L25PWR XFMR LAMINATED 50VA CHAS MT |
2,242 | 31.34 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 25V | 2A | Single | Single | Yes | 50VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms |
|
|
186F24PWR XFMR LAMINATED 96VA CHAS MT |
2,090 | 32.00 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 24V | 4A | Dual | Single | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms |
|
|
186F10PWR XFMR LAMINATED 100VA CHAS MT |
2,833 | 32.00 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 10V | 10A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms |
|
70070KXFRMR TOROIDAL 35VA THRU HOLE |
3,848 | 32.03 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 5A, Series 2.5A | Dual | Dual | No | 35VA | Through Hole | PC Pin | 72.00mm L x 72.00mm W | 37.50mm | 4000Vrms |
|
VPT48-1040PWR XFMR TORO 50VA CHAS MT |
3,005 | 32.14 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 2.08A, Series 1.04A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms |
|

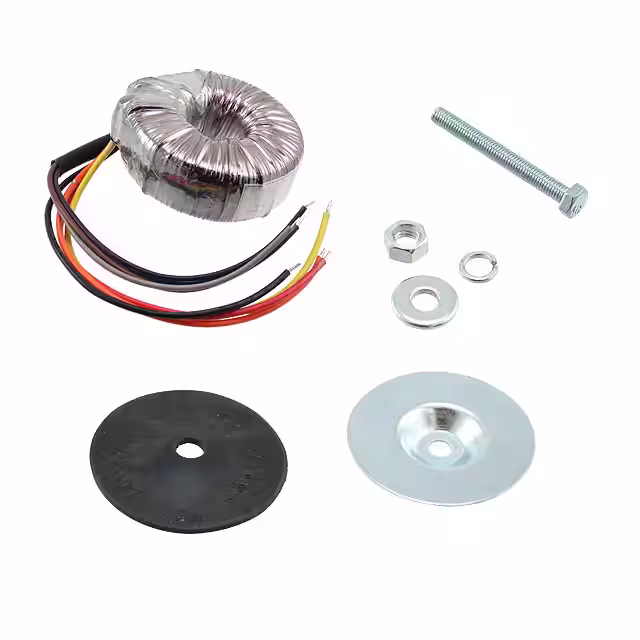

VPT12-4170PWR XFMR TORO 50VA CHAS MT |
2,780 | 32.14 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 6V, Series 12V | Parallel 8.34A, Series 4.17A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms |
|
229D10PWR XFMR SEMI-TORO 48VA TH |
2,208 | 33.14 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms |
|
|
229D12PWR XFMR SEMI-TORO 48VA TH |
2,150 | 33.14 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 7.6A, Series 3.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms |
|
229D16PWR XFMR SEMI-TORO 48VA TH |
3,085 | 33.14 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 6A, Series 3A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms |
|
|
229D34PWR XFMR SEMI-TORO 48VA TH |
2,343 | 33.14 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 2.8A, Series 1.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms |
|
|
229D20PWR XFMR SEMI-TORO 48VA TH |
2,464 | 33.14 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms |
|
229D56PWR XFMR SEMI-TORO 48VA TH |
3,286 | 33.14 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.7A, Series 850mA | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms |
|
266GB6PWR XFMR LAMINATED 3.78VA CHAS |
3,290 | 33.64 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 3.78VA | Chassis Mount | Wire Leads | 60.45mm L x 37.59mm W | 36.32mm | 2000Vrms |
