Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT120CFPWR XFMR LAMINATED CHAS MT |
3,647 | 33.96 |
RFQ |
Datasheet |
Box | PT | Active | Laminated Core | 120V | - | - | Single | Single | No | - | Chassis Mount | Wire Leads | 52.40mm L x 27.94mm W | 31.75mm | 4000Vrms |
|
266L24PWR XFMR LAMINATED 48VA CHAS MT |
3,166 | 34.22 |
RFQ |
Datasheet |
Bulk | 266 | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Chassis Mount | Wire Leads | 90.42mm L x 57.15mm W | 79.25mm | 2000Vrms |
|
VPS230-570PWR XFMR LAMINATED 130VA CHAS MT |
3,220 | 35.71 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.14A, Series 570mA | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 60.45mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
166K25PWR XFMR LAMINATED 37.5VA CHAS |
2,293 | 36.19 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 25V | 1.5A | Single | Single | Yes | 37.5VA | Chassis Mount | Wire Leads | 93.73mm L x 47.75mm W | 58.67mm | 2000Vrms |
|
229D40PWR XFMR SEMI-TORO 48VA TH |
3,059 | 36.49 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms |
|
185E16XFRMR LAMINATED 80VA CHAS MOUNT |
2,577 | 37.12 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 10A, Series 5A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms |
|
|
185E36XFRMR LAMINATED 80VA CHAS MOUNT |
3,385 | 37.12 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms |
|
|
185E28XFRMR LAMINATED 80VA CHAS MOUNT |
3,422 | 37.12 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms |
|
|
185E12XFRMR LAMINATED 80VA CHAS MOUNT |
3,484 | 37.12 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms |
|
|
266LA25PWR XFMR LAMINATED 50.4VA CHAS |
2,922 | 37.46 |
RFQ |
Datasheet |
Bulk | 266 | Active | Laminated Core | 115V, 230V | 25.2V | 2A | Dual | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms |
|
262B6PWR XFMR LAMINATED 7VA CHAS MT |
3,195 | 37.81 |
RFQ |
Datasheet |
Bulk | 262 | Active | Laminated Core | 115V | 120V, 6.3V | 43mA, 300mA | Single | Dual | No | 7VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.67mm | - |
|
|
262B12PWR XFMR LAMINATED 7VA CHAS MT |
2,380 | 37.93 |
RFQ |
Datasheet |
Bulk | 262 | Active | Laminated Core | 115V | 120V, 12.6V | 45mA, 300mA | Single | Dual | No | 7VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.67mm | - |
|
|
266G20PWR XFMR LAMINATED 10VA CHAS MT |
2,732 | 38.03 |
RFQ |
Datasheet |
Bulk | 266 | Active | Laminated Core | 117V, 234V | Parallel 10V, Series 20V | Parallel 1A, Series 500mA | Dual | Dual | No | 10VA | Chassis Mount | Wire Leads | 73.15mm L x 48.26mm W | 60.20mm | 2000Vrms |
|

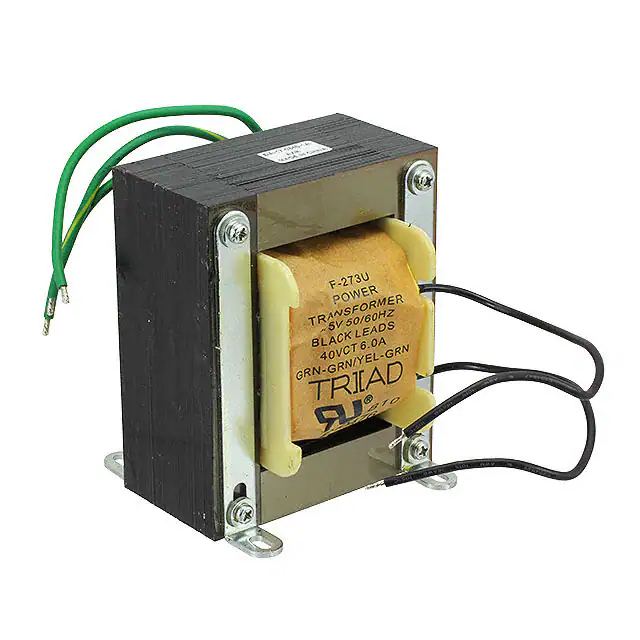

F-273UPWR XFMR LAMINATED 240VA CHAS MT |
3,137 | 38.17 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 40V | 6A | Single | Single | Yes | 240VA | Chassis Mount | Wire Leads | 95.25mm L x 101.60mm W | 114.30mm | 1500Vrms |
|
|
266G36PWR XFMR LAMINATED 18VA CHAS MT |
2,520 | 38.34 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 18V, Series 36V | Parallel 1A, Series 500mA | Dual | Dual | No | 18VA | Chassis Mount | Wire Leads | 82.55mm L x 52.32mm W | 50.80mm | 2000Vrms |
|
|
166G100PWR XFMR LAMINATED 50VA CHAS MT |
3,845 | 38.78 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 100V | 500mA | Single | Single | Yes | 50VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms |
|
|
166Q6PWR XFMR LAMINATED 37.8VA CHAS |
2,587 | 38.79 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 6.3V | 6A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms |
|
70082KXFRMR TOROIDAL 50VA THRU HOLE |
3,254 | 39.49 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.166A, Series 2.083A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms |
|

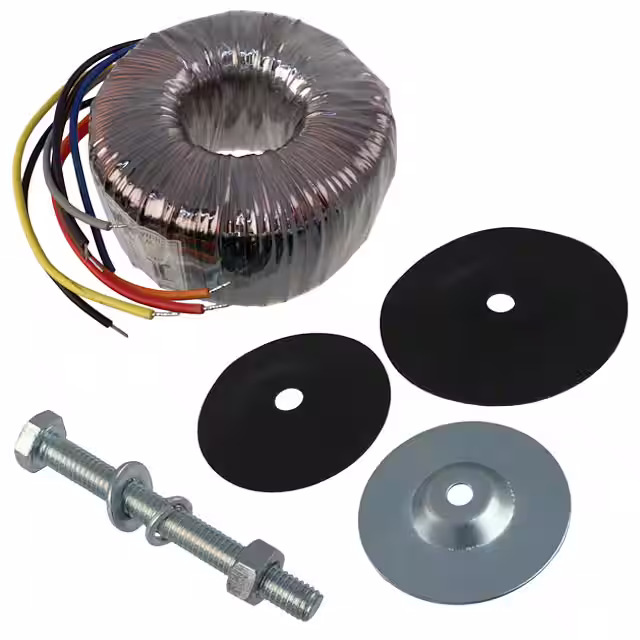

VPT36-2780PWR XFMR TORO 100VA CHAS MT |
3,346 | 39.75 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 5.56A, Series 2.78A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms |
|

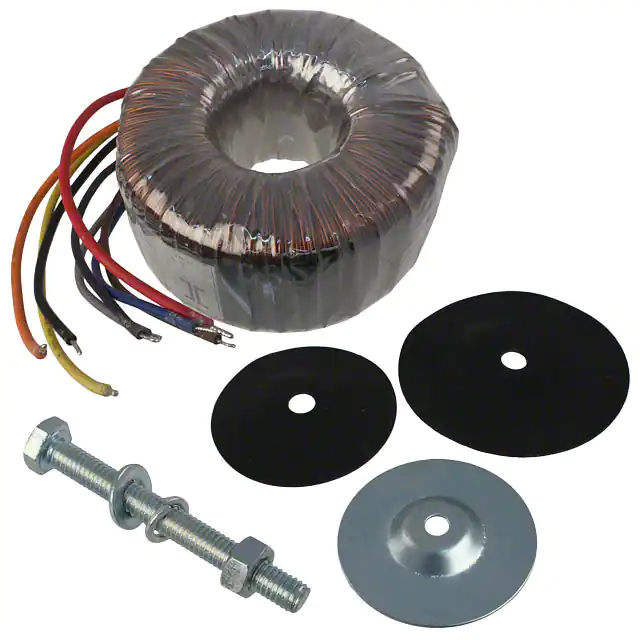

VPT24-4170PWR XFMR TORO 100VA CHAS MT |
3,835 | 39.75 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 8.34A, Series 4.17A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms |
