| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70040KXFRMR TOROIDAL 10VA THRU HOLE |
3,965 | 16.93 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 1.428A, Series 714mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 55.00mm L x 55.00mm W | 26.00mm | 4000Vrms |
|
62005PWR XFMR TORO 1.6VA CHAS MT |
3,187 | 17.00 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 72mA, Series 36mA | Dual | Dual | No | 1.6VA | Chassis Mount | Wire Leads | - | 17.00mm | 4000Vrms |
|
62010PWR XFMR TORO 3.2VA CHAS MT |
2,805 | 17.10 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 458mA, Series 229mA | Dual | Dual | No | 3.2VA | Chassis Mount | Wire Leads | - | 17.50mm | 4000Vrms |
|
|
62011PWR XFMR TORO 3.2VA CHAS MT |
3,917 | 17.10 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 356mA, Series 178mA | Dual | Dual | No | 3.2VA | Chassis Mount | Wire Leads | - | 17.50mm | 4000Vrms |
|
62021PWR XFMR TORO 5VA CHAS MT |
3,173 | 17.13 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 556mA, Series 278mA | Dual | Dual | No | 5VA | Chassis Mount | Wire Leads | - | 18.00mm | 4000Vrms |
|
62030PWR XFMR TORO 7VA CHAS MT |
3,037 | 17.19 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 1A, Series 500mA | Dual | Dual | No | 7VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
|
62012PWR XFMR TORO 3.2VA CHAS MT |
2,850 | 17.22 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 266mA, Series 133mA | Dual | Dual | No | 3.2VA | Chassis Mount | Wire Leads | - | 17.50mm | 4000Vrms |
|
|
62023PWR XFMR TORO 5VA CHAS MT |
2,556 | 17.39 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 334mA, Series 167mA | Dual | Dual | No | 5VA | Chassis Mount | Wire Leads | - | 18.00mm | 4000Vrms |
|
|
62031PWR XFMR TORO 7VA CHAS MT |
3,540 | 17.43 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 778mA, Series 389mA | Dual | Dual | No | 7VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
|
62013PWR XFMR TORO 3.2VA CHAS MT |
2,855 | 17.45 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 214mA, Series 107mA | Dual | Dual | No | 3.2VA | Chassis Mount | Wire Leads | - | 17.50mm | 4000Vrms |
|
|
62024PWR XFMR TORO 5VA CHAS MT |
2,524 | 17.54 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 278mA, Series 139mA | Dual | Dual | No | 5VA | Chassis Mount | Wire Leads | - | 18.00mm | 4000Vrms |
|
|
62014PWR XFMR TORO 3.2VA CHAS MT |
3,817 | 17.57 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 178mA, Series 89mA | Dual | Dual | No | 3.2VA | Chassis Mount | Wire Leads | - | 17.50mm | 4000Vrms |
|
|
62025PWR XFMR TORO 5VA CHAS MT |
2,562 | 17.60 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 228mA, Series 114mA | Dual | Dual | No | 5VA | Chassis Mount | Wire Leads | - | 18.00mm | 4000Vrms |
|
|

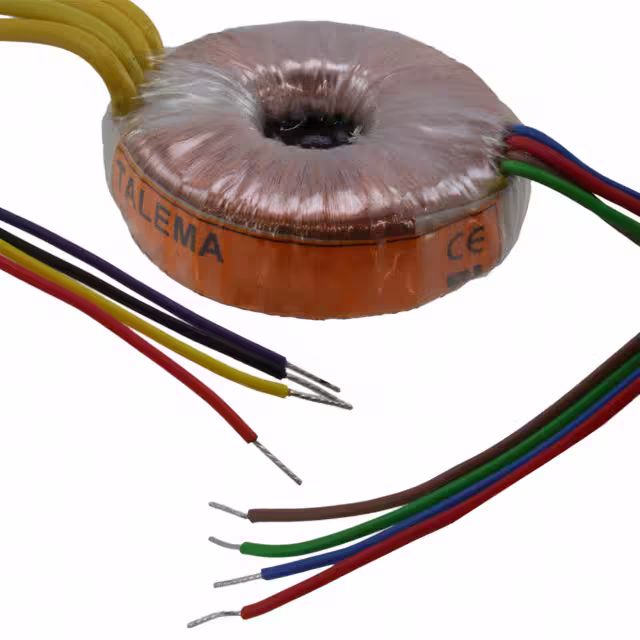

62015PWR XFMR TORO 3.2VA CHAS MT |
3,357 | 17.60 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 146mA, Series 73mA | Dual | Dual | No | 3.2VA | Chassis Mount | Wire Leads | - | 17.50mm | 4000Vrms |
|
|
62034PWR XFMR TORO 7VA CHAS MT |
3,101 | 17.66 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 388mA, Series 194mA | Dual | Dual | No | 7VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
|
62035PWR XFMR TORO 7VA CHAS MT |
2,982 | 17.75 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 318mA, Series 159mA | Dual | Dual | No | 7VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
62041PWR XFMR TORO 10VA CHAS MT |
3,957 | 19.38 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 1.12A, Series 556mA | Dual | Dual | No | 10VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
|
62040PWR XFMR TORO 10VA CHAS MT |
3,939 | 19.44 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 1.428A, Series 714mA | Dual | Dual | No | 10VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
|
62042PWR XFMR TORO 10VA CHAS MT |
3,507 | 20.26 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 834mA, Series 417mA | Dual | Dual | No | 10VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
|

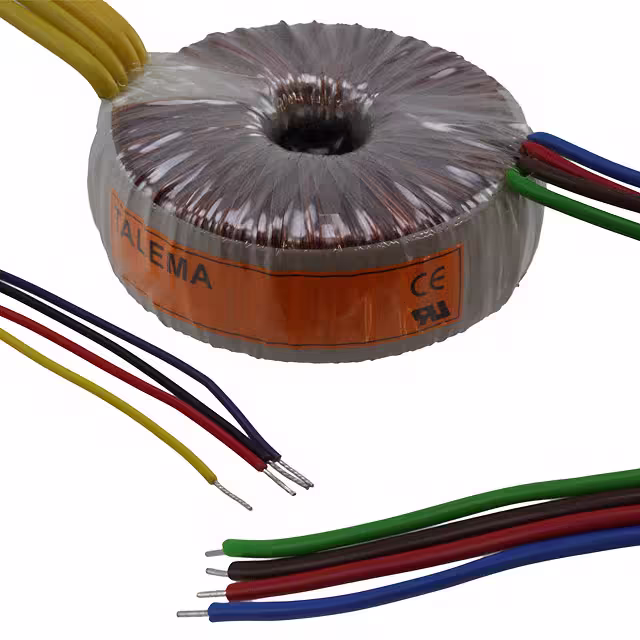

62044PWR XFMR TORO 10VA CHAS MT |
2,184 | 20.26 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 556mA, Series 278mA | Dual | Dual | No | 10VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
