| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1500MD-1-004PWR XFMR TORO 1500VA CHAS MT |
2,750 | 424.70 |
RFQ |
Datasheet |
Box | MD | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 12.5A, Series 6.25A | Dual, Multiple Taps | Single, Multiple Taps | No | 1500VA | Chassis Mount | Wire Leads | 200.00mm Dia x 90.00mm W | - | 5000Vrms |
|
70000KXFRMR TOROIDAL 1.6VA THRU HOLE |
3,484 | 19.76 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 228mA, Series 114mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms |
|
|
70002KXFRMR TOROIDAL 1.6VA THRU HOLE |
2,686 | 20.03 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 134mA, Series 67mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms |
|
70010KXFRMR TOROIDAL 3.2VA THRU HOLE |
3,240 | 20.79 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 458mA, Series 229mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms |
|
|
70011KXFRMR TOROIDAL 3.2VA THRU HOLE |
3,023 | 20.89 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 356mA, Series 178mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms |
|
70030KXFRMR TOROIDAL 7VA THRU HOLE |
2,808 | 21.50 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 1A, Series 500mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms |
|
70054KXFRMR TOROIDAL 15VA THRU HOLE |
3,840 | 22.22 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 834mA, Series 417mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms |
|
|
70055KXFRMR TOROIDAL 15VA THRU HOLE |
2,758 | 22.40 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 682mA, Series 341mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms |
|
62032PWR XFMR TORO 7VA CHAS MT |
2,221 | 23.70 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 584mA, Series 292mA | Dual | Dual | No | 7VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
|
70063KXFRMR TOROIDAL 25VA THRU HOLE |
3,540 | 24.44 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.664A, Series 832mA | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms |
|
70042KXFRMR TOROIDAL 10VA THRU HOLE |
163 | 25.10 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 834mA, Series 417mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 55.00mm L x 55.00mm W | 26.00mm | 4000Vrms |
|
62052PWR XFMR TORO 15VA CHAS MT |
2,134 | 26.95 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.25A, Series 625mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms |
|
|
62055PWR XFMR TORO 15VA CHAS MT |
2,930 | 28.05 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 682mA, Series 341mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms |
|

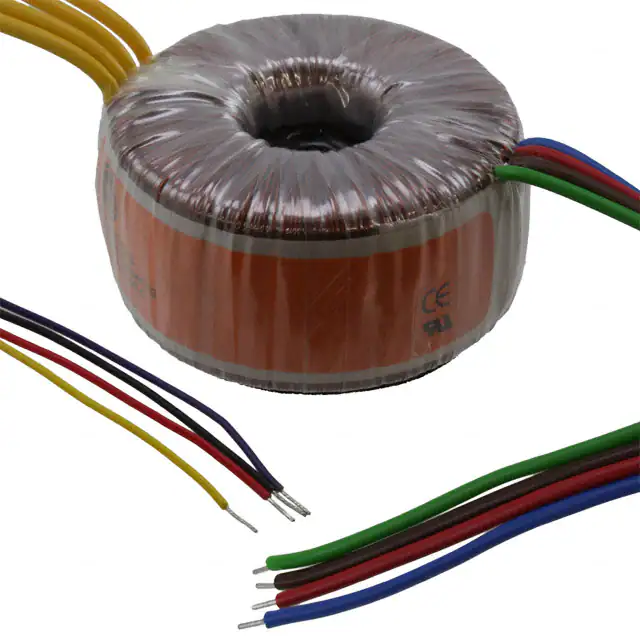

62060PWR XFMR TORO 25VA CHAS MT |
2,387 | 28.56 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 3.57A, Series 1.785A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms |
|
|
62065PWR XFMR TORO 25VA CHAS MT |
3,212 | 28.64 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 1.136A, Series 568mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms |
|
|
62062PWR XFMR TORO 25VA CHAS MT |
2,177 | 28.68 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.082A, Series 1.041A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms |
|
70073KXFRMR TOROIDAL 35VA THRU HOLE |
2,601 | 32.21 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 2.332A, Series 1.166A | Dual | Dual | No | 35VA | Through Hole | PC Pin | 72.00mm L x 72.00mm W | 37.50mm | 4000Vrms |
|

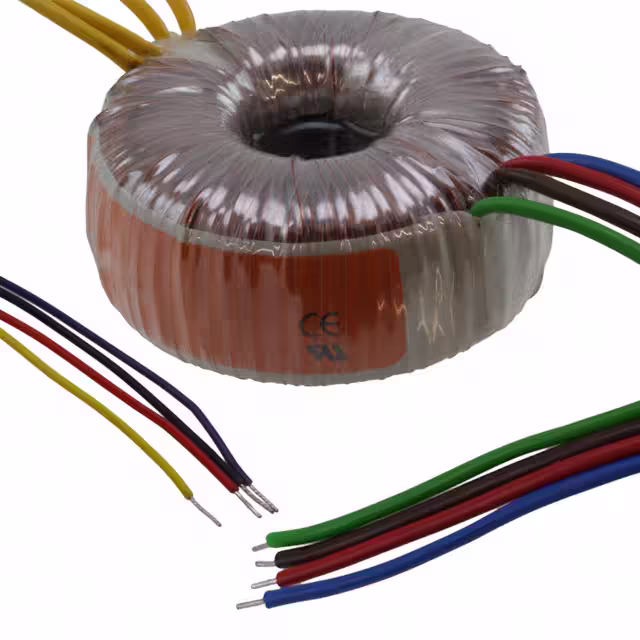

62072PWR XFMR TORO 35VA CHAS MT |
3,170 | 32.31 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.916A, Series 1.458A | Dual | Dual | No | 35VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
|
62071PWR XFMR TORO 35VA CHAS MT |
3,583 | 32.60 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 3.888A, Series 1.944A | Dual | Dual | No | 35VA | Chassis Mount | Wire Leads | - | - | 4000Vrms |
|
0200MD-1-003PWR XFMR TORO 200VA CHAS MT |
2,537 | 122.72 |
RFQ |
Datasheet |
Box | MD | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 1.67A, Series 830mA | Dual, Multiple Taps | Single, Multiple Taps | No | 200VA | Chassis Mount | Wire Leads | 117.00mm Dia x 56.00mm W | - | 5000Vrms |
