| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

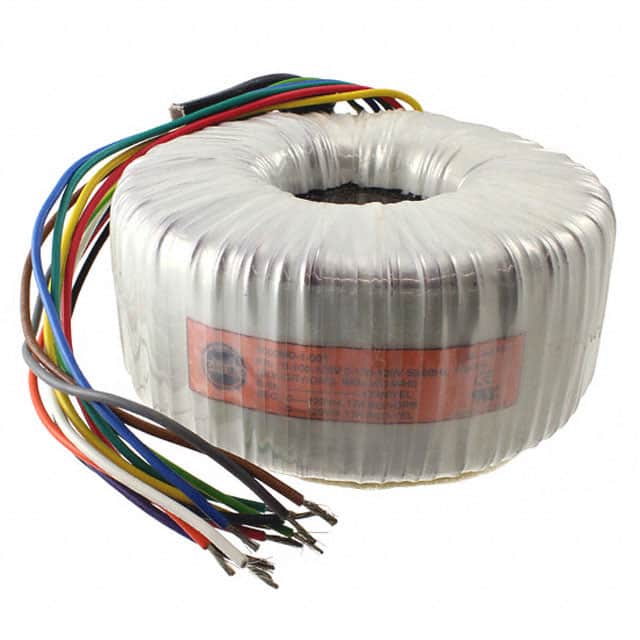

1000MD-1-003PWR XFMR TORO 1000VA CHAS MT |
3,006 | 279.84 |
RFQ |
Datasheet |
Box | MD | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 8.33A, Series 4.17A | Dual, Multiple Taps | Single, Multiple Taps | No | 1000VA | Chassis Mount | Wire Leads | 168.00mm Dia x 80.00mm W | - | 5000Vrms |
|
2000MD-1-003PWR XFMR TORO 2000VA CHAS MT |
3,957 | 545.16 |
RFQ |
Datasheet |
Box | MD | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 16.67A, Series 8.33A | Dual, Multiple Taps | Single, Multiple Taps | No | 2000VA | Chassis Mount | Wire Leads | 215.00mm Dia x 105.00mm W | - | 5000Vrms |
|
62022PWR XFMR TORO 5VA CHAS MT |
284 | 23.64 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 416mA, Series 208mA | Dual | Dual | No | 5VA | Chassis Mount | Wire Leads | - | 18.00mm | 4000Vrms |
|
70003KXFRMR TOROIDAL 1.6VA THRU HOLE |
3,868 | 13.49 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 106mA, Series 53mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms |
|
|
70004KPWR XFMR TORO 1.6VA TH |
3,479 | 13.56 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 88mA, Series 44mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms |
|
|
70005KXFRMR TOROIDAL 1.6VA THRU HOLE |
3,692 | 13.84 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 72mA, Series 36mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms |
|
70021KXFRMR TOROIDAL 5VA THRU HOLE |
3,798 | 14.15 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 556mA, Series 278mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 19.50mm | 4000Vrms |
|
70013KXFRMR TOROIDAL 3.2VA THRU HOLE |
3,587 | 14.25 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 214mA, Series 107mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms |
|
|
70012KXFRMR TOROIDAL 3.2VA THRU HOLE |
2,655 | 14.28 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 266mA, Series 133mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms |
|
|
70031KXFRMR TOROIDAL 7VA THRU HOLE |
3,148 | 14.40 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 778mA, Series 389mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms |
|
|
70014KXFRMR TOROIDAL 3.2VA THRU HOLE |
3,811 | 14.48 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 178mA, Series 89mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms |
|
|
70015KXFRMR TOROIDAL 3.2VA THRU HOLE |
3,276 | 14.67 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 146mA, Series 73mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms |
|
|
70025KXFRMR TOROIDAL 5VA THRU HOLE |
2,862 | 14.70 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 228mA, Series 114mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 19.50mm | 4000Vrms |
|
|
70024KXFRMR TOROIDAL 5VA THRU HOLE |
2,483 | 22.10 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 278mA, Series 139mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 19.50mm | 4000Vrms |
|
|
70035KXFRMR TOROIDAL 7VA THRU HOLE |
3,829 | 14.82 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 318mA, Series 159mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms |
|
70045KXFRMR TOROIDAL 10VA THRU HOLE |
2,723 | 15.66 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 454mA, Series 227mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 55.00mm L x 55.00mm W | 26.00mm | 4000Vrms |
|
62000PWR XFMR TORO 1.6VA CHAS MT |
2,655 | 16.44 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 228mA, Series 114mA | Dual | Dual | No | 1.6VA | Chassis Mount | Wire Leads | - | 17.00mm | 4000Vrms |
|
|
62002PWR XFMR TORO 1.6VA CHAS MT |
3,364 | 16.59 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 134mA, Series 67mA | Dual | Dual | No | 1.6VA | Chassis Mount | Wire Leads | - | 17.00mm | 4000Vrms |
|
|
62003PWR XFMR TORO 1.6VA CHAS MT |
2,739 | 16.73 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 106mA, Series 53mA | Dual | Dual | No | 1.6VA | Chassis Mount | Wire Leads | - | 17.00mm | 4000Vrms |
|
|
62004PWR XFMR TORO 1.6VA CHAS MT |
3,636 | 16.85 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 88mA, Series 44mA | Dual | Dual | No | 1.6VA | Chassis Mount | Wire Leads | - | 17.00mm | 4000Vrms |
