| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56-160-LPIPWR XFMR SEMI-TORO 9VA TH |
2,048 | 18.54 |
RFQ |
Datasheet |
Box | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 320mA, Series 160mA | Dual | Dual | No | 9VA | Through Hole | PC Pin | 60.20mm L x 42.10mm W | 27.40mm | 4000Vrms |
|
241-8-12LPWR XFMR LAMINATED 100VA CHAS MT |
3,765 | 29.61 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 12.6V | 8A | Single | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
A41-80-10PWR XFMR LAMINATED 80VA CHAS MT |
3,300 | 30.35 |
RFQ |
Datasheet |
Bulk | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 16A, Series 8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms |
-Series.jpg)
|
A41-80-20LPWR XFMR LAMINATED 80VA CHAS MT |
2,245 | 30.35 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 8A, Series 4A | Dual | Dual | No | 80VA | Chassis Mount | Wire Leads | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms |
|
MT-8-15PWR XFMR LAMINATED 8VA CHAS MT |
2,659 | 32.08 |
RFQ |
Datasheet |
Bulk | MT | Active | Laminated Core | 115V | 5V, 15V | 4A, 500mA | Single | Dual | Yes | 8VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
A41-175-24LPWR XFMR LAMINATED 175VA CHAS MT |
3,823 | 40.92 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 14.6A, Series 7.3A | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
A41-130-16PWR XFMR LAMINATED 130VA CHAS MT |
2,326 | 40.94 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 16.2A, Series 8.1A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|
ECO-330-230PWR XFMR LAMINATED 330VA CHAS MT |
2,345 | 130.08 |
RFQ |
Datasheet |
Box | EcoTran | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 2.8A, Series 1.4A | Dual | Dual | No | 330VA | Chassis Mount | Terminal Block | 126.00mm L x 136.00mm W | 114.30mm | 4000Vrms |
|

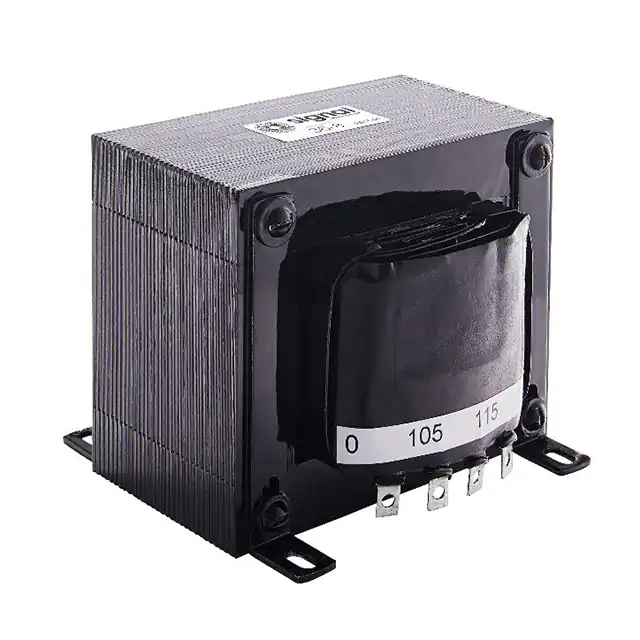

36-8PWR XFMR LAMINATED 288VA CHAS MT |
3,543 | 132.64 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 16A, Series 8A | Single, Multiple Taps | Dual | Yes | 288VA | Chassis Mount | Solder, Quick Connect | 114.30mm L x 114.30mm W | 95.30mm | 1500Vrms |
|
MPI-200-12PWR XFMR LAMINATED 200VA CHAS MT |
2,531 | 132.72 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 6V, Series 12V | Parallel 33.3A, Series 16.7A | Dual, Multiple Taps | Dual | No | 200VA | Chassis Mount | Terminal Block | 95.30mm L x 113.30mm W | 93.10mm | 4000Vrms |
|
|
ECO-450-230PWR XFMR LAMINATED 450VA CHAS MT |
3,034 | 142.55 |
RFQ |
Datasheet |
Box | EcoTran | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 4A, Series 2A | Dual | Dual | No | 450VA | Chassis Mount | Terminal Block | 126.00mm L x 136.00mm W | 124.50mm | 4000Vrms |
|
M4L-2-4PWR XFMR LAMINATED 450VA CHAS MT |
2,032 | 150.75 |
RFQ |
Datasheet |
Box | M4L | Active | Laminated Core | 250V, 230V, 210V | 115V | 3.9A | Single, Multiple Taps | Single | No | 450VA | Chassis Mount | Terminal Block | 113.28mm L x 110.00mm W | 114.30mm | 4000Vrms |
|
12.8-25PWR XFMR LAMINATED 320VA CHAS MT |
2,678 | 150.92 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 6.4V, Series 12.8V | Parallel 50A, Series 25A | Single, Multiple Taps | Single, Multiple Taps | Yes | 320VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 108.00mm W | 111.10mm | 1500Vrms |
|
MTT-300PWR XFMR LAMINATED 300VA CHAS MT |
2,160 | 167.45 |
RFQ |
Datasheet |
Bulk | MTT | Active | Laminated Core | 100V, 115V, 120V | Parallel 12V, Series 24V | Parallel 25A, Series 12.5A | Single | Triple | No | 300VA | Chassis Mount | Terminal Block | 104.80mm L x 128.10mm W | 98.20mm | 4000Vrms |
|
|
M4L-1-6PWR XFMR LAMINATED 600VA CHAS MT |
3,329 | 170.50 |
RFQ |
Datasheet |
Bulk | M4L | Active | Laminated Core | 125V, 115V, 105V | 115V | 5.2A | Single, Multiple Taps | Single | No | 600VA | Chassis Mount | Terminal Block | 113.28mm L x 129.03mm W | 114.30mm | 4000Vrms |
|
24-25PWR XFMR LAMINATED 600VA CHAS MT |
2,761 | 208.15 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 12V, Series 24V | Parallel 50A, Series 25A | Single, Multiple Taps | Dual | Yes | 600VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 142.90mm W | 111.10mm | 1500Vrms |
|

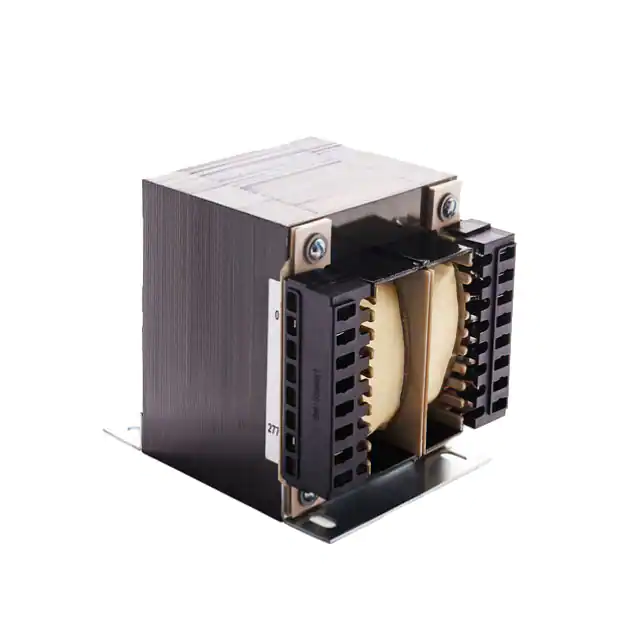

SLT-1000PWR XFMR LAMINATED 1000VA CHAS |
2,969 | 242.32 |
RFQ |
Datasheet |
Bulk | SLT | Active | Laminated Core | 277V | 120V | 8.33A | Single | Single | Yes | 1000VA | Chassis Mount | Terminal Block | 142.20mm L x 144.78mm W | 133.40mm | 4000Vrms |
|
36-30PWR XFMR LAMINATED 1080VA CHAS |
2,152 | 318.47 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 60A, Series 30A | Single, Multiple Taps | Dual | Yes | 1080VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 152.40mm W | 134.90mm | 1500Vrms |
|
DST-4-120PWR XFMR LAMINATED 6VA TH |
3,302 | 13.32 |
RFQ |
Datasheet |
Bulk | DST | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 100mA, Series 50mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms |
|
LP-10-600PWR XFMR SEMI-TORO 6VA TH |
2,172 | 16.06 |
RFQ |
Datasheet |
Bulk | LP | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms |
