| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A41-80-28PWR XFMR LAMINATED 80VA CHAS MT |
2,998 | 30.35 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms |
|
IF-30-20PWR XFMR SEMI-TORO 30VA TH |
2,444 | 32.81 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 3A, Series 1.5A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 68.00mm L x 57.50mm W | 35.30mm | 4000Vrms |
|
A41-175-16PWR XFMR LAMINATED 175VA CHAS MT |
3,911 | 40.92 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
|
A41-175-20PWR XFMR LAMINATED 175VA CHAS MT |
2,958 | 40.92 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms |
|
|
A41-130-12PWR XFMR LAMINATED 130VA CHAS MT |
3,768 | 41.27 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 20.6A, Series 10.3A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms |
|

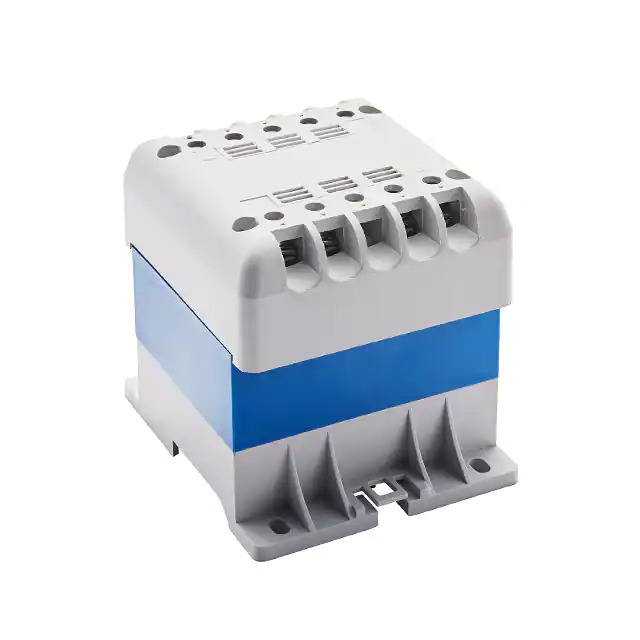

ECO-105-48PWR XFMR LAMINATED 105VA CHAS MT |
2,448 | 77.81 |
RFQ |
Datasheet |
Box | EcoTran | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 105VA | Chassis Mount | Terminal Block | 90.00mm L x 106.00mm W | 96.00mm | 4000Vrms |
|
|
ECO-200-230PWR XFMR LAMINATED 200VA CHAS MT |
3,120 | 105.10 |
RFQ |
Datasheet |
Box | EcoTran | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.7A, Series 870mA | Dual | Dual | No | 200VA | Chassis Mount | Terminal Block | 90.00mm L x 106.00mm W | 116.00mm | 4000Vrms |
|

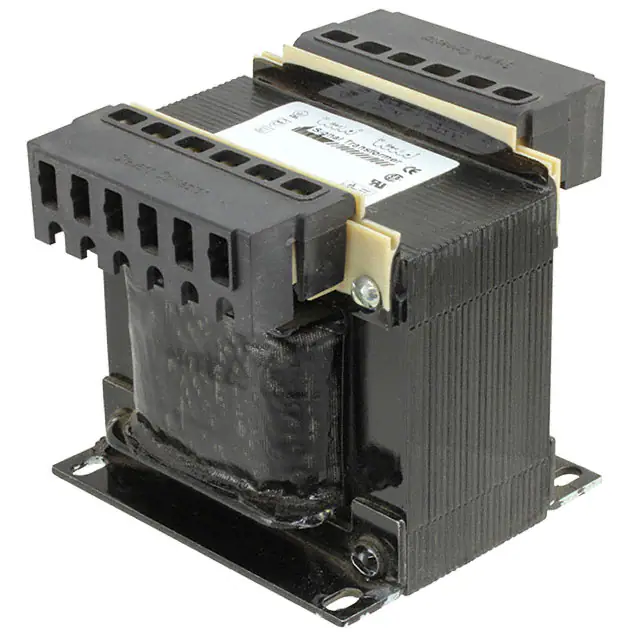

MPI-200-28PWR XFMR LAMINATED 200VA CHAS MT |
3,217 | 137.30 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 14V, Series 28V | Parallel 14.2A, Series 7.1A | Dual, Multiple Taps | Dual | No | 200VA | Chassis Mount | Terminal Block | 95.30mm L x 113.30mm W | 93.10mm | 4000Vrms |
|
MPI-300-36PWR XFMR LAMINATED 300VA CHAS MT |
3,060 | 149.78 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 18V, Series 36V | Parallel 16.7A, Series 8.3A | Dual, Multiple Taps | Dual | No | 300VA | Chassis Mount | Terminal Block | 104.80mm L x 113.10mm W | 98.20mm | 4000Vrms |
|
MPI-400-24PWR XFMR LAMINATED 400VA CHAS MT |
2,848 | 171.59 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 12V, Series 24V | Parallel 33.3A, Series 16.7A | Dual, Multiple Taps | Dual | No | 400VA | Chassis Mount | Terminal Block | 104.80mm L x 128.10mm W | 98.20mm | 4000Vrms |
|
M4L-3-6PWR XFMR LAMINATED 600VA CHAS MT |
2,333 | 177.68 |
RFQ |
Datasheet |
Bulk | M4L | Active | Laminated Core | 115V, 100V | 115V | 5.2A | Dual, Multiple Taps | Single | No | 600VA | Chassis Mount | Terminal Block | 113.28mm L x 129.03mm W | 114.30mm | 4000Vrms |
|
MPI-900-36PWR XFMR LAMINATED 900VA CHAS MT |
3,958 | 259.70 |
RFQ |
Datasheet |
Bulk | MPI | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 18V, Series 36V | Parallel 50A, Series 25A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms |
|
16-100PWR XFMR LAMINATED 1600VA CHAS |
3,151 | 500.56 |
RFQ |
Datasheet |
Box | - | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 200A, Series 100A | Single, Multiple Taps | Single, Multiple Taps | Yes | 1600VA | Chassis Mount | Solder, Quick Connect | 190.50mm L x 190.50mm W | 162.00mm | 1500Vrms |
|
PC-40-30PWR XFMR LAMINATED 1.2VA TH |
3,538 | 11.75 |
RFQ |
Datasheet |
Box | PC | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 60mA, Series 30mA | Single | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms |
|
DST-2-56PWR XFMR LAMINATED 1.1VA TH |
3,699 | 12.09 |
RFQ |
Datasheet |
Bulk | DST | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 24.60mm | 2500Vrms |
|
DPC-40-110PWR XFMR LAMINATED 4.4VA TH |
3,525 | 13.69 |
RFQ |
Datasheet |
Box | DPC | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 220mA, Series 110mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.30mm L x 31.80mm W | 34.92mm | 1500Vrms |
|
PC-20-500PWR XFMR LAMINATED 10VA TH |
3,027 | 14.40 |
RFQ |
Datasheet |
Box | PC | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 1A, Series 500mA | Single | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 36.50mm W | 41.27mm | 1500Vrms |
|
IF-2-16PWR XFMR SEMI-TORO 2VA TH |
2,831 | 17.28 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 250mA, Series 125mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 17.60mm | 4000Vrms |
|
|
IF-2-230PWR XFMR SEMI-TORO 2VA TH |
3,759 | 18.06 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 18mA, Series 9mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 17.60mm | 4000Vrms |
|
|
DST-6-28PWR XFMR LAMINATED 20VA TH |
2,845 | 18.46 |
RFQ |
Datasheet |
Box | DST | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms |
