| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALDP1F05WRELAY GEN PURPOSE SPST 5A 5V |
2,767 | 2.23 |
RFQ |
Datasheet |
Tray | ALDP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 40 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
ALDP1F18WRELAY GEN PURPOSE SPST 5A 18V |
188 | 2.63 |
RFQ |
Datasheet |
Tray | ALDP | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
ALDP1F24WRELAY GEN PURPOSE SPST 5A 24V |
3,709 | 2.63 |
RFQ |
Datasheet |
Tray | ALDP | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
AEP52012RELAY GEN PURPOSE SPST 20A 12V |
2,087 | 66.80 |
RFQ |
Datasheet |
Box | AEP | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 20 A | 277VAC, 400VDC - Nom | 327 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | Sealed - Hermetically | - | 9 VDC | 0.5 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - |
|
JS1-B-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
328 | 1.21 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
LKP1AF-12VRELAY GEN PURPOSE SPST 10A 12V |
208 | 1.77 |
RFQ |
Datasheet |
Bulk | LK-P | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
JS1A-6V-FRELAY GEN PURPOSE SPST 10A 6V |
2,082 | 1.77 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
JS1AF-B-6V-FRELAY GEN PURPOSE SPST 10A 6V |
443 | 1.80 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
JS1A-B-6V-FRELAY GEN PURPOSE SPST 10A 6V |
337 | 1.80 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
JS1AF-24V-FRELAY GEN PURPOSE SPST 10A 24V |
281 | 1.80 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
JS1AF-F-5V-FRELAY GEN PURPOSE SPST 10A 5V |
3,323 | 1.82 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 72 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|

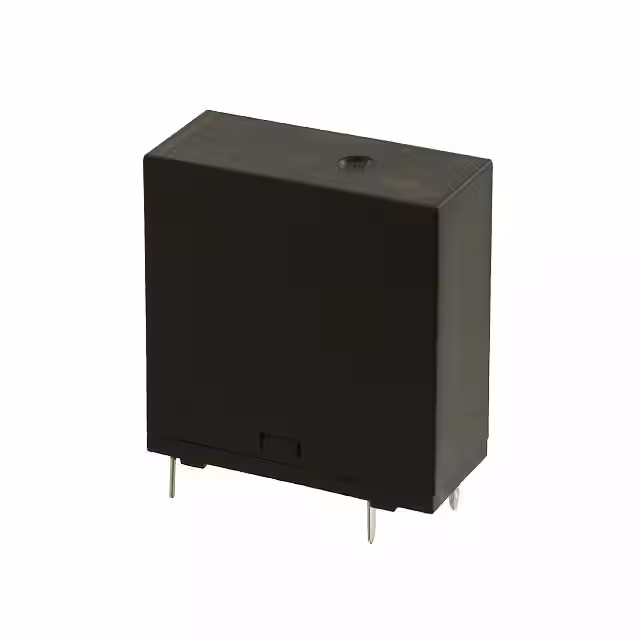

LKT1AF-9VRELAY GEN PURPOSE SPST 5A 9V |
151 | 1.85 |
RFQ |
Datasheet |
Tray | LK-T | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
JS1-18V-FRELAY GEN PURPOSE SPDT 10A 18V |
3,174 | 1.95 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
JS1F-B-9V-FRELAY GEN PURPOSE SPDT 10A 9V |
3,110 | 2.03 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
JS1-B-18V-FRELAY GEN PURPOSE SPDT 10A 18V |
274 | 2.05 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
JS1AF-B-48V-FRELAY GEN PURPOSE SPST 10A 48V |
3,362 | 2.08 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
ALE12B18RELAY GEN PURPOSE SPST 16A 18V |
3,272 | 2.31 |
RFQ |
Datasheet |
Bulk | ALE | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 22.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.187 (4.7mm) | - | Class B | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|

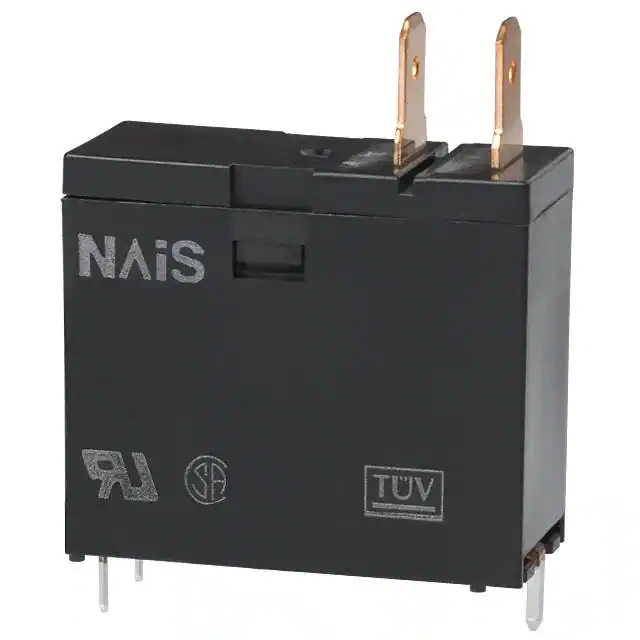

ALE12B09RELAY GEN PURPOSE SPST 16A 9V |
2,566 | 2.47 |
RFQ |
Datasheet |
Bulk | ALE | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 44.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.187 (4.7mm) | - | Class B | 6.75 VDC | 0.45 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALE13B18RELAY GEN PURPOSE SPST 16A 18V |
2,480 | 2.47 |
RFQ |
Datasheet |
Bulk | ALE | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 22.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.187 (4.7mm) | - | Class B | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
JS1-F-6V-FRELAY GEN PURPOSE SPDT 10A 6V |
350 | 2.52 |
RFQ |
Datasheet |
Tray | JS | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 60 mA | Non Latching | - | PC Pin | - | Class F | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
