| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADW1203HTWRELAY GEN PURPOSE SPST 16A 3V |
3,462 | 9.10 |
RFQ |
Datasheet |
Tray | DW-H | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 133 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 2.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1224HTRELAY GEN PURPOSE SPST 16A 24V |
3,694 | 9.15 |
RFQ |
Datasheet |
Tube | DW-H | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 16.7 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1212HTRELAY GEN PURPOSE SPST 16A 12V |
3,853 | 9.15 |
RFQ |
Datasheet |
Tube | DW-H | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 33.3 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1203HTRELAY GEN PURPOSE SPST 16A 3V |
2,518 | 9.33 |
RFQ |
Datasheet |
Tube | DW-H | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 133 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 2.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1209HTRELAY GEN PURPOSE SPST 16A 9V |
3,985 | 9.33 |
RFQ |
Datasheet |
Tube | DW-H | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 44.4 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1203TWRELAY GEN PURPOSE SPST 8A 3V |
100 | 9.56 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 133 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 2.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1206TWRELAY GEN PURPOSE SPST 8A 6V |
100 | 9.56 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 66.7 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1205TWRELAY GEN PURPOSE SPST 8A 5V |
3,344 | 9.56 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 80 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
ADW1206WRELAY GEN PURPOSE SPST 8A 6V |
100 | 10.24 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 4.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1209WRELAY GEN PURPOSE SPST 8A 9V |
2,554 | 10.24 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 44.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1205WRELAY GEN PURPOSE SPST 8A 5V |
2,488 | 10.24 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 80 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1203WRELAY GEN PURPOSE SPST 8A 3V |
2,111 | 10.45 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 133 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 2.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
DSP1A-L2-DC24V-RRELAY GEN PURPOSE SPST 8A 24V |
2,597 | 10.65 |
RFQ |
Datasheet |
Bulk | DSP | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 12.5 mA | Latching, Dual Coil | Reverse Polarity | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

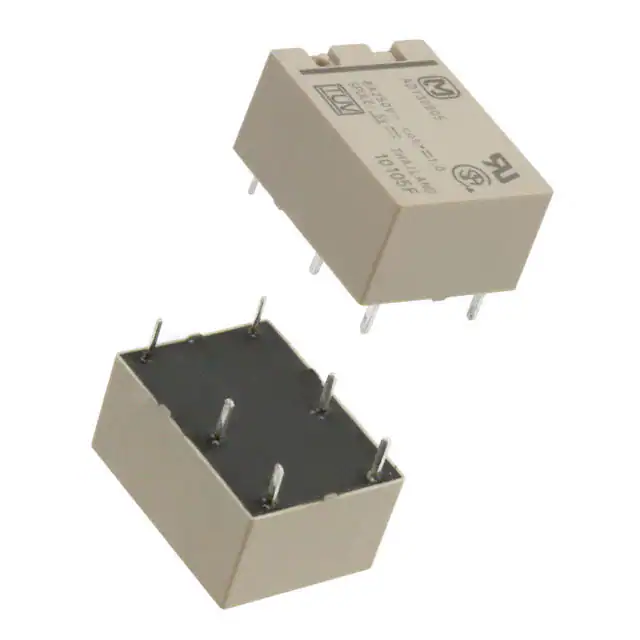

ADY10003RELAY GEN PURPOSE SPST 10A 3V |
3,123 | 10.76 |
RFQ |
Datasheet |
Box | ADY | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 66.6 mA | Non Latching | - | PC Pin | - | - | 2.1 VDC | 0.3 VDC | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
DK1A1B-L2-9VRELAY GEN PURPOSE DPST 8A 9V |
2,928 | 11.46 |
RFQ |
Datasheet |
Tube | DK | Active | Through Hole | 9VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 22.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) |
|
ADJH21105RELAY GEN PURPOSE SPST 50A 5V |
3,178 | 12.21 |
RFQ |
Datasheet |
Tray | ADJH | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 200 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADJH22112RELAY GEN PURPOSE SPST 50A 12V |
3,370 | 12.21 |
RFQ |
Datasheet |
Tray | ADJH | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 83.3 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADJH22124RELAY GEN PURPOSE SPST 50A 24V |
2,034 | 12.21 |
RFQ |
Datasheet |
Tray | ADJH | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 41.7 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADJH22105RELAY GEN PURPOSE SPST 50A 5V |
2,913 | 12.21 |
RFQ |
Datasheet |
Tray | ADJH | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 200 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
ADJH22024RELAY GEN PURPOSE SPST 50A 24V |
2,419 | 12.21 |
RFQ |
Datasheet |
Tray | ADJH | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 41.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
