| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE2AN-S-AC240VRELAY GEN PURPOSE DPST 25A 240V |
3,493 | 24.16 |
RFQ |
Datasheet |
Bulk | HE | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 10.8 mA | Non Latching | - | Screw Terminal | - | - | 168 VAC | 36 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
AHES4290RELAY GEN PURPOSE 3PST 35A 6V |
2,866 | 24.35 |
RFQ |
Datasheet |
Tray | HE-S | Active | Through Hole | 6VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 35 A | 277VAC - Nom | 313 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.5 VDC | 0.3 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|

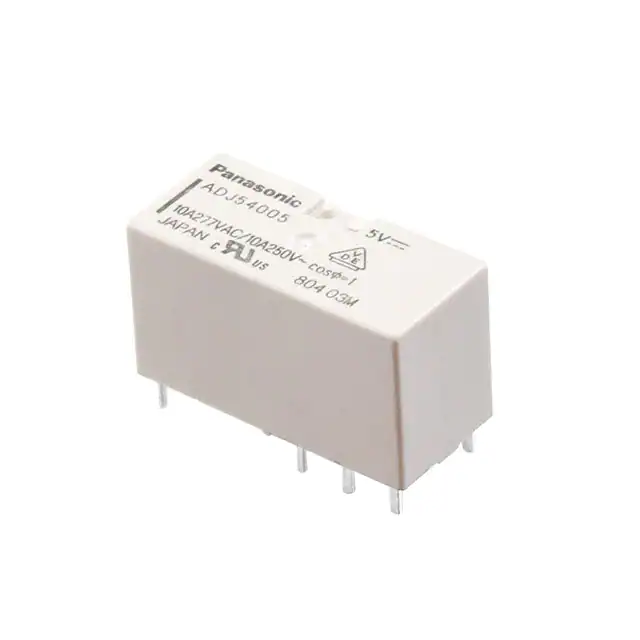

ADJ54005RELAY GEN PURPOSE DPDT 10A 5V |
3,075 | 24.97 |
RFQ |
Datasheet |
Box | ADJ | Active | Through Hole | 5VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
HE1AN-P-DC9V-Y5RELAY GEN PURPOSE SPST 48A 9V |
3,660 | 25.54 |
RFQ |
Datasheet |
Bulk | HE-PV | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 48 A | 250VAC - Max | 213 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.9 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) |
|
HE1AN-S-DC12VRELAY GEN PURPOSE SPST 30A 12V |
2,574 | 26.14 |
RFQ |
Datasheet |
Bulk | HE | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 160 mA | Non Latching | - | Screw Terminal | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
HE2AN-Q-AC240VRELAY GEN PURPOSE DPST 25A 240V |
2,251 | 27.10 |
RFQ |
Datasheet |
Bulk | HE | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 9.1 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | - | 168 VAC | 36 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
SP2-DC12VRELAY GEN PURPOSE DPDT 15A 12V |
3,321 | 27.30 |
RFQ |
Datasheet |
Tube | SP | Active | Socketable | 12VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 25 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
SP2-P-DC5VRELAY GEN PURPOSE DPDT 15A 5V |
3,887 | 27.80 |
RFQ |
Datasheet |
Tray | SP | Active | Through Hole | 5VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 60.2 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

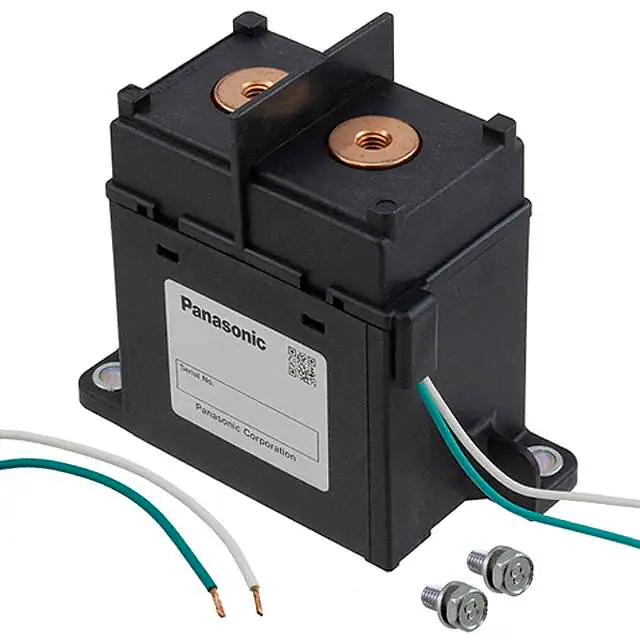

AEP17012RELAY GEN PURPOSE SPST 200A 12V |
2,615 | 402.12 |
RFQ |
Datasheet |
Bulk | AEP | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 200 A | 277VAC, 400VDC - Nom | 500 mA | Non Latching | - | Screw Terminal, Wire Leads | - | - | 9 VDC | 1 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - |
|
ADW1109HLWRELAY GEN PURPOSE SPST 16A 9V |
3,513 | 5.62 |
RFQ |
Datasheet |
Tray | DW-H | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 22.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1209HLWRELAY GEN PURPOSE SPST 16A 9V |
3,974 | 6.43 |
RFQ |
Datasheet |
Tray | DW-H | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 44.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
HE2AN-S-DC48VRELAY GEN PURPOSE DPST 25A 48V |
3,488 | 31.31 |
RFQ |
Datasheet |
Bulk | HE | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 40 mA | Non Latching | - | Screw Terminal | - | - | 33.6 VDC | 4.8 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|

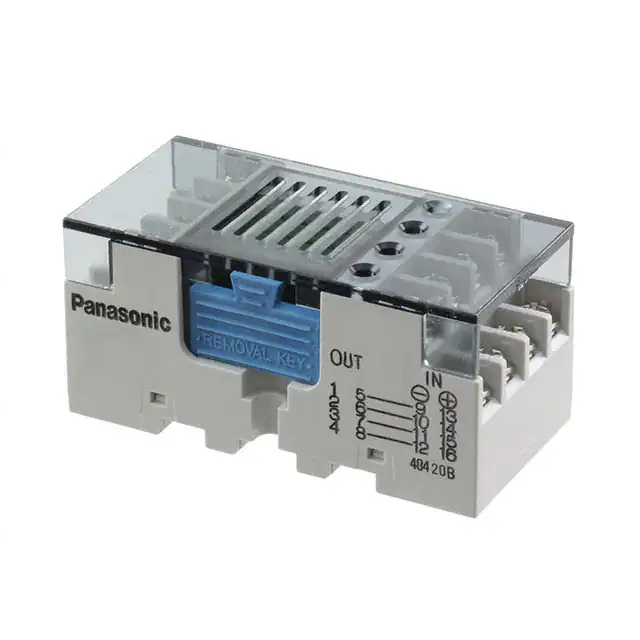

RT3SN-12VRELAY GEN PURPOSE SPST 3A 12V |
3,175 | 63.33 |
RFQ |
Datasheet |
Bulk | RT-3 | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) x 4 | 3 A | 250VAC, 30VDC - Max | 9.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 8.4 VDC | 0.6 VDC | - | - | -20°C ~ 55°C | - |
|

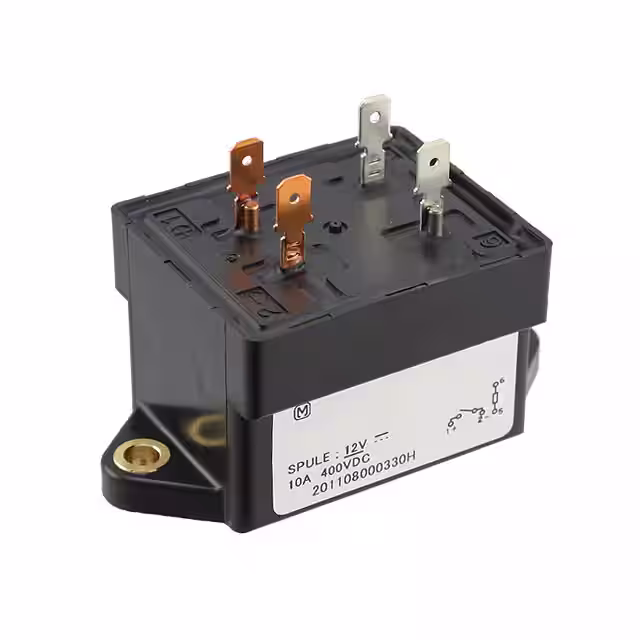

AEP51012RELAY AUTO SPST 10A 12V |
3,738 | 72.06 |
RFQ |
Datasheet |
Bulk | AEP | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 400VDC - Nom | 103 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | Sealed - Hermetically | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - |
|
ALQ3F18RELAY GEN PURPOSE SPST 10A 18V |
2,516 | 2.62 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

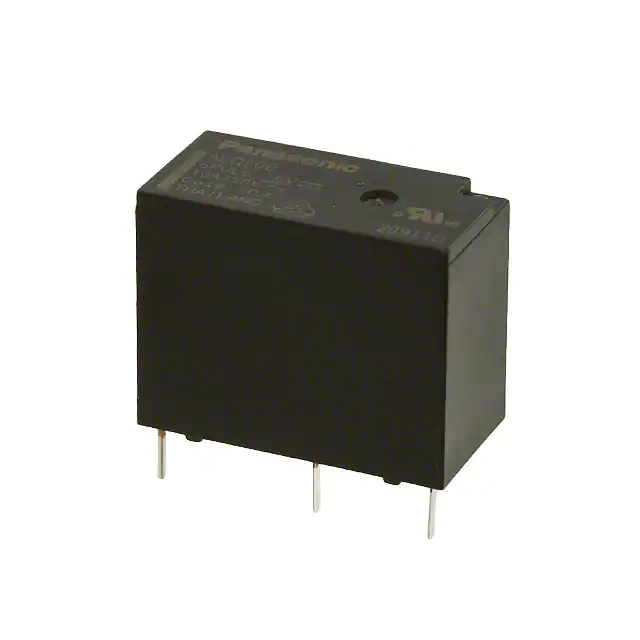

ALQ106RELAY GEN PURPOSE SPDT 10A 6V |
2,983 | 2.71 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 66.7 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | 0.3 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALQ1F18RELAY GEN PURPOSE SPDT 10A 18V |
3,480 | 2.77 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 22.2 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
ALQ1F06RELAY GEN PURPOSE SPDT 10A 6V |
2,087 | 2.77 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 66.7 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.3 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALZN5B09WRELAY GEN PURPOSE SPST 16A 9V |
2,609 | 2.98 |
RFQ |
Datasheet |
Tray | ALZN | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALZN1B18WRELAY GEN PURPOSE SPDT 16A 18V |
3,089 | 3.21 |
RFQ |
Datasheet |
Tray | ALZN | Active | Through Hole | 18VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
