| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTN1S-PA-F-DC48VRELAY GEN PURPOSE SPDT 20A 48V |
2,189 | 5.47 |
RFQ |
Datasheet |
Bulk | JT-N | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
HC3-HP-AC24V-FRELAY GEN PURPOSE 3PDT 7A 24V |
3,957 | 7.53 |
RFQ |
Datasheet |
Tray | HC | Obsolete | Through Hole | 24VAC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 50 mA | Non Latching | - | PC Pin | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
AHN22112NRELAY GEN PURPOSE DPDT 5A 12V |
2,976 | 7.76 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 44.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN220X1NRELAY GEN PURPOSE DPDT 5A 110V |
2,759 | 8.60 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 4.8 mA | Non Latching | - | Plug In | - | - | 77 VDC | 11 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN22306NRELAY GEN PURPOSE DPDT 5A 6V |
3,572 | 9.84 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 6VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 88.2 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 4.2 VDC | 0.6 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN222X1NRELAY GEN PURPOSE DPDT 5A 110V |
2,633 | 11.15 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 4.8 mA | Non Latching | Diode | Plug In | - | - | 77 VDC | 11 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
APF30348RELAY GEN PURPOSE SPDT 6A 48V |
2,942 | 19.17 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 48VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 4.5 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 2.4 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
HL2-L-DC48V-D-FRELAY GEN PURPOSE DPDT 10A 48V |
2,631 | 19.59 |
RFQ |
Datasheet |
Bulk | HL | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 18.5 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 25 ms | 25 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
ADQM16024RELAY GEN PURPOSE SPST 60A 24V |
2,016 | 47.57 |
RFQ |
Datasheet |
Tube | ADQM | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 20.8 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 19.2 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
ADQM2604HRELAY GEN PURPOSE SPST 60A 4.5V |
3,443 | 47.87 |
RFQ |
Datasheet |
Tube | ADQM | Obsolete | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 222 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 3.6 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
ADQM16012RELAY GEN PURPOSE SPST 60A 12V |
3,383 | 53.05 |
RFQ |
Datasheet |
Tray | ADQM | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 41.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
ADQM26024RELAY GEN PURPOSE SPST 60A 24V |
3,113 | 55.66 |
RFQ |
Datasheet |
Tube | ADQM | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 41.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 19.2 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free |
|

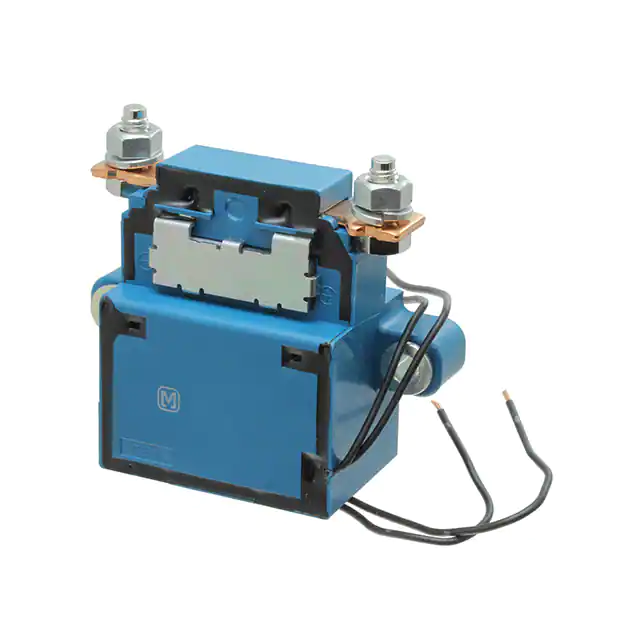

AEJ11024RELAY GEN PURPOSE SPST 100A 24V |
2,606 | 142.66 |
RFQ |
Bulk | AEJ | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 100 A | 100VDC - Nom | 208 mA | Non Latching | - | Screw Terminal | - | - | 18 VDC | 2 VDC | 30 ms | 15 ms | -40°C ~ 85°C | Silver Alloy | |
|
ALDP105WRELAY GEN PURPOSE SPST 5A 5V |
3,500 | 1.08 |
RFQ |
Datasheet |
Tray | ALDP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 40 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.25 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALQ305RELAY GEN PURPOSE SPST 10A 5V |
3,951 | 1.24 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 40 mA | Non Latching | - | PC Pin | - | Class B | 3.75 VDC | 0.25 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALQ105RELAY GEN PURPOSE SPDT 10A 5V |
3,254 | 1.42 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 80 mA | Non Latching | - | PC Pin | - | Class B | 3.75 VDC | 0.25 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALQ112RELAY GEN PURPOSE SPDT 10A 12V |
2,416 | 1.42 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

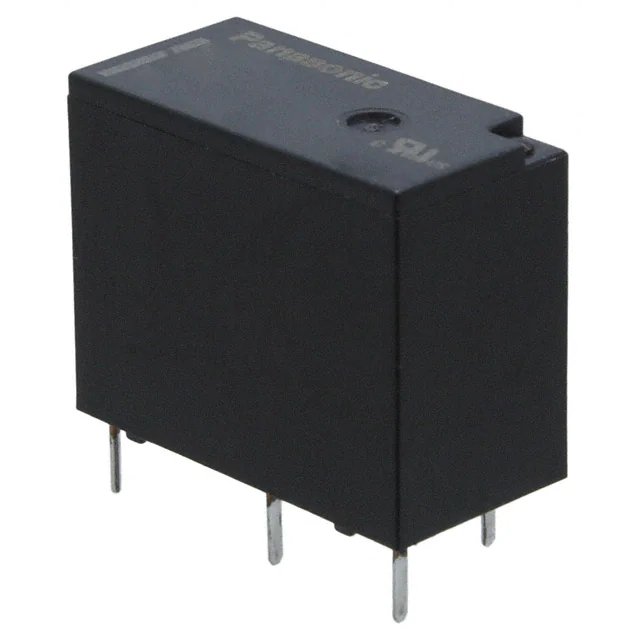

ALQ124RELAY GEN PURPOSE SPDT 10A 24V |
2,320 | 1.42 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
JW1FSN-DC12VRELAY GEN PURPOSE SPDT 10A 12V |
2,351 | 2.58 |
RFQ |
Datasheet |
Bulk | JW | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
|
|
JW2SN-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
2,794 | 2.66 |
RFQ |
Datasheet |
Box | JW | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
