| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | OutputIsolation | InternalSwitch(s) | Voltage-Breakdown | Topology | Voltage-StartUp | Voltage-Supply(Vcc/Vdd) | DutyCycle | Frequency-Switching | Power(Watts) | FaultProtection | ControlFeatures | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TOP234YNIC OFFLINE SW FLYBACK TO220-7B |
2,513 | 2.95 |
RFQ |
Datasheet |
Tube | TOPSwitch®-FX | Last Time Buy | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz ~ 132kHz | 75 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) |
|

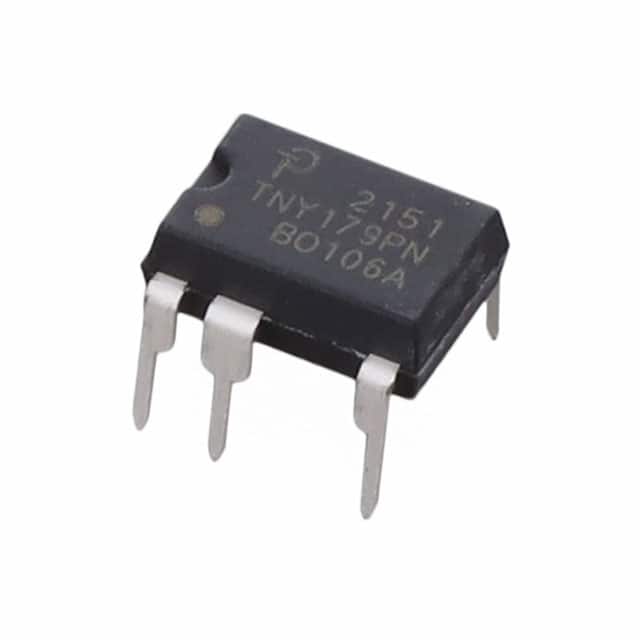

TNY179PN25 W (85-265 VAC) 32 W (230 VAC) |
2,999 | 1.97 |
RFQ |
Tube | - | Active | Isolated | Yes | 650V | Flyback, Secondary Side SR | - | - | 65% | 132kHz | 32 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | |
|
LNK6763K-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
3,635 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR) | LinkSwitch™-HP | Active | Isolated | Yes | 650V | Flyback | - | - | 64% | 120kHz ~ 136kHz | 35 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
|
LNK6407K-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
3,795 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | LinkSwitch™-3 | Active | Isolated | Yes | 725V | Flyback | - | - | 55% | Up to 85kHz | 9 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
LNK564GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
533 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LinkSwitch®-LP | Active | Isolated | Yes | 700V | Flyback | - | - | 70% | 100kHz | 3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
LNK3694G-TLIC OFFLINE SWITCH FLYBACK 8SMD |
283 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LinkSwitch™-XT2 | Active | Isolated | Yes | 900V | Flyback | - | - | 65% | 66kHz | 6 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
TNY285KGIC OFFLINE SWITCH FLYBACK 12ESOP |
300 | 0.90 |
RFQ |
Datasheet |
Tube | TinySwitch®-4 | Discontinued at Mosen | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 11 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) |
|
|
LNK6775K-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
749 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LinkSwitch™-HP | Active | Isolated | Yes | 725V | Flyback | - | - | 64% | 120kHz ~ 136kHz | 42 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
|
TNY265GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
943 | 1.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TinySwitch®-II | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 11 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | EN | -40°C ~ 150°C (TJ) |
|
|
LNK606GG-TLIC OFFLINE SWITCH FLYBACK 8SMD |
970 | 1.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LinkSwitch®-II | Active | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 6.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
|
LYT2004KIC OFFLINE SWITCH FLYBACK 12ESOP |
3,548 | 1.20 |
RFQ |
Datasheet |
Tube | LYTSwitch™-2 | Discontinued at Mosen | Isolated | Yes | 725V | Flyback | - | - | 55% | 85kHz | 10 W | - | - | -40°C ~ 150°C (TJ) |
|
|
LNK6777KIC OFFLINE SWITCH FLYBACK 12ESOP |
3,362 | 1.30 |
RFQ |
Datasheet |
Tube | LinkSwitch™-HP | Discontinued at Mosen | Isolated | Yes | 725V | Flyback | - | - | 64% | 120kHz ~ 136kHz | 59 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
|
LNK3204G-TLIC OFFLINE SWITCH MULT TOP 8SMD |
954 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LinkSwitch™-TN2 | Active | Non-Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) |
|
TNY253GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
454 | 1.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TinySwitch® | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 68% | 44kHz | 2 W | Current Limiting, Over Temperature | EN | -40°C ~ 150°C (TJ) |
|
LNK632DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
498 | 1.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LinkSwitch®-II | Active | Isolated | Yes | 700V | Flyback | - | - | 55% | 105kHz | 3.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
INN2105K-TLIC OFFLINE SW MULT TOP 16ESOP |
346 | 1.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | InnoSwitch™-CE | Active | Isolated | Yes | 650V | Flyback, Secondary Side SR | - | - | 60% | 100kHz | 20 W | Over Temperature, Over Voltage | - | -40°C ~ 105°C (TA) |
|

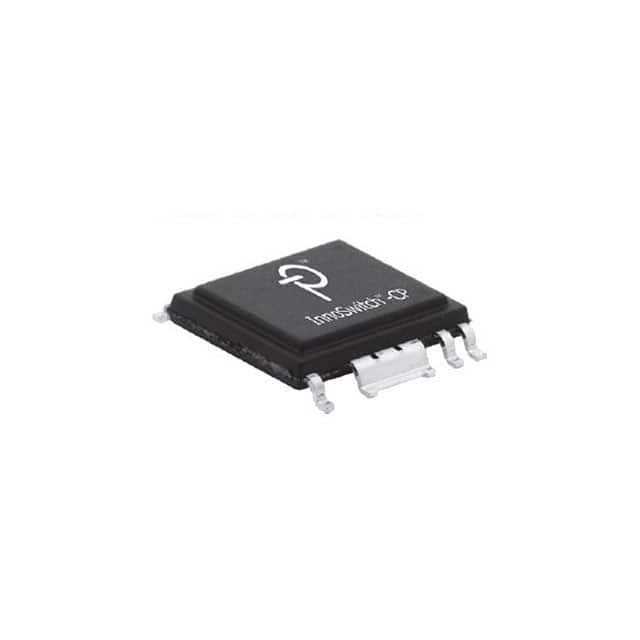

INN2215K-TLIC OFFLINE SW MULT TOP 16ESOP |
938 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | InnoSwitch™-CP | Active | Isolated | Yes | 650V | Flyback, Secondary Side SR | - | - | 60% | 100kHz | 25 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
TOP255GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
615 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 30 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
INN2605K-TLIC OFFLINE SWITCH FLYBACK 16ESOP |
3,805 | 1.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | InnoSwitch™-EP | Active | Isolated | Yes | 725V | Flyback | - | - | 60% | 100kHz | 35 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 105°C (TA) |
|
|
TOP232GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
619 | 2.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-FX | Last Time Buy | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz ~ 132kHz | 15 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) |
