| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | OutputIsolation | InternalSwitch(s) | Voltage-Breakdown | Topology | Voltage-StartUp | Voltage-Supply(Vcc/Vdd) | DutyCycle | Frequency-Switching | Power(Watts) | FaultProtection | ControlFeatures | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TOP256EGIC OFFLINE SWITCH FLYBACK 7ESIP |
470 | 1.89 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 119 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
LNK3202PIC OFFLINE SWITCH MULT TOP 8DIP |
506 | 0.68 |
RFQ |
Datasheet |
Tube | LinkSwitch™-TN2 | Active | Non-Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) |
|
LNK363PNIC OFFLINE SWITCH FLYBACK 8DIP |
534 | 0.82 |
RFQ |
Datasheet |
Tube | LinkSwitch®-XT | Active | Isolated | Yes | 700V | Flyback | - | - | 60% | 132kHz | 7.5 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
|
LNK3205PIC OFFLINE SWITCH MULT TOP 8DIP |
605 | 0.91 |
RFQ |
Datasheet |
Tube | LinkSwitch™-TN2 | Active | Non-Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) |
|
|
LNK603PGIC OFFLINE SWITCH FLYBACK 8DIP |
502 | 1.02 |
RFQ |
Datasheet |
Tube | LinkSwitch®-II | Active | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 3.3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
|
TNY265PNIC OFFLINE SWITCH FLYBACK 8DIP |
770 | 1.09 |
RFQ |
Datasheet |
Tube | TinySwitch®-II | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 11 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | EN | -40°C ~ 150°C (TJ) |
|
TOP254GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
2,990 | 1.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 28 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
TOP252PNIC OFFLINE SWITCH FLYBACK 8DIP |
2,748 | 1.12 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 15 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
LNK3296PIC OFFLINE SWITCH MULT TOP 8DIP |
200 | 1.19 |
RFQ |
Datasheet |
Tube | LinkSwitch®-TN2 | Active | Non-Isolated | Yes | 900V | Buck, Buck-Boost, Flyback | 470 mV | - | 68% | 66kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 150°C (TJ) |
|
TNY253PNIC OFFLINE SWITCH FLYBACK 8DIP |
664 | 1.27 |
RFQ |
Datasheet |
Tube | TinySwitch® | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 68% | 44kHz | 2 W | Current Limiting, Over Temperature | EN | -40°C ~ 150°C (TJ) |
|
|
TOP254ENIC OFFLINE SWITCH FLYBACK 7ESIP |
349 | 1.51 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 62 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
TOP257PNIC OFFLINE SWITCH FLYBACK 8DIP |
727 | 2.12 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 41 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
LNK562PNIC OFFLINE SWITCH FLYBACK 8DIP |
988 | 0.70 |
RFQ |
Datasheet |
Tube | LinkSwitch®-LP | Active | Isolated | Yes | 700V | Flyback | - | - | 70% | 66kHz | 1.9 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
|
LNK3294PIC OFFLINE SWITCH MULT TOP 8DIP |
122 | 0.83 |
RFQ |
Datasheet |
Tube | LinkSwitch®-TN2 | Active | Non-Isolated | Yes | 900V | Buck, Buck-Boost, Flyback | 470 mV | - | 68% | 66kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 150°C (TJ) |
|
LNK6773K-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
989 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LinkSwitch™-HP | Active | Isolated | Yes | 725V | Flyback | - | - | 64% | 120kHz ~ 136kHz | 35 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) |
|
TNY288GG-TL21.5 W (85-265 VAC) 28 W (230 VA |
3,178 | 2.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|

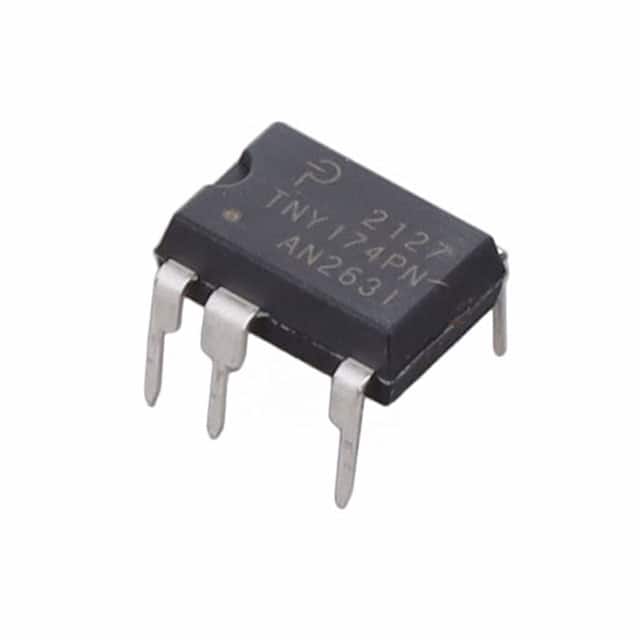

TNY174PN8.5 W (85-265 VAC) 11 W (230 VAC |
3,342 | 1.36 |
RFQ |
Tube | - | Active | Isolated | Yes | 650V | Flyback, Secondary Side SR | - | - | 65% | 132kHz | 11 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | |
|
TNY177PG18 W (85-265 VAC) 23.5 W (230 VA |
3,190 | 1.68 |
RFQ |
Tube | - | Active | Isolated | Yes | 650V | Flyback, Secondary Side SR | - | - | 65% | 132kHz | 23.5 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | |
|
|
TNY279PNIC OFFLINE SWITCH FLYBACK 8DIP |
2,360 | 1.53 |
RFQ |
Datasheet |
Tube | TinySwitch®-III | Active | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 32 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) |
|
TOP244YNIC OFFLINE SW FLYBACK TO220-7C |
3,084 | 2.77 |
RFQ |
Datasheet |
Tube | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 65 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) |
