| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H11B3OPTOISO 5.3KV DARL W/BASE 6DIP |
2,129 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5300Vrms | 100% @ 1mA | - | 5µs, 30µs | - | DC | Darlington with Base | 25V | 100mA | 1.1V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|

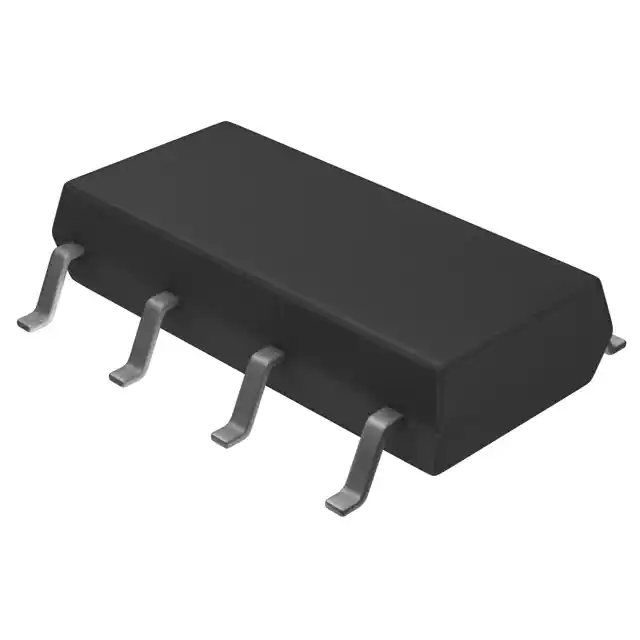

IL388TOPTOISO 2.13KV 2CH TRANS 8SOP |
3,562 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 2130VDC | - | - | - | 350µs, - | DC | Transistor, Linearized | - | - | 1.8V | 30 mA | - | 0°C ~ 75°C | Surface Mount |
|
ILD251OPTOISO 5.3KV 2CH TRANS 8DIP |
3,419 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor | 30V | - | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ILD621OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
2,412 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ILD66-1OPTOISO 5.3KV 2CH DARLNG 8-DIP |
3,804 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 100% @ 2mA | - | - | 200µs, 200µs (Max) | DC | Darlington | 60V | - | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
ILD66-2OPTOISO 5.3KV 2CH DARLNG 8-DIP |
3,783 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 300% @ 2mA | - | - | 200µs, 200µs (Max) | DC | Darlington | 60V | - | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
ILD66-3OPTOISO 5.3KV 2CH DARLNG 8-DIP |
3,504 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 400% @ 700µA | - | - | 200µs, 200µs (Max) | DC | Darlington | 60V | - | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
ILD66-4OPTOISO 5.3KV 2CH DARLNG 8-DIP |
2,172 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 500% @ 2mA | - | - | 200µs, 200µs (Max) | DC | Darlington | 60V | - | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
ILD766-1OPTOISO 5.3KV 2CH DARLNG 8-DIP |
2,346 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 500% @ 2mA | - | - | 100µs, 100µs | AC, DC | Darlington | 60V | - | 1.2V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
ILD766-2OPTOISO 5.3KV 2CH DARLNG 8-DIP |
3,213 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 500% @ 2mA | - | - | 100µs, 100µs | AC, DC | Darlington | 60V | - | 1.2V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
ILQ66-3OPTOISO 5.3KV 4CH DARLNG 16-DIP |
3,026 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 4 | 5300Vrms | 400% @ 700µA | - | - | 200µs, 200µs (Max) | DC | Darlington | 60V | - | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
MOC8105OPTOISOLATOR 5.3KV TRANS 6-DIP |
3,493 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5300Vrms | 65% @ 10mA | 133% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 30V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
MOC8111OPTOISOLATOR 5.3KV TRANS 6-DIP |
2,386 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 3µs, 18µs | 2µs, 11µs | DC | Transistor | 70V | - | 1.3V | 90 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
SFH615ABMOPTOISOLATOR 5.3KV TRANS 4-DIP |
3,450 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5300Vrms | 200% @ 5mA | 400% @ 5mA | 2µs, 25µs | - | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH615AGBOPTOISOLATOR 5.3KV TRANS 4-DIP |
2,095 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 2µs, 25µs | - | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH6325OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
2,121 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5300Vrms | 7% @ 16mA | - | 300ns, 600ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
SFH692ATOPTOISO 3.75KV DARLINGTON 4SOP |
2,324 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 3750Vrms | 1000% @ 1mA | - | 1.5µs, 53.5µs | 1µs, 20.5µs | DC | Darlington | 300V | 50mA | 1.2V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
|
TCET1101OPTOISOLATR 5KV TRANSISTOR 4-DIP |
3,255 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -40°C ~ 100°C | Through Hole |
|
|
TCET1104OPTOISOLATR 5KV TRANSISTOR 4-DIP |
3,304 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -40°C ~ 100°C | Through Hole |
|
|
TCET1105OPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,753 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -40°C ~ 100°C | Through Hole |
