| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

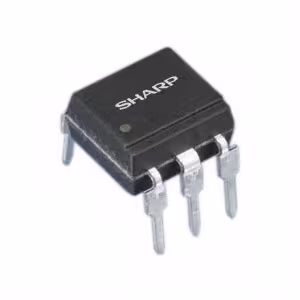

PC715V0NSZXOPTOISOLTR 5KV DARLINGTON 6-DIP |
2,955 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -25°C ~ 100°C | Through Hole |
|
|
PC715V0YSZXOPTOISOLTR 5KV DARLINGTON 6-DIP |
3,314 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -25°C ~ 100°C | Through Hole |
|
|
PC716V0NSZXOPTOISOLTR 5KV DARLINGTON 6-DIP |
3,704 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | - | - | - | 130µs, 60µs | DC | Darlington | 35V | 200mA | 1.2V | 50 mA | 1.2V | -25°C ~ 100°C | Through Hole |
|
|
PC716V0YSZXOPTOISOLTR 5KV DARLINGTON 6-DIP |
2,579 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | - | - | - | 130µs, 60µs | DC | Darlington | 35V | 200mA | 1.2V | 50 mA | 1.2V | -25°C ~ 100°C | Through Hole |
|
|
PC723V0NSZXOPTOISO 5KV TRANS W/BASE 6DIP |
3,784 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | - | - | - | 6µs, 7µs | DC | Transistor with Base | 80V | 50mA | 1.2V | 50 mA | 300mV | -25°C ~ 100°C | Through Hole |
|
|
PC723V0YSZXOPTOISO 5KV TRANS W/BASE 6DIP |
3,181 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | - | - | - | 6µs, 7µs | DC | Transistor with Base | 80V | 50mA | 1.2V | 50 mA | 300mV | -25°C ~ 100°C | Through Hole |
|
PC725V0NIZXOPTOISO 5KV DARL W/BASE 6SMD |
2,554 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 100µs, 20µs | DC | Darlington with Base | 300V | 150mA | 1.2V | 50 mA | 1.2V | -25°C ~ 100°C | Surface Mount |
|
|
PC725V0NSZXOPTOISO 5KV DARL W/BASE 6DIP |
3,228 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 100µs, 20µs | DC | Darlington with Base | 300V | 150mA | 1.2V | 50 mA | 1.2V | -25°C ~ 100°C | Through Hole |
|
|
PC725V0YSZXOPTOISO 5KV DARL W/BASE 6DIP |
2,478 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 100µs, 20µs | DC | Darlington with Base | 300V | 150mA | 1.2V | 50 mA | 1.2V | -25°C ~ 100°C | Through Hole |
|
PC725V0YUZXOPTOISO 5KV DARL W/BASE 6SMD |
2,705 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 100µs, 20µs | DC | Darlington with Base | 300V | 150mA | 1.2V | 50 mA | 1.2V | -25°C ~ 100°C | Surface Mount |
|
|
PC733OPTOISO 5KV TRANS W/BASE 6DIP |
2,091 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 15% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 200mV | -25°C ~ 100°C | Through Hole |
|
|
PC733HOPTOISO 5KV TRANS W/BASE 6DIP |
2,340 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 20% @ 100mA | 80% @ 100mA | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 80mA | 1.4V | 150 mA | 200mV | -25°C ~ 100°C | Through Hole |
|
PC81100NSZOPTOISOLATOR 5KV TRANS 4DIP |
3,427 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | 2µs, 23µs | 3µs, 2µs | DC | Transistor | 70V | 30mA | 1.2V | 50 mA | 350mV | -30°C ~ 100°C | Through Hole |
|
|
PC81105NSZOPTOISOLATOR 5KV TRANS 4DIP |
2,116 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 60% @ 5mA | 200% @ 5mA | 2µs, 23µs | 3µs, 2µs | DC | Transistor | 70V | 30mA | 1.2V | 50 mA | 350mV | -30°C ~ 100°C | Through Hole |
|
|
PC81410NSZOPTOISOLATOR 5KV TRANS 4DIP |
2,297 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC81411NSZOPTOISOLATOR 5KV TRANS 4DIP |
3,137 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 500µA | 300% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC814XOPTOISOLATOR 5KV TRANS 4DIP |
2,794 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC814X1OPTOISOLATOR 5KV TRANS 4DIP |
2,559 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC815OPTOISOLATOR 5KV DARL 4DIP |
2,411 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Through Hole |
|
|
PC81510NSZOPTOISOLATOR 5KV DARL 4DIP |
2,380 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 600% @ 500µA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 10 mA | 1V | -30°C ~ 100°C | Through Hole |
