| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC457L0NIPOPTOISO 3.75KV TRANSISTOR 5-SMD |
3,155 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OPIC™ | Obsolete | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 400ns | - | DC | Transistor | 20V | 8mA | 1.7V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
|
PC457L0YIPOPTOISO 3.75KV TRANSISTOR 6-SMD |
3,282 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OPIC™ | Obsolete | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 400ns | - | DC | Transistor | 20V | 8mA | 1.7V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|

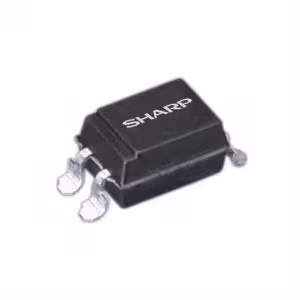

PC4H510NIPOPTOISOLATOR 2.5KV TRANS 4SMD |
2,948 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 2500Vrms | 40% @ 5mA | 240% @ 5mA | - | 4µs, 5µs | DC | Transistor | 350V | 50mA | 1.2V | 50 mA | 300mV | -25°C ~ 100°C | Surface Mount |
|
PC4H520NIPOPTOISOLATOR 2.5KV DARL 4SMD |
2,893 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 120mA | 1.2V | 50 mA | 1.4V | -40°C ~ 100°C | Surface Mount |
|

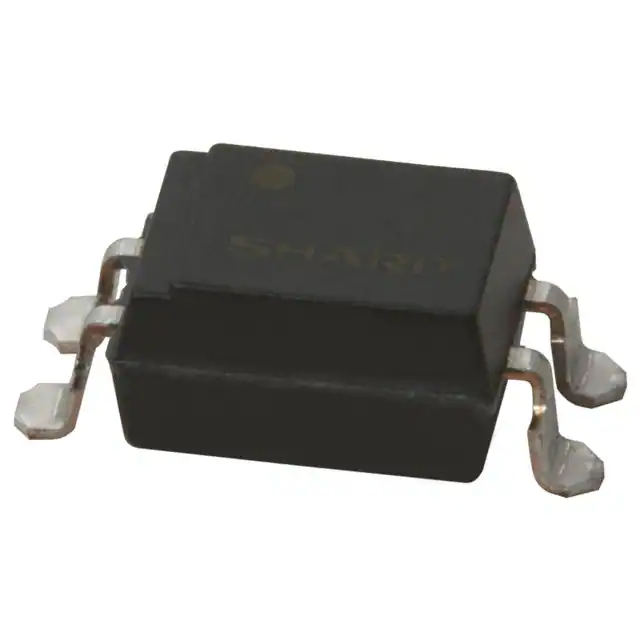

PC814XPOPTOISOLATOR 5KV TRANS 4SMD |
3,621 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC814XP1OPTOISOLATOR 5KV TRANS 4SMD |
3,425 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC3Q710NIPOPTOISO 2.5KV 4CH TRANS 16SOIC |
2,262 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 4 | 2500Vrms | 100% @ 500µA | 600% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC817XIOPTOISOLATOR 5KV TRANS 4SMD |
3,034 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC123OPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,384 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC12310NSZOPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,817 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 5% @ 5mA | 40% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC12311NSZOPTOISOLATOR 5KV TRANSISTOR 4DIP |
2,933 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 10% @ 5mA | 25% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC123AOPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,214 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 150% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC123BOPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,273 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 250% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC123SOPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,721 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 200% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC123Y2OPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,788 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 250% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC123YSOPTOISOLATR 5KV TRANSISTOR 4-DIP |
3,776 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 200% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
PC512OPTOISOLATOR 5KV TRANS MODULE |
2,516 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | - | - | - | 3µs, 4µs | DC | Transistor | 35V | 20mA | 1.2V | 50 mA | 400mV | -25°C ~ 85°C | Through Hole |
|
PC702V0NSZXOPTOISO 5KV TRANS W/BASE 6DIP |
3,253 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | - | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.4V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
PC702V0YSZXOPTOISO 5KV TRANS W/BASE 6DIP |
2,716 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | - | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.4V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
PC713V0YSZXOPTOISO 5KV TRANS W/BASE 6DIP |
3,821 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor with Base | 80V | 50mA | 1.2V | 50 mA | 200mV | -25°C ~ 100°C | Through Hole |
