| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC3H4OPTOISO 2.5KV TRANS 4-MINI-FLAT |
2,111 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H410NIPOPTOISO 2.5KV TRANS 4-MINI-FLAT |
2,423 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 50% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H411NIPOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,782 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 100% @ 500µA | 300% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H4AOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,642 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H5OPTOISO 2.5KV DARLNG 4-MINI-FLAT |
2,864 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 600% @ 1mA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Surface Mount |
|
|
PC3H510NIPOPTOISO 2.5KV DARLNG 4-MINI-FLAT |
3,393 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 2500Vrms | 600% @ 500µA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 10 mA | 1V | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7OPTOISO 2.5KV TRANS 4-MINI-FLAT |
2,375 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H710NIPOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,693 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 100% @ 500µA | 700% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H711NIPOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,341 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 140% @ 500µA | 350% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H715NIPOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,624 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 140% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7AOPTOISO 2.5KV TRANS 4-MINI-FLAT |
2,100 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 35% @ 1mA | 70% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7BOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,629 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 50% @ 1mA | 100% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7COPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,843 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 80% @ 1mA | 160% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7DOPTOISO 2.5KV TRANS 4-MINI-FLAT |
2,327 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 120% @ 1mA | 240% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC3Q64OPTOISO 2.5KV 4CH TRANS 16SOIC |
2,105 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 4 | 2500Vrms | - | - | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3Q65OPTOISOLTR 2.5KV 4CH DARL 16SOIC |
3,545 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 4 | 2500Vrms | 600% @ 1mA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Surface Mount |
|
|
PC3Q67OPTOISO 2.5KV 4CH TRANS 16SOIC |
3,412 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 4 | 2500Vrms | - | - | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|

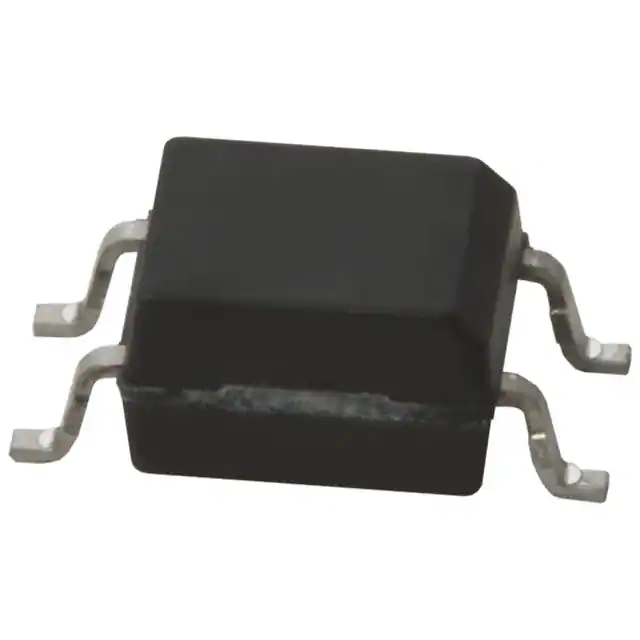

PC450T11OPTOISOLATOR 3.75KV TRANS 4SMD |
2,425 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 3750Vrms | 1500% @ 5mA | - | - | 50µs, 30µs | DC | Transistor | 40V | 150mA | 1.2V | 50 mA | 500mV | -30°C ~ 100°C | Surface Mount |
|
PC451OPTOISOLATOR 3.75KV TRANS 4SMD |
3,888 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 3750Vrms | 40% @ 5mA | - | - | 4µs, 5µs | DC | Transistor | 350V | 50mA | 1.2V | 50 mA | 300mV | -25°C ~ 100°C | Surface Mount |
|
|
PC452OPTOISOLATOR 3.75KV DARL 4SMD |
2,163 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 3750Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | -30°C ~ 100°C | Surface Mount |
