| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H11L1SR2VMOPTOISO 4.17KV OPN COLL 6SMD |
2,948 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
FODM8061R2VOPTOISO 3.75KV OPEN COLL 5MFP |
3,016 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 80ns, 80ns | 20ns, 10ns | 1.45V | 50mA | 3V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
H11L3MOPTOISO 4.17KV OPN COLL 6DIP |
3,398 | 1.22 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
|

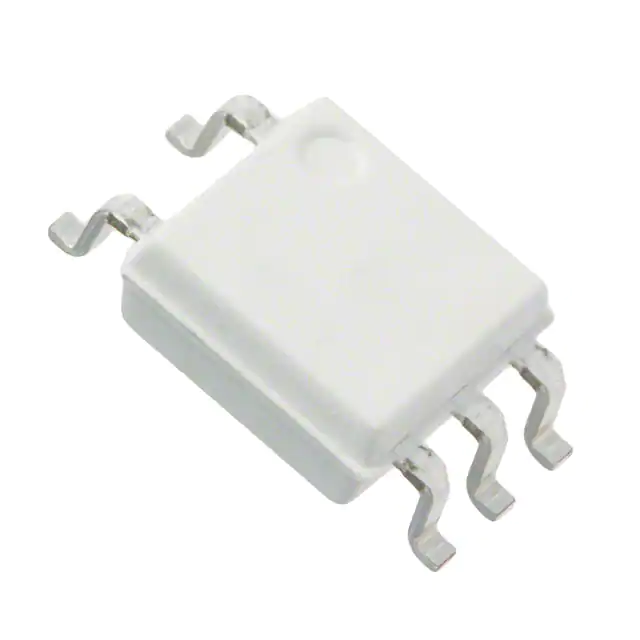

FODM611OPTOISO 3.75KV OPEN COLL 5MFP |
2,736 | 1.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 100ns, 100ns | 20ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
FOD0721R2OPTOISO 3.75KV PUSH PULL 8SO |
3,999 | 4.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25Mbps | 40ns, 40ns | 5ns, 4.5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
HCPL2630OPTOISO 2.5KV 2CH OPEN COLL 8DIP |
3,358 | 2.61 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
FOD8163LOGIC GATE OPTOCOUPLER IN SOP 6- |
3,805 | 3.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | - | 10ns, 20ns | 1.45V | 25mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL2631MOPTOISO 5KV 2CH OPEN COLL 8DIP |
2,299 | 3.24 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 30mA | 4.5V ~ 5.5V | -40°C ~ 110°C | Through Hole |
|
|
H11N1SR2MOPTOISO 4.17KV OPN COLL 6SMD |
2,078 | 7.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL0638OPTOISO 3.75KV 2CH OPEN COLL 8SO |
3,244 | 4.12 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
FOD0721OPTOISO 3.75KV PUSH PULL 8SO |
2,743 | 4.82 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25Mbps | 40ns, 40ns | 5ns, 4.5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
H11L1VMOPTOISO 4.17KV OPN COLL 6DIP |
2,407 | 1.19 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
|
H11L3TVMOPTOISO 4.17KV OPN COLL 6DIP |
2,764 | 1.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
|
|
H11L1SVMOPTOISO 4.17KV OPN COLL 6SMD |
2,598 | 1.27 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
HCPL2631SDVOPTOISO 2.5KV 2CH OPEN COLL 8DIP |
3,680 | 3.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL2631SDMOPTOISO 5KV 2CH OPEN COLL 8SMD |
3,702 | 3.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 30mA | 4.5V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
H11L2SMOPTOISO 4.17KV OPN COLL 6SMD |
3,567 | 1.59 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Surface Mount |
.jpg)
|
FOD8160R2VOPTOISO 5KV OPEN COLLECTOR 5SOP |
2,950 | 3.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/1 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 22ns, 9ns | 1.45V | 25mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
FOD8160OPTOISO 5KV OPEN COLLECTOR 5SOP |
2,320 | 4.27 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/1 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 22ns, 9ns | 1.45V | 25mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
6N137SDVMOPTOISO 5KV 1CH OPEN COLL 8SMD |
2,597 | 1.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
