| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6N137VMOPTOISO 5KV 1CH OPEN COLL 8DIP |
994 | 1.84 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
6N137SVMOPTOISO 5KV 1CH OPEN COLL 8SMD |
765 | 1.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
FOD260LOPTOISO 5KV OPEN COLLECTOR 8DIP |
457 | 2.69 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | 22ns, 3ns | 1.4V | 50mA | 3V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL2630SVOPTOISO 2.5KV 2CH OPEN COLL 8SMD |
441 | 2.93 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
H11L2SR2MOPTOISO 4.17KV OPN COLL 6SMD |
970 | 1.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
|
6N137SDMOPTOISO 5KV 1CH OPEN COLL 8SMD |
448 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
FOD060LOPTOISO 3.75KV OPN COLLECTOR 8SO |
2,926 | 3.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | 22ns, 3ns | 1.4V | 50mA | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

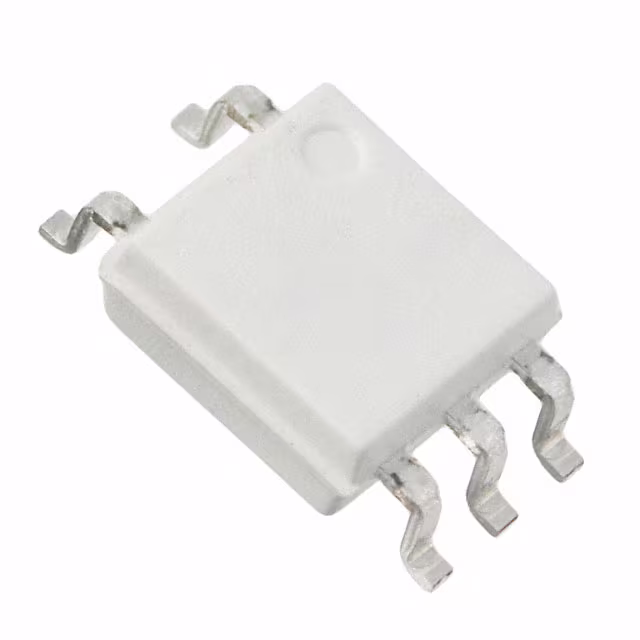

FODM8061VOPTOISO 3.75KV OPEN COLL 5MFP |
2,453 | 3.05 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 80ns, 80ns | 20ns, 10ns | 1.45V | 50mA | 3V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
FODM611R2OPTOISO 3.75KV OPEN COLL 5MFP |
2,592 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 100ns, 100ns | 20ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL2601SDOPTOISO 2.5KV OPN COLLECTOR 8SMD |
311 | 2.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | 1 | 1/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
6N137TSR2VMOPTOISO 5KV 1CH OPEN COLL 8SMD |
473 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL2630SDOPTOISO 2.5KV 2CH OPEN COLL 8SMD |
3,209 | 2.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL2631SDOPTOISO 2.5KV 2CH OPEN COLL 8DIP |
2,879 | 3.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL0601R2VOPTOISO 3.75KV OPN COLLECTOR 8SO |
3,561 | 3.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL0611R2OPTOISO 3.75KV OPN COLLECTOR 8SO |
183 | 5.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
FODM8071R2OPTOISO 3.75KV PUSH PULL 5MFP |
3,483 | 3.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 5.8ns, 5.3ns | 1.35V | 20mA | 3V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
HCPL0600R2OPTOISO 3.75KV OPN COLLECTOR 8SO |
3,714 | 3.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
FOD8012AR2OPTOISO 3.75KV 2CH PUSH PULL 8SO |
3,894 | 7.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 1/1 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 6.5ns, 6.5ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|

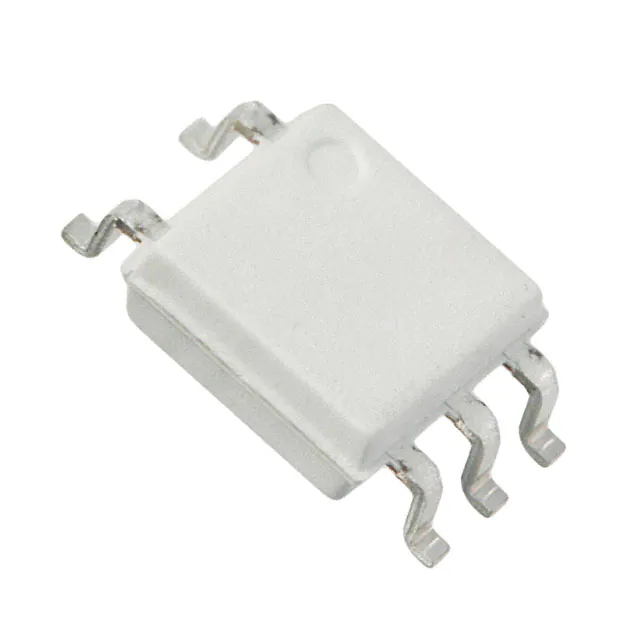

FODM8071OPTOISO 3.75KV PUSH PULL 5MFP |
3,060 | 3.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 5.8ns, 5.3ns | 1.35V | 20mA | 3V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
H11N1MOPTOISO 4.17KV OPN COLL 6DIP |
3,564 | 7.34 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | -40°C ~ 85°C | Through Hole |
