| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG419DY-T1-E3IC ANALOG SWITCH CMOS 8SOIC |
3,790 | 2.45 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 60pC | 8pF, 8pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
DG444DY-T1-E3IC SWITCH QUAD SPST 16SOIC |
2,296 | 2.46 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 4 | 85Ohm | - | 5V ~ 36V | ±5V ~ 20V | 250ns, 140ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG412DY-T1-E3IC SWITCH QUAD SPST 16-SOIC |
2,111 | 2.51 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG413DY-T1-E3IC SWITCH QUAD SPST 16-SOIC |
3,666 | 2.51 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG419BDY-T1-E3IC ANALOG SWITCH CMOS 8SOIC |
3,774 | 3.07 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 25Ohm | - | 12V | ±15V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG408DQ-T1-E3IC MULTIPLEXER 8X1 16TSSOP |
7,715 | 3.42 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 12V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG409DQ-T1-E3IC MULTIPLEXER DUAL 4X2 16TSSOP |
2,721 | 3.71 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | 5V ~ 36V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 14pF, 25pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG408DY-E3IC MUX CMOS ANG DUAL 8CH 16SOIC |
3,459 | 2.38 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 12V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG452EY-T1-E3IC SWITCH QUAD SPST 16SOIC |
3,176 | 4.68 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 5.3Ohm | 120mOhm | 12V | ±5V ~ 15V | 118ns, 97ns | - | 22pC | 31pf, 34pF | 500pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
DG333ADW-T1-E3IC SWITCH QUAD SPDT 20SOIC |
2,018 | 5.81 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 45Ohm | 2Ohm (Max) | 5V ~ 40V | ±4V ~ 22V | 175ns, 145ns | - | 10pC | 8pF | 250pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG333ALDW-T1-E3IC SWITCH QUAD SPDT 20SOIC |
3,922 | 6.95 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 45Ohm | 2Ohm (Max) | 5V ~ 40V | ±4V ~ 22V | 175ns, 145ns | - | 10pC | 8pF | 250pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG406DW-T1-E3IC SWITCH SINGLE 28SOIC |
3,030 | 7.17 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 16:1 | 1 | 100Ohm | 5Ohm | 12V | ±5V ~ 20V | 200ns, 150ns | - | 15pC | 8pF, 130pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|

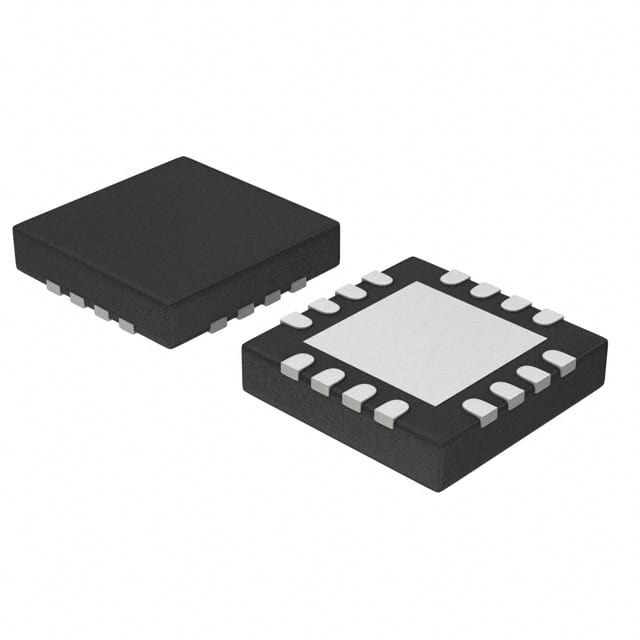

DG1412EEN-T1-GE4IC SWITCH QUAD SPST 16QFN |
2,786 | 7.25 |
RFQ |
Datasheet |
16-VQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 1.5Ohm | 40mOhm | 4.5V ~ 24V | ±4.5V ~ 15V | 140ns, 110ns | 150MHz | -41pC | 24pF, 23pF | 500pA | -104dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
DG333ADQ-T1-E3IC SWITCH QUAD SPDT 20TSSOP |
3,665 | 7.98 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 45Ohm | 2Ohm (Max) | 5V ~ 40V | ±4V ~ 22V | 175ns, 145ns | - | 10pC | 8pF | 250pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG333ADW-E3IC SWITCH QUAD SPDT 20SOIC |
2,831 | 5.81 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tube | - | Active | SPDT | 2:1 | 1 | 45Ohm | 2Ohm (Max) | 5V ~ 40V | ±4V ~ 22V | 175ns, 145ns | - | 10pC | 8pF | 250pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG406DN-E3IC MUX CMOS ANLG DUAL 8CH 28PLCC |
2,162 | 8.12 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tube | - | Active | - | 16:1 | 1 | 100Ohm | 5Ohm | 12V | ±5V ~ 20V | 200ns, 150ns | - | 15pC | 8pF, 130pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG406DW-E3IC MULTIPLEXER 16X1 28SOIC |
2,959 | 8.71 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Tube | - | Active | - | 16:1 | 1 | 100Ohm | 5Ohm | 12V | ±5V ~ 20V | 200ns, 150ns | - | 15pC | 8pF, 130pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
DG2523DN-T1-GE4IC SWITCH DUAL SPDT 16QFN |
3,475 | 1.41 |
RFQ |
Datasheet |
16-VFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | DPDT | 2:2 | 2 | 550mOhm | 50mOhm | 1.8V ~ 5.5V | - | 60µs, 1µs | 310MHz | -19pC | - | 1nA | -61dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG2524DN-T1-GE40.4 LOW RESISTANCE AND CAPACITAN |
2,571 | 1.69 |
RFQ |
Datasheet |
16-VFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 1:2 | 4 | 550mOhm | 50mOhm | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 60µs, 1µs | 310MHz | -19pC | 14.5pF | 1nA | -89dB @ 100kHz | -40°C ~ 85°C | Surface Mount |
|
DG2034EDQ-T1-GE3IC SWITCH SP4T SINGLE 10MSOP |
3,723 | 1.58 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SP4T | 4:1 | 1 | 2.5Ohm | 20mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 166MHz | -2.6pC | 7pF, - | 2nA | -71dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
