| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG202BDJ-E3IC SWITCH QUAD CMOS 16DIP |
2,015 | 2.77 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG445DJ-E3IC SWITCH QUAD SPST 16DIP |
3,429 | 2.84 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NO | 1:1 | 4 | 85Ohm | - | 5V ~ 36V | ±5V ~ 20V | 250ns, 210ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
DG441LEDY-GE3IC SWITCH QUAD SPST 16-SOIC |
250 | 1.57 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NC | 1:1 | 4 | 26Ohm | 100mOhm | 3V ~ 16V | ±3V ~ 8V | 60ns, 35ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG412LEDY-GE3IC SWITCH QUAD SPST 16-SOIC |
288 | 1.99 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NO | 1:1 | 4 | 26Ohm | - | 3V ~ 16V | ±3V ~ 8V | 50ns, 30ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG413LEDY-GE3IC SWITCH QUAD SPST 16-SOIC |
3,625 | 1.99 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NO/NC | 1:1 | 4 | 26Ohm | - | 3V ~ 16V | ±3V ~ 8V | 50ns, 30ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG413LEDQ-GE3IC SWITCH QUAD SPST 16-TSSOP |
656 | 2.27 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | SPST - NO/NC | 1:1 | 4 | 26Ohm | - | 3V ~ 16V | ±3V ~ 8V | 50ns, 30ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG9233EDY-GE3IC SWITCH DUAL SPST 8SOIC |
605 | 2.55 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NO | 1:1 | 2 | 25Ohm | 400mOhm | 2.7V ~ 5.5V | - | 75ns, 50ns | - | -0.78pC | 3.8pF | 100pA | -108dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG309BDY-E3IC SWITCH QUAD CMOS 16SOIC |
114 | 2.77 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NC | 1:1 | 4 | 85Ohm | 1.7Ohm | 4V ~ 44V | ±4V ~ 22V | 200ns, 150ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG444DJ-E3IC SWITCH QUAD SPST 16DIP |
351 | 2.78 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NC | 1:1 | 4 | 85Ohm | - | 5V ~ 36V | ±5V ~ 20V | 250ns, 140ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG441LEDQ-GE3IC SWITCH QUAD SPST 16-TSSOP |
424 | 1.86 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | SPST - NC | 1:1 | 4 | 26Ohm | 100mOhm | 3V ~ 16V | ±3V ~ 8V | 60ns, 35ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG309CJ-E3IC SWITCH QUAD SPST/CMOS 16DIP |
853 | 2.97 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NC | 1:1 | 4 | 85Ohm | 1.7Ohm | 4V ~ 44V | ±4V ~ 22V | 200ns, 150ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | Through Hole |
|
DG407BDN-E3IC MUX CMOS ANLG DUAL 8CH 28PLCC |
2,588 | 9.81 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tube | - | Active | - | 8:1 | 2 | 60Ohm | 3Ohm | 12V | ±5V ~ 20V | 107ns, 88ns | - | 11pC | 6pF, 54pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
DG4157EDL-T1-GE3IC ANALOG SWITCH SC70-6 |
3,619 | 0.69 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 1.2Ohm | 120mOhm (Max) | 1.65V ~ 5.5V | - | 32ns, 28ns | 152MHz | -5pC | - | 3nA | -41dB @ 10MHz | -40°C ~ 85°C | Surface Mount |
|

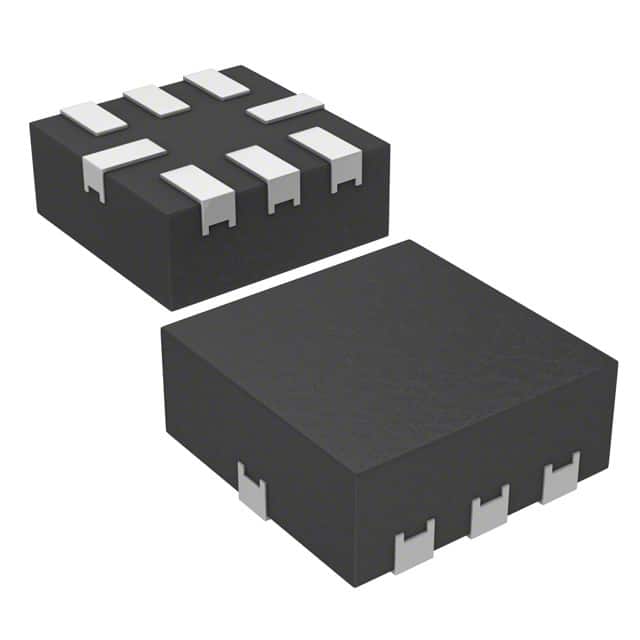

DG2739DN-T1-E4IC SWITCH 2XSPST 8 OHM 8MINIQFN |
715 | 0.93 |
RFQ |
Datasheet |
8-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO/NC | 1:1 | 2 | 8Ohm | 100mOhm | 2.3V ~ 4.3V | - | 60ns, 50ns | 720MHz | 10.4pC | 4.4pF, 3.8pF | 10nA | -109dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG2738DN-T1-E4IC SWITCH 2XSPST 8 OHM 8MINIQFN |
720 | 0.93 |
RFQ |
Datasheet |
8-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPST - NC | 1:1 | 2 | 8Ohm | 100mOhm | 2.3V ~ 4.3V | - | 60ns, 50ns | 720MHz | 10.4pC | 4.4pF, 3.8pF | 10nA | -109dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG419LEDQ-T1-GE3IC ANALOG SWITCH 8MSOP |
151 | 1.61 |
RFQ |
Datasheet |
8-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 1:2 | 1 | 18Ohm | - | 3V ~ 16V | ±3V ~ 8V | 40ns, 35ns | - | 26pC | 6pF, 20pF | 10nA | -72dB @ 1MHz | -40°C ~ 85°C | Surface Mount |
|
DG9454EEN-T1-GE4IC SWITCH/MUX SPDT 16MINIQFN |
513 | 1.62 |
RFQ |
Datasheet |
16-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 3 | 103Ohm | 1.24Ohm | 3V ~ 16V | - | 110ns, 91ns | 356MHz | 5.84pC | 3.1pF, 4pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG4053EEY-T1-GE3IC MUX TRIPLE 2CHAN 16-SOIC |
389 | 1.62 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 3 | 78Ohm | 910mOhm | 3V ~ 16V | ±3V ~ 8V | 75ns, 88ns | 930MHz | 0.3pC | 2pF, 3.1pF | 1nA | -105dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
DG723DQ-T1-GE3IC SWITCH DUAL SPST 8MSOP |
138 | 1.76 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPST - NO/NC | 1:1 | 2 | 4.5Ohm | 200mOhm | 1.8V ~ 5.5V | - | 30ns, 35ns | 366MHz | 2.2pC | 8pF, 9pF | 250pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG9233EDY-T1-GE3IC SWITCH DUAL SPST 8SOIC |
561 | 2.34 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 2 | 25Ohm | 400mOhm | 2.7V ~ 5.5V | - | 75ns, 50ns | - | -0.78pC | 3.8pF | 100pA | -108dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
