| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

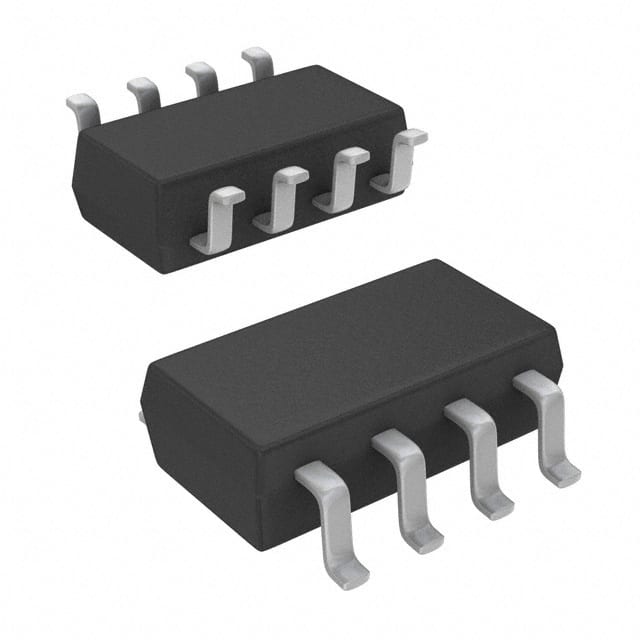

DG418DY-T1-E3IC ANALOG SWITCH CMOS 8SOIC |
584 | 2.45 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 1 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 60pC | 8pF, 8pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG9232EDY-GE3IC SWITCH DUAL SPST 8SOIC |
262 | 2.55 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NC | 1:1 | 2 | 25Ohm | 400mOhm | 2.7V ~ 5.5V | - | 75ns, 50ns | - | -0.78pC | 3.8pF | 100pA | -108dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG413DQ-T1-E3IC SWITCH QUAD SPST LV 16-TSSOP |
3,947 | 2.66 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG9425EDQ-T1-GE3IC SWITCH QUAD SPST 16-TSSOP |
113 | 3.07 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 4 | 3Ohm | - | 3V ~ 16V | ±3V ~ 8V | 51ns, 35ns | - | 38pC | 49pF, 37pF | 1nA | -77dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG507BEN-T1-GE3IC MUX ANA DUAL 16/8CH 28PLCC |
3,716 | 5.36 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 2 | 300Ohm | 10Ohm | 12V | ±5V ~ 20V | 250ns, 200ns | 217MHz | 1pC | 3pF, 17pF | 1nA | -84dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
DG467DV-T1-E3IC SWITCH SPST 6TSOP |
3,058 | 0.93 |
RFQ |
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 1 | 9Ohm | - | 7V ~ 36V | ±4.5V ~ 20V | 140ns, 80ns | - | 21pC | 30pF, 15pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG212BDQ-T1-E3IC SWITCH QUAD SPST 16TSSOP |
2,109 | 2.69 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG2735ADN-T1-GE4IC SWITCH DPDT .6 OHM 10MINIQFN |
3,936 | 1.11 |
RFQ |
Datasheet |
10-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 2 | 500mOhm | 60mOhm | 1.65V ~ 4.3V | - | 78ns, 58ns | 50MHz | - | 55pF | 2nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG469EQ-T1-E3IC SWITCH SNGL SPDT 8MSOP |
3,924 | 1.73 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 6Ohm | 120mOhm | 12V | ±4.5V ~ 15V | 166ns, 108ns | - | 58pC | 37pF, 85pF | 500pA | -63dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
DG469EY-T1-E3IC SWITCH SNGL SPDT 8SOIC |
3,211 | 1.73 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 6Ohm | 120mOhm | 12V | ±4.5V ~ 15V | 166ns, 108ns | - | 58pC | 37pF, 85pF | 500pA | -63dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
DG470EQ-T1-E3IC SWITCH SNGL SPDT 8MSOP |
2,285 | 1.73 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 6Ohm | 120mOhm | 12V | ±4.5V ~ 15V | 166ns, 108ns | - | 58pC | 37pF, 85pF | 500pA | -63dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
DG470EY-T1-E3IC SWITCH SNGL SPDT 8SOIC |
3,791 | 1.73 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 6Ohm | 120mOhm | 12V | ±4.5V ~ 15V | 166ns, 108ns | - | 58pC | 37pF, 85pF | 500pA | -63dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
DG449DS-T1-E3IC SWITCH SINGLE SPDT SOT23-8 |
2,099 | 1.59 |
RFQ |
Datasheet |
SOT-23-8 | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 45Ohm | 5Ohm (Max) | 7V ~ 36V | ±4.5V ~ 20V | 146ns, 104ns | - | 5pC | 8pF | 1nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG442LEDQ-T1-GE3IC SWITCH QUAD SPST 16-TSSOP |
3,121 | 1.62 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 26Ohm | 100mOhm | 3V ~ 16V | ±3V ~ 8V | 60ns, 35ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG4053EEN-T1-GE4IC MUX TRIPLE 2CHAN 16-MINIQFN |
3,310 | 1.62 |
RFQ |
Datasheet |
16-WFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 3 | 78Ohm | 910mOhm | 3V ~ 16V | ±3V ~ 8V | 75ns, 88ns | 930MHz | 0.3pC | 2pF, 3.1pF | 1nA | -105dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
DG412DQ-T1-E3IC SWITCH QUAD SPST TSSOP16 |
2,477 | 1.80 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 35Ohm | - | - | ±15V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG408LEDY-T1-GE3IC MUX CMOS SINGLE 8CH 16-SOIC |
2,361 | 1.98 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 1 | 23Ohm | 1Ohm | 3V ~ 16V | ±3V ~ 8V | 72ns, 47ns | - | -11pC | 5.5pF, 25pF | 1nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG403DY-T1-E3IC SWITCH DUAL SPDT 16SOIC |
3,302 | 2.29 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO/NC | 1:1 | 2 | 45Ohm | 3Ohm | 5V ~ 34V | ±5V ~ 17V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG211BDY-T1-E3IC SWITCH QUAD SPST 16SOIC |
2,959 | 2.33 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG408DY-T1-E3IC MULTIPLEXER 8X1 16SOIC |
2,501 | 2.38 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 12V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
