| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65686A0000R027FERRITE CORE PM 10UH N27 2PCS |
3,555 | 83.57 |
RFQ |
Datasheet |
Box | PM74/59 | Active | PM | PM 74 x 59 | N27 | 2.913 (74.00mm) | 10 µH | -20%, +30% | Ungapped | 1290 | 2000 | 0.162 | 128 | 790 | 630 | 101000 | Uncoated | 1.161 (29.50mm) |
|

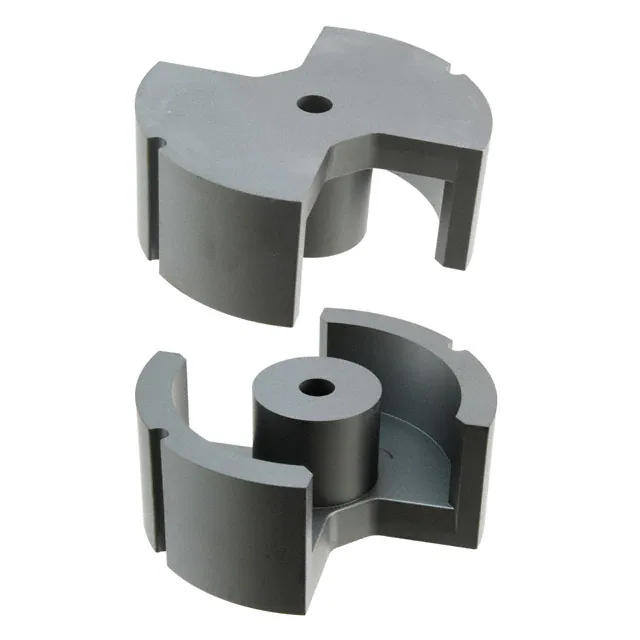

B65713A0000R087FERRITE CORE PM 12UH N87 2PCS |
2,083 | 110.44 |
RFQ |
Datasheet |
Box | PM87/70 | Active | PM | PM 87 x 70 | N87 | 3.425 (87.00mm) | 12 µH | -20%, +30% | Ungapped | 1530 | 2200 | 0.16 | 146 | 910 | 700 | 133000 | Uncoated | 1.378 (35.00mm) |
|

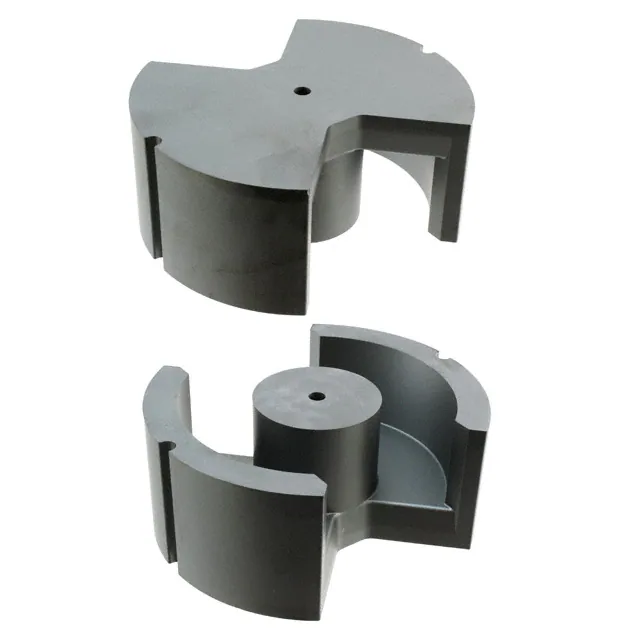

B65733A0000R027FERRITE CORE PM 16UH N27 2PCS |
3,055 | 352.05 |
RFQ |
Datasheet |
Tray | PM114/93 | Active | PM | PM 114 x 93 | N27 | 4.488 (114.00mm) | 16 µH | -20%, +30% | Ungapped | 1480 | 2000 | 0.116 | 200 | 1720 | 1380 | 344000 | Uncoated | 1.831 (46.50mm) |
|
B66307G0060X127FERRITE CORE E N27 1PC |
474 | 0.73 |
RFQ |
Datasheet |
Box | E16/8/5 | Active | E | E 16 x 8 x 5 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.323 (8.20mm) |
|
B66317G1000X127FERRITE CORE E N27 1PC |
351 | 0.95 |
RFQ |
Datasheet |
Box | E25/13/7 | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504 (12.80mm) |
|
B66483P0000X187FERRITE CORE I N87 1PC |
920 | 1.00 |
RFQ |
Datasheet |
Box | I20/2.3/14 | Active | I | I 20 x 2 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.091 (2.30mm) |
|
B65523J0000R092FERRITE CORE ER 660NH N92 2PCS |
587 | 1.60 |
RFQ |
Datasheet |
Box | ER9.5 | Active | ER | ER 9.5 x 5 | N92 | - | 660 nH | -20%, +30% | Ungapped | 811 | 1500 | 1.54 | 13.6 | 8.81 | - | 120 | Uncoated | 0.098 (2.50mm) |
|
|
B66483P0000X149FERRITE CORE I N49 1PC |
253 | 1.67 |
RFQ |
Datasheet |
Box | I20/2.3/14 | Active | I | I 20 x 2 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.091 (2.30mm) |
|
|
B66483P0000X192FERRITE CORE I N92 1PC |
510 | 1.76 |
RFQ |
Datasheet |
Box | I20/2.3/14 | Active | I | I 20 x 2 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.091 (2.30mm) |
|
B66381G0000X172FERRITE CORE E N72 1PC |
611 | 1.87 |
RFQ |
Datasheet |
Box | B66381 | Not For New Designs | E | E 40 x 16 x 12 | N72 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.650 (16.50mm) |
|
B66479G0000X197FERRITE CORE EQ N97 1PC |
671 | 1.94 |
RFQ |
Datasheet |
Box | EQ13/9/3 | Active | EQ | EQ 13 x 3 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.112 (2.85mm) |
|
B66283K0000X197FERRITE CORE I N97 |
329 | 1.98 |
RFQ |
Datasheet |
Tray | I18/2/10 | Active | I | I 18 x 2 x 10 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079 (2.00mm) |
|
B66453K0000X192FERRITE CORE I N92 |
964 | 2.07 |
RFQ |
Datasheet |
Tray | I18/2/10 | Active | I | I 18 x 2 x 10 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079 (2.00mm) |
|
B66453G0000X192FERRITE CORE ELP N92 1PC |
524 | 2.07 |
RFQ |
Datasheet |
Box | ELP18/4/10 | Active | ELP | ELP 18 x 4 x 10 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.157 (4.00mm) |
|

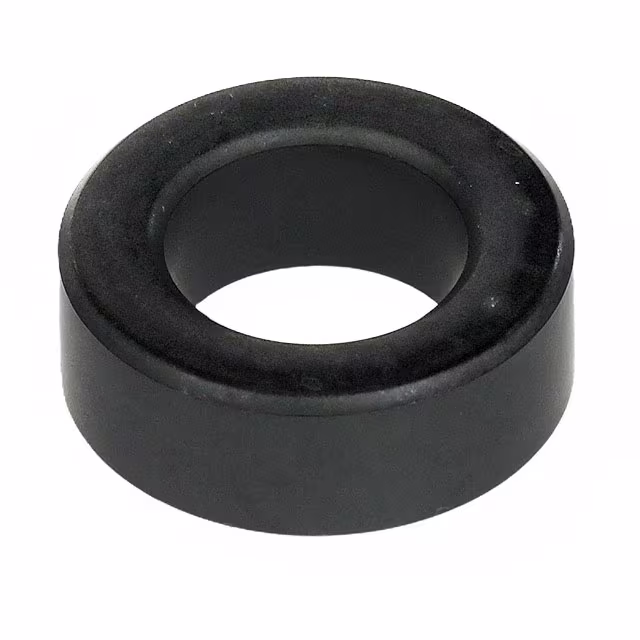

B64290A0618X033FERRITE CORE |
532 | 2.15 |
RFQ |
Datasheet |
Box | T25.3/14.8/15 | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - |
|
B66484K0000X187FERRITE CORE I N87 1PC |
370 | 2.35 |
RFQ |
Datasheet |
Box | I25/3/15 | Active | I | I 25 x 3 x 15 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098 (2.50mm) |
|
B65819J0000R087FERRITE CORE RM 2.7UH N87 2PCS |
862 | 2.60 |
RFQ |
Datasheet |
Box | RM7 | Active | RM | RM 7 | N87 | - | 2.7 µH | -20%, +30% | Ungapped | 1520 | 2200 | 0.7 | 30.4 | 43 | 39 | 1310 | Uncoated | 0.265 (6.75mm) |
|
B66455G0000X197FERRITE CORE ELP N97 1PC |
425 | 2.63 |
RFQ |
Datasheet |
Box | ELP22/6/16 | Active | ELP | ELP 22 x 6 x 16 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.224 (5.70mm) |
|
B66482K0000X192FERRITE CORE I N92 1PC |
2,533 | 2.65 |
RFQ |
Datasheet |
Box | I23/2/13 | Active | I | I 23 x 2 x 13 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.083 (2.10mm) |
|
B66285K0000X192FERRITE CORE I N92 |
416 | 2.65 |
RFQ |
Datasheet |
Tray | I22/2.5/16 | Active | I | I 22 x 2.5 x 16 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098 (2.50mm) |
