| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65805P0000R087FERRITE CORE RM 2.4UH N87 2PCS |
173 | 2.68 |
RFQ |
Datasheet |
Box | RM5/LP | Active | - | - | N87 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B65807C1000K048FERRITE CORE |
780 | 2.81 |
RFQ |
Box | RM6 | Active | - | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | - | - | |
|

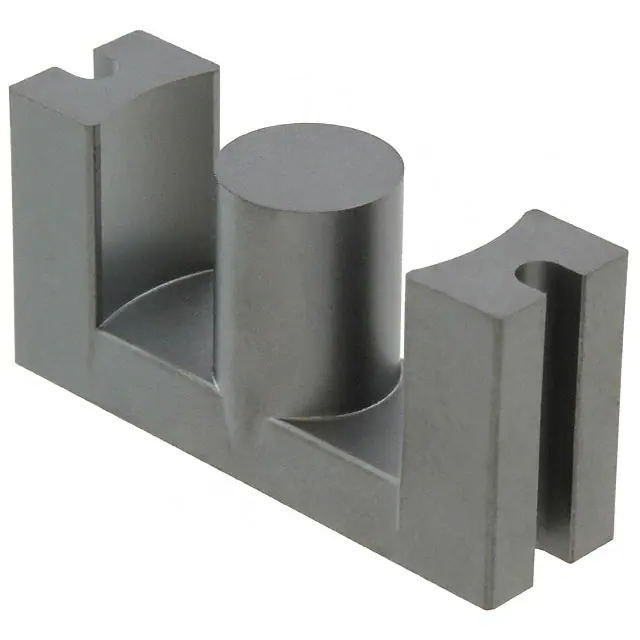

B66339G0000X127FERRITE CORE EC N27 1PC |
239 | 2.82 |
RFQ |
Datasheet |
Box | EC41/20/12 | Active | EC | EC 41 x 20 x 12 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.469 (11.90mm) |
|
B65807C0000R048FERRITE CORE RM 2.2UH N48 2PCS |
519 | 2.84 |
RFQ |
Datasheet |
Box | RM6 | Active | RM | RM 6 | N48 | - | 2.2 µH | -20%, +30% | Ungapped | 1500 | - | 0.86 | 26.9 | 31.3 | - | 840 | Uncoated | 0.246 (6.25mm) |
|
B66455K0000X149FERRITE CORE I N49 |
442 | 2.85 |
RFQ |
Datasheet |
Tray | I22/2.5/16 | Active | I | I 22 x 2.5 x 16 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098 (2.50mm) |
|
B66484G0000X192FERRITE CORE ER N92 1PC |
378 | 2.87 |
RFQ |
Datasheet |
Box | ER25/6/15 | Active | ER | ER 25 x 6 x 15 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.216 (5.50mm) |
|
B66363G1000X127FERRITE CORE ETD N27 1PC |
239 | 3.34 |
RFQ |
Datasheet |
Box | ETD39/20/13 | Active | ETD | ETD 39 x 20 x 13 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.787 (20.00mm) |
|
B66457G0000X197FERRITE CORE ELP N97 1PC |
3,893 | 3.40 |
RFQ |
Datasheet |
Tray | ELP32/6/20 | Active | ELP | ELP 32 x 6 x 20 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.250 (6.35mm) |
|
B66329G1000X127FERRITE CORE E N27 1PC |
287 | 3.69 |
RFQ |
Datasheet |
Box | E42/21/20 | Active | E | E 42 x 21 x 20 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.835 (21.20mm) |
|

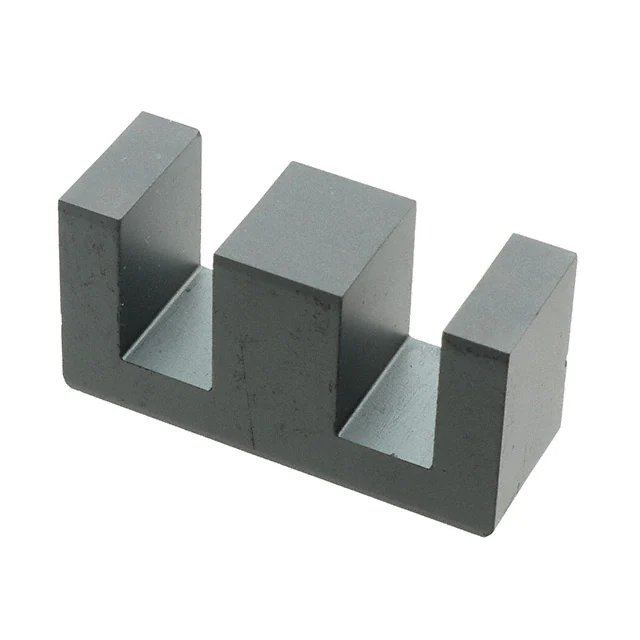

B66325G0000X130FERRITE CORE E N30 1PC |
129 | 4.24 |
RFQ |
Datasheet |
Box | E42/21/15 | Active | E | E 42 x 21 x 15 | N30 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.835 (21.20mm) |
|
B66501G0000X192FERRITE CORE ER N92 1PC |
195 | 4.70 |
RFQ |
Datasheet |
Box | ER32/5/21 | Active | ER | ER 32 x 5 x 21 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201 (5.10mm) |
|
B66335G1500X127FERRITE CORE E N27 1PC |
3,173 | 6.10 |
RFQ |
Datasheet |
Box | E55/28/21 | Active | E | E 55 x 28 x 21 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.094 (27.80mm) |
|

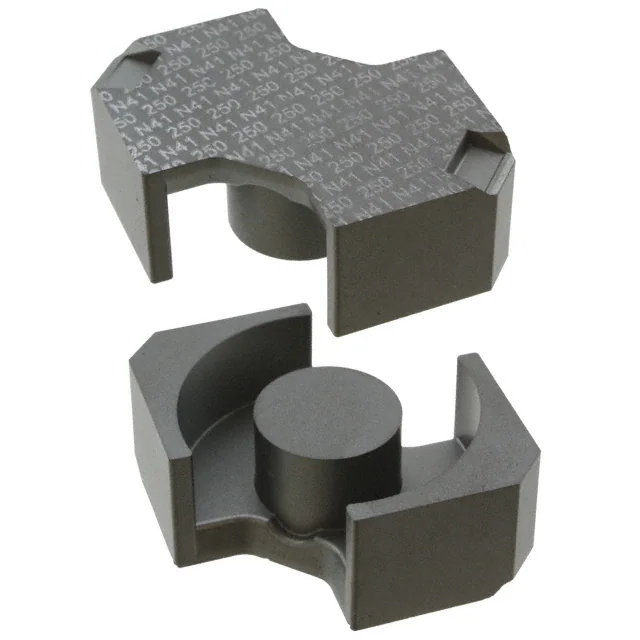

B65815E0250A041FERRITE CORE RM 250NH N41 2PCS |
2,443 | 7.69 |
RFQ |
Datasheet |
Box | RM12 | Active | RM | RM 12 | N41 | - | 250 nH | ±3% | Gapped | 78 | 2800 | 0.39 | 57 | 146 | 125 | 8320 | Uncoated | 0.484 (12.30mm) |
|
B66395G2000X187FERRITE CORE ETD N87 1PC |
3,492 | 8.59 |
RFQ |
Datasheet |
Box | ETD54/28/19 | Active | ETD | ETD 54 x 28 x 19 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.094 (27.80mm) |
|

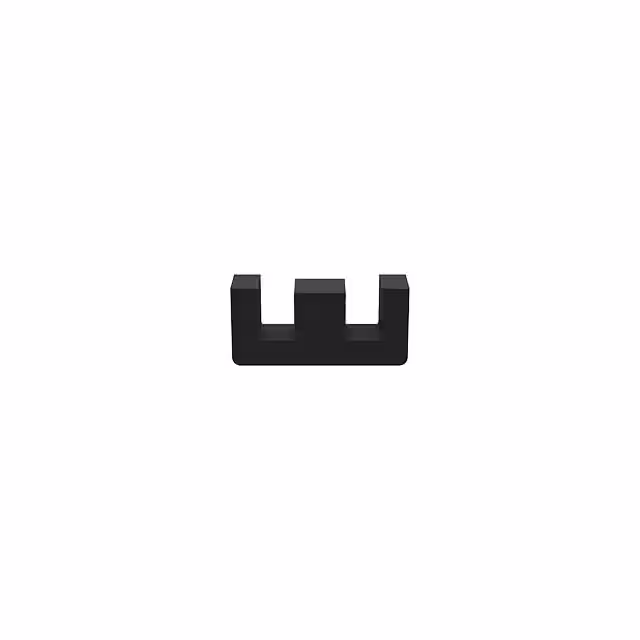

B66344G0000X127FERRITE CORE E N27 1PC |
3,682 | 8.85 |
RFQ |
Datasheet |
Box | E55/28/25 | Active | E | E 55 x 28 x 25 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.094 (27.80mm) |
|

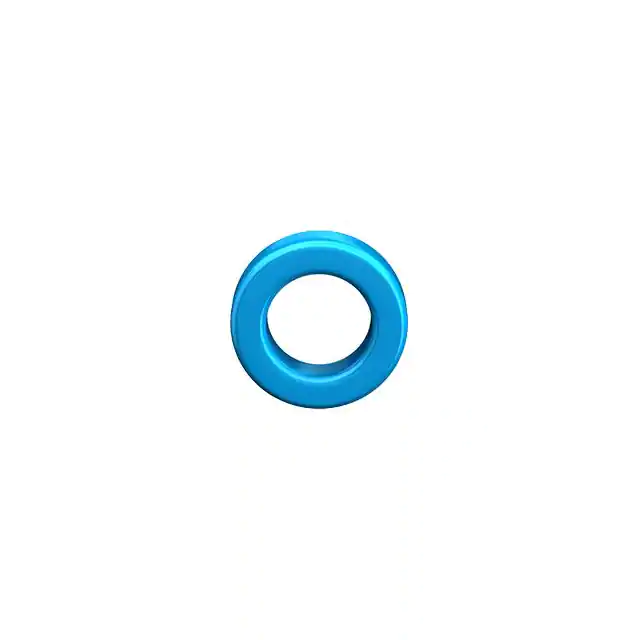

B64290L0659X065FERRITE CORE TOROID 8.2UH T65 |
2,148 | 9.62 |
RFQ |
Datasheet |
Box | TX40/24/16 | Active | Toroid | - | T65 | 1.646 (41.80mm) | 8.2 µH | ±30% | Ungapped | - | 5000 | 0.77 | 96.29 | 125.3 | 125.3 | 12070 | Epoxy | 0.677 (17.20mm) |
|
B66233Q0150K187E32/16/11-N87-DG150 |
406 | 1.76 |
RFQ |
Datasheet |
Tray | E32/16/11 | Active | E | E 32 x 16 x 11 | N87 | - | 150 nH | ±10% | Distributed Gapped | - | - | 0.76 | 74 | 97 | 95 | 7187 | Uncoated | 0.433 (11.00mm) |
|
B66233Q0100K187E32/16/11-N87-DG100 |
370 | 1.76 |
RFQ |
Datasheet |
Bulk | E32/16/11 | Active | E | E 32 x 16 x 11 | N87 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.76 | 74 | 97 | 95 | 7187 | Uncoated | 0.433 (11.00mm) |
|
B66361G0000X197FERRITE CORES |
627 | 2.38 |
RFQ |
Datasheet |
Bulk | ETD34/17/11 | Active | ETD | ETD 34/17/11 | N97 | - | - | -20%, +30% | Ungapped | 1710 | - | 0.81 | 78.6 | 97.1 | 91.6 | 7630 | Uncoated | 0.689 (17.50mm) |
|
B66363Q0150K187ETD39/20/13-N87-DG150 |
157 | 3.09 |
RFQ |
Datasheet |
Bulk | ETD39/20/13 | Active | ETD | ETD 39 x 20 x 13 | N87 | - | 150 nH | ±10% | Distributed Gapped | - | - | 0.74 | 92.2 | 125 | 123 | 11500 | Uncoated | 0.504 (12.80mm) |
