| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
596100270161 TOROID |
2,898 | 3.83 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 61 | 1.400 (35.56mm) | - | ±25% | Ungapped | - | 125 | - | 89 | 79 | - | 7000 | Uncoated | 0.500 (12.70mm) |
|
|

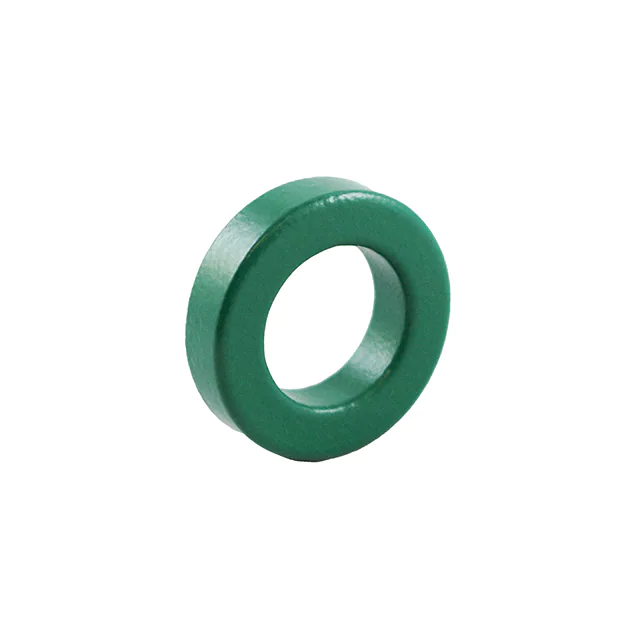

594300272143 TOROID PLASTIC COATED |
2,732 | 3.95 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 43 | - | 885 nH | -25%, +20% | Ungapped | - | 800 | 112 | 89 | 79 | - | 7000 | Plastic | 0.539 (13.70mm) |
|

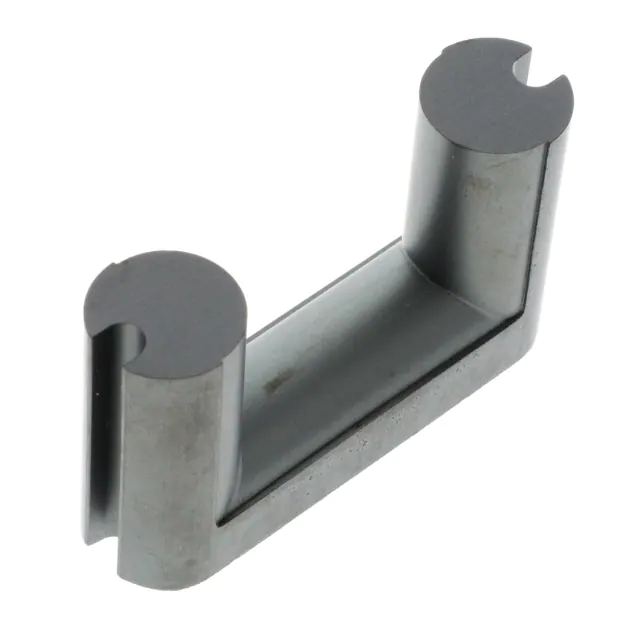

927701200277 U CORE |
342 | 4.06 |
RFQ |
Datasheet |
Bulk | - | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 138 | 135 | 98 | - | 13200 | Uncoated | 1.000 (25.40mm) |
|
|
595202080152 TOROID |
2,268 | 5.30 |
RFQ |
Datasheet |
Tray | - | Active | Toroid | - | 52 | - | - | ±25% | Ungapped | - | 250 | - | 87.9 | 79.2 | - | 6959 | Uncoated | 0.500 (12.70mm) |
|

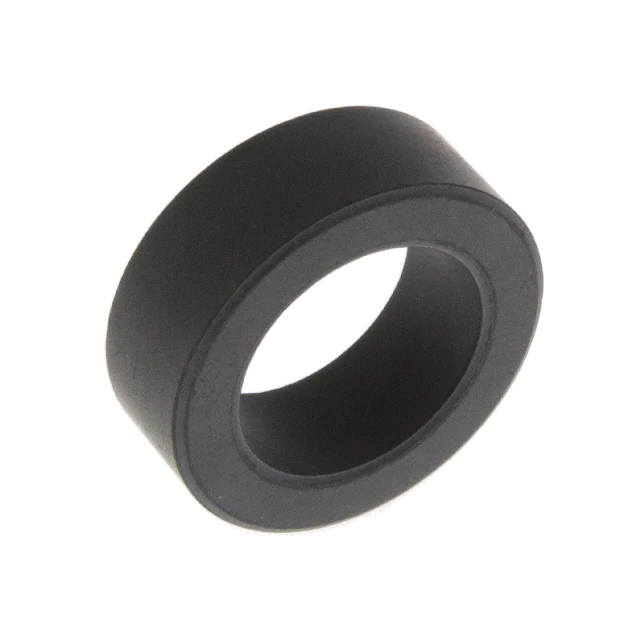

596800270168 TOROID |
3,265 | 8.60 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 68 | 1.400 (35.56mm) | - | - | Ungapped | - | 16 | - | 89 | 78 | - | 7000 | Uncoated | 0.500 (12.70mm) |
|
|
594301860143 TOROID |
400 | 9.97 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 43 | - | - | ±25% | Ungapped | - | 800 | - | 98 | 178 | - | 17500 | Uncoated | - |
|

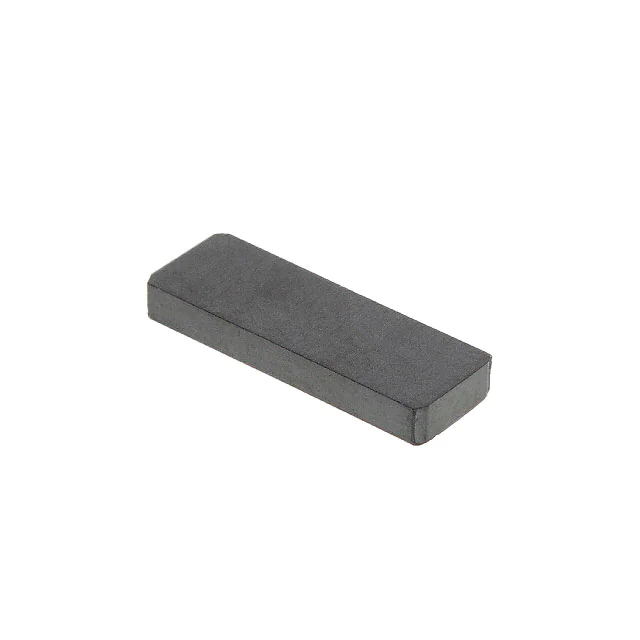

789840012198 PLANAR EI CORE SET |
2,944 | 0.78 |
RFQ |
Datasheet |
Bulk | - | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 109 | 16.6 | 15.2 | 15 | 252 | Uncoated | - |
|

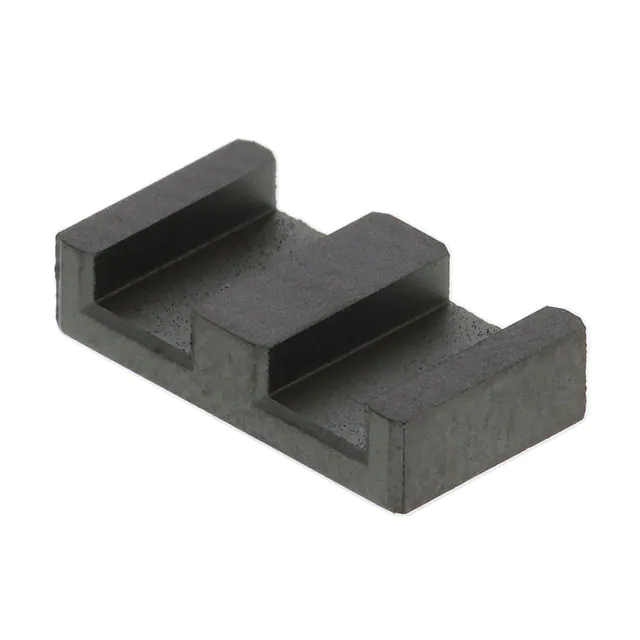

947820200278 PLANAR E CORE SET |
2,140 | 0.78 |
RFQ |
Datasheet |
Bulk | - | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 60 | 24.3 | 39.5 | 39 | 960 | Uncoated | - |
|
405207711152 ROD |
2,157 | 0.32 |
RFQ |
Datasheet |
Box | - | Active | ROD | - | 52 | 0.079 (2.00mm) | - | - | Ungapped | - | 250 | - | - | - | - | - | Uncoated | - |
|

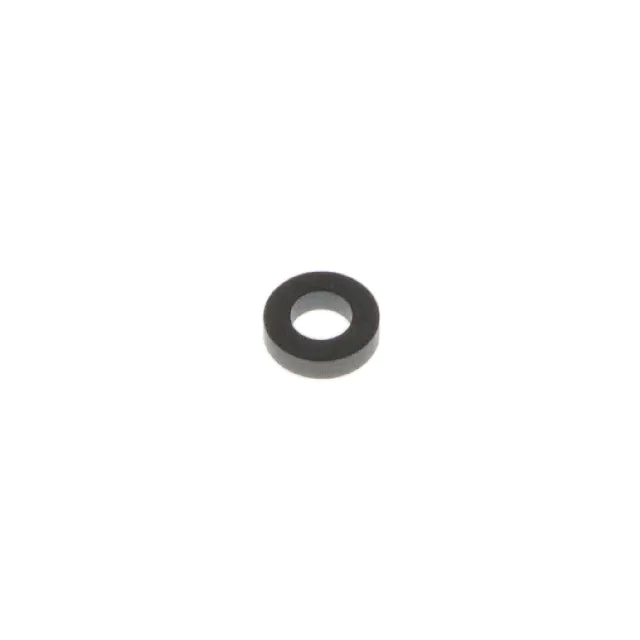

597700010177 TOROID |
3,639 | 0.32 |
RFQ |
Datasheet |
Box | - | Active | Toroid | - | 77 | 0.230 (5.84mm) | - | ±25% | Ungapped | - | 2000 | - | 13 | 2 | - | 27 | Uncoated | 0.060 (1.52mm) |
|

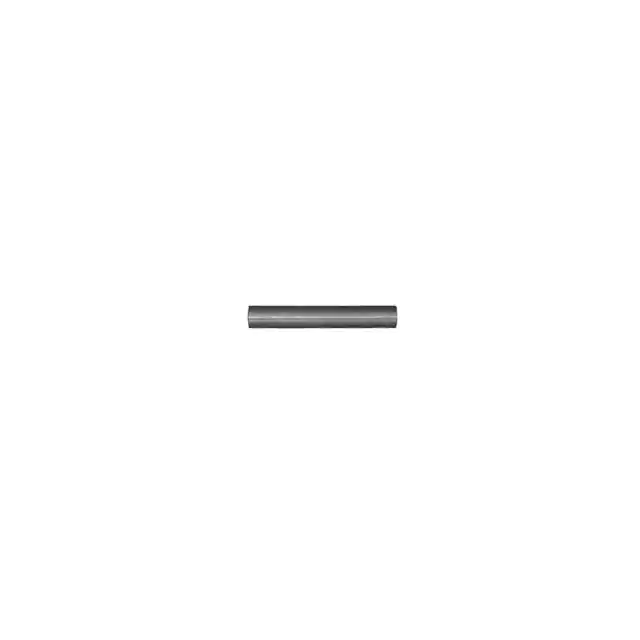

306199084161 ROD |
3,725 | 0.38 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 61 | 0.059 (1.50mm) | - | - | Ungapped | 35 | 125 | - | - | 1.77 | - | - | Uncoated | - |
|
|
306799084167 ROD |
3,709 | 0.41 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 67 | 0.059 (1.50mm) | - | - | Ungapped | 22 | 40 | - | - | 1.77 | - | - | Uncoated | - |
|
306799086167 ROD |
3,851 | 0.62 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 67 | 0.098 (2.50mm) | - | - | Ungapped | 19 | 40 | - | - | 4.91 | - | - | Uncoated | - |
|

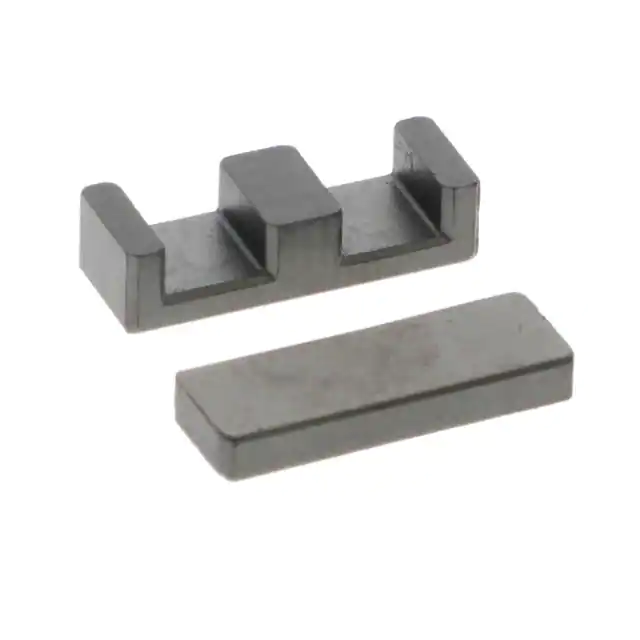

787840012178 PLANAR EI CORE SET |
3,496 | 0.68 |
RFQ |
Datasheet |
Bulk | - | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 109 | 16.6 | 15.2 | 15 | 252 | Uncoated | - |
|
949520200295 PLANAR E CORE SET |
2,371 | 0.87 |
RFQ |
Datasheet |
Bulk | - | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 60 | 24.3 | 39.5 | 39 | 960 | Uncoated | - |
|

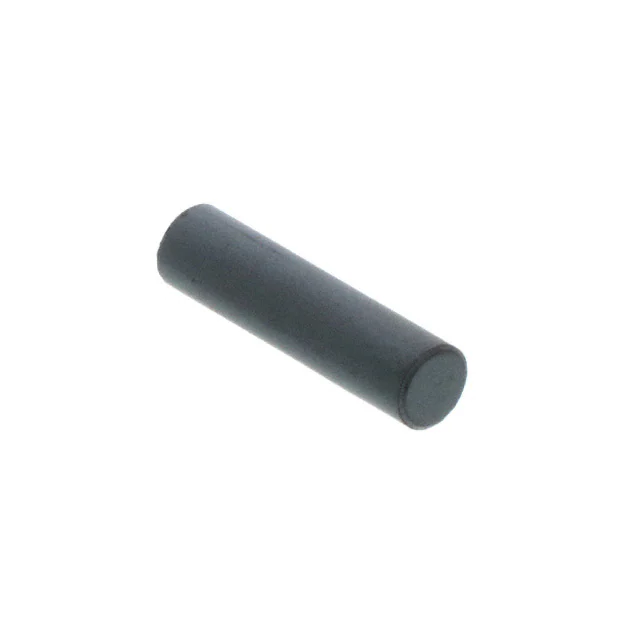

406127601161 ROD |
2,714 | 0.91 |
RFQ |
Datasheet |
Tray | - | Active | ROD | - | 61 | 0.250 (6.35mm) | - | - | Ungapped | 29 | 125 | - | 25 | 7.07 | - | - | Uncoated | - |
|
2643003701FERRITE CORE 40OHM SOLID 1.30MM |
2,970 | 0.28 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
597600021176 TOROID PARYLENE COATED |
3,482 | 0.97 |
RFQ |
Datasheet |
Bag | - | Active | Toroid | - | 76 | - | 4.4 µH | ±30% | Ungapped | - | 10000 | 286 | 20.7 | 7.2 | - | 150 | Parylene | - |
|

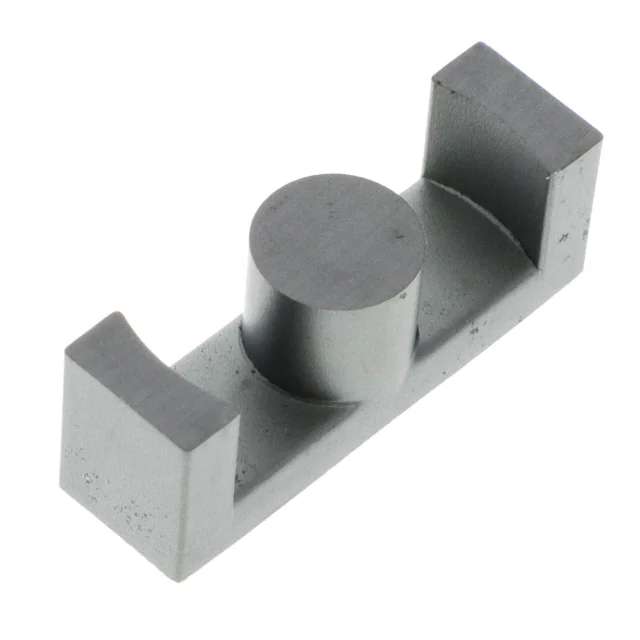

957826180278 EER CORE SET |
3,952 | 1.03 |
RFQ |
Datasheet |
Bulk | - | Active | EER | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 111 | 48 | 43.4 | 42.5 | 2083 | Uncoated | 0.366 (9.30mm) |
|
|
596700010167 TOROID |
3,138 | 0.33 |
RFQ |
Datasheet |
Box | - | Active | Toroid | - | 67 | 0.230 (5.84mm) | - | - | Ungapped | - | 40 | - | 13 | 2 | - | 27 | Uncoated | 0.060 (1.52mm) |
