| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

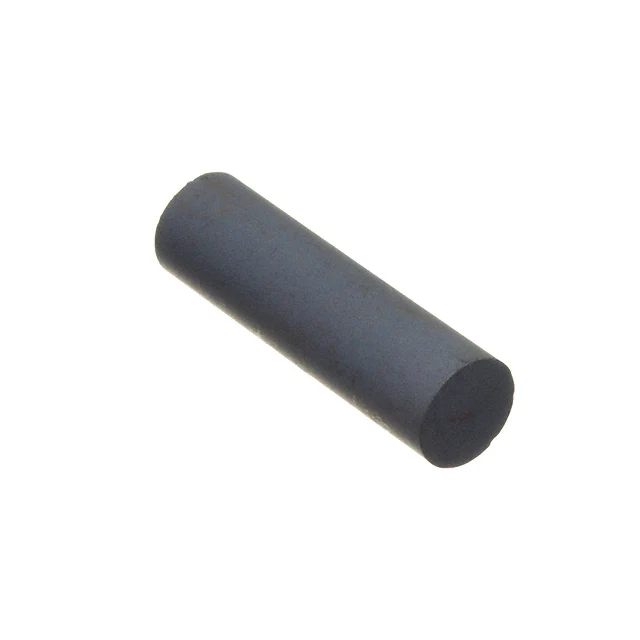

406128701161 ROD |
3,757 | 0.79 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 61 | 0.250 (6.35mm) | - | - | Ungapped | 29 | 125 | - | 25 | 7.07 | - | - | Uncoated | - |
|
306799087167 ROD |
3,638 | 0.80 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 67 | 0.118 (3.00mm) | - | - | Ungapped | 20 | 40 | - | - | 7.07 | - | - | Uncoated | - |
|
|
307899088178 ROD |
3,677 | 0.80 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 78 | 0.157 (4.00mm) | - | - | Ungapped | 31 | 2300 | - | - | 12.6 | - | - | Uncoated | - |
|
596700020167 TOROID |
2,097 | 0.81 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 67 | 0.375 (9.53mm) | - | - | Ungapped | - | 40 | - | 20.7 | 7.2 | - | 150 | Uncoated | 0.125 (3.18mm) |
|

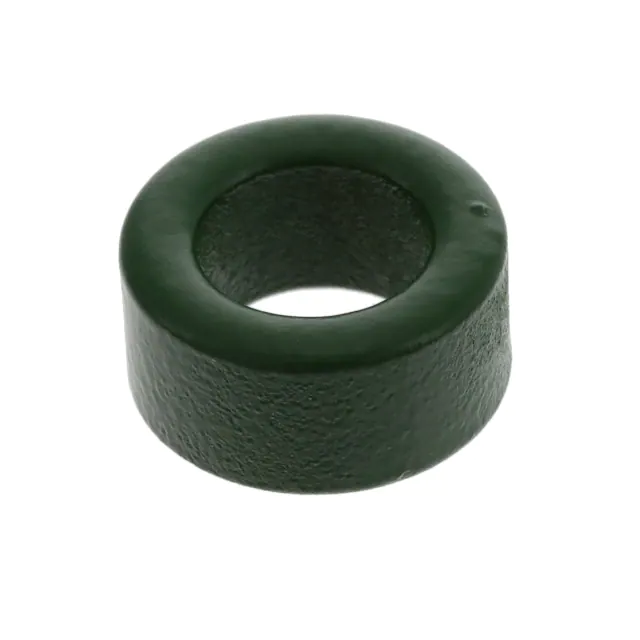

596100112161 TOROID PLASTIC COATED |
900 | 0.84 |
RFQ |
Datasheet |
Box | - | Active | Toroid | - | 61 | 0.530 (13.45mm) | 75 nH | ±25% | Ungapped | - | 125 | 2.08 | 31.2 | 15 | - | 470 | Plastic | 0.280 (7.11mm) |
|
|
596700030167 TOROID |
2,868 | 0.86 |
RFQ |
Datasheet |
Box | - | Active | Toroid | - | 67 | 0.500 (12.70mm) | - | - | Ungapped | - | 40 | - | 29.5 | 12.9 | - | 380 | Uncoated | 0.188 (4.78mm) |
|

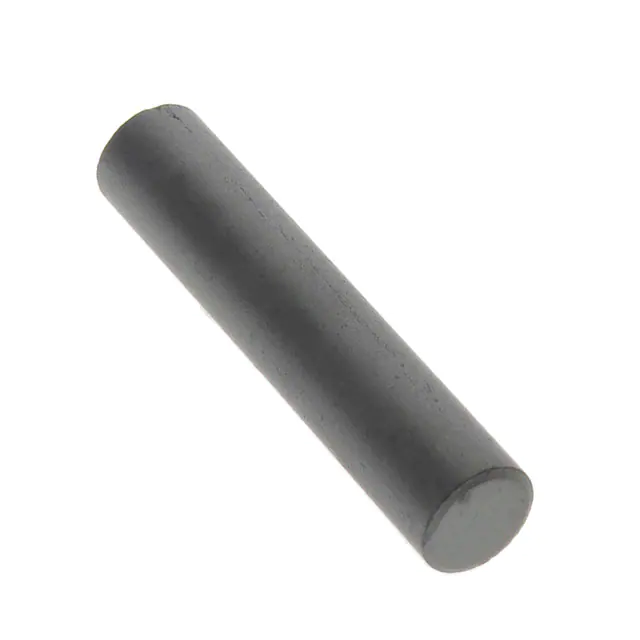

407729601177 SOLID ROD |
2,781 | 1.03 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 77 | 0.250 (6.35mm) | - | - | Ungapped | - | 2000 | - | - | - | - | - | Uncoated | - |
|
|
596800030168 TOROID |
2,363 | 1.14 |
RFQ |
Datasheet |
Box | - | Active | Toroid | - | 68 | 0.500 (12.70mm) | - | - | Ungapped | - | 16 | - | 29.5 | 12.9 | - | 380 | Uncoated | 0.188 (4.78mm) |
|
|
307899090178 ROD |
3,317 | 1.19 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 78 | 0.250 (6.35mm) | - | - | Ungapped | 26 | 2300 | - | - | 28.3 | - | - | Uncoated | - |
|
|
597500490175 TOROID |
3,818 | 1.23 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 75 | 0.630 (16.00mm) | - | ±20% | Ungapped | - | 5000 | - | 38.5 | 19.9 | - | 770 | Uncoated | 0.250 (6.35mm) |
|
|
594300100143 TOROID |
3,583 | 1.46 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 43 | 1.142 (29.00mm) | - | ±20% | Ungapped | - | 800 | - | 73 | 37 | - | 2700 | Uncoated | 0.295 (7.50mm) |
|

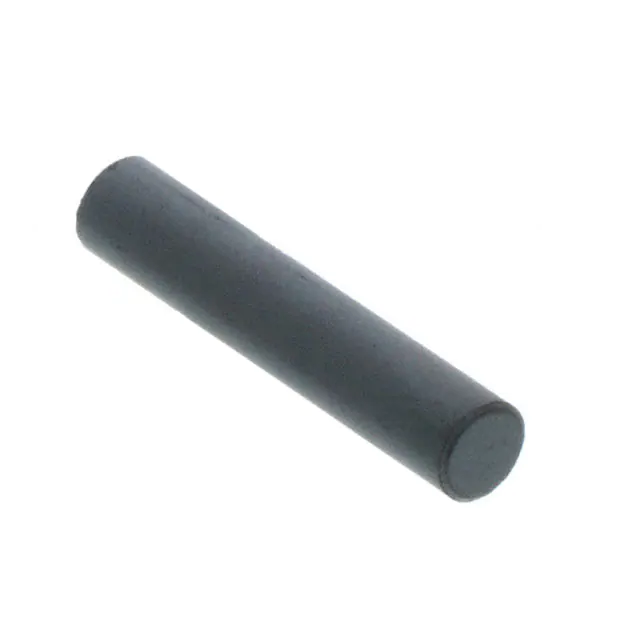

406137811161 ROD |
3,641 | 1.56 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 61 | 0.374 (9.50mm) | - | - | Ungapped | - | 125 | - | - | - | - | - | Uncoated | - |
|
|
596100062161 TOROID PLASTIC COATED |
3,232 | 1.65 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 61 | 0.860 (21.84mm) | 75 nH | ±25% | Ungapped | - | 125 | 213 | 52 | 24.3 | - | 1260 | Plastic | 0.280 (7.11mm) |
|
597700120177 TOROID |
2,961 | 1.65 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 77 | 1.142 (29.00mm) | - | ±25% | Ungapped | - | 2000 | - | 73 | 68 | - | 5000 | Uncoated | 0.545 (13.84mm) |
|
407837511178 ROD |
3,171 | 1.75 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 78 | 0.372 (9.45mm) | - | - | Ungapped | - | 2300 | - | - | - | - | - | Uncoated | - |
|

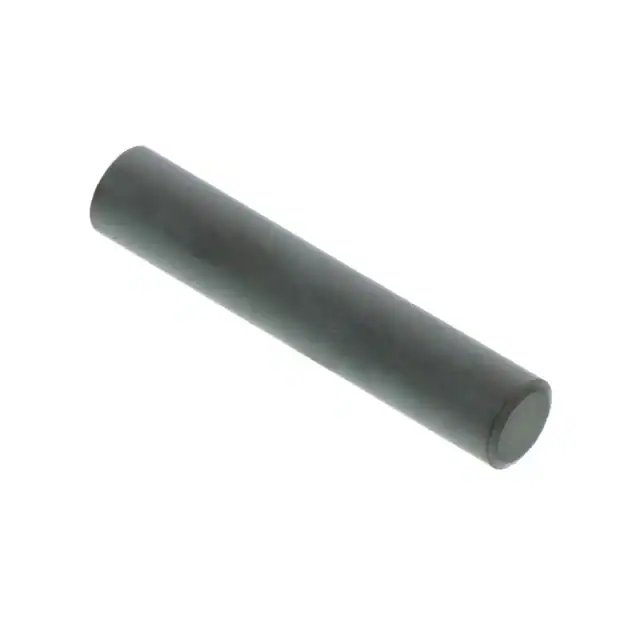

407737521177 SOLID ROD |
3,206 | 1.92 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 77 | 0.372 (9.45mm) | - | - | Ungapped | 29 | 2000 | - | 25 | 7.07 | - | - | Uncoated | - |
|

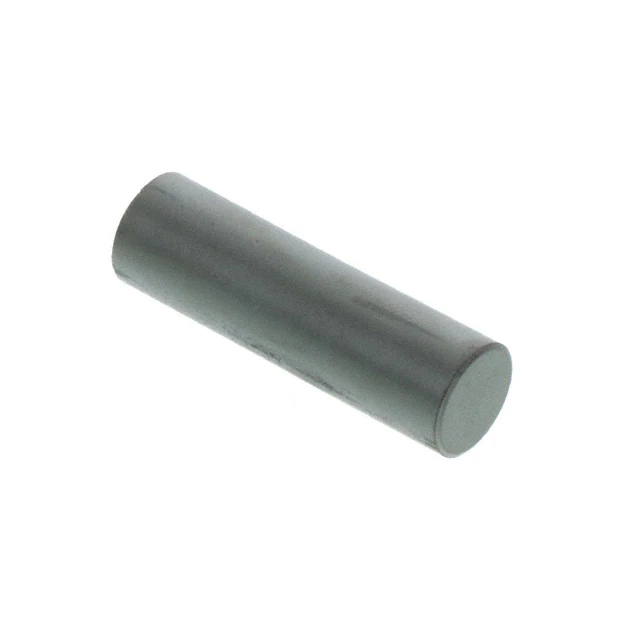

407748461177 ROD |
2,247 | 1.95 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 77 | 0.484 (12.30mm) | - | - | Ungapped | 29 | 2000 | - | 25 | 7.07 | - | - | Uncoated | - |
|
|
597800760178 TOROID |
2,796 | 2.20 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 78 | 0.870 (22.10mm) | - | ±25% | Ungapped | - | 2300 | - | 54 | 52 | - | 2830 | Uncoated | 0.500 (12.70mm) |
|
|
306199091161 ROD |
3,571 | 3.17 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 61 | 0.315 (8.00mm) | - | - | Ungapped | 18 | 125 | - | - | 50.3 | - | - | Uncoated | - |
|

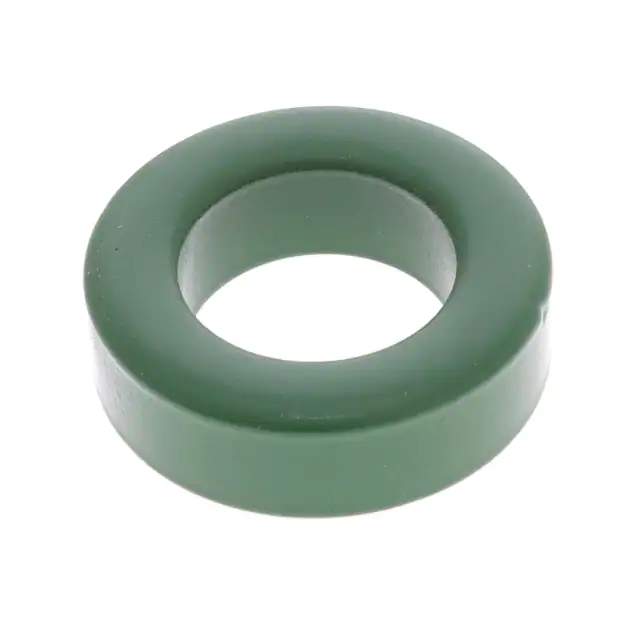

596100172161 TOROID COATED |
290 | 3.57 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 61 | 1.299 (33.00mm) | 120 nH | ±25% | Ungapped | - | 125 | 1.2947 | 76.4 | 59 | - | 4512 | Plastic | 0.406 (10.30mm) |
