Categories
Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-8TQ080STRL-M3DIODE SCHOTTKY 80V 8A TO263AB |
3,394 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 5V, 1MHz | - | 550 µA @ 80 V | 80 V | 8A | -55°C ~ 175°C | 720 mV @ 8 A | |
|
1N5552E3STANDARD RECTIFIER |
2,790 | 5.21 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | - | 600 V | 5A | -65°C ~ 175°C | 1.2 V @ 9 A | ||
|

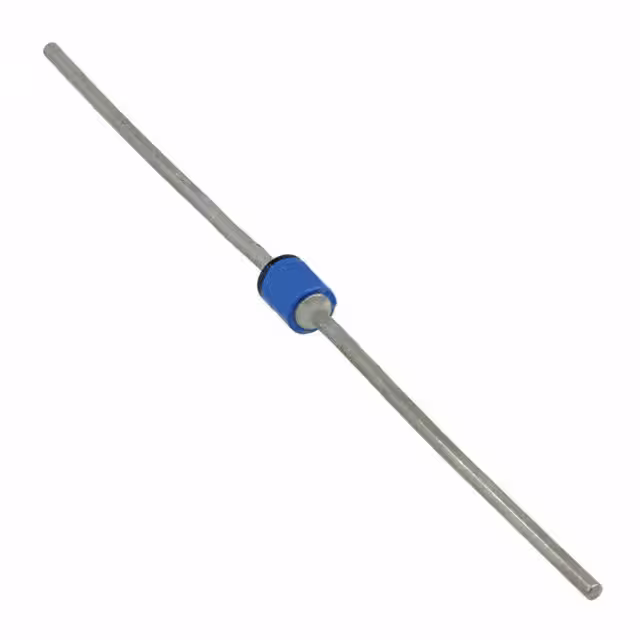

JAN1N5419DIODE GEN PURP 500V 3A AXIAL |
3,770 | 8.10 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 1 µA @ 500 V | 500 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
UPR20E3/TR13DIODE GEN PURP 200V 2A POWERMITE |
2,478 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|
JAN1N6620U/TRRECTIFIER UFR,FRR |
3,080 | 12.15 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 500 nA @ 200 V | 200 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A | |
|
VS-41HFR80DIODE GEN PURP 800V 40A DO203AB |
3,966 | 6.84 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 9 mA @ 800 V | 800 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
|
VS-10TQ045STRR-M3DIODE SCHOTTKY 45V 10A D2PAK |
2,592 | 0.86 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 900pF @ 5V, 1MHz | - | 2 mA @ 45 V | 45 V | 10A | -55°C ~ 175°C | 570 mV @ 10 A | |
|
|
1N58175A SCHOTTKY RECTIFIER |
3,061 | 5.21 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|

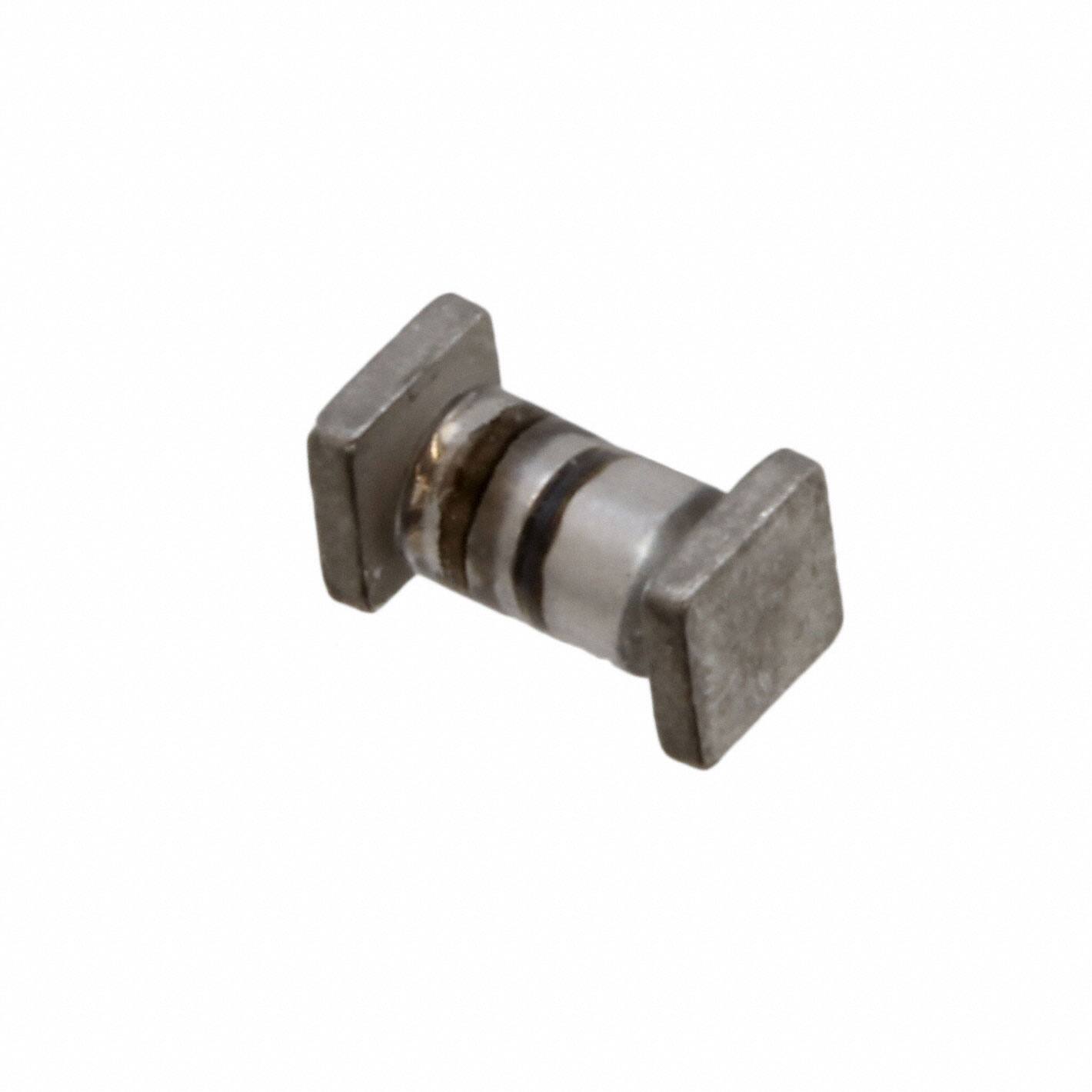

JAN1N5614USDIODE GEN PURP 200V 1A D5A |
3,528 | 8.10 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
|
UPR30E3/TR13DIODE GEN PURP 300V 2A POWERMITE |
2,458 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 300 V | 300 V | 2A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|

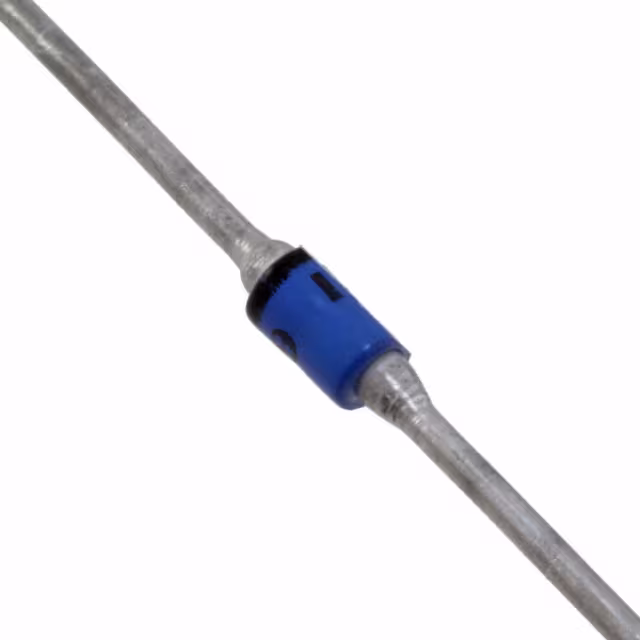

JANTXV1N5623DIODE GEN PURP 1KV 1A AXIAL |
3,704 | 12.21 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 12V, 1MHz | 500 ns | 500 nA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
|
1N6638UDIODE GEN PURPOSE |
3,148 | 6.86 |
RFQ |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2.5pF @ 0V, 1MHz | 4.5 ns | 500 nA @ 150 V | 125 V | 300mA (DC) | -65°C ~ 175°C | 1.1 V @ 200 mA | |
|
FMG-G26SDIODE GEN PURP 600V 4A TO220F-2L |
3,183 | 0.86 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 100 ns | 500 µA @ 600 V | 600 V | 4A | -40°C ~ 150°C | 2.5 V @ 4 A | |
|
|
1N5552/TRSTD RECTIFIER |
2,629 | 5.21 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A | |
|

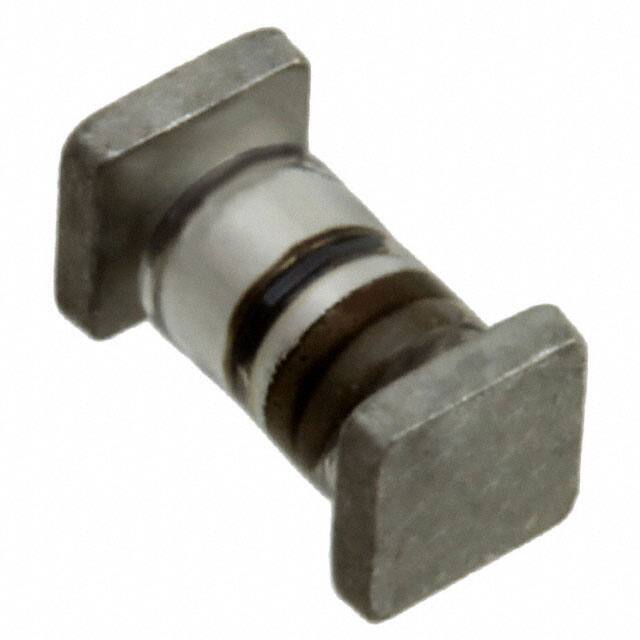

JAN1N5615USDIODE GEN PURP 200V 1A D-5A |
3,699 | 8.10 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 500 µA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 800 mV @ 3 A |
|
|
UPR40E3/TR13DIODE GEN PURP 400V 2A POWERMITE |
2,609 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 400 V | 400 V | 2A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|
|
CDLL6857ZENER DIODE |
3,946 | 12.21 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 4.5pF @ 0V, 1MHz | - | 150 nA @ 16 V | 16 V | 150mA | -65°C ~ 150°C | 750 mV @ 35 mA | |
|
|
1N6638USDIODE GEN PURPOSE |
3,903 | 6.86 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
.JPG)
|
TSN525M60 S3GDIODE SCHOTTKY 60V 25A 8PDFN |
3,317 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 25A | -55°C ~ 150°C | 630 mV @ 25 A | |
|
1N5614US/TRSTD RECTIFIER |
3,676 | 5.21 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
