Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-12FL100S05DIODE GEN PURP 1KV 12A DO203AA |
2,678 | 6.80 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 50 µA @ 1000 V | 1000 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
.jpg)
|
HSM350JE3/TR13DIODE SCHOTTKY 50V 3A DO214AB |
2,123 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 50 V | 50 V | 3A | -55°C ~ 175°C | 620 mV @ 3 A | |
|
JANTX1N5615/TRRECTIFIER UFR,FRR |
2,580 | 5.18 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 45pF @ 12V, 1MHz | 150 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|

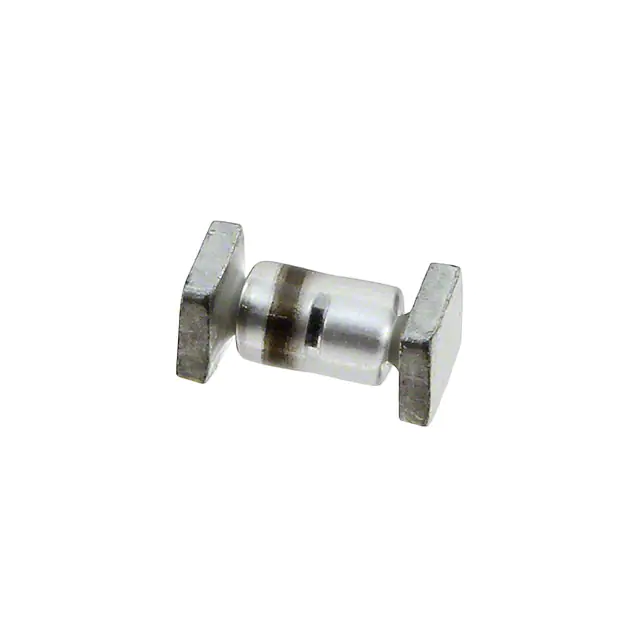

JANTX1N6640USDIODE GEN PURP 50V 300MA D5D |
2,531 | 8.09 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/609 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 4 ns | 100 nA @ 50 V | 50 V | 300mA | -65°C ~ 175°C | 1 V @ 200 mA |
|
MF10H100HE3_B/PDIODE SCHOTTKY 100V 10A TO220AC |
2,916 | 0.94 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 4.5 µA @ 100 V | 100 V | 10A | -65°C ~ 175°C | 880 mV @ 20 A |
|
1N6622US/TRRECTIFIER UFR,FRR |
2,987 | 7.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 660 V | 660 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A | |
|
|
VS-12FLR100S05DIODE GEN PURP 1KV 12A DO203AA |
2,187 | 6.80 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 50 µA @ 1000 V | 1000 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
HSM360GE3/TR13DIODE SCHOTTKY 60V 3A DO215AB |
3,972 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 3A | -55°C ~ 175°C | 620 mV @ 3 A | |
|
|
VS-90EPF12L-M3RECTIFIER DIODE 90A 1200V TO-247 |
3,298 | 5.18 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 480 ns | 100 µA @ 1200 V | 1200 V | 90A | -40°C ~ 150°C | 1.38 V @ 90 A | |
|
JANTX1N5804USDIODE GEN PURP 100V 1A D5A |
2,576 | 8.09 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 875 mV @ 1 A |
|
VS-8ETH06STRLHM3DIODE GEN PURP 600V 8A TO263 |
2,985 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 22 ns | 50 µA @ 600 V | 600 V | 8A | -55°C ~ 175°C | 2.4 V @ 8 A |
|
|
1N5819UR-1/TRSCHOTTKY |
3,196 | 7.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 5V, 1MHz | - | 50 µA @ 45 V | 45 V | 1A | -65°C ~ 125°C | 490 mV @ 1 A | |
|
|
VS-52PF120DIODE GEN PURP 1.2KV 50A DO203AB |
3,024 | 6.82 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1200 V | 50A | -55°C ~ 180°C | 1.4 V @ 125 A | |
|
|
HSM5100JE3/TR13DIODE SCHOTTKY 100V 5A DO214AB |
3,534 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 250 µA @ 100 V | 100 V | 5A | -55°C ~ 175°C | 800 mV @ 5 A | |
|
|
VS-80PF120DIODE GEN PURP 1.2KV 80A DO203AB |
2,599 | 5.19 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1200 V | 80A | -55°C ~ 180°C | 1.4 V @ 220 A | |
|
1N5186USDIODE GEN PURP 100V 3A AXIAL |
2,393 | 8.09 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 2 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
VS-8ETH06STRRHM3DIODE GEN PURP 600V 8A TO263 |
2,167 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 22 ns | 50 µA @ 600 V | 600 V | 8A | -55°C ~ 175°C | 2.4 V @ 8 A |
|
|
VS-52PFR120DIODE GEN PURP 1.2KV 50A DO203AB |
3,657 | 6.82 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1200 V | 50A | -55°C ~ 180°C | 1.4 V @ 125 A | |
|
|
HSM590JE3/TR13DIODE SCHOTTKY 90V 5A DO214AB |
3,782 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 250 µA @ 90 V | 90 V | 5A | -55°C ~ 175°C | 800 mV @ 5 A | |
|
|
VS-80PFR120DIODE GEN PURP 1.2KV 80A DO203AB |
3,940 | 5.19 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1200 V | 80A | -55°C ~ 180°C | 1.4 V @ 220 A |
