Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RFN10TB4SNZC9SUPER FAST RECOVERY DIODE : RFN1 |
3,615 | 1.69 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 10 µA @ 430 V | 430 V | 10A | 150°C | 1.55 V @ 10 A | ||
|
BYV98-150-TRDIODE AVALANCHE 150V 4A SOD64 |
3,954 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 35 ns | 10 µA @ 150 V | 150 V | 4A | -55°C ~ 175°C | 1.1 V @ 5 A | |
|
|
1N3893DIODE GEN PURP 600V 12A DO4 |
2,926 | 7.68 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 50 V | 600 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
VS-60APF02-M3DIODE GEN PURP 200V 60A TO247AC |
2,768 | 6.79 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 180 ns | 100 µA @ 200 V | 200 V | 60A | -40°C ~ 150°C | 1.3 V @ 60 A | |
|
|
VS-80PFR120WDIODE GEN PURP 1.2KV 80A DO203AB |
3,063 | 5.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | - | 1200 V | 80A | -55°C ~ 180°C | 1.4 V @ 220 A | |
|
JANTX1N5554/TRSTD RECTIFIER |
3,011 | 7.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 2 µA @ 1 V | 1000 V | 5A | -65°C ~ 175°C | 1.3 V @ 9 A |
|
SBLF10L25-E3/45DIODE SCHOTTKY 25V 10A ITO220AC |
3,866 | 0.94 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 800 µA @ 25 V | 25 V | 10A | -65°C ~ 150°C | 460 mV @ 10 A | |
|
|
FR12B05DIODE GEN PURP 100V 12A DO4 |
2,295 | 7.68 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 100 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
VS-60APF06-M3DIODE GEN PURP 600V 60A TO247AC |
3,878 | 6.79 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 180 ns | 100 µA @ 600 V | 600 V | 60A | -40°C ~ 150°C | 1.3 V @ 60 A | |
|
1N5622DIODE GEN PURP 1KV 1A AXIAL |
2,505 | 5.13 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 1000 V | 1000 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|
|
JAN1N5809USDIODE GEN PURP 100V 6A B-MELF |
2,892 | 7.98 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 100 V | 100 V | 6A | -65°C ~ 175°C | 875 mV @ 4 A |
|
|
FESF8ATHE3_A/PDIODE GEN PURP 50V 8A ITO220AC |
2,942 | 0.94 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 10 µA @ 50 V | 50 V | 8A | -55°C ~ 150°C | 950 mV @ 8 A |
|
|
FR12D05DIODE GEN PURP 200V 12A DO4 |
2,038 | 7.68 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 200 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
|
VS-60APF10-M3DIODE GEN PURP 1KV 60A TO247AC |
3,361 | 6.79 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 480 ns | 100 µA @ 1000 V | 1000 V | 60A | -40°C ~ 150°C | 1.4 V @ 60 A | |
|
|
JANTX1N5619/TRRECTIFIER UFR,FRR |
2,690 | 5.13 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|

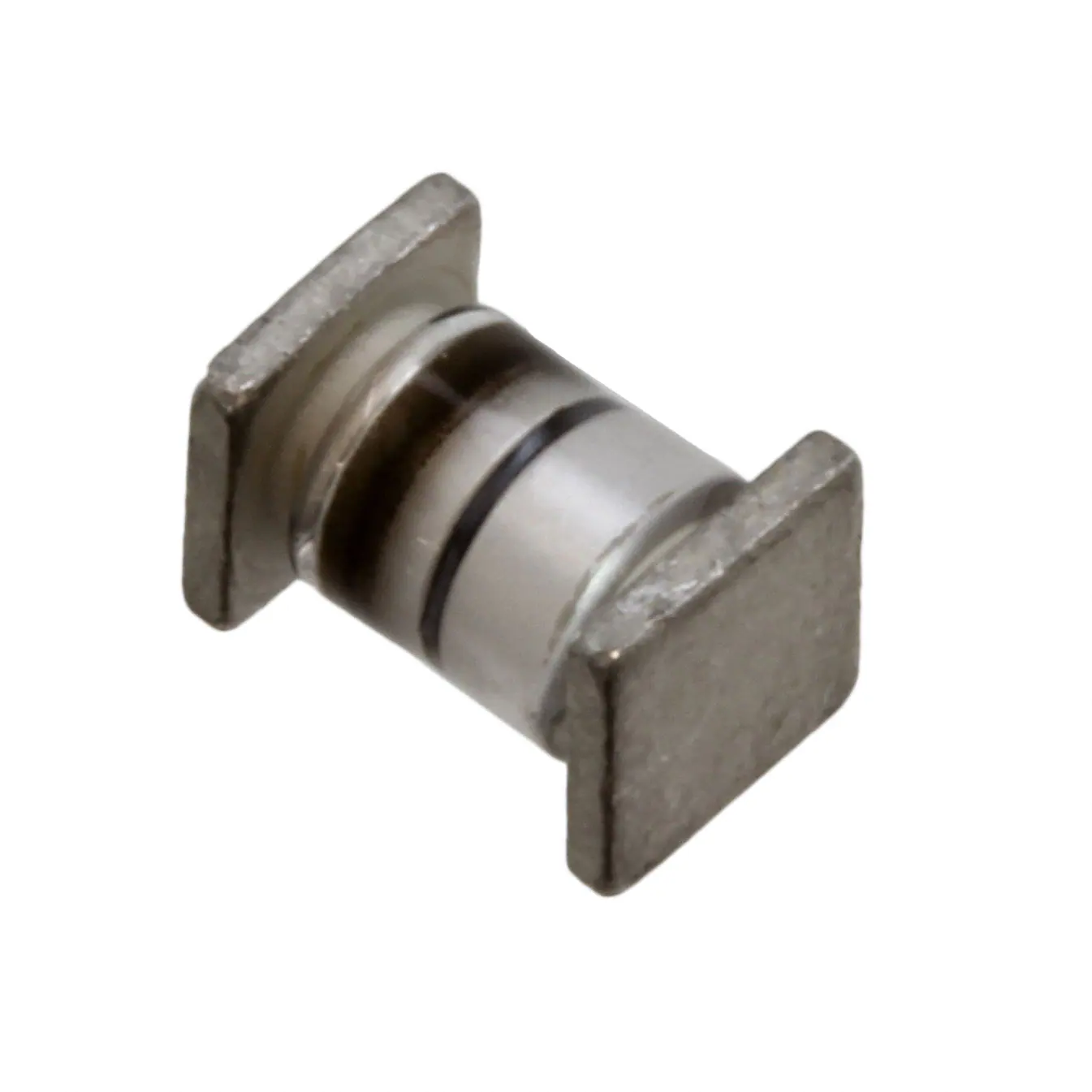

JAN1N5811USDIODE GEN PURP 150V 6A B-MELF |
3,369 | 7.98 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 150 V | 150 V | 6A | -65°C ~ 175°C | 875 mV @ 4 A |
|
|
FESF8BTHE3_A/PDIODE GEN PURP 100V 8A ITO220AC |
2,776 | 0.94 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 10 µA @ 100 V | 100 V | 8A | -55°C ~ 150°C | 950 mV @ 8 A |
|
FR12G05DIODE GEN PURP 400V 12A DO4 |
3,773 | 7.68 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 400 V | 12A | -65°C ~ 150°C | 800 mV @ 12 A | |
|
VS-60EPF02-M3DIODE GEN PURP 200V 60A TO247AC |
2,535 | 6.79 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 180 ns | 100 µA @ 200 V | 200 V | 60A | -40°C ~ 150°C | 1.3 V @ 60 A | |
|
VS-12TQ035STRL-M3DIODE SCHOTTKY 35V 15A D2PAK |
3,357 | 0.85 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 900pF @ 5V, 1MHz | - | 1.75 mA @ 35 V | 35 V | 15A | -55°C ~ 150°C | 560 mV @ 15 A |
