Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR4060PTE3/TUDIODE SCHOTTKY 40A 60V TO-247AD |
3,592 | 0.93 |
RFQ |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
MBR1045MFST3GDIODE SCHOTTKY 45V 10A 5DFN |
3,101 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 750 mV @ 20 A | |
|
1N5809US/TRRECTIFIER UFR,FRR |
2,730 | 7.62 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | ||
|
|
1N5811USE3/TRRECTIFIER UFR,FRR |
2,349 | 6.72 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | - | 150 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | ||
|
JAN1N5620DIODE GEN PURP 800V 1A AXIAL |
3,552 | 5.10 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 800 V | 800 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
1N4944/TRRECTIFIER UFR,FRR |
2,714 | 7.92 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 12V, 1MHz | 150 ns | 1 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A | |
|
VS-12TQ035SHM3DIODE SCHOTTKY 35V 15A D2PAK |
2,914 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 900pF @ 5V, 1MHz | - | 1.75 mA @ 35 V | 35 V | 15A | -55°C ~ 150°C | 560 mV @ 15 A |
|
|
RFUH20NS4STLFAST RECOVERY DIODE : ROHM'S FAS |
2,427 | 2.24 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 10 µA @ 430 V | 430 V | 20A | 150°C | 1.7 V @ 20 A | ||
|
JAN1N5617USDIODE GEN PURP 400V 1A D5A |
3,393 | 7.64 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
|
1N6640/TRSIGNAL/COMPUTER DIODE |
3,683 | 6.72 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/609 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 ns | 100 nA @ 50 V | 50 V | 300mA | -65°C ~ 175°C | 1 V @ 200 mA | |
|
JANTX1N4942DIODE GEN PURP 200V 1A AXIAL |
2,238 | 5.10 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/359 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
|
|
1N5819UR-1E3/TRDIODE SMALL-SIGNAL SCHOTTKY |
2,141 | 7.92 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/586 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 5V, 1MHz | - | 50 µA @ 45 V | 45 V | 1A | -65°C ~ 125°C | 490 mV @ 1 A | |
|
|
VS-12TQ040SHM3DIODE SCHOTTKY 40V 15A D2PAK |
3,988 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 900pF @ 5V, 1MHz | - | 1.75 mA @ 40 V | 40 V | 15A | -55°C ~ 150°C | 560 mV @ 15 A |
|
|
RFN20NS4STLFAST RECOVERY DIODE : ROHM'S FAS |
3,521 | 2.24 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 10 µA @ 430 V | 430 V | 20A | 150°C | 1.55 V @ 20 A | ||
|

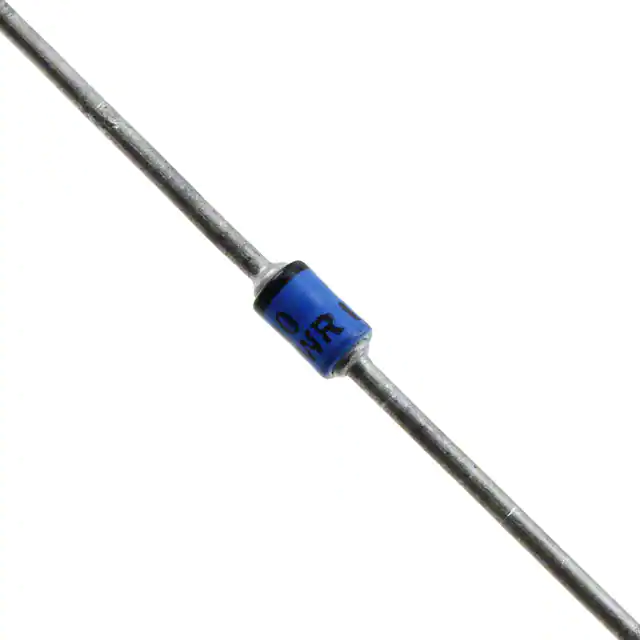

JANTXV1N5620DIODE GEN PURP 800V 1A |
3,637 | 7.65 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 800 V | 800 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
|
VS-42HF100DIODE GEN PURP 1KV 40A DO203AB |
3,625 | 6.75 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1000 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
JANHCA1N5712DIODE SMALL-SIGNAL SCHOTTKY |
3,214 | 5.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 2pF @ 0V, 1MHz | - | 150 nA @ 16 V | 20 V | 75mA | -65°C ~ 150°C | 1 V @ 35 mA |
|
65SPB015ADIODE SCHOTTKY 15V 60A SPD-2A |
3,195 | 7.92 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 3600pF @ 5V, 1MHz | - | 20 mA @ 15 V | 15 V | 60A | -55°C ~ 125°C | 410 mV @ 60 A | |
|
|
VS-12TQ045SHM3DIODE SCHOTTKY 45V 15A D2PAK |
2,331 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 900pF @ 5V, 1MHz | - | 1.75 mA @ 45 V | 45 V | 15A | -55°C ~ 150°C | 560 mV @ 15 A |
|
SK86C V7GDIODE SCHOTTKY 8A 60V DO-214AB |
2,071 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 8A | -55°C ~ 150°C | 750 mV @ 8 A |
