Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSR860GDIODE GEN PURP 600V 8A TO220-2 |
2,323 | 0.87 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 120 ns | 10 µA @ 600 V | 600 V | 8A | -65°C ~ 150°C | 1.7 V @ 8 A |
|
1N7049UR-1SCHOTTKY RECTIFIER |
3,782 | 8.13 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
S16DDIODE GEN PURP 200V 16A DO203AA |
3,943 | 5.22 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 16A | -65°C ~ 175°C | 1.1 V @ 16 A | |
|
VS-8TQ100SHM3DIODE SCHOTTKY 100V 8A TO263AB |
2,368 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 5V, 1MHz | - | 550 µA @ 80 V | 100 V | 8A | -55°C ~ 175°C | 720 mV @ 8 A |
|

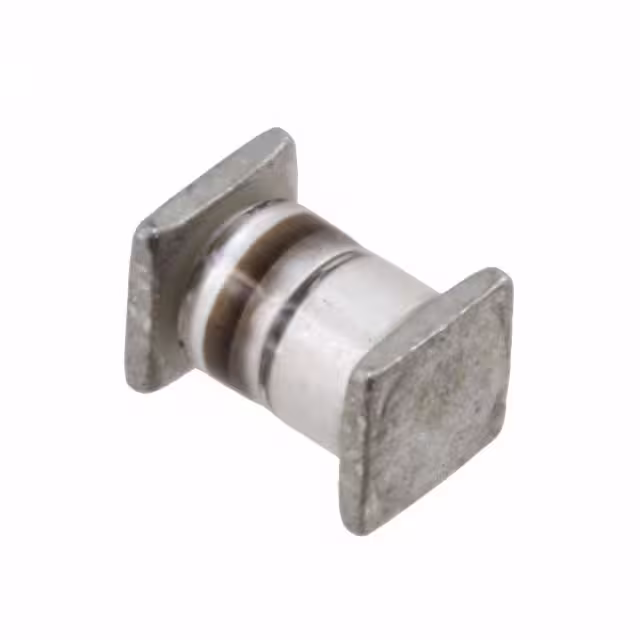

1N6627USDIODE GEN PURP 440V 1.75A A-MELF |
2,014 | 12.32 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 440 V | 440 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A | |
|
JAN1N6620/TRRECTIFIER UFR,FRR |
2,962 | 6.95 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 220 V | 220 V | 2A | -65°C ~ 150°C | 1.6 V @ 2 A |
|
|
VS-10TQ045STRL-M3DIODE SCHOTTKY 45V 10A D2PAK |
2,771 | 0.87 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 900pF @ 5V, 1MHz | - | 2 mA @ 45 V | 45 V | 10A | -55°C ~ 175°C | 570 mV @ 10 A | |
|
|
1N7050UR-1SCHOTTKY RECTIFIER |
2,968 | 8.13 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
S16DRDIODE GEN PURP 200V 16A DO220AA |
2,527 | 5.22 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 16A | -65°C ~ 175°C | 1.1 V @ 16 A | |
|
|
FESB16FT-E3/45DIODE GEN PURP 300V 16A TO263AB |
3,730 | 0.95 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 175pF @ 4V, 1MHz | 50 ns | 10 µA @ 300 V | 300 V | 16A | -65°C ~ 150°C | 1.3 V @ 16 A | |
|
JANTXV1N5807US/TRRECTIFIER UFR,FRR |
3,069 | 12.33 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 50 V | 50 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | |
|

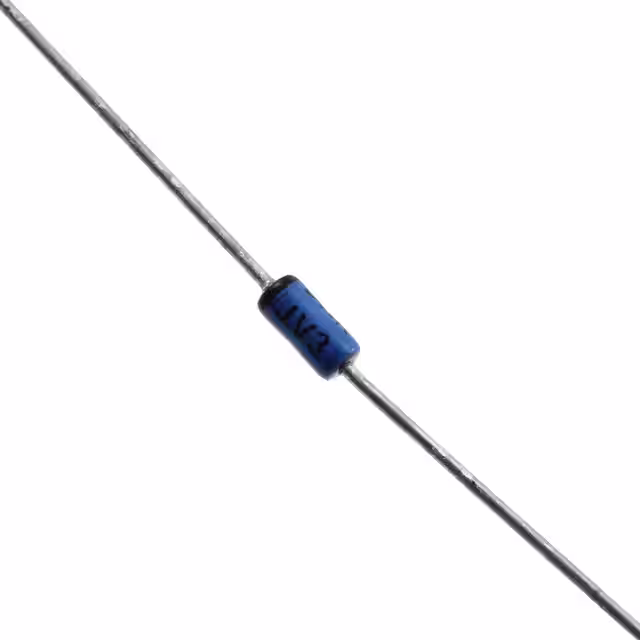

JANTXV1N3595-1DIODE GEN PURP 125V 150MA DO204 |
3,079 | 14.58 |
RFQ |
Datasheet |
Bulk,Bulk | Military, MIL-PRF-19500/241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 3 µs | 1 nA @ 125 V | 125 V | 150mA (DC) | -65°C ~ 175°C | 1 V @ 200 mA |
|
|
VS-HFA15TB60SL-M3DIODE GEN PURP 600V 15A D2PAK |
2,157 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 60 ns | 10 µA @ 600 V | 600 V | 15A (DC) | -55°C ~ 150°C | 2 V @ 30 A |
|
|
1N7051UR-1SCHOTTKY RECTIFIER |
3,577 | 8.13 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
S16GDIODE GEN PURP 400V 16A DO203AA |
3,416 | 5.22 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 400 V | 16A | -65°C ~ 175°C | 1.1 V @ 16 A | |
|
|
FESB16GT-E3/45DIODE GEN PURP 400V 16A TO263AB |
2,348 | 0.95 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 175pF @ 4V, 1MHz | 50 ns | 10 µA @ 400 V | 400 V | 16A | -65°C ~ 150°C | 1.3 V @ 16 A | |
|
|
FR30K05DIODE GEN PURP 800V 30A DO5 |
3,490 | 12.33 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 800 V | 800 V | 30A | -40°C ~ 125°C | 1 V @ 30 A | |
|
|
VS-95PFR160DIODE GEN PURP 1.6KV 95A DO203AB |
2,406 | 6.97 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1600 V | 95A | -55°C ~ 180°C | 1.4 V @ 267 A | |
|
|
VS-HFA15TB60SR-M3DIODE GEN PURP 600V 15A D2PAK |
3,559 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 60 ns | 10 µA @ 600 V | 600 V | 15A (DC) | -55°C ~ 150°C | 2 V @ 30 A |
|
|
1N7052UR-1SCHOTTKY RECTIFIER |
2,579 | 8.13 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - |
