| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCQ30A03DIODE SCHOTTKY 30V 30A TO-263LP |
3,900 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.5 mA @ 30 V | 30 V | 30A | -40°C ~ 150°C | 500 mV @ 15 A | |
|
|
UCF10B40DIODE FAST RECOVERY 400V 10A TO- |
2,251 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 45 ns | 20 µA @ 400 V | 400 V | 10A | -40°C ~ 150°C | 1.35 V @ 5 A | |
|
FSU08D60DIODE FAST RECOVERY 600V 8A TO-2 |
3,167 | 1.44 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 20 µA @ 600 V | 600 V | 8A | -55°C ~ 175°C | 2.3 V @ 8 A | |
|
|
GSQ05A06DIODE SCHOTTKY 60V 5A TO-220 2PI |
3,674 | 1.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 5 mA @ 60 V | 60 V | 5A | -40°C ~ 150°C | 580 mV @ 5 A | |
|
|
FCH20A20DIODE SCHOTTKY 200V 20A TO-220 F |
3,593 | 1.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 200 V | 200 V | 20A | -40°C ~ 150°C | 900 mV @ 10 A | |
|
|
UCHD30A09DIODE SCHOTTKY 90V 30A TO-263LP |
3,206 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 90 V | 90 V | 30A | -40°C ~ 150°C | 790 mV @ 15 A | |
|
|
KCQ60A03LDIODE SCHOTTKY 30V 60A TO-247 |
2,013 | 4.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 25 mA @ 30 V | 30 V | 60A | -40°C ~ 150°C | 500 mV @ 30 A | |
|
|
KCH30A20DIODE SCHOTTKY 200V 30A TO-247 |
2,325 | 4.50 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 200 V | 200 V | 30A | -40°C ~ 150°C | 920 mV @ 15 A | |
|
|
FSQS05A065DIODE SCHOTTKY 65V 5A TO-220 2PI |
2,795 | 0.42 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 400 µA @ 65 V | 65 V | 5A | -40°C ~ 150°C | 580 mV @ 5 A | |
|
|

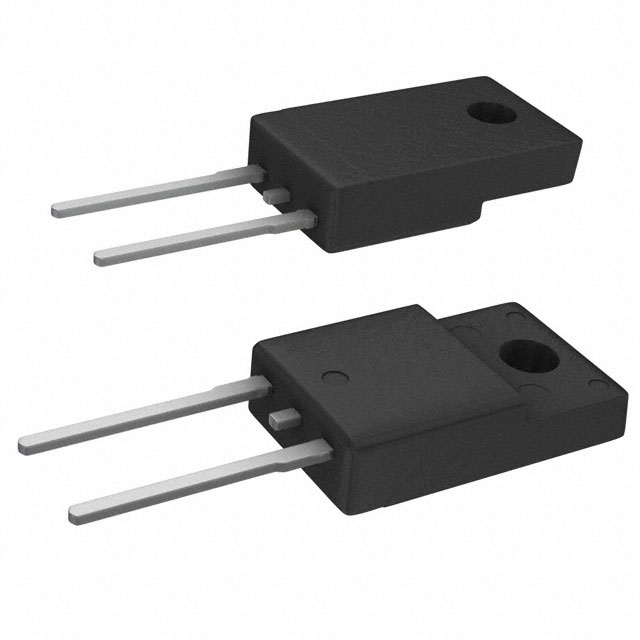

FCQS10A065DIODE SCHOTTKY 65V 10A TO-220 FU |
3,576 | 0.62 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 400 µA @ 65 V | 65 V | 10A | -40°C ~ 150°C | 610 mV @ 5 A | |
|
|
FCQS10A045DIODE SCHOTTKY 45V 10A TO-220 FU |
2,817 | 0.62 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 350 µA @ 45 V | 45 V | 10A | -40°C ~ 150°C | 570 mV @ 5 A | |
|
|
FCHS10A08DIODE SCHOTTKY 85V 10A TO-220 FU |
3,335 | 0.62 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 80 V | 80 V | 10A | -40°C ~ 150°C | 720 mV @ 5 A | |
|
|
KSF30A20BDIODE FAST RECOVERY 200V 30A TO- |
3,616 | 2.40 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 25 µA @ 200 V | 200 V | 30A | -40°C ~ 150°C | 980 mV @ 30 A | |
|
|
KCF25A40DIODE FAST RECOVERY 400V 25A TO- |
2,998 | 2.51 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 50 µA @ 400 V | 400 V | 25A | -40°C ~ 150°C | 1.25 V @ 12.5 A | |
|
|
KSF30A40BDIODE FAST RECOVERY 400V 30A TO- |
3,305 | 2.59 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 50 µA @ 400 V | 400 V | 30A | -40°C ~ 150°C | 1.25 V @ 30 A |
