| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCHS20A12DIODE SCHOTTKY 120V 20A TO-220 F |
3,931 | 1.31 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 120 V | 120 V | 20A | -40°C ~ 150°C | 890 mV @ 10 A | |
|
FSU05D60DIODE FAST RECOVERY 600V 5A TO-2 |
2,905 | 1.37 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 10 µA @ 600 V | 600 V | 5A | -55°C ~ 175°C | 2.3 V @ 5 A | |
|
|
FCHS20A08DIODE SCHOTTKY 80V 20A TO-220 FU |
3,933 | 1.63 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 150 µA @ 80 V | 80 V | 20A | -40°C ~ 150°C | 750 mV @ 10 A | |
|

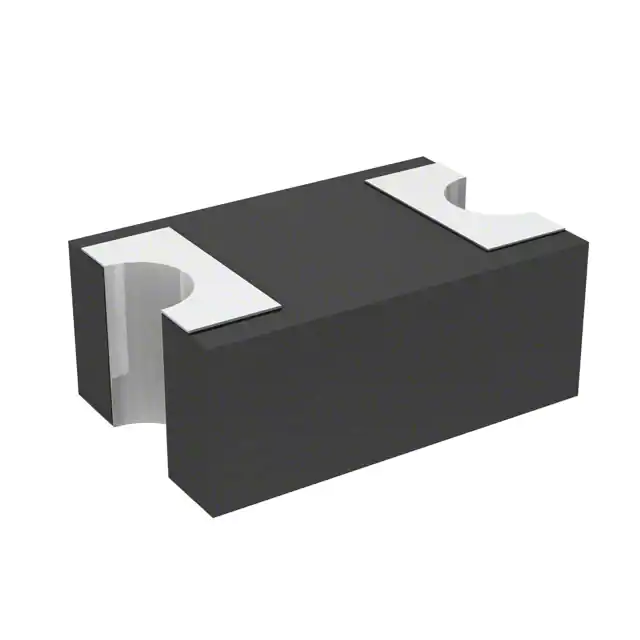

SD0805S040S1R0DIODE SCHOTTKY 0805 |
2,711 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 40 V | 40 V | 1A (DC) | -55°C ~ 125°C | 550 mV @ 1 A | |
|
NA03HSA08DIODE SCHOTTKY 80V 3A DO-221BC |
3,476 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 80 V | 80 V | 3A | -40°C ~ 150°C | 700 mV @ 3 A | |
|
SD3220S040S3R0DIODE SCHOTTKY 40V 3A SMC |
3,268 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A (DC) | -55°C ~ 125°C | 500 mV @ 3 A | |
|
|
FSQS10A045DIODE SCHOTTKY 45V 10A TO-220 2P |
2,425 | 0.46 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 600 µA @ 45 V | 45 V | 10A | -40°C ~ 150°C | 540 mV @ 10 A | |
|
SD1206T040S3R0DIODE SCHOTTKY 0805 |
3,510 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 3A (DC) | -55°C ~ 125°C | 550 mV @ 3 A | |
|
|
NA03HA20DIODE SCHOTTKY 200V 3A DO-221BC |
4,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 200 V | 200 V | 3A | -40°C ~ 150°C | 900 mV @ 3 A | |
|
|
NA05HSA08DIODE SCHOTTKY 80V 5A DO-221BC |
2,076 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 80 V | 80 V | 5A | -40°C ~ 150°C | 700 mV @ 5 A | |
|
|
FCHS10A065DIODE SCHOTTKY 65V 10A TO-220 FU |
3,137 | 0.68 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 65 V | 65 V | 10A | -40°C ~ 150°C | 660 mV @ 5 A | |
|
|
FSQS10A065DIODE SCHOTTKY 65V 10A TO-220 2P |
3,984 | 0.43 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 65 V | 65 V | 10A | -40°C ~ 150°C | 600 mV @ 10 A | |
|
|
FSQS05A045DIODE SCHOTTKY 45V 5A TO-220 2PI |
3,428 | 0.43 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 350 µA @ 45 V | 45 V | 5A | -40°C ~ 150°C | 540 mV @ 5 A | |
|
|
FRF10A20DIODE FAST RECOVERY 200V 10A TO- |
2,575 | 0.65 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 20 µA @ 200 V | 200 V | 10A | -40°C ~ 150°C | 980 mV @ 5 A | |
|
|
FCF10A20DIODE FAST RECOVERY 200V 10A TO- |
2,260 | 0.65 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 20 µA @ 200 V | 200 V | 10A | -40°C ~ 150°C | 980 mV @ 5 A | |
|
|
FRF10A40DIODE FAST RECOVERY 400V 10A TO- |
3,930 | 0.65 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 30 µA @ 400 V | 400 V | 10A | -40°C ~ 150°C | 1.25 V @ 5 A | |
|
|
FCH10A20DIODE SCHOTTKY 200V 10A TO-220 F |
2,621 | 0.75 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 200 V | 200 V | 10A | -40°C ~ 150°C | 900 mV @ 5 A | |
|
|
FCH10A15DIODE SCHOTTKY 150V 10A TO-220 F |
2,562 | 0.75 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 150 V | 150 V | 10A | -40°C ~ 150°C | 880 mV @ 5 A | |
|
|
FCHS30A12DIODE SCHOTTKY 120V 30A TO-220 F |
2,252 | 0.75 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 120 V | 120 V | 30A | -40°C ~ 150°C | 900 mV @ 15 A | |
|
|
FCHS10A12DIODE SCHOTTKY 120V 10A TO-220 F |
2,495 | 0.75 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 120 V | 120 V | 10A | -40°C ~ 150°C | 860 mV @ 10 A |
