| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

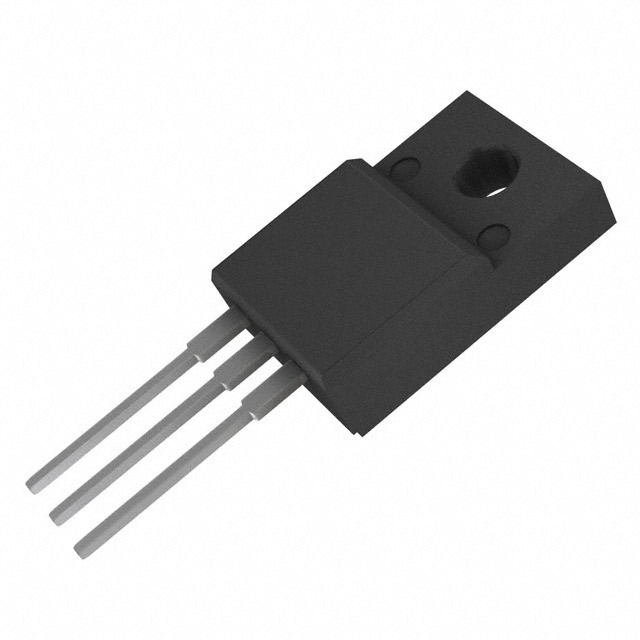

FRQS20A045DIODE SCHOTTKY 45V 20A TO-220 FU |
3,995 | 0.75 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 600 µA @ 45 V | 45 V | 20A | -40°C ~ 150°C | 570 mV @ 20 A | |
|
|
FCH30AU10DIODE SCHOTTKY 100V 30A TO-220 F |
2,701 | 0.75 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 100 V | 100 V | 30A | -40°C ~ 150°C | 940 mV @ 15 A | ||
|
|
GCQ10A06DIODE SCHOTTKY 60V 10A TO-220 |
2,312 | 1.16 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 5 mA @ 60 V | 60 V | 10A | -40°C ~ 150°C | 580 mV @ 5 A | |
|
|
FSF05A20BDIODE FAST RECOVERY 200V 5A TO-2 |
3,118 | 0.54 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 20 µA @ 200 V | 200 V | 5A | -40°C ~ 150°C | 980 mV @ 5 A | |
|
|
FCQS30AU045DIODE SCHOTTKY 45V 30A TO-220 FU |
3,036 | 0.68 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 600 µA @ 45 V | 45 V | 30A | -40°C ~ 150°C | 600 mV @ 15 A | |
|
|
GSF05A20DIODE FAST RECOVERY 200V 5A TO-2 |
3,704 | 1.05 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 20 µA @ 200 V | 200 V | 5A | -40°C ~ 150°C | 980 mV @ 5 A | |
|
|
FCHS30A045DIODE SCHOTTKY 45V 30A TO-220 FU |
2,583 | 0.84 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 45 V | 45 V | 30A | -40°C ~ 150°C | 600 mV @ 15 A | |
|
|
FRQS20A065DIODE SCHOTTKY 65V 20A TO-220 FU |
2,125 | 0.59 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 65 V | 65 V | 20A | -40°C ~ 150°C | 630 mV @ 10 A | |
|
|
KSF60F60BDIODE FAST RECOVERY 600V 60A TO- |
2,075 | 3.08 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 85 ns | 50 µA @ 600 V | 600 V | 60A | -55°C ~ 175°C | 1.7 V @ 60 A | |
|
|
FCF06A40DIODE FAST RECOVERY 400V 6A TO-2 |
3,290 | 0.55 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 20 µA @ 400 V | 400 V | 6A | -40°C ~ 150°C | 1.25 V @ 3 A | |
|
|
FSQS30A045DIODE SCHOTTKY 45V 30A TO-220 2P |
2,333 | 0.95 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 45 V | 45 V | 30A | -40°C ~ 150°C | 560 mV @ 30 A | |
|
|
FCF10A40DIODE FAST RECOVERY 400V 10A TO- |
3,549 | 0.98 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 30 µA @ 400 V | 400 V | 10A | -40°C ~ 150°C | 1.25 V @ 5 A | |
|
|
KSQ15A04DIODE SCHOTTKY 40V 15A TO-247 2P |
3,833 | 1.82 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 15 mA @ 40 V | 40 V | 15A | -40°C ~ 150°C | 550 mV @ 15 A | |
|
|
KCF16A40DIODE FAST RECOVERY 400V 16A TO- |
3,372 | 2.13 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 30 µA @ 400 V | 400 V | 16A | -40°C ~ 150°C | 1.25 V @ 8 A | |
|
|
KSF30H60DIODE FAST RECOVERY 600V 30A TO- |
3,576 | 2.16 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 130 ns | 50 µA @ 600 V | 600 V | 30A | -40°C ~ 175°C | 1.35 V @ 30 A | |
|
|
KCF16A20DIODE FAST RECOVERY 200V 16A TO- |
2,563 | 2.16 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 25 µA @ 200 V | 200 V | 16A | -40°C ~ 150°C | 980 mV @ 8 A | |
|
|
KCF25A20DIODE FAST RECOVERY 200V 25A TO- |
2,317 | 2.23 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 25 µA @ 200 V | 200 V | 25A | -40°C ~ 150°C | 980 mV @ 12.5 A | |
|
|
KCU20A30DIODE FAST RECOVERY 300V 20A TO- |
3,233 | 2.23 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 25 µA @ 300 V | 300 V | 20A | -40°C ~ 150°C | 1.4 V @ 10 A | |
|
FCF16A40DIODE FAST RECOVERY 400V 16A TO- |
3,919 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 45 ns | 30 µA @ 400 V | 400 V | 16A | -40°C ~ 150°C | 1.25 V @ 8 A | |
|
FSF05A20DIODE FAST RECOVERY 200V 5A TO-2 |
2,782 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 20 µA @ 200 V | 200 V | 5A | -40°C ~ 150°C | 980 mV @ 5 A |
