| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF27520070A1.T1PIV 200V IO 90A TRR 70NS CHIP SI |
3,280 | 4.82 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 70 ns | 60 µA @ 200 V | 200 V | 90A | 150°C (Max) | 1 V @ 90 A | |
|

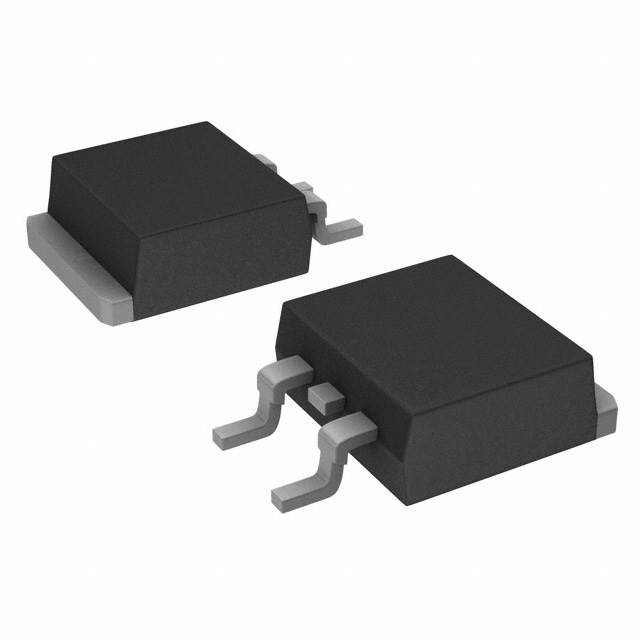

12TQ200STRDIODE SCHOTTKY 200V 15A D2PAK |
3,666 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 5V, 1MHz | - | 1 mA @ 200 V | 200 V | 15A | -55°C ~ 175°C | 920 mV @ 15 A | |
|

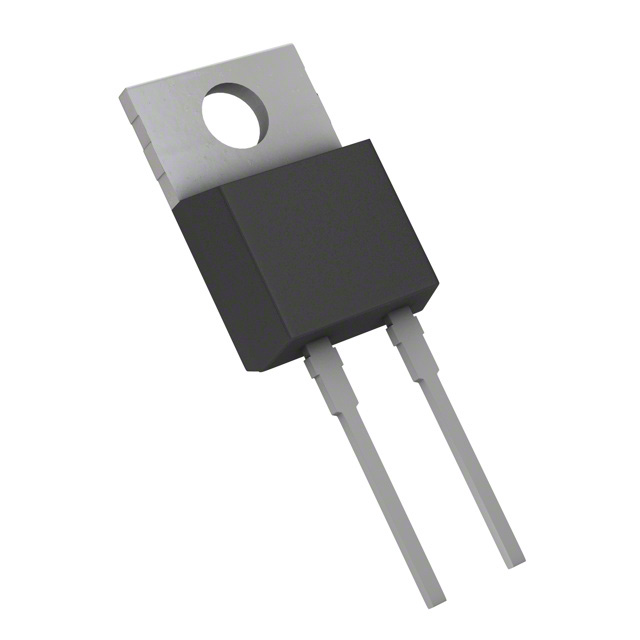

SDUR2060DIODE GEN PURP 600V 20A TO220AC |
3,364 | 0.39 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 600 V | 600 V | 20A | -55°C ~ 150°C | 2 V @ 20 A | |
|
|
ST12100DIODE SCHOTTKY 100V 12A TO220AC |
3,781 | 0.40 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 100 V | 100 V | 12A | -55°C ~ 150°C | 750 mV @ 12 A | |
|
|
12TQ150STRDIODE SCHOTTKY 150V 15A D2PAK |
3,970 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 5V, 1MHz | - | 1 mA @ 150 V | 150 V | 15A | -55°C ~ 175°C | 860 mV @ 15 A | |
|
|
SD175SC100A.T1PIV 100V IO 30A CHIP SIZE 175MIL |
3,646 | 2.60 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1200pF @ 5V, 1MHz | - | 750 µA @ 100 V | 100 V | 30A | -55°C ~ 200°C | 840 mV @ 30 A | |
|
|
SD175SC200A.T1PIV 200V IO 30A CHIP SIZE 175MIL |
2,725 | 2.60 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 600pF @ 5V, 1MHz | - | 700 µA @ 200 V | 200 V | 30A | -55°C ~ 200°C | 920 mV @ 30 A | |
|
|
UF27520070A1.T2PIV 200V IO 90A TRR 70NS CHIP SI |
3,100 | 2.64 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 70 ns | 60 µA @ 200 V | 200 V | 90A | 150°C (Max) | 1 V @ 90 A | |
|
|
SD165SC150B.T1PIV 150V IO 30A CHIP SIZE 165MIL |
3,703 | 2.67 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1000pF @ 5V, 1MHz | - | 1 mA @ 150 V | 150 V | 30A | -55°C ~ 200°C | 890 mV @ 30 A | |
|
|
SD175SA30A.T1PIV 30V IO 30A CHIP SIZE 175MIL |
2,188 | 2.67 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 2200pF @ 5V, 1MHz | - | 4 mA @ 30 V | 30 V | 30A | -55°C ~ 150°C | 490 mV @ 30 A | |
|
|
SD175SA30B.T1PIV 30V IO 30A CHIP SIZE 175MIL |
3,587 | 2.67 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 2200pF @ 5V, 1MHz | - | 4 mA @ 30 V | 30 V | 30A | -55°C ~ 150°C | 490 mV @ 30 A | |
|
|
SD175SA45A.T1PIV 45V IO 30A CHIP SIZE 175MIL |
2,455 | 2.67 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1600pF @ 5V, 1MHz | - | 3 mA @ 45 V | 45 V | 30A | -55°C ~ 150°C | 560 mV @ 30 A | |
|
|
SD175SB45A.T1PIV 45V IO 30A CHIP SIZE 175MIL |
2,368 | 2.67 |
RFQ |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1600pF @ 5V, 1MHz | - | 800 µA @ 45 V | 45 V | 30A | -55°C ~ 175°C | 640 mV @ 30 A | ||
|
|
SD175SB45B.T1PIV 45V IO 30A CHIP SIZE 175MIL |
3,201 | 2.67 |
RFQ |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1600pF @ 5V, 1MHz | - | 800 µA @ 45 V | 45 V | 30A | -55°C ~ 175°C | 640 mV @ 30 A |
