| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STD5200TRDIODE SCHOTTKY 200V DPAK |
1,572 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 150 µA @ 200 V | 200 V | - | -55°C ~ 150°C | 1.6 V @ 5 A | |
|
SK215ATRDIODE SCHOTTKY 150V 2A SMA |
971 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 240pF @ 5V, 1MHz | - | 500 µA @ 150 V | 150 V | 2A | -55°C ~ 150°C | 950 mV @ 2 A | |
|
S3GTRDIODE GEN PURP 400V 3A SMC |
1,065 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.1 V @ 3 A | |
|
S3D06065ETRDIODE SCHOTTKY SILICON CARBIDE S |
1,000 | 2.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 382pF @ 0V, 1MHz | 0 ns | 8 µA @ 650 V | 650 V | 6A | -55°C ~ 175°C | 1.7 V @ 6 A | |
|
FR304GTADIODE GPP 400V 3A DO201AD |
2,405 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 4V, 1MHz | 150 ns | 5 µA @ 280 V | 400 V | 3A | -65°C ~ 150°C | 1.3 V @ 3 A | |
|
|
30WQ20FNTRDIODE SCHOTTKY 200V DPAK |
2,380 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 60pF @ 5V, 1MHz | - | 1 mA @ 200 V | 200 V | - | -40°C ~ 175°C | 890 mV @ 3 A | |
|
|
SICRS50650WTDIODE SCHOTTKY SILICON CARBIDE S |
195 | 22.66 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 4nF @ 0V, 1MHz | - | 500 µA @ 650 V | 650 V | 50A | -55°C ~ 175°C | 1.7 V @ 50 A | ||
|
|
113CNQ100SLPIV 100V, IO 110A, VF 0.81V PACK |
148 | 25.05 |
RFQ |
Datasheet |
Box | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 1180pF @ 5V, 1MHz | - | 1 mA @ 100 V | 100 V | 110A | 150°C (Max) | 1 V @ 110 A | |
|

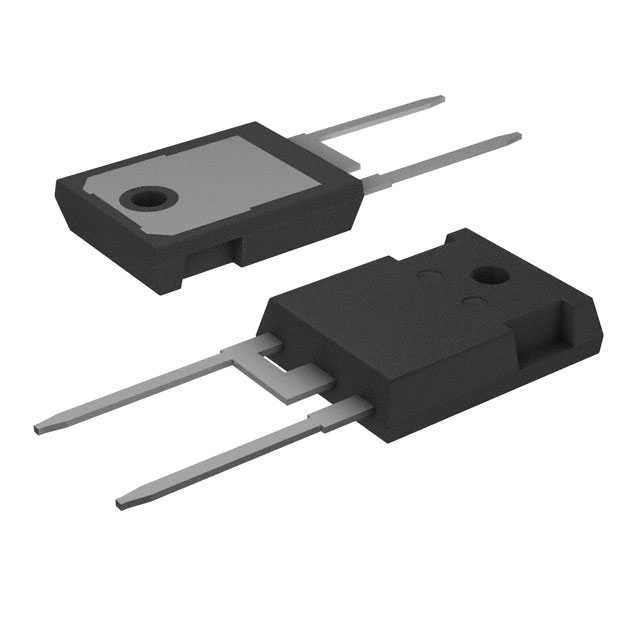

SDUR6060WDIODE GEN PURP 600V 60A TO247AC |
2,240 | 2.75 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 100 µA @ 600 V | 600 V | 60A | -55°C ~ 150°C | 2 V @ 60 A | |
|
|
MBR103510A, 35V, TO-220AC, SCHOTTKY REC |
825 | 0.69 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 750pF @ 5V, 1MHz | - | 100 µA @ 35 V | 35 V | 10A | -55°C ~ 150°C | 840 mV @ 10 A | ||
|
|
30BQ060TRDIODE SCHOTTKY 60V SMC |
353 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 180pF @ 5V, 1MHz | - | 500 µA @ 60 V | 60 V | - | -55°C ~ 150°C | 580 mV @ 3 A | |
|
|
SK34TRDIODE SCHOTTKY 40V 3A SMC |
247 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 60pF @ 4V, 1MHz | - | 50 µA @ 40 V | 40 V | 3A | -55°C ~ 150°C | 630 mV @ 3 A | |
|
|
ER3GTRSMT SUPER FAST RECTIFIER |
172 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 400 V | 400 V | 3A | -65°C ~ 150°C | 1.25 V @ 3 A | |
|
ER2GTRDIODE GEN PURP 400V 2A SMB |
411 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | 35 ns | 5 µA @ 400 V | 400 V | 2A | -65°C ~ 150°C | 1.25 V @ 2 A | |
|
|
30BQ150TRDIODE SCHOTTKY 150V SMC |
410 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 5V, 1MHz | - | 1 mA @ 150 V | 150 V | - | -55°C ~ 175°C | 860 mV @ 3 A | |
|
SUR1060DIODE STANDARD 600V TO220AC |
467 | 0.57 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 50 ns | 5 µA @ 600 V | 600 V | - | -55°C ~ 150°C | 2.2 V @ 10 A | |
|
|
UF27520070A1.TDIODE AVALANCHE 200V 90A DIE |
3,492 | 6.06 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 70 ns | 60 µA @ 200 V | 200 V | 90A | 150°C (Max) | 1 V @ 90 A | |
.jpg)
|
243NQ080-1DIODE SCHOTTKY 80V 240A PRM1-1 |
3,196 | 38.73 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 5500pF @ 5V, 1MHz | - | 6 mA @ 80 V | 80 V | 240A | -55°C ~ 175°C | 860 mV @ 240 A | |
|
|
241NQ045-1DIODE SCHOTTKY 45V 240A PRM1-1 |
3,569 | 39.21 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 10300pF @ 5V, 1MHz | - | 20 mA @ 45 V | 45 V | 240A | -55°C ~ 175°C | 690 mV @ 240 A | |
|
|
S2JTRDIODE GEN PURP 600V 2A SMB |
53,875 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A |
