| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1F6TADIODE GEN PURP 800V 1A R-1 |
2,145 | 0.03 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 800 V | 800 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
1F7TADIODE GEN PURP 1KV 1A R-1 |
3,395 | 0.03 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
FR1ATADIODE GEN PURP 50V 1A SMB |
2,984 | 0.03 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR1BTADIODE GEN PURP 100V 1A SMB |
2,020 | 0.03 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR1DTADIODE GEN PURP 200V 1A SMB |
3,536 | 0.03 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR1GTADIODE GEN PURP 400V 1A SMB |
2,995 | 0.03 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR1JTADIODE GEN PURP 600V 1A SMB |
3,091 | 0.03 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 250 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR1KTADIODE GEN PURP 800V 1A SMB |
3,770 | 0.03 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 500 ns | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|

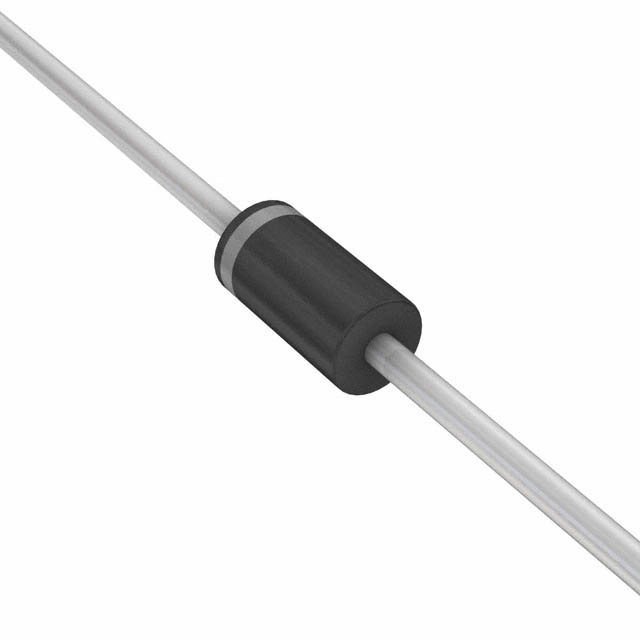

1N4005GDIODE GEN PURP 600V 1A DO41 |
3,783 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
1N4006GDIODE GEN PURP 800V 1A DO41 |
3,035 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
FR101GTADIODE GPP 50V 1A DO41 |
2,357 | 0.04 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 35 V | 50 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR102GTADIODE GPP 100V 1A DO41 |
3,750 | 0.04 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 70 V | 100 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR103GTADIODE GPP 200V 1A DO41 |
2,039 | 0.04 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 140 V | 200 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR104GTADIODE GPP 400V 1A DO41 |
2,983 | 0.04 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 280 V | 400 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR105GTADIODE GPP 600V 1A DO41 |
2,321 | 0.04 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 250 ns | 5 µA @ 420 V | 600 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FR106GTADIODE GPP 800V 1A DO41 |
3,254 | 0.04 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 560 V | 800 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|

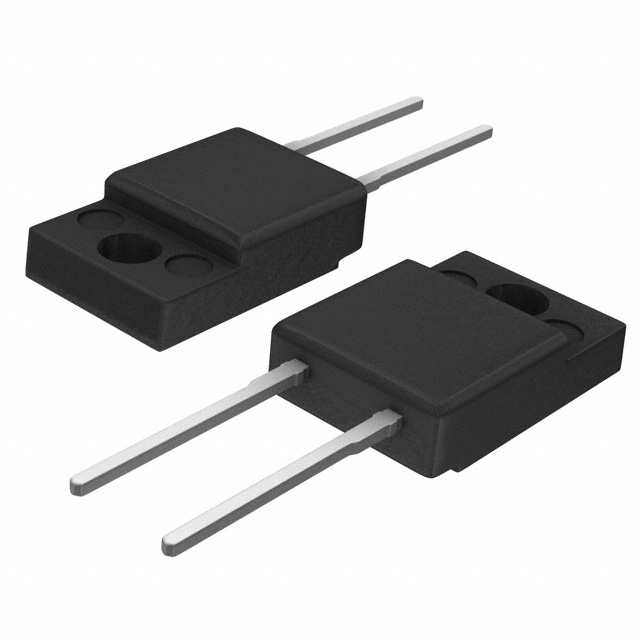

SDURF560ADIODE GEN PURP 600V 5A ITO220AC |
2,097 | 0.19 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 5 µA @ 600 V | 600 V | 5A | -55°C ~ 150°C | 1.7 V @ 5 A | |
|
FR151GTADIODE GPP 50V 1.5A DO15 |
3,374 | 0.07 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 4V, 1MHz | 150 ns | 5 µA @ 35 V | 50 V | 1.5A | -65°C ~ 150°C | 1.3 V @ 1.5 A | |
|
|
FR152GTADIODE GPP 100V 1.5A DO15 |
3,812 | 0.07 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 4V, 1MHz | 150 ns | 5 µA @ 70 V | 100 V | 1.5A | -65°C ~ 150°C | 1.3 V @ 1.5 A | |
|
|
FR153GTADIODE GPP 200V 1.5A DO15 |
2,056 | 0.07 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 4V, 1MHz | 150 ns | 5 µA @ 140 V | 200 V | 1.5A | -65°C ~ 150°C | 1.3 V @ 1.5 A |
