| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12TQ100DIODE SCHOTTKY 100V 15A TO220AC |
1,950 | 0.99 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 500pF @ 5V, 1MHz | - | 550 µA @ 100 V | 100 V | 15A | -55°C ~ 175°C | 840 mV @ 15 A | |
.jpg)
|
249NQ150-1DIODE SCHOTTKY 150V PRM1-1 |
593 | 39.21 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 6000pF @ 5V, 1MHz | - | 6 mA @ 150 V | 150 V | - | -55°C ~ 175°C | 1.07 V @ 240 A | |
|
|
19TQ015CJDIODE SCHOTTKY 15V TO220AC |
9,115 | 1.33 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 2500pF @ 5V, 1MHz | - | 10.5 mA @ 15 V | 15 V | - | -55°C ~ 100°C | 360 mV @ 19 A | |
|
S1GTRDIODE GEN PURP 400V 1A SMA |
738,004 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
S1MTRDIODE GEN PURP 1KV 1A SMA |
492,611 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
SICRF101200DIODE SCHOTTKY SILICON CARBIDE S |
2,826 | 8.76 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 640pF @ 0V, 1MHz | 0 ns | 100 µA @ 1200 V | 1200 V | 10A | -55°C ~ 175°C | 1.8 V @ 10 A | |
|
1N4148WTRDIODE GEN PURP 75V 250MA SOD123 |
721,787 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 250mA (DC) | -55°C ~ 150°C | 1.25 V @ 150 mA | |
|

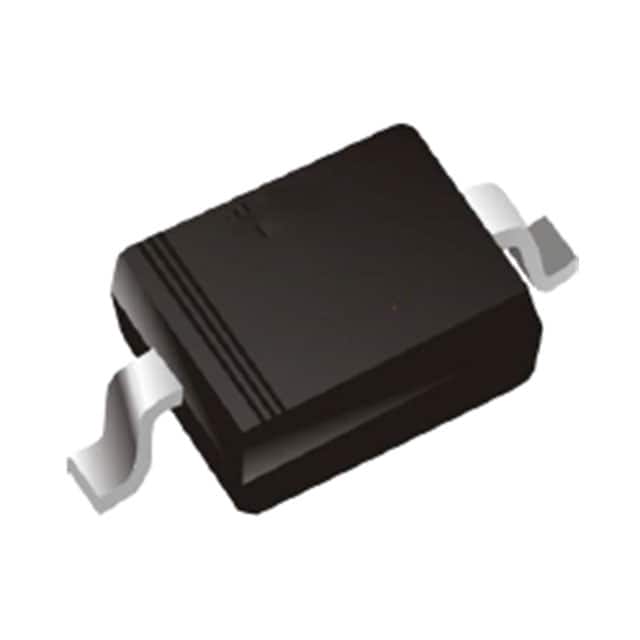

1N4148WSTRDIODE GEN PURP 75V 300MA SOD323 |
419,126 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 300mA (DC) | -65°C ~ 100°C | 1 V @ 300 mA | |
|
SDUR6030WDIODE GEN PURP 300V 60A TO247AC |
11,922 | 2.67 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 10 µA @ 300 V | 300 V | 60A | -55°C ~ 150°C | 1.4 V @ 60 A | |
|
60CPQ150DIODE SCHOTTKY 150V TO247AD |
1,060 | 3.97 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 820pF @ 5V, 1MHz | - | 100 µA @ 150 V | 150 V | - | -55°C ~ 175°C | 830 mV @ 30 A | |
|
123SPC100ADIODE SCHOTTKY 100V 120A SPD-3A |
3,321 | 14.17 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 3000pF @ 5V, 1MHz | - | 2 mA @ 100 V | 100 V | 120A | -55°C ~ 175°C | 870 mV @ 120 A | |
|
123SPD100ADIODE SCHOTTKY 100V 120A SPD-4 |
1,304 | 30.19 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 2400pF @ 5V, 1MHz | - | 2 mA @ 100 V | 100 V | 120A | -55°C ~ 175°C | 870 mV @ 120 A | |
|
DSS16UTRSCHOTTKY 60V SOD-123FL |
110,058 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 150°C | 670 mV @ 1 A | |
|
|
RS1MTRDIODE GEN PURP 1KV 1A SMA |
587,161 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
DSS110UTRSCHOTTKY 100V SOD-123FL |
301,576 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 50 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 800 mV @ 1 A | |
|

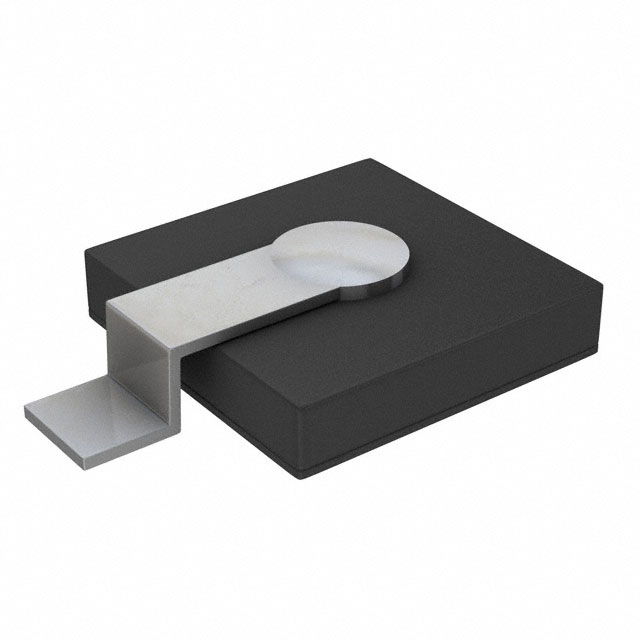

63SPB100ADIODE SCHOTTKY 100V 60A SPD-2A |
6,130 | 12.16 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1500pF @ 5V, 1MHz | - | 1 mA @ 100 V | 100 V | 60A | -55°C ~ 175°C | 870 mV @ 60 A | |
|
S3KBTRDIODE GEN PURP 800V 3A SMB |
3,446 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 800 V | 800 V | 3A | -65°C ~ 150°C | 1.2 V @ 3 A | |
|
|
124NQ060-1DIODE SCHOTTKY 60V 120A PRM1-1 |
408 | 36.47 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 5200pF @ 5V, 1MHz | - | 20 mA @ 60 V | 60 V | 120A | -55°C ~ 125°C | 540 mV @ 120 A | |
|
|
ES1JTRDIODE GEN PURP 600V 1A SMA |
175,247 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
122NQ030-1DIODE SCHOTTKY 30V 120A PRM1-1 |
365 | 36.47 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 7400pF @ 5V, 1MHz | - | 10 mA @ 30 V | 30 V | 120A | -55°C ~ 150°C | 490 mV @ 120 A |
