| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRD10200TRDIODE SCHOTTKY 200V DPAK |
22,611 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 5V, 1MHz | - | 1 mA @ 200 V | 200 V | - | -55°C ~ 150°C | 900 mV @ 10 A | |
|
SK510BTRDIODE SCHOTTKY 100V SMB |
47,814 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 100 µA @ 100 V | 100 V | - | -55°C ~ 150°C | 850 mV @ 5 A | |
|

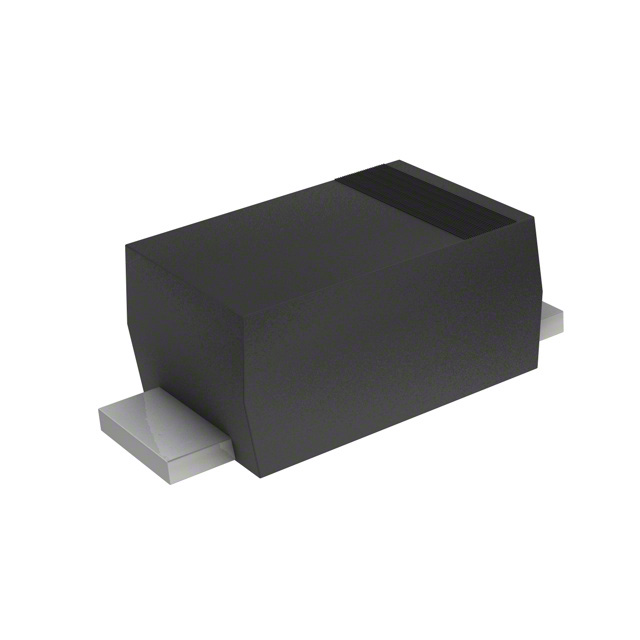

DSS115UTRSCHOTTKY 150V SOD-123FL |
12,833 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 50 µA @ 150 V | 150 V | 1A | -55°C ~ 150°C | 900 mV @ 1 A | |
|
|
MBRD1060TRDIODE SCHOTTKY 60V DPAK |
23,494 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 5V, 1MHz | - | 1 mA @ 60 V | 60 V | 10A | -55°C ~ 150°C | 800 mV @ 10 A | |
|
SB10150TADIODE SCHOTTKY 150V 10A DO201AD |
12,709 | 0.54 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 150 V | 150 V | 10A | -50°C ~ 150°C | 1.05 V @ 10 A | |
|
|
SDURD820TRDIODE GEN PURP 200V 8A DPAK |
20,132 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 200 V | 200 V | 8A | -55°C ~ 150°C | 1.2 V @ 8 A | |
|
UF4004GTARECOVERY RECTIFIERS 400V DO-41 |
34,961 | 0.36 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | - | |
|
|
SB3100TADIODE SCHOTTKY 100V DO201AD |
18,350 | 0.42 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 250pF @ 5V, 1MHz | - | 1 mA @ 100 V | 100 V | - | -55°C ~ 150°C | 790 mV @ 3 A | |
|
MBR1045STRDIODE SCHOTTKY 45V 10A TO277B |
149,058 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 500 mV @ 10 A | |
|
|
90SQ035DIODE SCHOTTKY 35V 9A DO201AD |
3,382 | 0.71 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 900pF @ 5V, 1MHz | - | 1.75 mA @ 35 V | 35 V | 9A | -55°C ~ 150°C | 570 mV @ 18 A | |
|
SICR10650DIODE SCHOTTKY SILICON CARBIDE S |
230 | 3.35 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 695pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 10A | -55°C ~ 175°C | 1.7 V @ 10 A | |
|
|
90SQ040DIODE SCHOTTKY 40V 9A DO201AD |
6,399 | 0.71 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 900pF @ 5V, 1MHz | - | 1.75 mA @ 40 V | 40 V | 9A | -55°C ~ 150°C | 570 mV @ 18 A | |
|
|
95SQ015DIODE SCHOTTKY 15V 9A DO201AD |
7,779 | 0.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 1300pF @ 5V, 1MHz | - | - | 15 V | 9A | -55°C ~ 125°C | 340 mV @ 9 A | |
|
|
90SQ045TADIODE SCHOTTKY 45V 9A DO201AD |
4,216 | 0.72 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 900pF @ 5V, 1MHz | - | 1.75 mA @ 45 V | 45 V | 9A | -55°C ~ 150°C | 570 mV @ 18 A | |
|
SICRF10650DIODE SCHOTTKY SILICON CARBIDE S |
192 | 3.88 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 695pF @ 0V, 1MHz | 0 ns | 100 µA @ 650 V | 650 V | 10A | -55°C ~ 175°C | 1.7 V @ 10 A | |
|
|
SB5100TADIODE SCHOTTKY 100V 5A DO201AD |
43,348 | 0.46 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 250pF @ 5V, 1MHz | - | 500 µA @ 100 V | 100 V | 5A | -55°C ~ 150°C | 850 mV @ 5 A | |
|
|
SB3200TADIODE SCHOTTKY 200V 3A DO201AD |
21,039 | 0.46 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 150pF @ 4V, 1MHz | - | 1 mA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 900 mV @ 3 A | |
|
|
SB5200TADIODE SCHOTTKY 200V 5A DO201AD |
4,994 | 0.46 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 1.1 V @ 5 A | |
|
|
SBL5100TADIODE SCHOTTKY 100V DO201AD |
1,396 | 0.47 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 100 V | 100 V | - | -55°C ~ 150°C | 850 mV @ 5 A | |
|
|
S1BBTRDIODE GEN PURP 100V 1A SMB |
24,107 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
