| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH3R02SDIODE GEN PURP 200V 3A SMC |
3,673 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 3 µA @ 200 V | 200 V | 3A | 175°C (Max) | 1 V @ 3 A | |
|
STTH5R06DJF-TRDIODE GEN PURP 600V 5A POWERFLAT |
3,932 | 1.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 55 ns | 60 µA @ 600 V | 600 V | 5A | 175°C (Max) | 2 V @ 5 A | |
|
|
STPS5L60SYDIODE SCHOTTKY 60V 5A SMC |
3,423 | 1.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Q Automotive | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 220 µA @ 60 V | 60 V | 5A | -40°C ~ 150°C | 520 mV @ 5 A |
|
STTH110UFYDIODE GEN PURP 1KV 1A SMBFLAT |
3,204 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -40°C ~ 175°C | 1.7 V @ 1 A |
|
STTH8R03DJF-TRDIODE GEN PURP 300V 8A POWERFLAT |
3,196 | 2.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 40 µA @ 300 V | 300 V | 8A | 175°C (Max) | 1.3 V @ 8 A | |
|
STTH802DDIODE GEN PURP 200V 8A TO220AC |
2,335 | 1.15 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 6 µA @ 200 V | 200 V | 8A | 175°C (Max) | 1.05 V @ 8 A | |
|

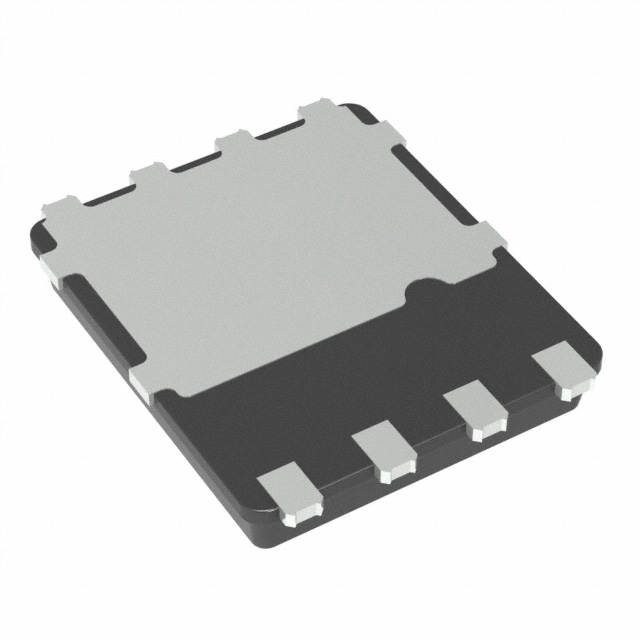

STPS3045DJFY-TRDIODE SCHOTTKY 45V 30A POWERFLAT |
3,205 | 1.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount, Wettable Flank | - | - | 300 µA @ 45 V | 45 V | 30A | -40°C ~ 175°C | 680 mV @ 30 A |
|
STTH30RQ06G-TRDIODE GEN PURP 600V 30A D2PAK |
3,100 | 2.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ECOPACK® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 55 ns | 40 µA @ 600 V | 600 V | 30A | 175°C (Max) | 2.95 V @ 30 A |
|
STPS10H60SFYAUTOMOTIVE 60V LOW IR POWER SCHO |
3,774 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 20 µA @ 60 V | 60 V | 10A | -40°C ~ 175°C | 790 mV @ 10 A |
|
STPS745G-TRDIODE SCHOTTKY 45V 7.5A D2PAK |
2,176 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 7.5A | 175°C (Max) | 840 mV @ 15 A | |
|
|
STTH3002G-TRDIODE GEN PURP 200V 30A D2PAK |
3,580 | 2.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 20 µA @ 200 V | 200 V | 30A | 175°C (Max) | 1.05 V @ 30 A | |
|
|
STPS10M60SFYAUTOMOTIVE 60V LOWVF POWER SCHOT |
3,372 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 60 V | 60 V | 10A | -40°C ~ 175°C | 650 mV @ 10 A |
;;2.jpg)
|
STPS1045BY-TRDIODE SCHOTTKY 45V 10A DPAK |
2,488 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 10A | -40°C ~ 175°C | 630 mV @ 10 A | |
|
FERD30H100STSDIODE RECT 100V 30A TO220AB |
3,557 | 1.24 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | FERD (Field Effect Rectifier Diode) | Active | Through Hole | - | - | 130 µA @ 100 V | 100 V | 30A | 175°C (Max) | 745 mV @ 30 A | |
|
|
STPS30170DJF-TRDIODE SCHOTTKY 170V 30A POWRFLAT |
3,542 | 1.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 15 µA @ 170 V | 170 V | 30A | 150°C (Max) | 950 mV @ 30 A | |
|
|
STPS1045BDIODE SCHOTTKY 45V 10A DPAK |
2,383 | 1.27 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 10A | 175°C (Max) | 630 mV @ 10 A | |
|
|
STPS30L30DJF-TRDIODE SCHOTTKY 30V 30A POWERFLAT |
3,313 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 750 µA @ 30 V | 30 V | 30A | 150°C (Max) | 510 mV @ 30 A | |
|
STTH310RLDIODE GEN PURP 1KV 3A DO201AD |
3,393 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 1000 V | 1000 V | 3A | -40°C ~ 175°C | 1.7 V @ 3 A | |
|
|
STTH802SFYAUTOMOTIVE 200V ULTRAFAST RECOVE |
3,683 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 6 µA @ 200 V | 200 V | 8A | -40°C ~ 175°C | - |
|
|
STPS3L40SDIODE SCHOTTKY 40V 3A SMC |
3,278 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 3A | 150°C (Max) | 500 mV @ 3 A |
